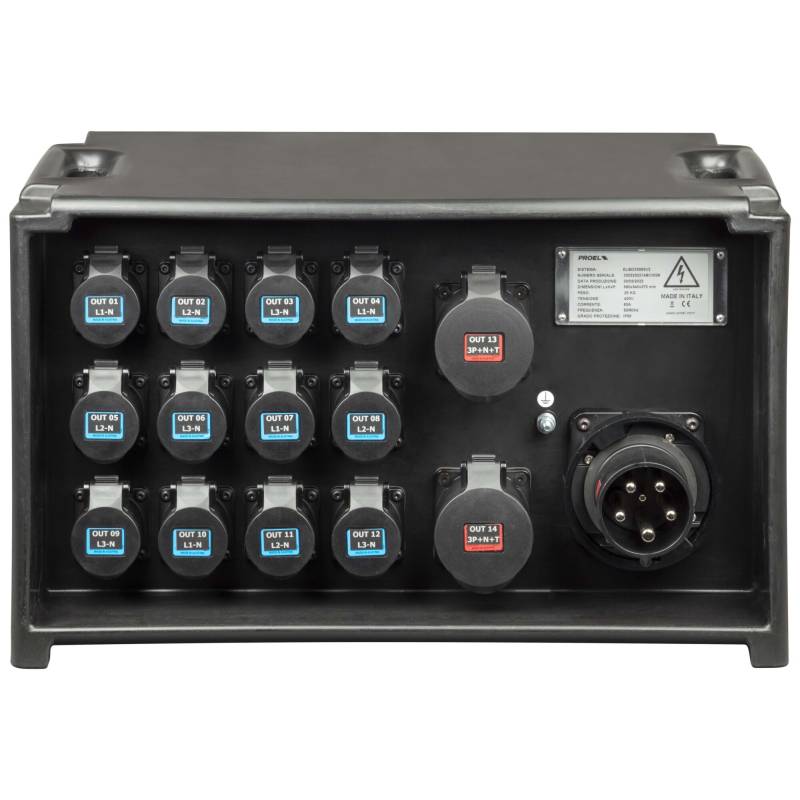

IP55 portable power box in shockproof plastic material. Equipped with: input with CEE straight plug 63A - 3P+N+E - IP67 - 400V with differential circuit breaker protection 63A 4P 0.03A / n. 2 outputs on CEE socket 32A - 3P+N+E - IP44 - 400V / n° 2 circuit breakers 32A 4P (3P+N) 400V / n. 12 outputs on CEE 16A socket - 2P+E - IP44 - 230V all with dedicated 16A (1P+N) thermal magnetic switch. Equipped with an illuminated mushroom emergency button and a socket with NAC3FPXTOP connector for remote emergency control. All controls are positioned under plastic doors with IP67 protection. Equipped with multifunction instruments for single phase (L1 - L2 - L3), as a further check for detecting the correct input voltage before arming the main switch. Earthing socket. Maximum applicable load 63A.
Input: 63A - 3P+N+E - IP67 - 400V plug with RCB 63amp 4p Ian 0.03A 415V.
Output: n. 2 x 32A - 3P+N+E - IP44 - 400V socket with dedicated MCB 32amp 4p (3P+N) 400V.
Output: n. 12 x 16A - 2P+E - IP44 - 230V socket with dedicated MCB 16amp 1p+N 230V.
Tools: 3 * LED multifunction instrument - AMP & VOLT for single phase (L1 - L2 - L3).
Dimension: W 560 * H 340 * D 350 mm
No downloadable documents available. For more information, contact us at info@yourmusiconline.it
