PROEL STAGE ELBOX5532V2

Cod: ELBOX5532V2


€1,707.00

Free shipping

Available only online for shipping or collection within 24/72 hours of ordering

Or 3 installments with Alma Pay

Yours in installments

The product is available in our remote warehouses but not physically in-store. Upon order, it will be processed within approximately 24 hours, with an estimated delivery time of 3 to 5 working days.

headset icon Ask an expert

We are musicians and at your service, contact us!
info@yourmusiconline.it

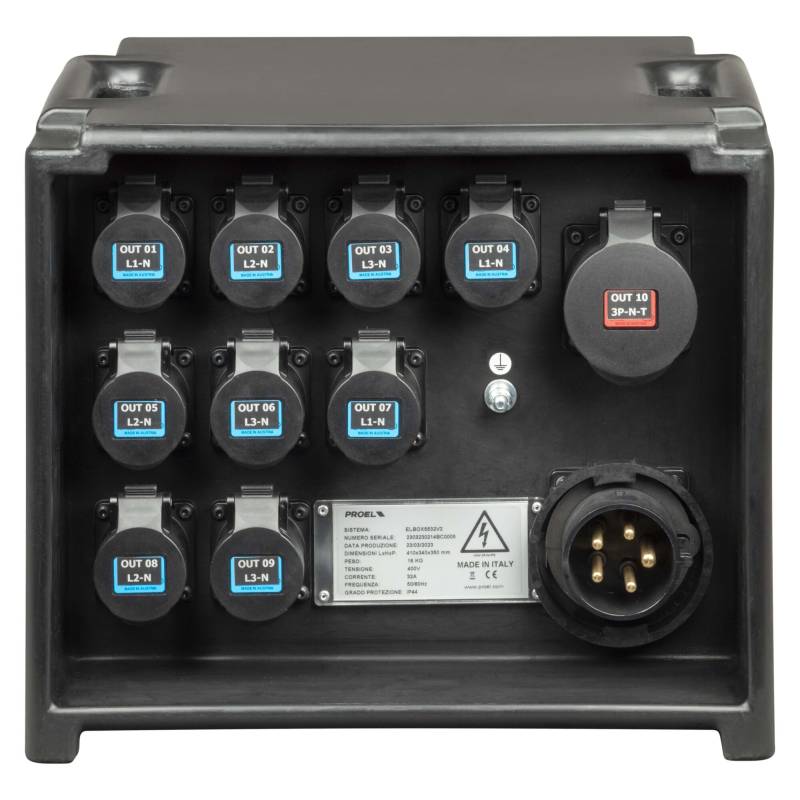

IP55 portable power box in shockproof plastic material. Equipped with: input with straight plug CEE 32A - 3P+N+E - IP67 - 400V with differential circuit breaker protection 32A 4P 0.03A 415V / relaunch via CEE 32A - 3P+N+E - IP44 - 400V socket with circuit breaker 32A 4P 415V / n. 9 outputs on CEE 16A - 2P+E - IP44 - 230V socket, all with dedicated 16A - (1P+N) thermal magnetic switch. All controls are positioned under plastic doors with IP67 protection. Equipped with multifunction instruments for single phase (L1 - L2 - L3), as a further check for detecting the correct input voltage before arming the main switch. Earthing socket. Maximum applicable load 32A.

Input: 32A - 3P+N+E - IP44 - 400V plug with RCB 32amp 4p Ian 0.03A 415V.

Output: n. 1 x 32A - 3P+N+E - IP44 - 400V socket WITH dedicated MCB 32amp 4p 415V.

Output: n. 9 x 16A - 2P+E - IP44 - 230V socket with dedicated MCB 16amp 1p+N 230V.

Tools: 3 * LED multifunction instrument - AMP & VOLT for single phase (L1 - L2 - L3).

Dimension: W 400 * H 340 * D 350 mm

No downloadable documents available. For more information, contact us at info@yourmusiconline.it
