Zoom’s latest generation of effects

Preamp Modeling with Multi-Layer IRs

100 built in effects including drives, chorus, delay, and reverb

100 memory patches (85 factory presets + 15 users)

Single stompbox design

4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot

Stereo output supports effects like stereo chorus’s and delays

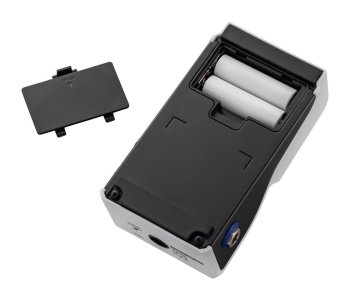

Runs on 2 AA batteries or AC Adapter

Chromatic tuner supports all standard guitar tunings, including open & drop tunings

Handy Guitar Lab App for iOS

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS 6 effects

USER PATCH MEMORIES 100

SAMPLING FREQUENCY 44.1 kHz

A/D CONVERSION 24-bit 128× oversampling

D/A CONVERSION 24-bit 128× oversampling

SIGNAL PROCESSING 32-bit

FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)

DISPLAY 160×128 dot-matrix LCD

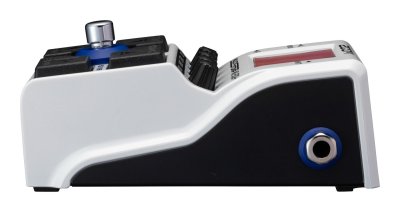

INPUT INPUT Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ

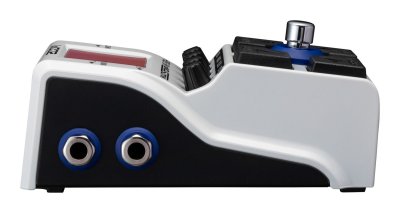

OUTPUTS L/R Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)

INPUT S/N 122 dB

NOISE FLOOR (RESIDUAL NOISE) L/R –100 dBu

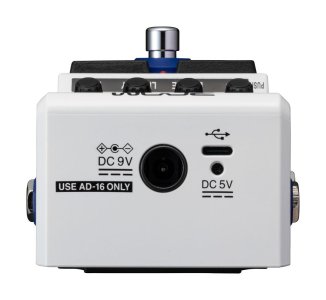

POWER AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)

ESTIMATED OPERATION TIMES • These values are Alkaline batteries: about 7 hours

USING BATTERIES approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. NiMH batteries (1900 mAh): about 6.5 hours Lithium batteries: about 14 hours

USB Port: USB 2.0 Type-C/Supported cable type: Type-C Handy Guitar Lab: USB1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.

DIMENSIONS 133 mm (D) × 79 mm (W) × 61 mm (H)

WEIGHT 353 g (excluding batteries) 400 g (including batteries)
