System Specification

• Frequency Range：470～960MHz (frequency band design) Modulation： FM

• Mute Control：pilot frequency ID code

• Adjustable Range：20MHz

• Frequency Band Qty：64

• Frequency Band Interval：300KHz

• Frequency Stability：±0.015%

• Dynamic Range：≥90dB A+

• Modulation Deviation：±48KHz

• Frequency Response：80Hz～18KHz

• S/N Ratio：≥95dB A+

• Distortion：≤0.5%（at 1KHz)

• Operation Temperature：-10℃～+40℃

• Operation Range：50m (open area）

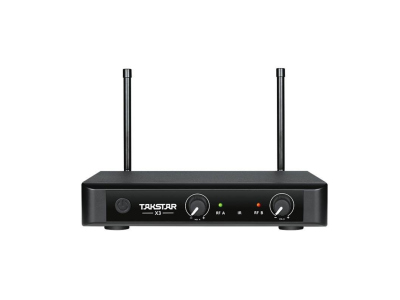

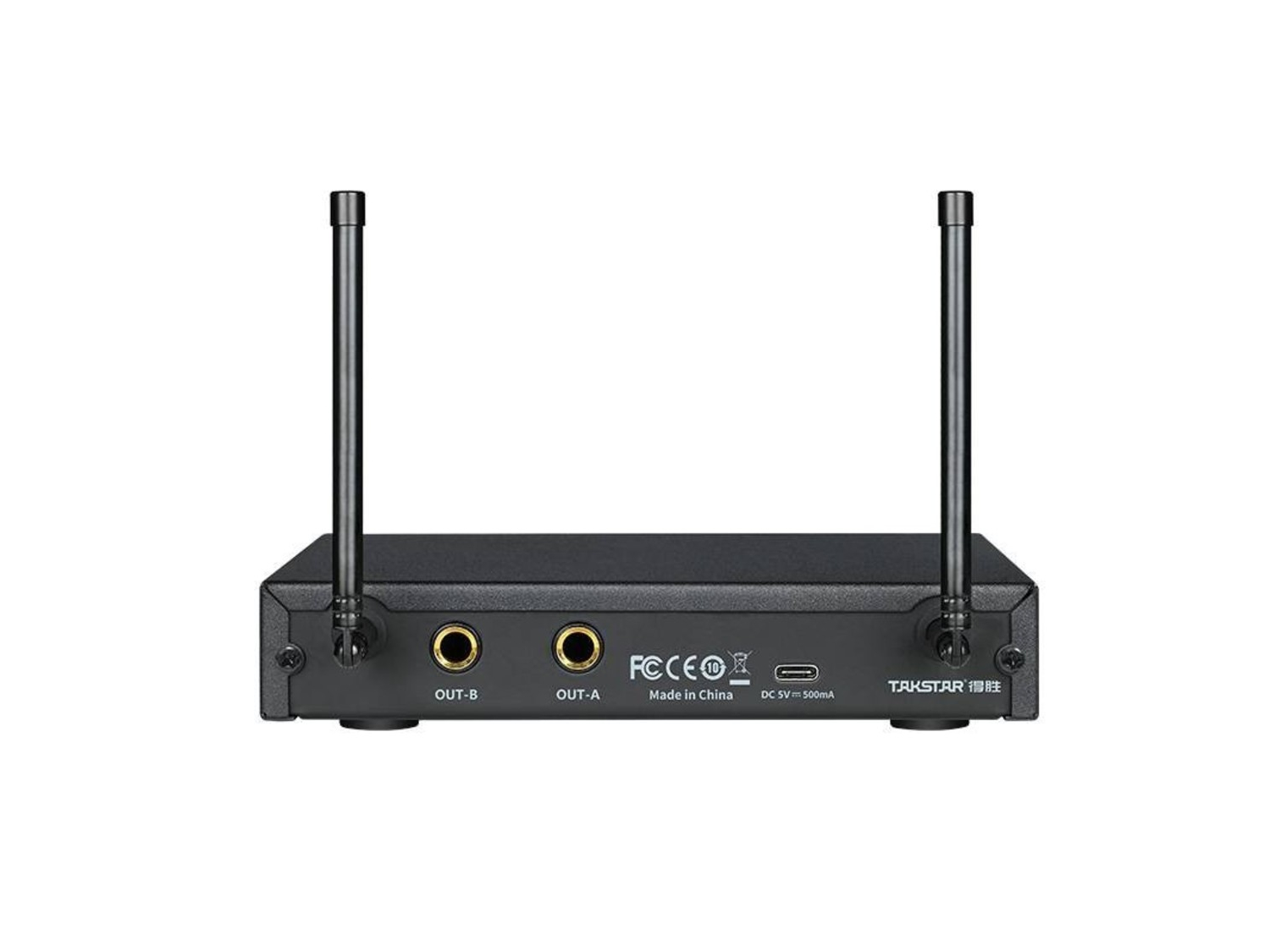

Receiver

• Power Supply：DC 5V 0.5A

• Audio Out: Independent bal XLR and unbal 6.3 combo

• Sensitivity：≤-90 dBm (wiring test)

• Audio Out Max Level：1.2V/RMS (at 1KHz THD=1%)

• Dimension（LxWxH)：160X157X33mm

• Weight： 475g

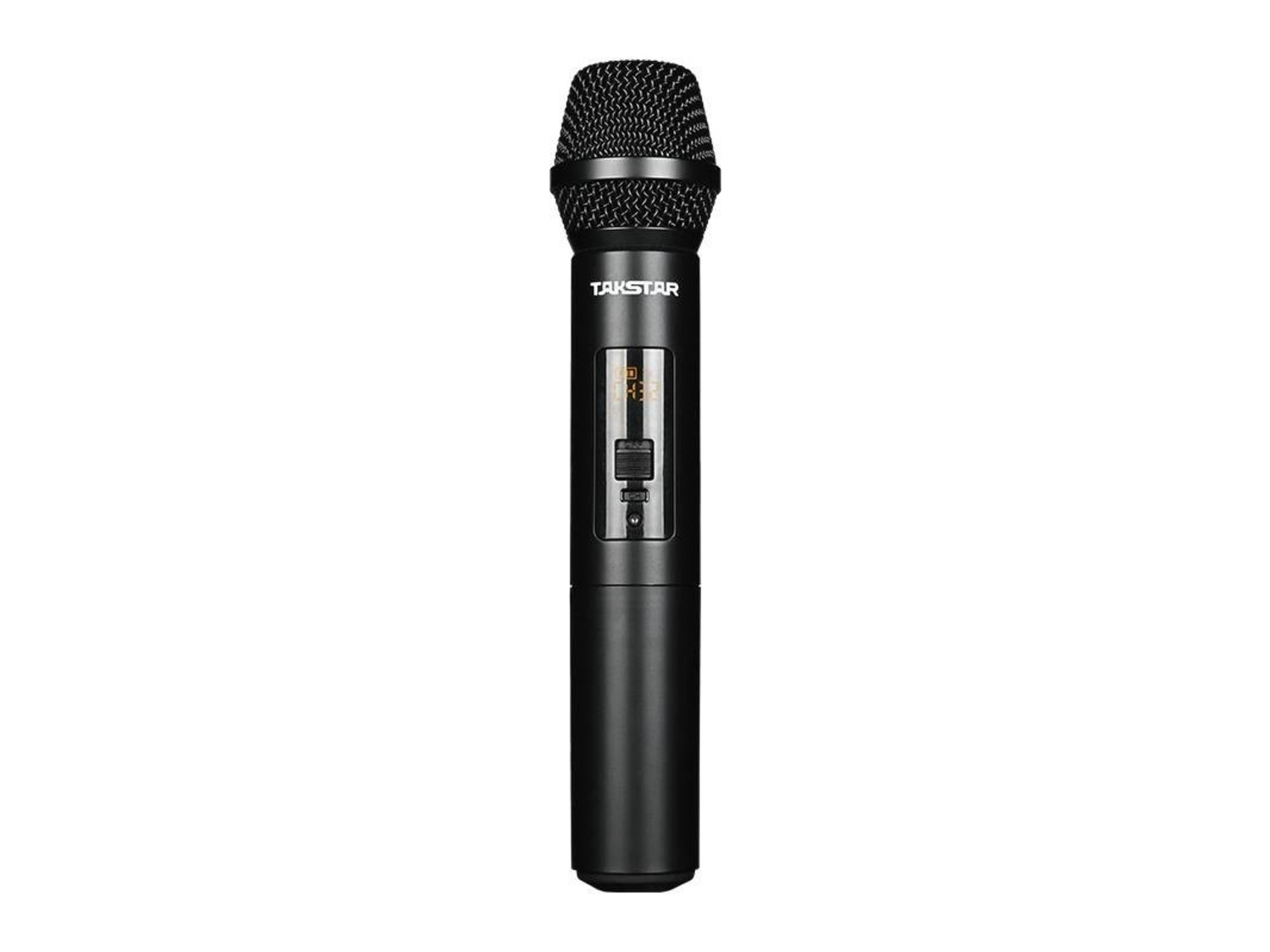

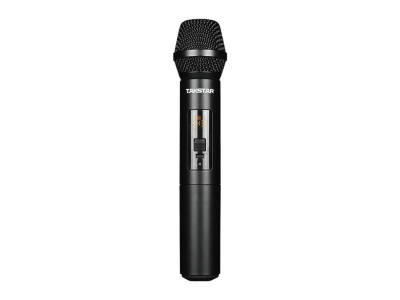

Handheld Microphone

• Output Power：≤10mW

• Power Supply：two AA batteries

• Operation Time：≥8h

• Dimension（DxL)：Ф50x236mm

• Weight： 255g
