STRYMON BRIG USATO

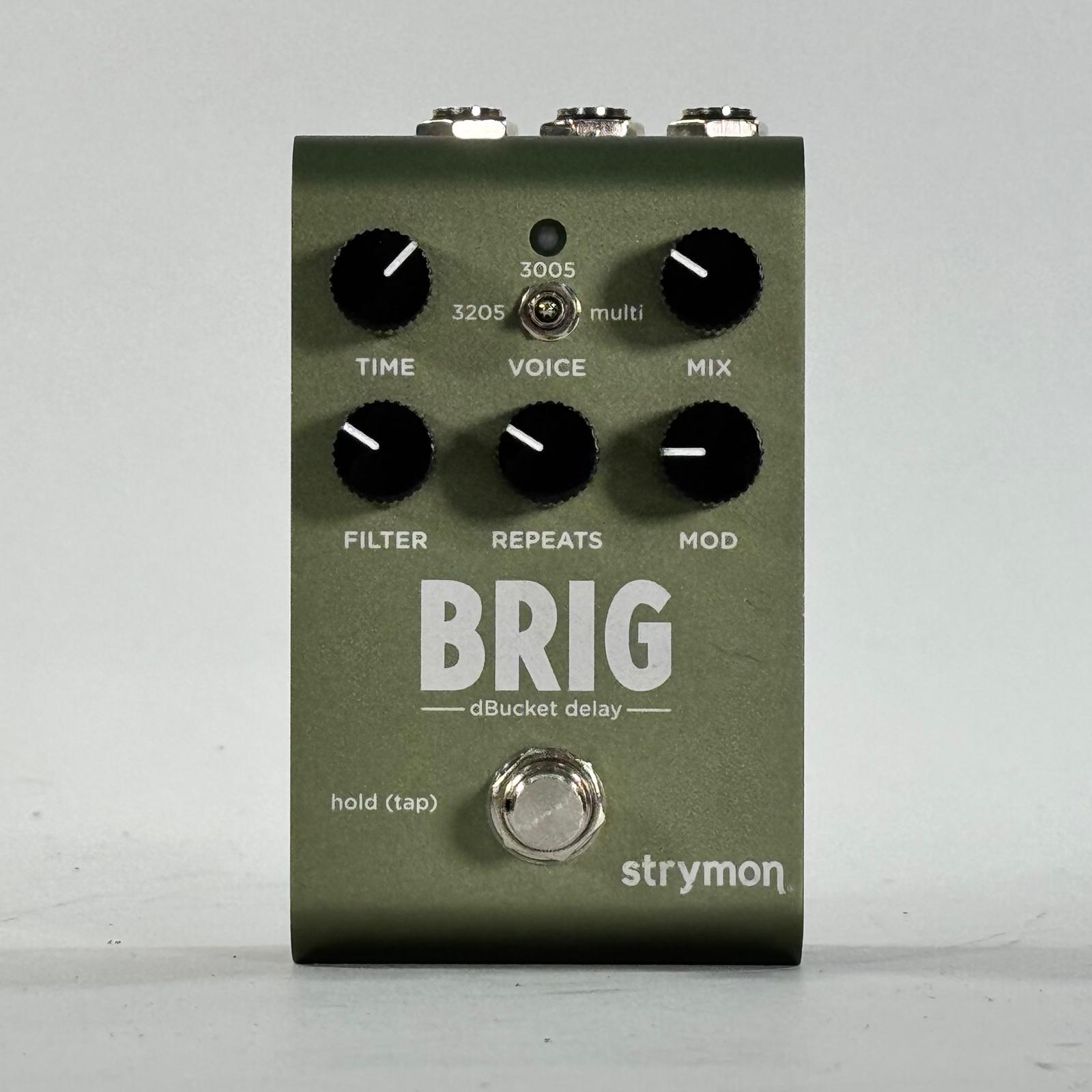

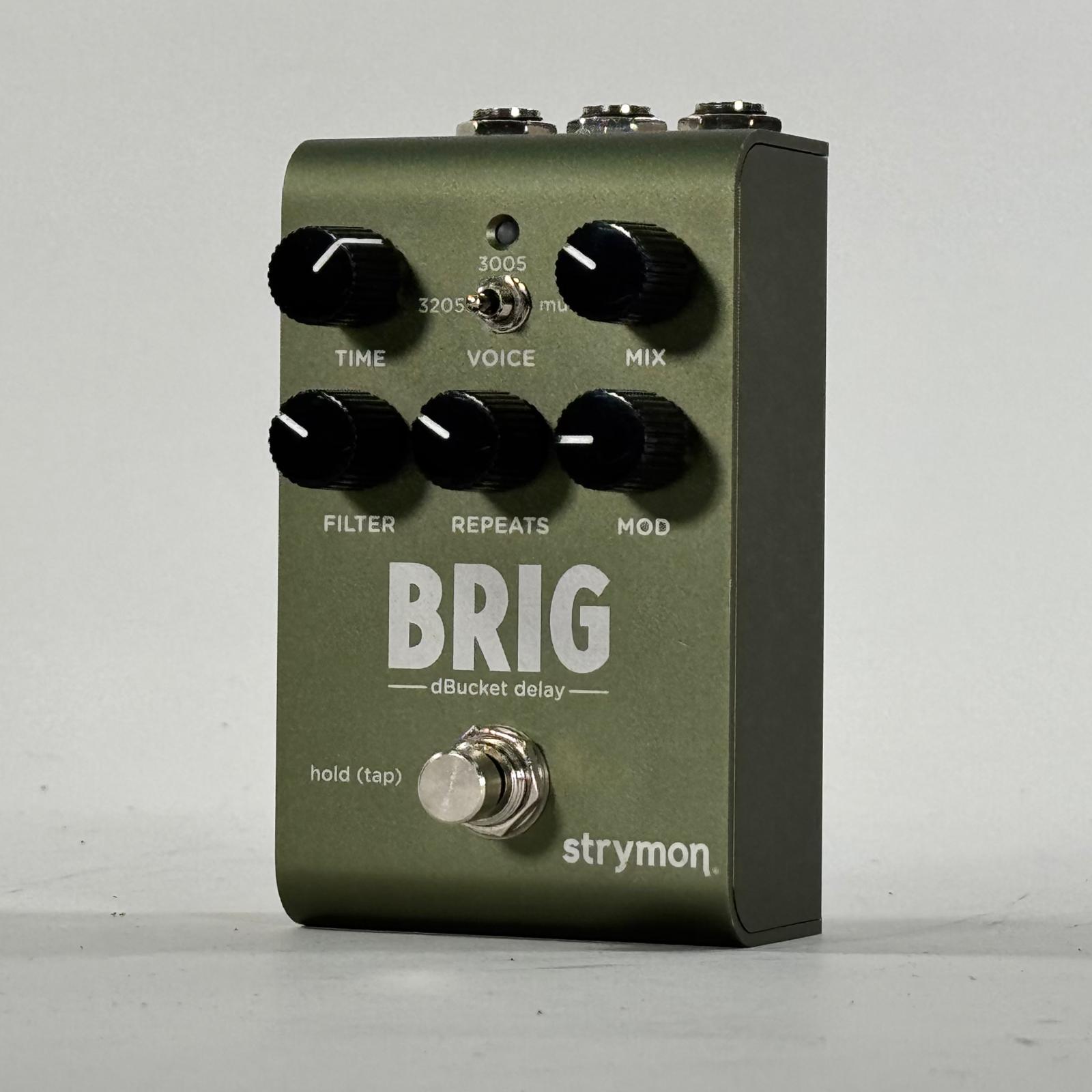

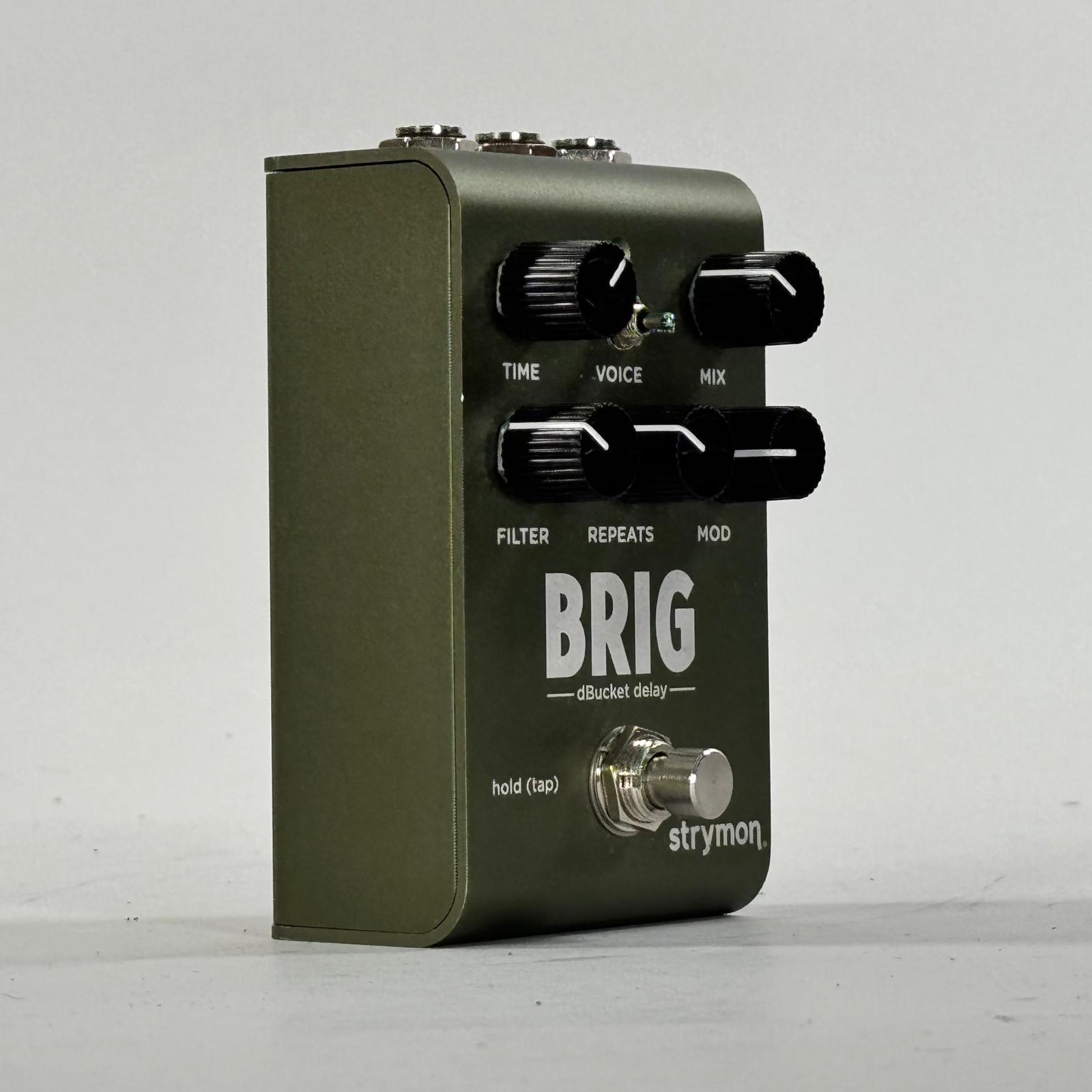

Time: Controls the delay time according to the selected voice. Delay clock is continuously variable so that turning it while repeats are happening can produce interesting pitch effects.

Mix: Sets the delay mix from full dry at minimum, to full wet with no dry signal at maximum. A 50/50 mix occurs at approximately 3 o'clock on the knob.

Filter: Adjusts the EQ filtering, noise, and bucket loss of the repeats based on the selected voice.

Repeats: Varies the number of delay repeats from one to runaway oscillation. Set to 3 o'clock for sustained, infinite repeats without runaway.

Mod: Adds LFO modulation to the delay time. Modulation is off at the minimum setting. The modulation speed is slow in the first half, and fast in the second half — increasing in intensity as the knob is turned clockwise.

Footswitch: Engages and bypasses the effect. A red LED indicates the effect is engaged. This is also used to enter 'Tap Mode' to manually tap in delay times

Specifications:

Input Impedance: 1M Ohm

Output Impedance: 100 Ohm

A/D & D/A Conversion: 24-bit, 96kHz

Frequency Response: 20Hz to 20kHz

Signal to Noise Ratio: 116dB

Dimensions (D x W x H): 4.5" x 1.7" x 2.2" / 11.43 x 4.32 x 5.59 cm)

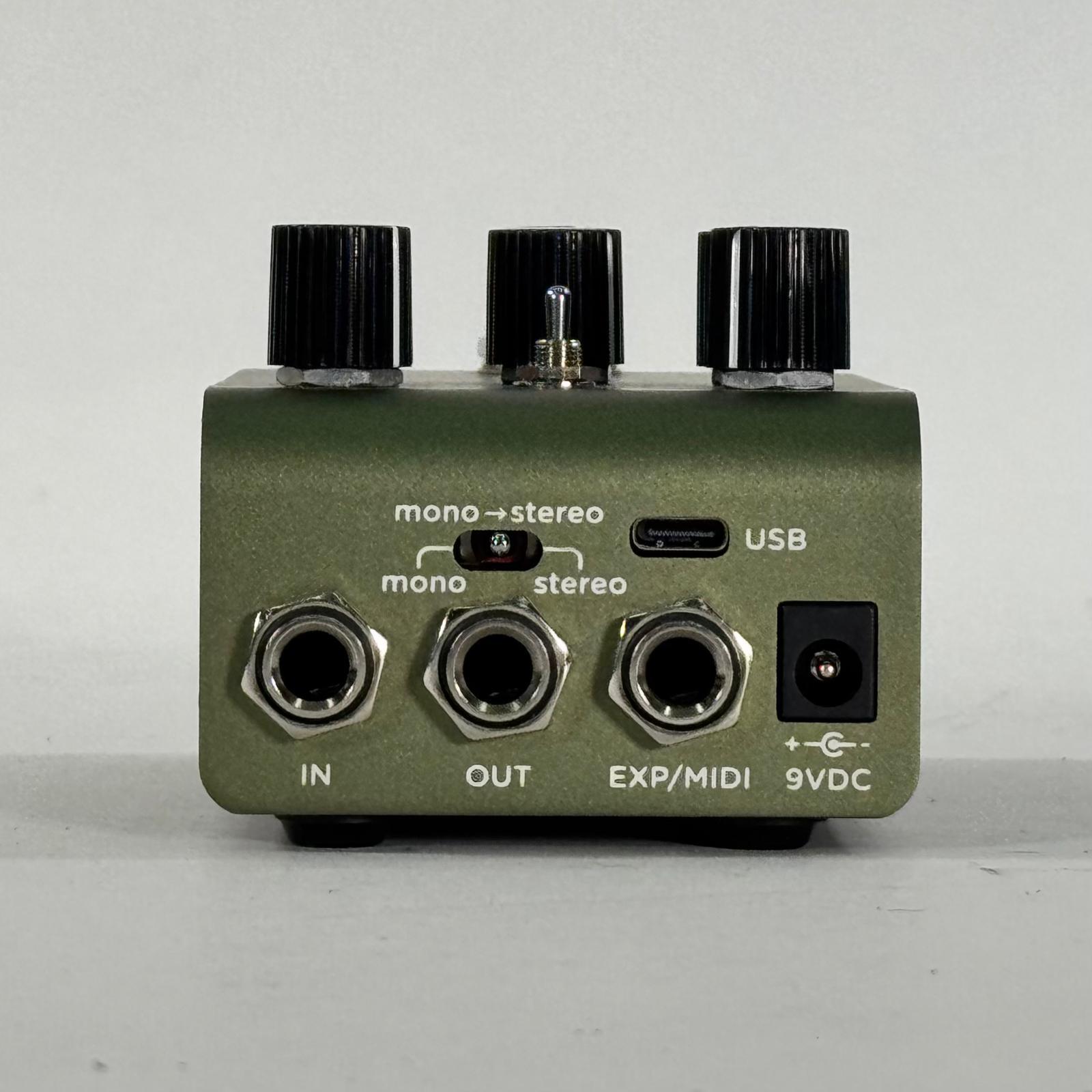

Power Requirements: 9V DC Centre Negative, 250mA Minimum (Power Supply sold separately)
