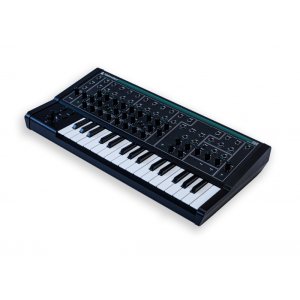

PWM Malevolent Analog Synth
With Malevolent PWM (Paul Whittington Music) presents a semi-modular analog synthesizer that opens its full potential with the use of patch sockets. The monophonic keyboard instrument is clearly structured and with its open architecture appeals to both beginners and professionals. All control voltage inputs and outputs are Eurorack compatible. Of course Malevolent also works without patch cables connected, the green labels on some jacks indicate pre-wiring which can only be used elsewhere via patch.
The two analog oscillators are equipped equally and offer variable waveforms as well as pitch control and two FM inputs. For the square wave this means classic PWM, for the triangle the result tends towards Cloud Generator and for the sawtooth towards simple Supersaw. All waveforms can be triggered and routed to the mixer at the same time, which creates a very dense and lively sound base. In general, all three waveforms can be manually set at the same time and modulated with any control voltage. The mixer contains not only the two oscillators, but also the adjustable noise generator and the audio input with its own level control. The mixer signal can be taken separately and flows into the Sallen-Key Multimode filter, which has a very scratchy and slightly aggressive sound character and is for some "the best filter of the MS-20". Without adding a patch cable the Lowpass of the filter leads to the VCA. This can be switched to pull-through for drone sounds and the scope of a filter box for external signals and is also equipped with a distortion.
Modular Pure Analogue Synthesiser
* Pure Analogue signal path designed by Future Sound Systems
* Pure VCOs
* 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
* Normalised signal path for immediate sound Malevolence
* Additional rear panel line out
* Additional headphone out
* 2 Voltage Controlled Oscillators
* Saw / Triangle / Pulse outputs plus Mix for each oscillator
* 1V/Oct pitch control input
* Shape control / pulse width modulation input
* 2x Frequency Modulation inputs
* Coarse / Fine tune control
* Shape mod amount control
* FM1 and 2 mod amount controls
* Shape control
* Selectable waveforms for the mix output
* Individual osc level control
* LFO (Low Frequency Oscillator)
* Triangle / Square wave outputs
* Rate control
* 2x Envelopes
* Individual ADSR controls for each envelope
* Individual gate inputs
* Individual envelope outputs
* Multi-mode 2 pole VCF (Voltage Controlled Filter)
* Low pass / Band pass / High Pass individual inputs
* 2x Frequency Modulation inputs with amount controls
* Filter cutoff
* Filter resonance
* Mixer
* Noise w/level control
* Aux input w/level control
* VCA (Voltage Controlled Amplifier) with overdrive control
* Compatible with Eurorack standard 1V/Oct gear
* Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope
* USB bus-powered
* MIDI In / Out
* Headphone out
* Line out
* Analogue clock in & out
* USB-MIDI to 1V/Oct CV & gate conversion
* All pitch and gate control is fully analogue
* Analogue clock In / Out
* Multi-function Joystick control
* Left / right for pitch bend
* Performable portamento
* Performable vibrato
* This is in addition to the analogue LFO
* Latching hold mode
* Arpeggiator
* 6 arpeggiator types
* Up, Down, Up/Down 1, Up/Down 2, Played & Random
* Auto clock sync
* Detects analogue / MIDI or USB-MIDI clock and synchronises the
arpeggiator automatically
* Selectable sync rates when clock detected
* Rate / sync control
* Latch
* 6 Octave range
* Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running
* Keyboard Control
* 32 Velocity-sensitive mini-keys
* Octave shift +/- 4 octaves
* Pitch output
* Velocity output
* Gate output
* Local Off mode for DAW use
Includes:
* 5 Patch cables
* Power Supply (9V 600mA)
* USB C lead
* Getting Started Guide
Weights and Dimensions:
Product (unboxed):
* 490 x 250 x 80 mm
* 2.61 kg
Product (boxed with contents):
* 690 x 320 x 160 mm
* 3.70 kg
