MIXER SOUNDSATION MIOMIX 404FX CON EFFETTO

Cod: E922E


€95.00

Immediate availability
Last items

Or 3 installments with Alma Pay

The product is available in our store and ready for same-day shipping for orders placed by 12:00 PM. Delivery in Rome (GRA) is same-day, and within 24/72 hours across the national territory.

headset icon Ask an expert

We are musicians and at your service, contact us!
info@yourmusiconline.it

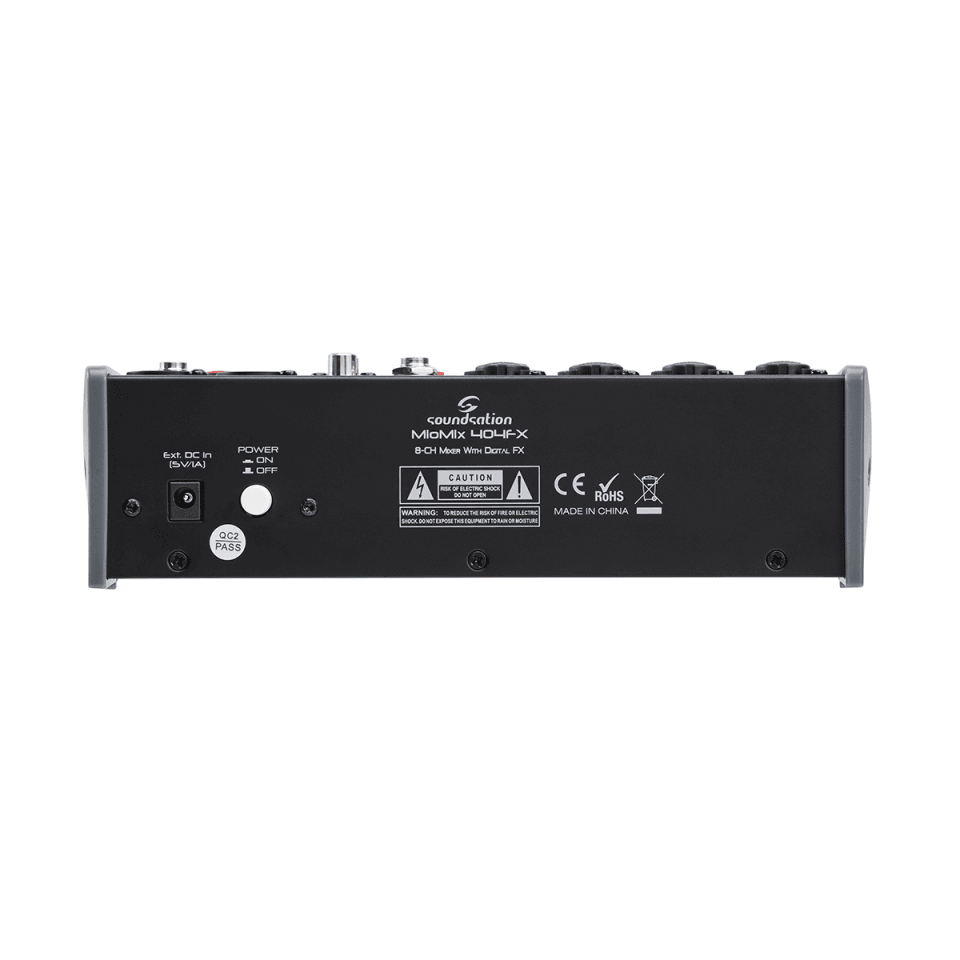

MIXER SOUNDSATION MIOMIX 404FX CON EFFETTO

MioMix 404FX is a 8-channel mixer with digital multi-effect ideal for small home recording, live gigs and podcasting applications that require professional quality level and maximum portability. 4 Mic inputs are equipped with noise-less preamps that accepts all main sound sources, such as condenser microphones - thanks to the +48V Phantom Power, dynamic mics, line and high-impedance inputs (guitars, basses, etc.). The stereo line inputs allow you to connect keyboards, CD players, DJ consoles, tablets, smartphones, etc. The 24-bit/48kHz digital effect with 16 commonly used presets (Hall/Room/Plate Reverb, Delay, Echo, Chorus, etc.) and TAP-Tempo function let you improve your performance and adjust up to two parameters of each effect. An indispensable and reliable tool for all small audio applications.

8 Total Channels

4 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator

1 Stereo Line Channel with ¼” Jack inputs, +4/-10dB Pad Adapter and Peak Indicator

1 Stereo Line Channel with RCA and 1/8” Stereo Mini-Jack

2-Band EQ for channels 1 to 4

More Key features

Specifications

Input Connections

Balanced XLR/Jack Combo (Channel 1-4), Balanced ¼” Jack (Channel 5-6), Stereo RCA, Stereo 1/8” Mini-Jack (Channel 7-8)

Output Connection

Balanced XLR (Main Out L-R), Stereo ¼” Jack (Phones)

Channel 1-4 Functions

+48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

Channel 5-6 Functions

Impedance switch (+4/-10dB), Pan Position, Channel Volume, Peak Led Indicator

Channel 7-8 Functions

Channel Volume, Mono/Stereo Switch

Digital Effect

24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate

Level Meter

2x6 LED Meter

Max Output Level

3 Vrms

Frequency Response

+/-0.5dB, 20Hz-20kHz

Dynamic Range

102dB

THD+N @ 1kHz

=0.003%

Stereo Crosstalk

92dB

Power Requirements

DC 5V, 1A

Power Consumption

Max. 2.5W

Size (WxDxH)

220 x 165 x 66 mm

Packing Size (WxDxH)

345 x 208 x 87 mm

Net Weight

1.2kg

Gross Weight

1.5kg
