Description

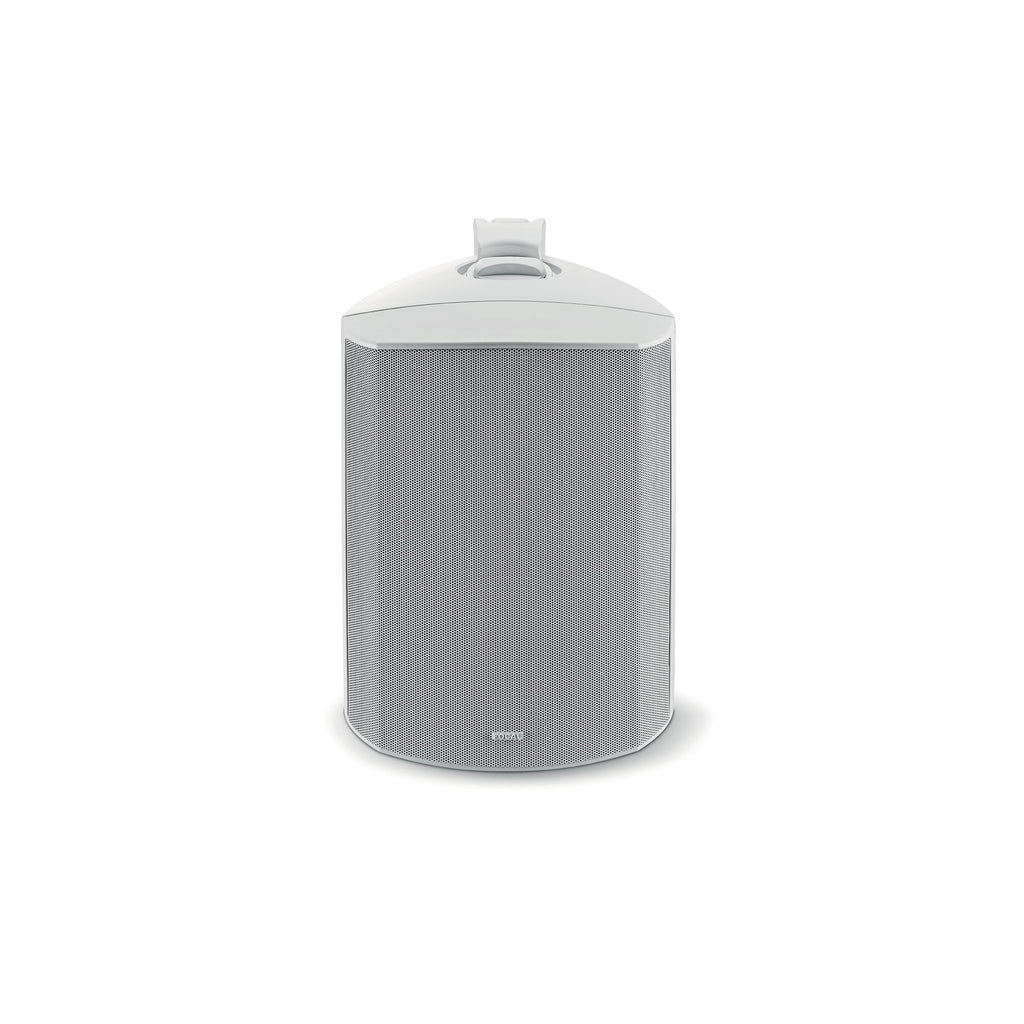

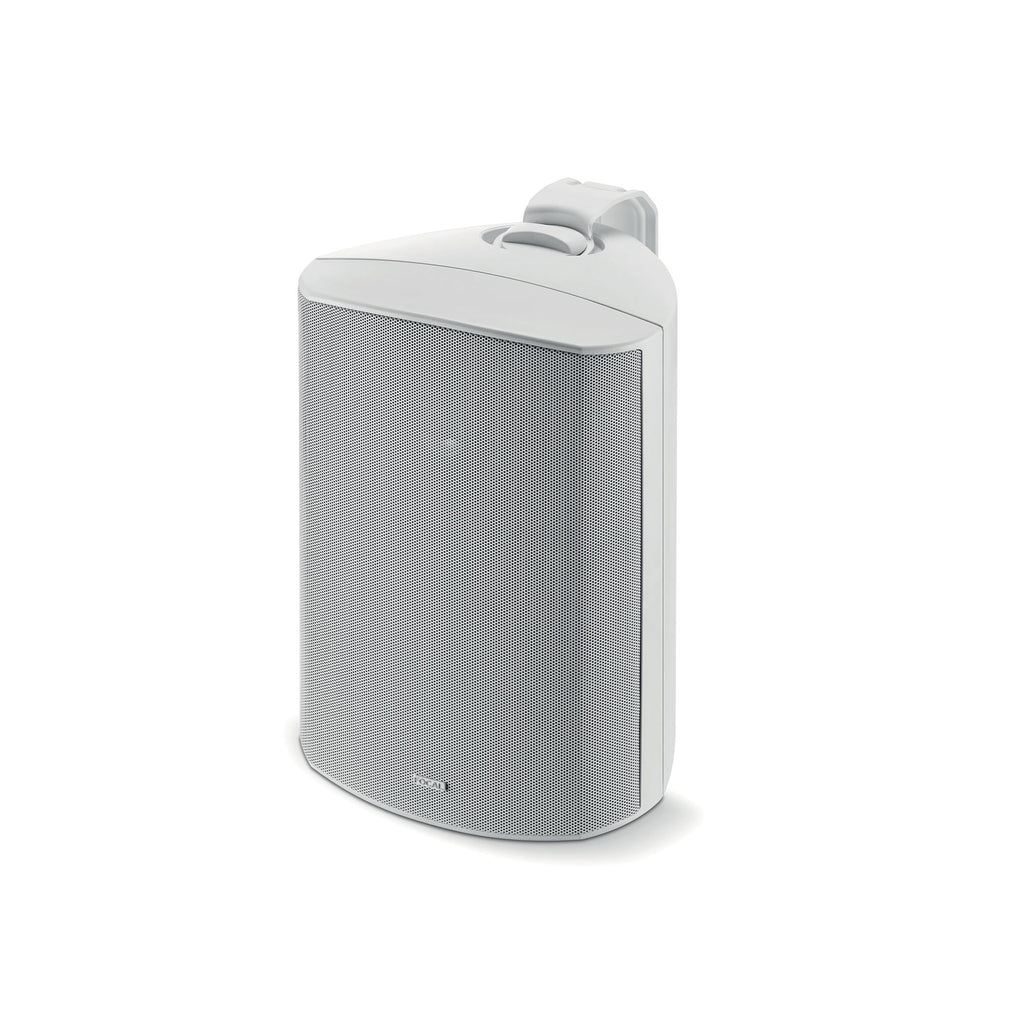

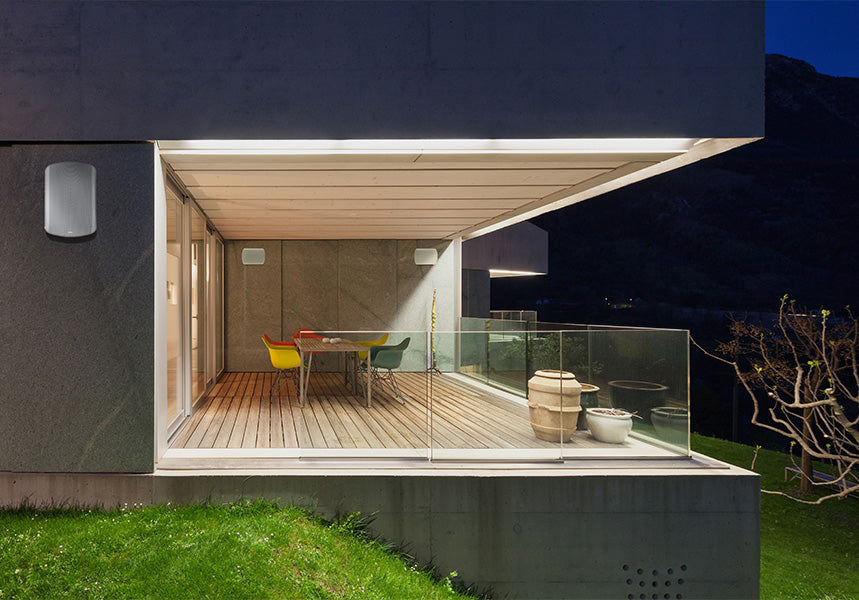

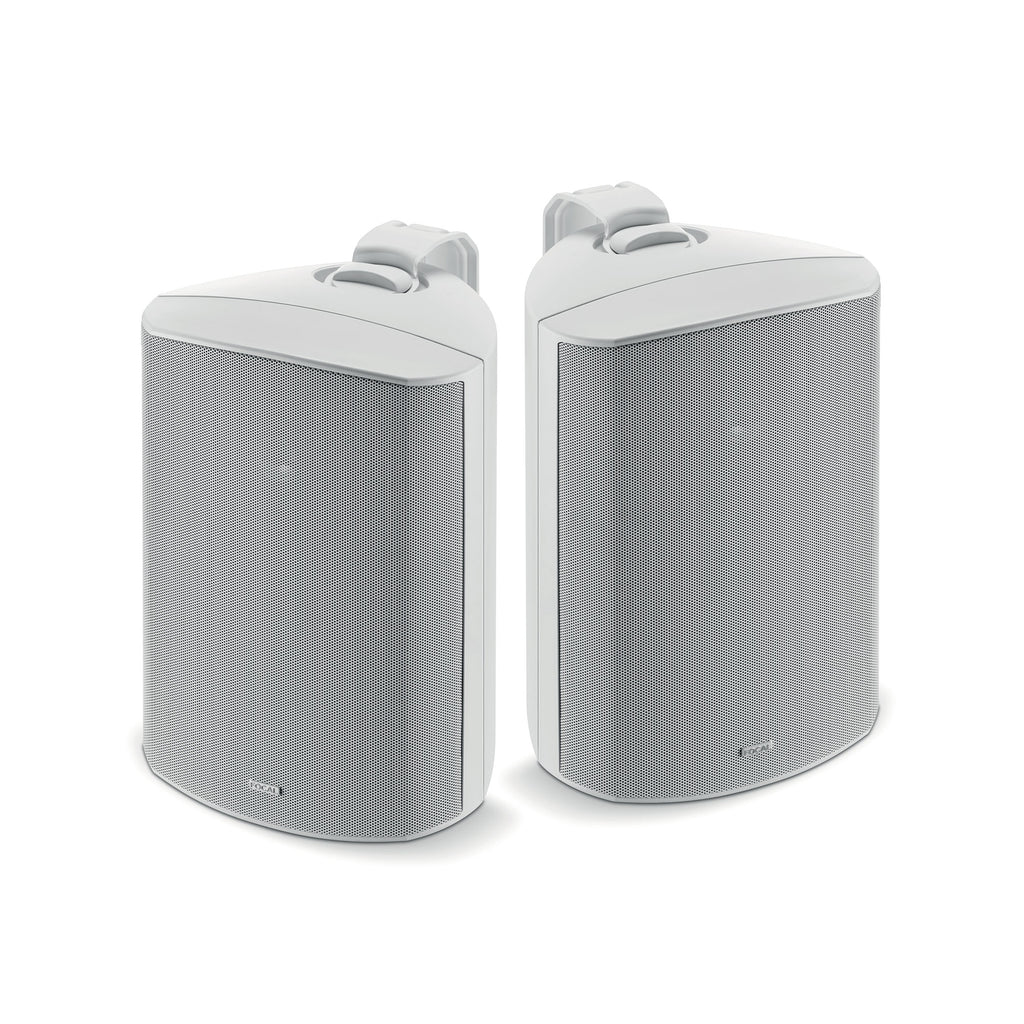

The Focal 100 OD6-T outdoor speaker is a 2-way system designed for sound diffusion applications in outdoor and weather-exposed indoor environments. The IP66 certification guarantees protection against dust and water, making it suitable for permanent outdoor installations.

The system uses a 6.5-inch waterproof woofer with Polyglass treatment, designed to offer natural reproduction of mid-range frequencies and controlled bass even in difficult environmental conditions. The aluminum inverted dome tweeter ensures effective high-frequency dispersion and uniform sound coverage.

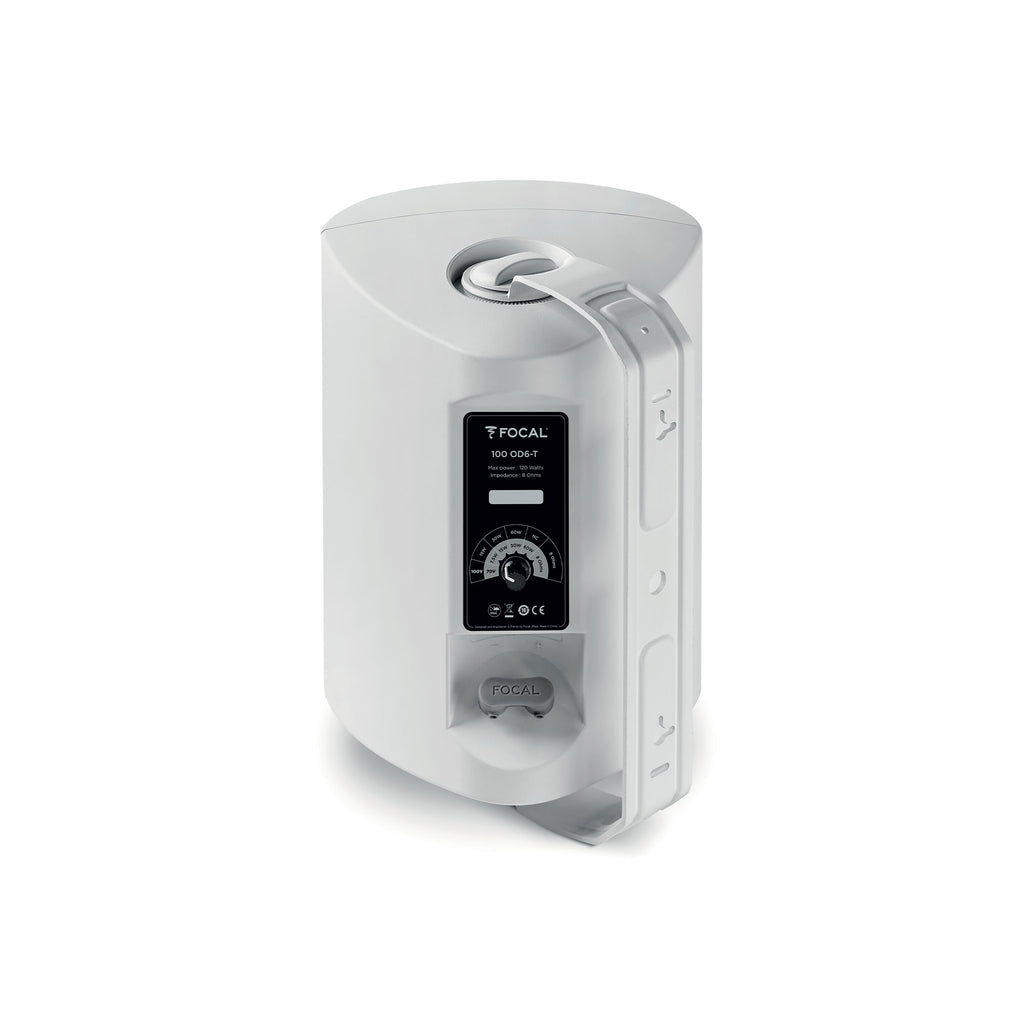

The speaker includes a selector that allows operation in 8 ohm, 70V, or 100V modes, enabling adaptation to different system configurations. The high-density, UV-treated polypropylene cabinet contributes to long-term durability. Both the grille and cabinet are ready for painting, facilitating aesthetic integration into installation spaces.

The reinforced aluminum mounting bracket allows articulation up to 180 degrees, enabling precise orientation in both vertical and horizontal installations. The rotatable logo ensures proper readability in any configuration.

Technical Specifications

Type: 2-way outdoor speaker
Installation: outdoor or indoor
Color: white
Line configuration: 8 ohm, 70V and 100V selectable
Woofer: 6.5-inch waterproof with Polyglass treatment
Tweeter: aluminum inverted dome
Frequency response: 65 Hz – 23 kHz
Frequency at -6 dB: 55 Hz
Sensitivity: 87 dB at 2.83 V per 1 meter
Power at 8 ohm: 60 W
Selectable power 70V: 7.5 W, 15 W, 30 W
Selectable power 100V: 15 W, 30 W, 60 W
Crossover frequency: 2,800 Hz
Dimensions with bracket: 224 x 256 x 319 mm
Net weight with bracket: 4.1 kg
Certification: IP66.
