Db Opera 10 2-Way Powered Loudspeaker

Description

Db Opera 10 2-Way Powered Loudspeaker

ACTIVE SPEAKER 10"/1" 1200W

With the new OPERA series, dB Technologies once again manages to combine advanced DSP, an essential design, and ease of use into an audio system unrivaled in its category. The combination of power, acoustic design, and digital signal processing has created a system capable of delivering vigorous and accurate sound, suitable for playback applications as well as live performances. The asymmetric horn characteristic of previous versions of the series has been redesigned to achieve asymmetric sound dispersion on the vertical axis and very wide on the horizontal axis. The entire series integrates a 600 W Class D digital amplifier. Signal processing with FIR filters determines extremely coherent and uniform audio performance from every listening position.

Specifications

Type: 2-way active speaker

Frequency response [-10dB]: 58Hz - 20kHz

Frequency response [-3dB]: 70Hz - 19.6kHz

Max SPL: 128dB

HF Driver: 1" compression, 1.4" voicecoil

Directivity: H100° (85° up / 120° down)

Directivity: V85° (+25° / -60°)

Horn: Asymmetrical

LF Driver: 10", 2" coil

Amp Technology: SMPS Dual Range power supply

Amp Class: Class D

RMS Power: 600W

Peak Power: 1200W

Controller: 56-bit DSP

AD/DA Converters: 24 bit / 48 KHz

Presets: Rotary encoders (8 presets)

Crossover: 2000Hz

Limiter: Peak, RMS, thermal

Advanced DSP functions: Phase Linear FIR filters

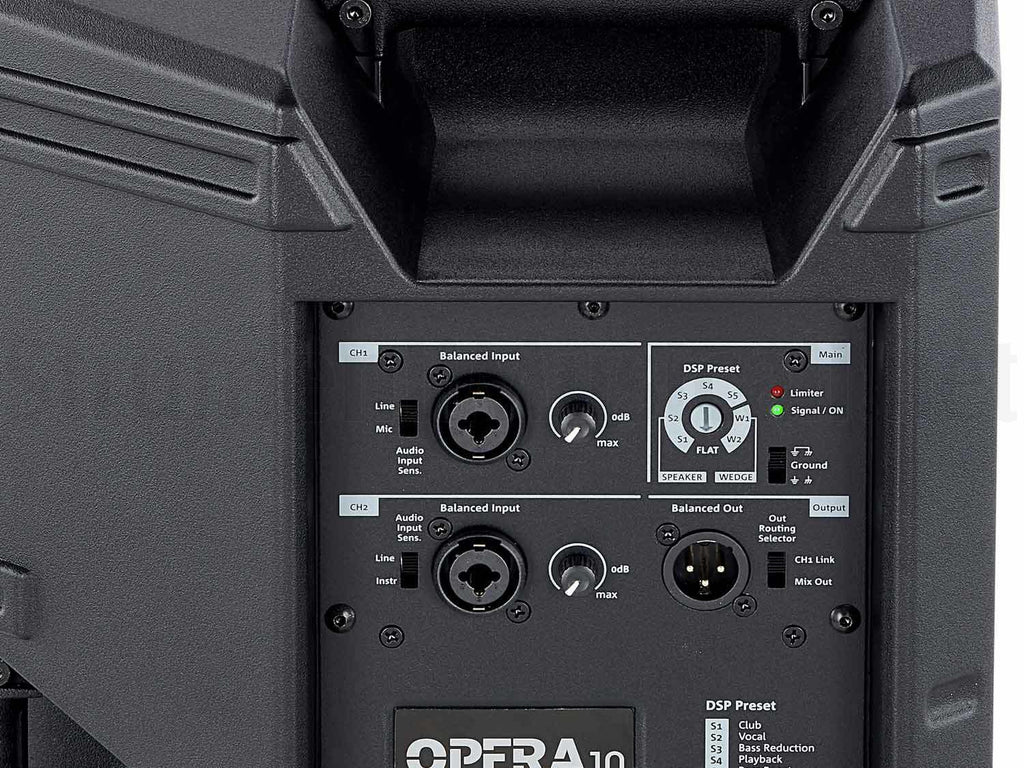

Signal input: 1x Combo (XLR / 6.3mm jack) MIC / Line, 1 x Combo (XLR / 6.3mm Jack) Mic / Inst

Output signal: 1x Male XLR (CH1 Link / Mix Out) selectable

Dimensions: 300 x H552 x 301mm

Weight: 12.3kg
