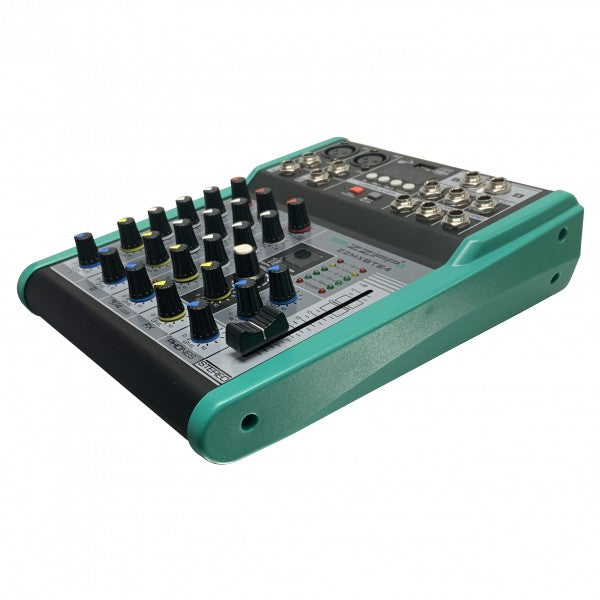

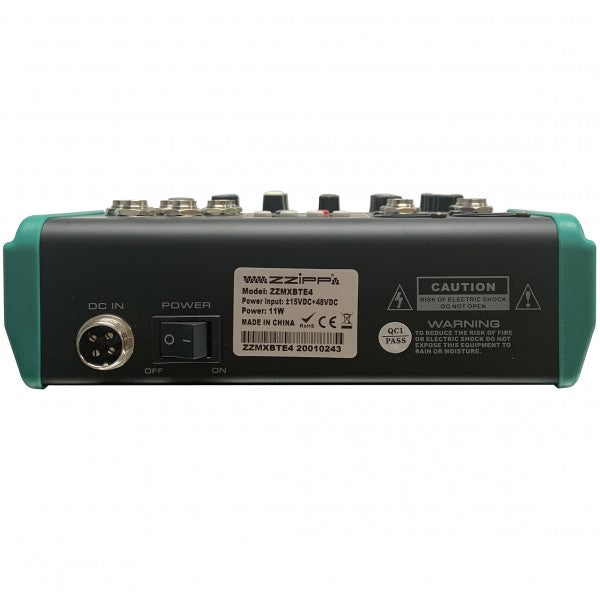

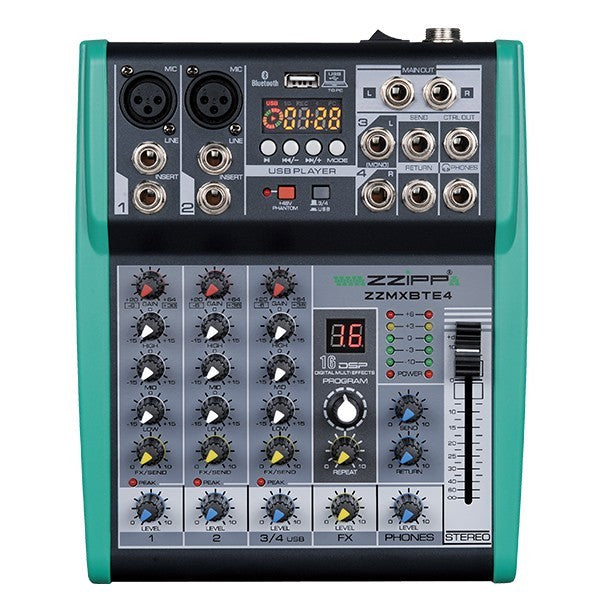

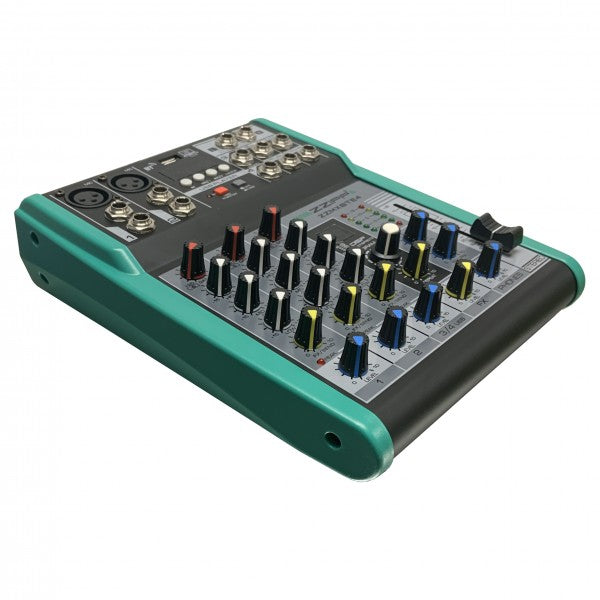

Zzipp Compact 4-Channel Mixer with DSP Multi-Effect and Bluetooth

Description

Zzipp 4-Channel Compact Mixer with DSP Multieffect and Bluetooth

Extraordinary reliability and comprehensive features in an intuitive-to-use product.

Integrated audio interface, DSP, USB and Bluetooth connections

MP3 player, equalizer on each channel.

Black side panels are also available if you don't like green.

Specifications

2 mic inputs + 1 stereo Line

Integrated USB audio interface

(Allows connection to PC

for recording and playback)

Bluetooth connectivity

Phantom power +48V

3-band British equalizer on each channel

Integrated DSP multieffect unit with 16 effects

5-LED master level indicator

Headphone output

Control output

Send/Return

Inputs Microphone Line

Frequency Response 20 - 20000Hz 20 - 20000Hz

Gain Range +10 / +60dB +10 / +40dB

Max input level 12dBu @ 10dB Gain 30dBu

impedance 26KΩ 20KΩ

Equalizer 80Hz +/-15dB; 2.5KHz +/-15dB; 12KHz +/-15dB 80Hz +/-15dB; 2.5KHz +/-15dB; 12KHz +/-15dB

Main output 6.35mm Jack 240Ω

Sampling frequency 40KHz

Power supply 230V 50/60Hz

Dimensions 182 x 190 x 56mm

The mixer has an integrated DSP unit with 16 reverb effects, with the following lengths:

01 - 12.3ms

02 - 24.6ms

03 - 36.9ms

04 - 49.2ms

05 - 61.4ms

06 - 73.7ms

07 - 86.0ms

08 - 98.3ms

09 - 110.6ms

10 - 122.9ms

11 - 135.2ms

12 - 147.5ms

13 - 159.7ms

14 - 172.0ms

15 - 184.3ms

16 - 196.6ms
