Yamaha MODX M6

Description

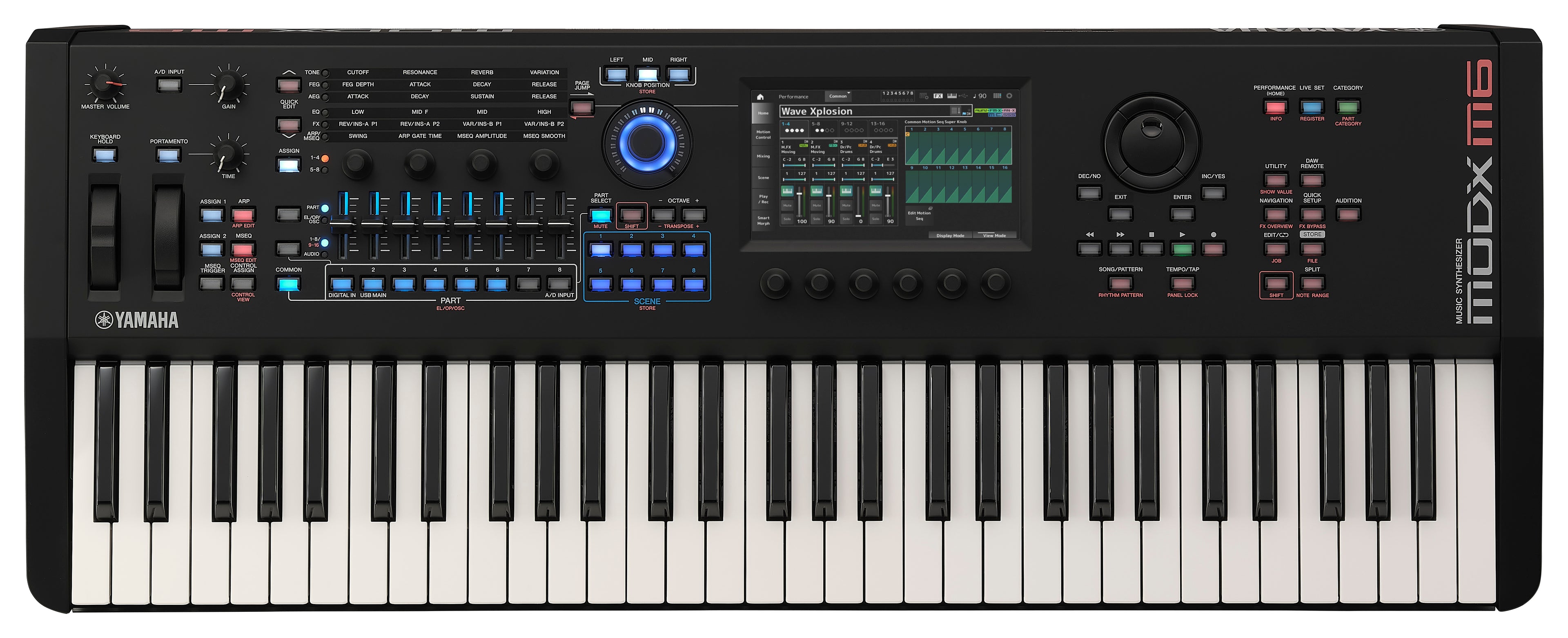

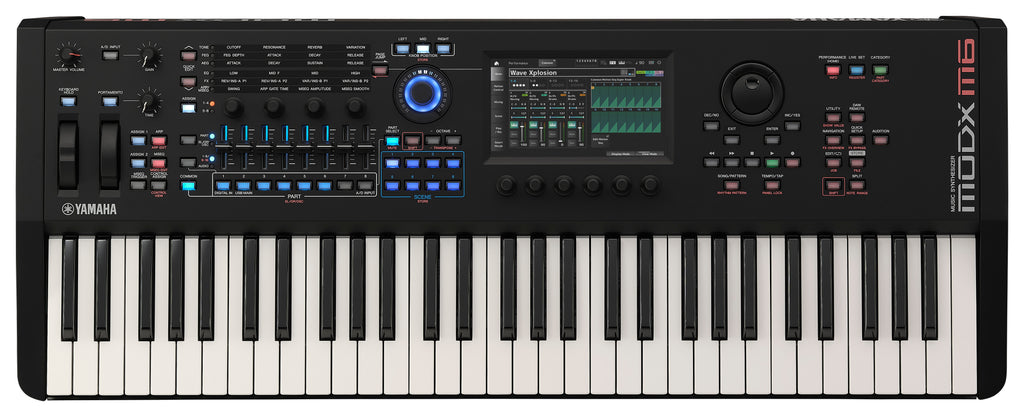

Yamaha MODX M6

Introducing the MODX M, Yamaha’s next-generation mid-range synthesizer. Create

extraordinary sounds with three engines that recreate warm vintage analog synths, cutting-edge FM synths, and

ultra-realistic instruments. The Motion Control Synthesis Engine enhances these capabilities, adding a unique fourth

dimension of control to your music production. Unlike traditional hardware synthesizers, MODX M seamlessly

connects the stage and studio with deep connectivity and computer integration. Designed to meet the demands of

keyboardists and pianists, the MODX M elevates expressivity everywhere.

NEW FEATURES:

SOUND

INSPIRATIONAL PERFORMANCE

Take your performances anywhere with the compact

and lightweight MODX M, featuring three powerful

engines:

• AN-X – recreates warm vintage analog synths

• FM-X – delivers cutting-edge modern synth sounds

• AWM2 – provides ultra-realistic instrument sounds


CONTROLS

UNIQUE EXPRESSIVITY

Motion Control unifies the three synth engines

and offers the performer an enormous amount of

interactive expression.

• New semi-weighted FSB keyboard for MODX M6 and M7

• Dedicated Part and Scene controls

• High-resolution controls

• Motion Control Synthesis Engine


WORKFLOW

The MODX M offers a flexible and streamlined workflow

with a high number of controllers and intuitive displays.

• Expanded Softsynth Plugin (ESP)

• Faster, more intuitive navigation

• USB MIDI 2.0 and Multichannel Audio Interface

• Bundled Cubase AI software

MOBILITY

Designed for musicians on the go, the MODX M

is compact, lightweight, and portable. Optional

premium soft cases for the MODX M

add protection and style without adding

too much bulk

Specifications

MODX M6: 61 keys, New semi-weighted FSB keyboard

Tone Generators:

AWM2

128 voices of polyphony

Max. 128 Elements per Part

10.7 GB Preset Waveforms (when converted in 16 bit linear)

1.9 GB Flash Memory for User Waveforms

FM-X

128 voices of polyphony

8 Operators, 88 Algorithms

AN-X

12 voices of polyphony

3 Oscillators, 1 Noise Generator

3,427 Preset Performances

256 Preset Live Sets, 2,048 User Live Sets

Motion Sequencer for real-time control of parameters

16 Part multitimbrality plus Audio Input Parts (A/D In, USB)

18 Filter Types

Integrated Effects

Reverb 13 Types, Variation 91 Types,

Insertion A 91 Types, Insertion B 94 Types,

Master 28 Types

5-Band Master-EQ, 2 Part-EQs (3- and 2-Band)

Sequencer

16 Tracks, 128 Patterns, 128 Songs

Arpeggiator

Arpeggios for up to eight Parts in parallel

10,922 Preset Arpeggios

256 User Arpeggios

Controls

Pitch Bend, Modulation Wheel

8 Control Sliders with LED bars,

4 Assignable Knobs, Super Knob

2 Assignable Switches

8 Scene Switches

Portamento Switch and Portamento Time Knob

6 Display Knobs

Display

7” TFT Color Wide VGA LCD Touch Screen

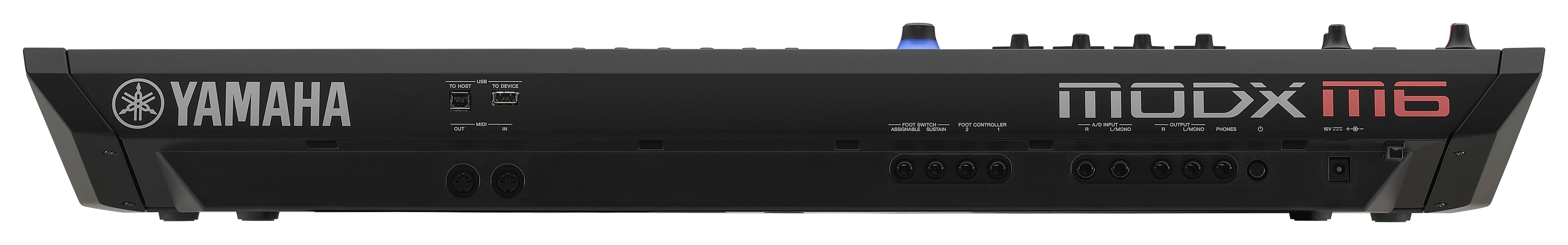

Connectors

OUTPUT [L MONO]/[R]

A/D INPUT [L MONO]/[R] (all 6.3 mm TRS jacks)

PHONES Stereo (6.3 mm phone jack)

MIDI IN/OUT

FOOT CONTROLLER 1 / 2

FOOT SWITCH SUSTAIN / ASSIGNABLE

USB TO DEVICE

USB TO HOST

4 channels Input, 10 channels Output at 44.1 kHz

Dimensions

MODX M6: 882 mm × 347 mm × 117 mm / 6.6 kg

Included Accessories

Quick Start Guide, AC Adaptor, Cubase AI Download, ESP Download Code
