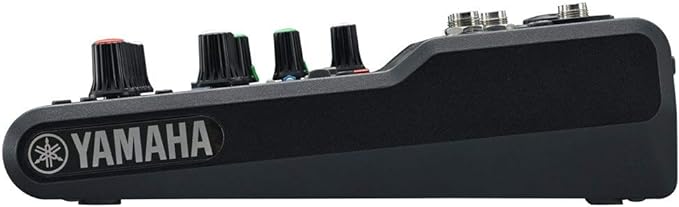

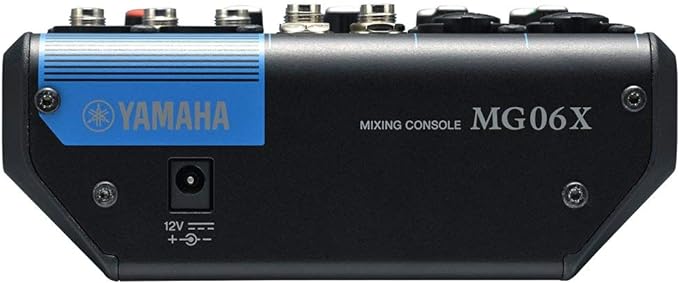

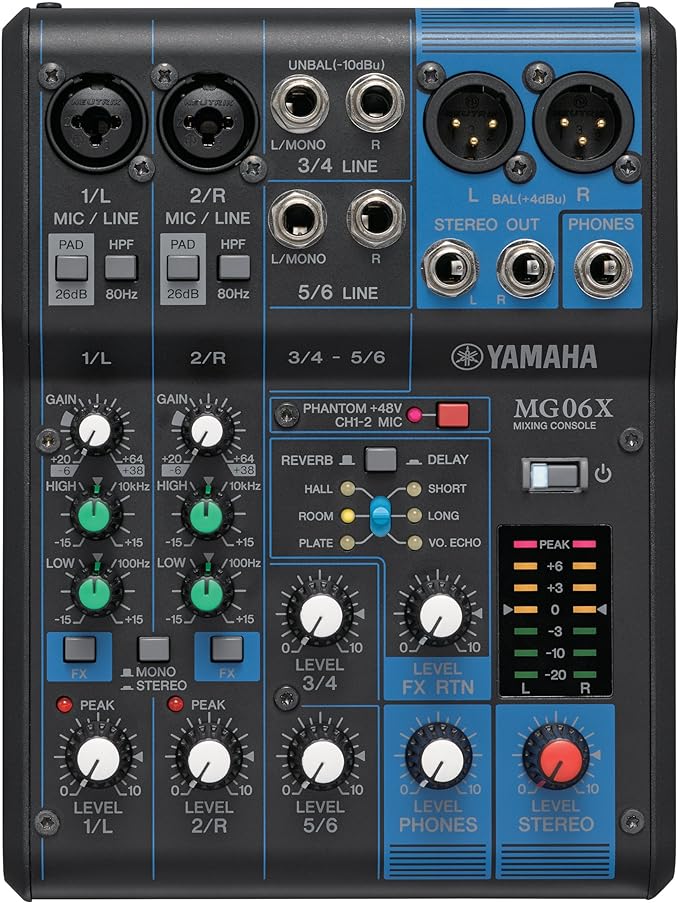

Yamaha MG06X 6-Channel Mixer with Phantom Power and Effects

Description

YAMAHA MG06X 6-CHANNEL ANALOG MIXER WITH EFFECTS

The Yamaha MG06X is a small and affordable analog mixer with integrated effects. It has 6 channels in total and is suitable for small live performances (e.g., vocals and guitar), rehearsals, or small studios. It features an effects section with 6 effect types, and its dimensions are absolutely compact.

The Yamaha MG06X is available in Rome at Your Music, and its dimensions and potential will surprise you. It is a very intuitive mixer suitable for any musician.

Discover all available Yamaha products

Specifications

6-Channel Mixing Console Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) 1 Stereo Bus "D-PRE" mic preamps with inverted Darlington circuit High-grade effects: SPX with 6 programs Balanced XLR Outputs PAD switch on mono inputs +48V phantom power Metal chassis Dimensions (W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9") Net weight: 0.9 kg (1.98 lbs.) Outline Mixing capability On-board processors SPX algorithm: 6 programs I/O Phantom power +48 V Input Channels Mono[MIC/LINE] 2 Stereo[LINE] 2 Output Channels STEREO OUT 2 PHONES 1 Bus Stereo: 1 Input Channel Function PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono) EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] General specifications Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) Crosstalk -88 dB Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha Power consumption 12 W Dimensions W 149 mm (5.9") H 62 mm (2.4") D 202 mm (7.9") Net weight 0.9 kg (1.98 lbs.) Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A Others Operating Temperature: 0 to +40˚C
