Description

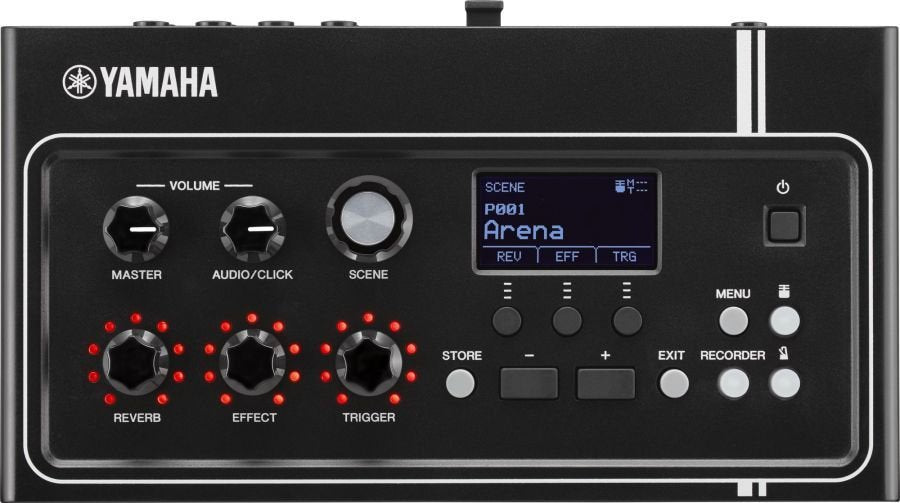

YAMAHA EAD10 DRUM MODULE

The Yamaha EAD10 acoustic drum electronic module enhances the way you practice, record, and perform with your acoustic drum kit and unleashes your musical creativity. Simple setup allows you to put on headphones and immediately hear studio-quality sounds (including effects and triggered samples) with Scenes designed to suit a wide variety of musical styles. It's simple to record high-quality audio to the module, USB flash drive, or computer and share your work with your band and friends. The free iOS app lets you create stunning audio and video and easily share it directly from your mobile device. Whether you're practicing, recording, performing, or sharing, the EAD10 makes your acoustic drum kit inspiring and fun.









Specifications
EAD10
Dimensions Width 260 mm (main unit), 76 mm (sensor unit)
Height 63 mm (main unit), 88 mm (sensor unit)
Depth 138 mm (main unit), 78 mm (sensor unit)
Weight Weight 654 g (main unit), 464 g (sensor unit)
Scenes Preset: 50 User: 200
Reverb 11
Effects Mic: 21, Trigger: 10
Trigger Sounds Tone generator AWM2
Maximum polyphony 64
Voices 757
Recording time Internal memory Approx. 1 min 30 sec
USB flash drive Approx. 90 min/file
Recording Format Record/playback WAV (44.1 kHz, 16 bit, stereo)
Import limit Up to 100
Playback sample format 44.1 kHz
Wave memory 32 MB
Maximum loadable sample size 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB
sample format WAV (16 bit)
Tempo 30−300 BPM, tap tempo function
Time signatures 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Subdivisions Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets
Functions Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off
Connectors DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST
Sensor Unit For Trigger sensor A (standard stereo phone)
For Mic sensor B (standard stereo phone)
Trigger input Stereo (L: trigger, R:trigger) 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone)
Three-zone (L: trigger, R: rim switch) 5, 6 (standard stereo phone)
Foot Pedal FOOT SW (standard stereo phone)
Sensor outputs For Trigger sensor A (standard phone)
For Mic sensor B (standard stereo phone)
Microphone High SPL mic × 2
Trigger Exclusive for bass drum × 1
Included accessories Owner’s manual, PA-150 (or an equivalent recommended by Yamaha), module holder, module holder wing bolts (× 2), connector cables (1 pair), cable bands (× 3), adhesive cushions (× 2)
