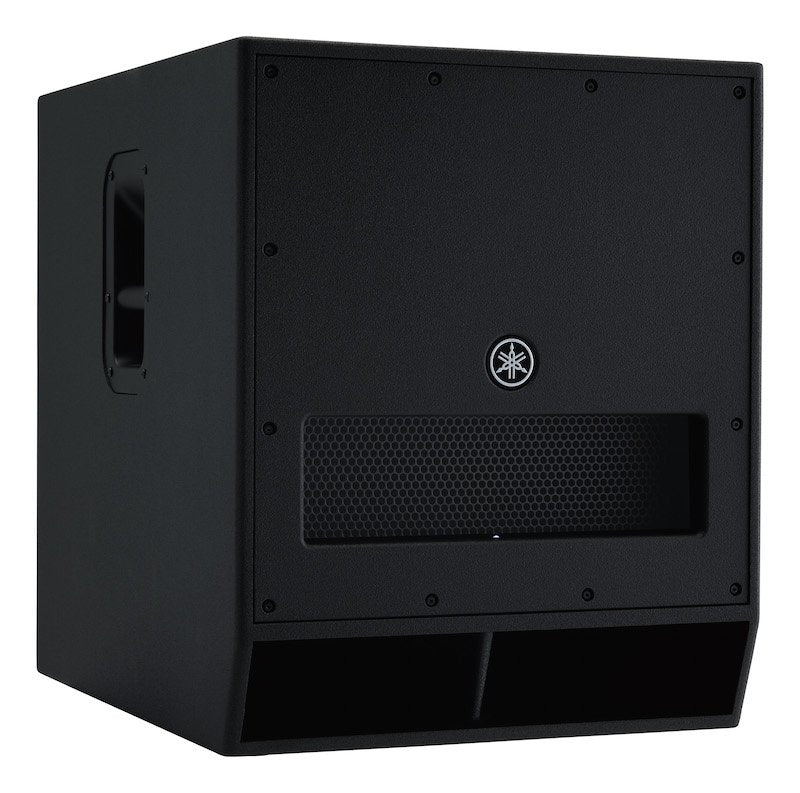

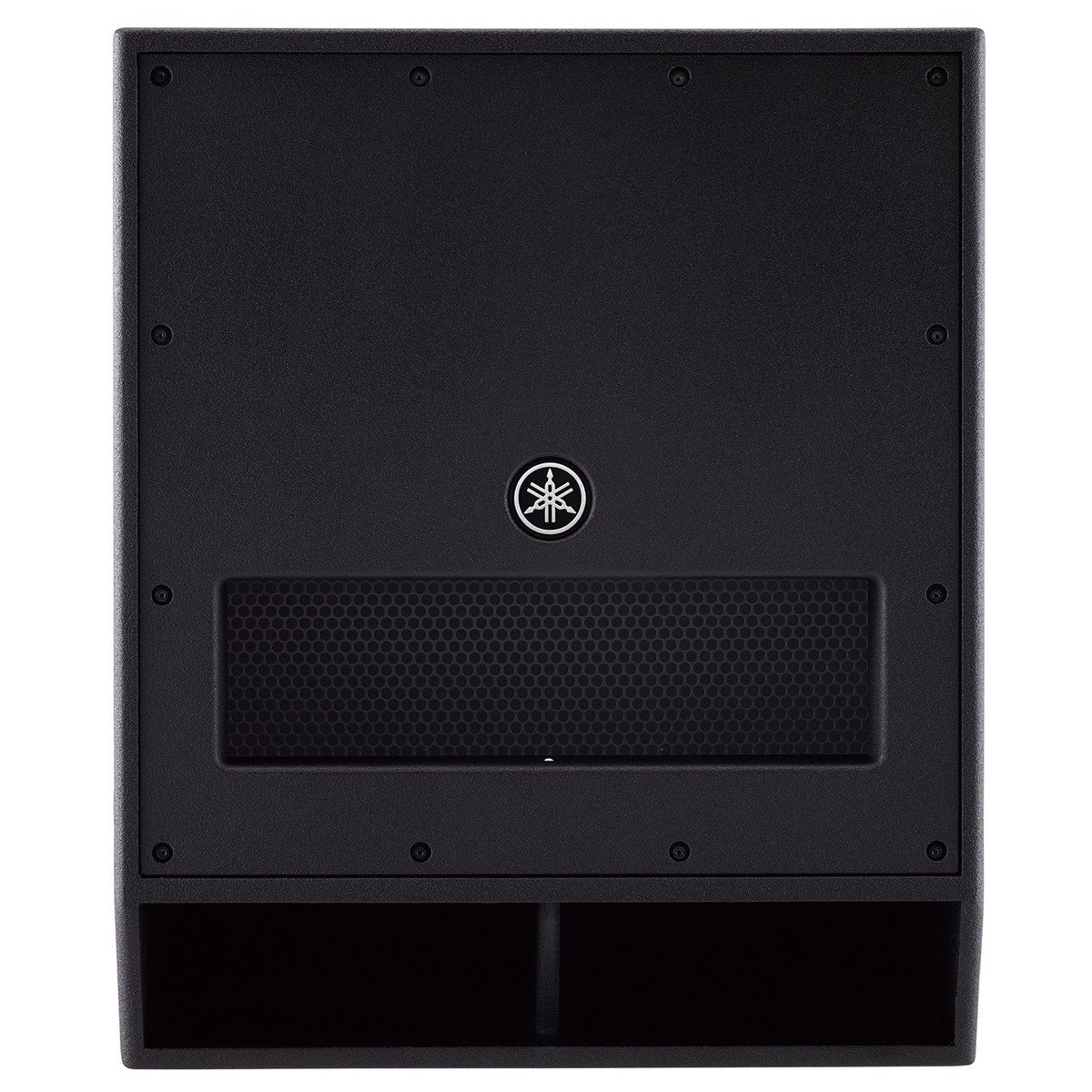

Yamaha DXS18 Subwoofer

Description

Yamaha Dxs18 Subwoofer

The new DXS 18 achieves the highest SPL in its class at 136dB and produces the lowest frequency of 32Hz. Featuring a band-pass design and high power handling for the 4-inch voice coil that drives the 18-inch woofer, the Class D amplifier delivers 1020W of power with exceptional clarity and punch.

Specifications

8" Powered Subwoofer, band-pass type

Frequency range: 32 Hz - 120 Hz

Components (LF): 18" cone, 4" voice coil

Output power

Dynamic: 1020W

Continuous: 800W

Maximum output level: 136dB SPL

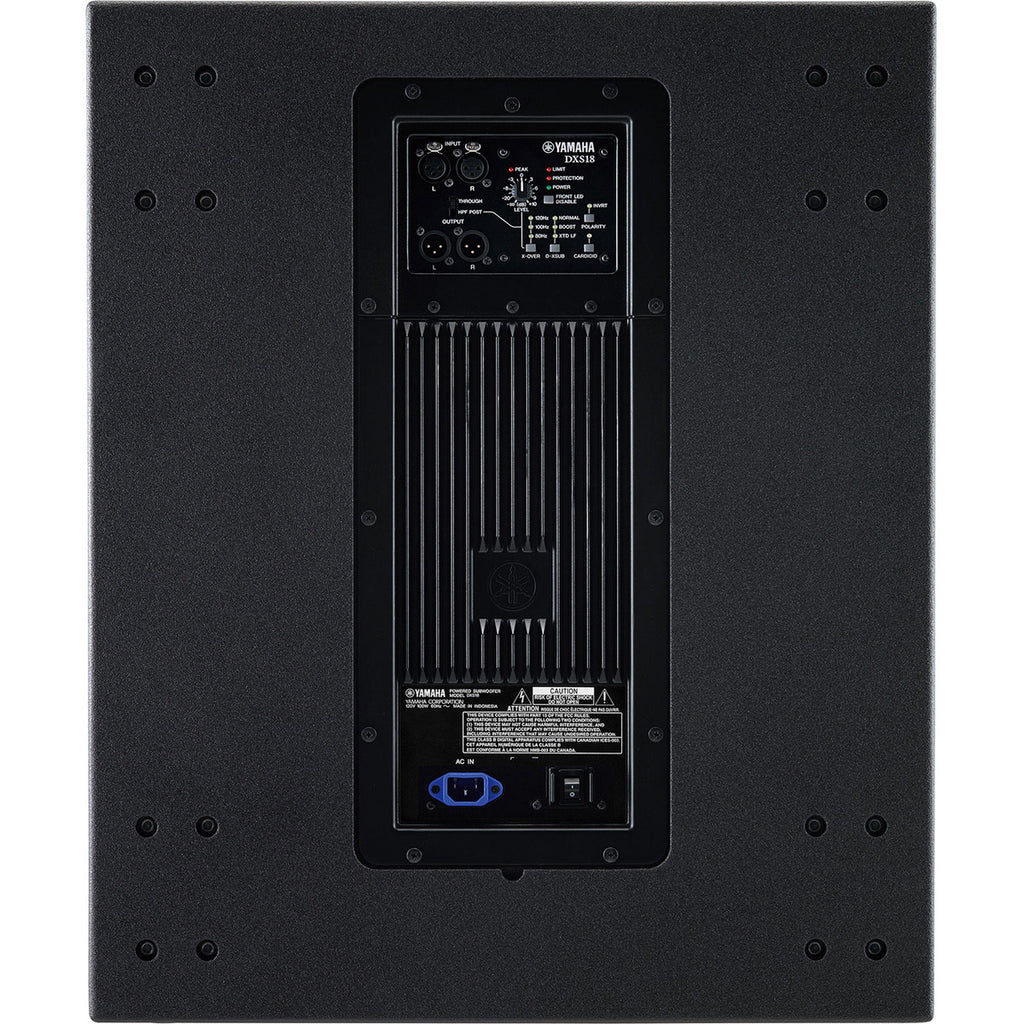

Connectors

Input: XLR3-31 x 2

Thru: XLR-3-32 x 2 (through or HPF Post)

Processors: D-XSUB: Boost, LF XTD, normal

Cooling: Natural convection

Power requirements: 100V - 240V, 50 / 60Hz

Power consumption: 100W

Pole socket: 35 mm

Material: Plywood (X-LINE, black)

Net weight: 49.7 kg

Dimensions

Height: 683 mm

Width: 563 mm

Depth: 721 mm
