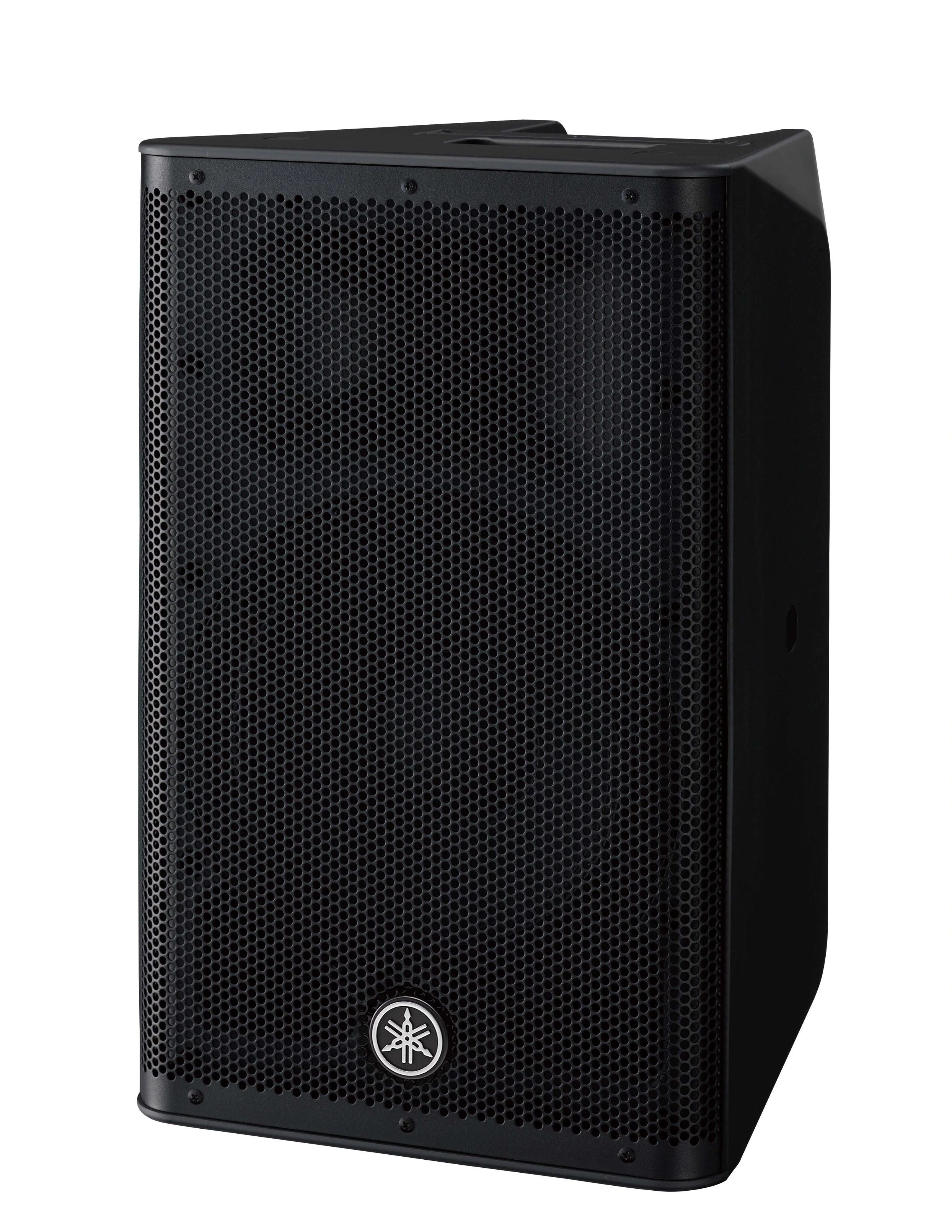

Yamaha Dxr10 Mk2 2-Way 10-inch 1100W Loudspeaker

Description

YAMAHA DXR10 MK2 2-WAY 10" 1100W SPEAKER

Equipped with the latest audio technologies, the DXR10mkII is certainly better than average speakers. An intelligent multi-band automatic compressor, a super-flexible integrated mixer, phase and crossover frequency management, and high-efficiency Class D amplifiers combine at the forefront of audio technology. The result is simply extraordinary.

Specifications

System type: 2-way, bi-amplified, bass-reflex powered speakers

Frequency range (-10 dB): 56 Hz - 20 kHz

Coverage angle: H 90° x V 60° constant directivity horn

Crossover type: FIR-X (linear phase FIR filter)

Max SPL (peak): 132 dB SPL

Amplifier type: Class D

Dynamic rated power: 1100 watts

Continuous rated power: 700 watts

Cooling: fan cooling, 4 speeds

AD/DA: 24 bit, 48 kHz

Signal processing: 48 bit

HPF/LPF: off, 100, 120 Hz 24 dB/octave

DSP Presets: D-contour, FOH/main, monitor, off

Input connectors: 1 x XLR/1/4'' combo jack, 2 x 1/4'' jack, 2 x RCA pin

Output connectors: 2 x XLR

Idle power consumption: 35 watts

Material, finish, color: ABS, matte black

Floor monitor angle: 50°

Dimensions (WxHxD): 302 x 502 x 310 mm

Net weight: 13.9 kg
