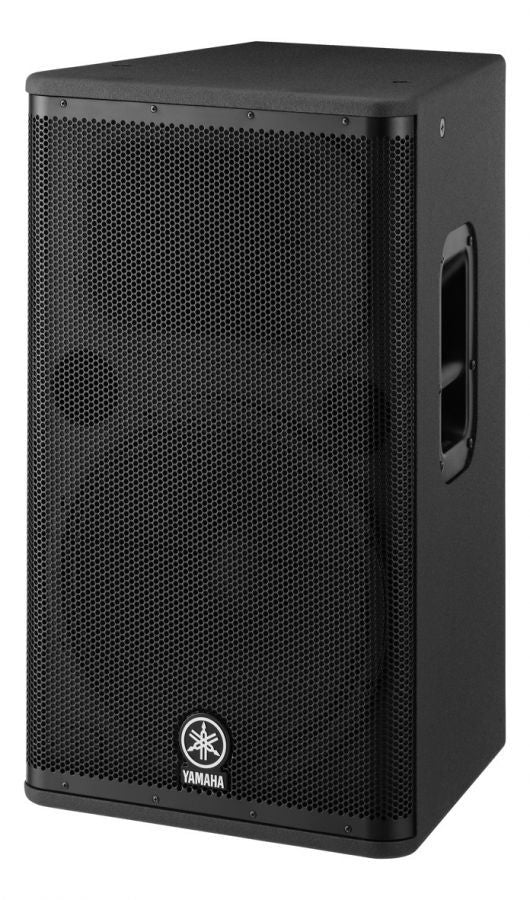

Yamaha DSR115 Powered Loudspeaker

Description

Yamaha dsr115 powered speaker

The DSR115 is a compact, high-power 15" 2-way active loudspeaker system capable of achieving 136dB maximum peak SPL output. Equipped with high performance 48-bit DSP and top quality 1300W (LF 850W, HF 450W) Class-D amplifiers, it delivers sound with resolution at the highest level in its class and superb SPL performance. The DSR115 is perfect for live sound and installation applications that demand bass with extra punch and depth together with accurate high frequency response.

Ultra-precise 48-bit digital sound processing

D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing

All-new 1300W Class-D amplifiers with PFC switching mode power supply

Maximum SPL 136dB peak

Extensive protection of the transducers, amplifiers and power supply from high performance DSP

Premium-grade, custom-designed transducers

Exclusive 90° × 60° CD Waveguide Horn

Compact and lightweight (28.0kg / 62lbs)

Stand and pole mountable, with 35mm pole sockets

Integrated M10 rigging points for suspended applications

Specifications

Speaker type 15" 2-way, Bi-amp powered Speaker, Bass-reflex Type

Frequency range (-10dB) 45Hz ~ 20kHz

Frequency response (-3dB) 55Hz ~ 18kHz

Nominal coverage H 90°, V 60°

Components LF 15" cone, HF 2" Titanium diaphragm compression driver

Output power 1300W (LF: 850W HF: 450W)

Maximum output level (1m; on axis) 136dB SPL

Processors D-CONTOUR (Dynamic CONTOUR)

I/O connectors INPUT:XLR-3-31 x1 (Balanced) TRS Phone Jack x1 (Balanced), OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT

Dimensions W 442mm (17 4/8"), H 755mm (29 6/8"), D 423mm (16 4/8")

Net weight 28.0kg (62lbs)

Flying and mounting hardware 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc)

Pole socket 35mm (Bottom Board)

Power consumption 100W

Crossover FIR-X tuning (linear phase FIR filter)
