Yamaha Ag03Mk2 3-Channel Live Streaming Mixer with USB and Audio Interface

Description

Yamaha Ag03Mk2 3-Channel Live Streaming Mixer with USB and Audio Interface

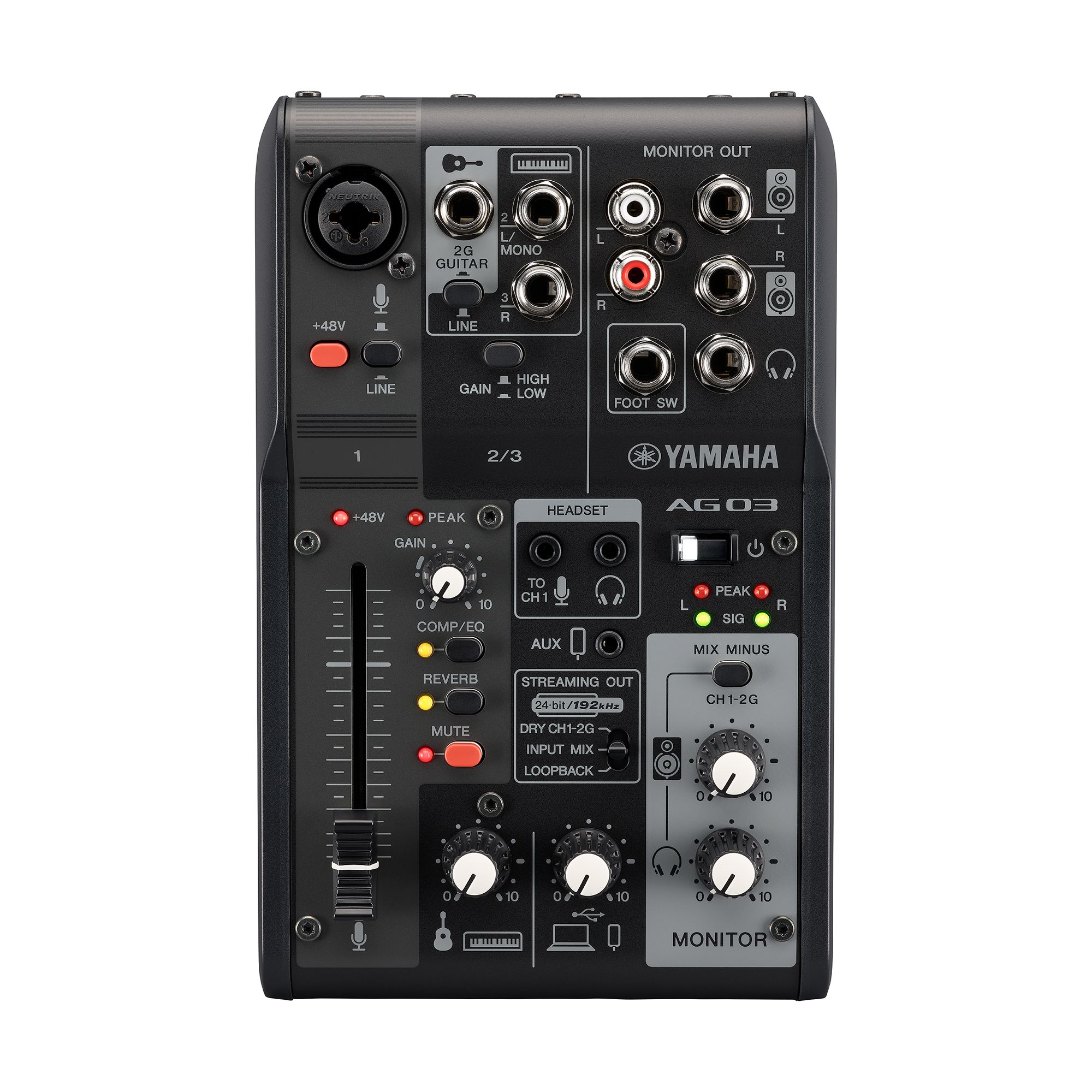

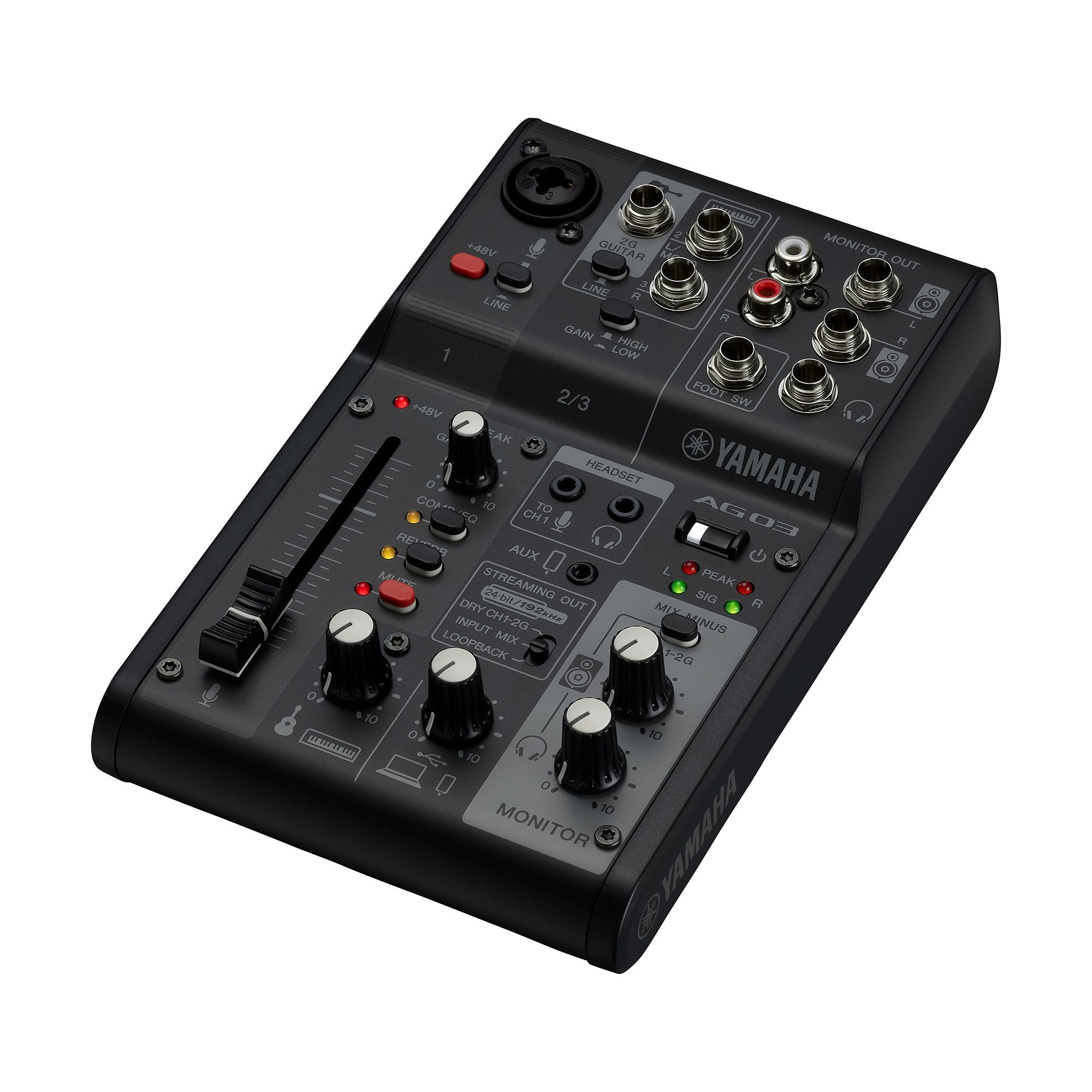

The AG03MK2 features multiple physical controls including a large 60mm fader that helps you shape and manage audio intuitively and quickly.

The newly added mute button allows you to cut your microphone input in an instant if your situation requires it. Reverb and Mute can also be controlled by the optional FC5 footswitch, freeing up your hands for other tasks.

In addition to an input for the condenser microphone of your choice, the AG03MK2 also features a 1/4" jack input for connecting a guitar or line instrument and an upgraded 4-pole (TRRS) mini jack for smartphone input and output functionality.

You can also use the Loopback function to play audio signal from a USB device connected to the USB streaming output as with previous AG series mixers.

The AG03MK2 sees a marked improvement in sound quality as a result of the adoption of USB-C connectivity and improved internal circuitry that will take your audio streaming to a more professional level. The high transfer speed and power supply of USB-C ensure more stable operation.

The AG03MK2 features optimized 1-Touch Comp/EQ and Reverb controls to create the sound that best suits your style and an amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip, so there is no delay, making it particularly valuable for live streaming when real-time precision is crucial.

The AG Controller software allows users to easily and precisely control and configure the DSP audio processing within the AG.

Offering two operating modes, "Simple" and "Detail", the AG Controller gives users of different music productions a detailed management experience of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

Combining it with the optional BMS-10A power adapter, it can be mounted on a microphone stand. It can also be connected to a mobile battery to set up a minimalist mobile streaming station anywhere.

The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. It is also compatible with the Rec'n'Share and Cubasis LE apps for iOS devices, available free from Yamaha and Steinberg to support and inspire audio content creation.

Specifications

60mm fader for CH1 microphone

+48V phantom power on CH1 input for condenser microphones or DI Box

Hi-Z input for guitars on CH2

High-resolution 2-track audio recording and playback (24-bit, 192kHz)

4-pole mini input/output (TRRS) to support a wider range of streaming applications

Flexible inputs and LOOPBACK function ideal for live streaming or recording

Mute button for convenient live streaming

Easy control and professional sound with Amp Simulator and 1-Touch Comp/EQ, Reverb

AG Controller (Windows/Mac/iOS) for precise parameter control

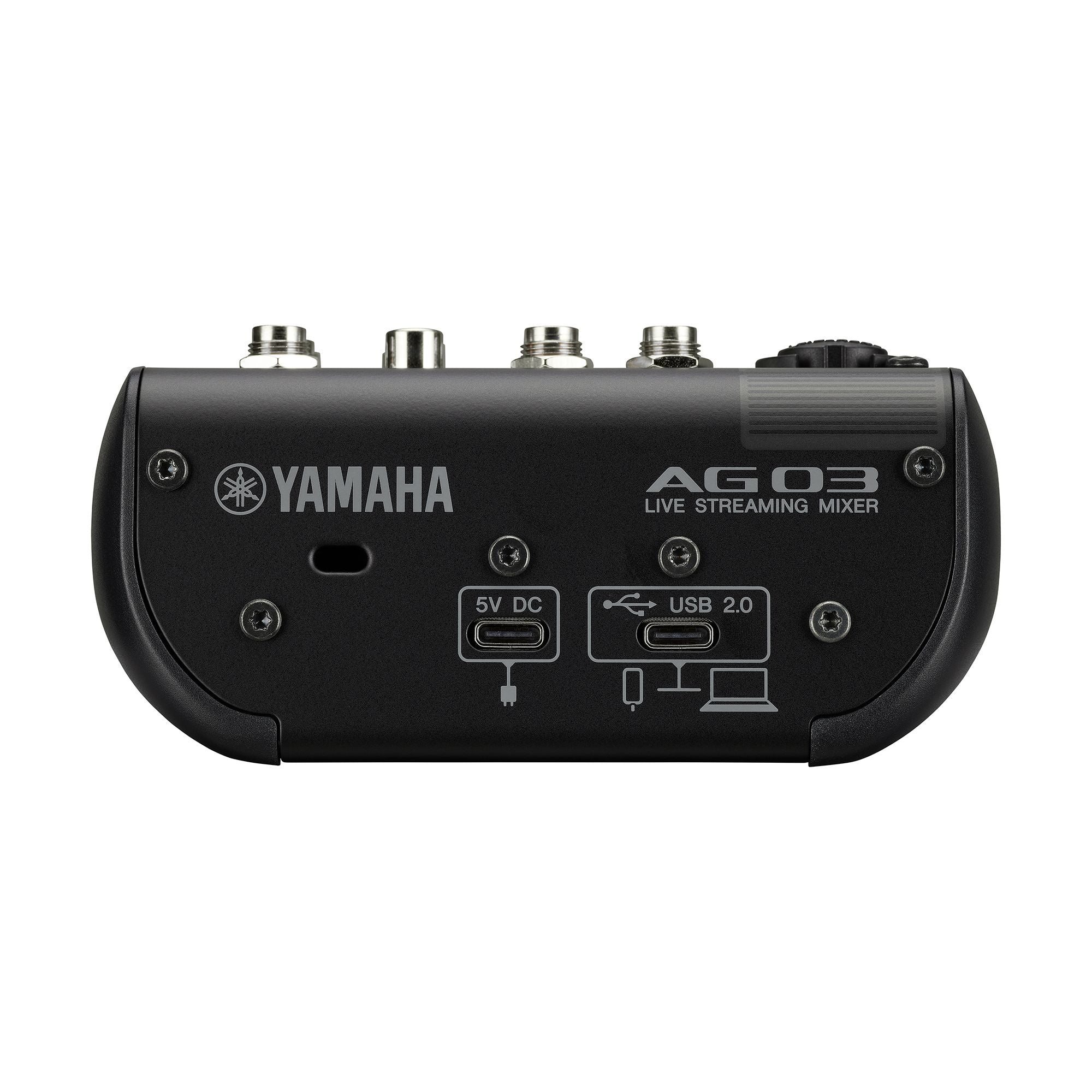

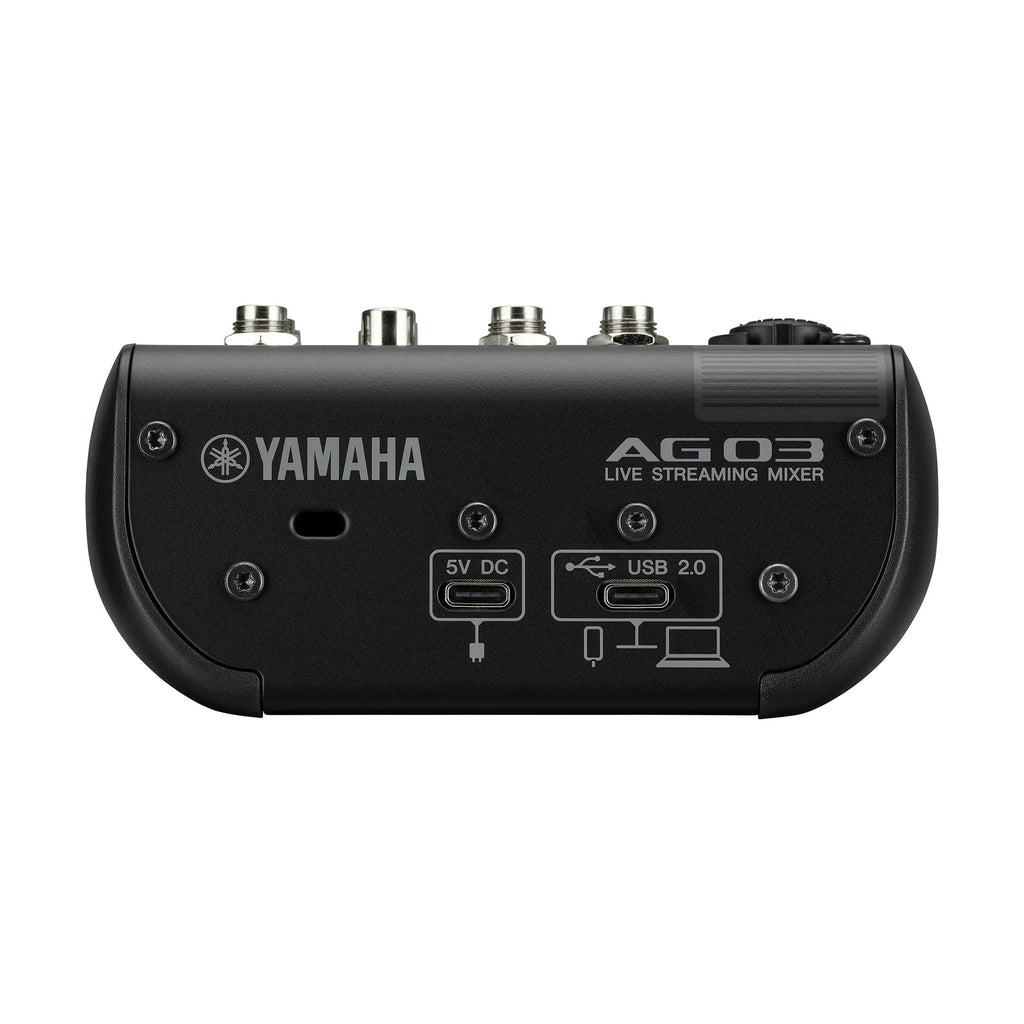

Windows/Mac support via USB-C connection

iOS connectivity via Apple Camera Adapter (requires external USB power)

Android supported by 4-pole mini input/output (TRRS)

USB-C power input (5V DC, 900mA)

Cubase AI, WaveLab Cast, Cubasis LE, and Rec'n'Share are available
