Description

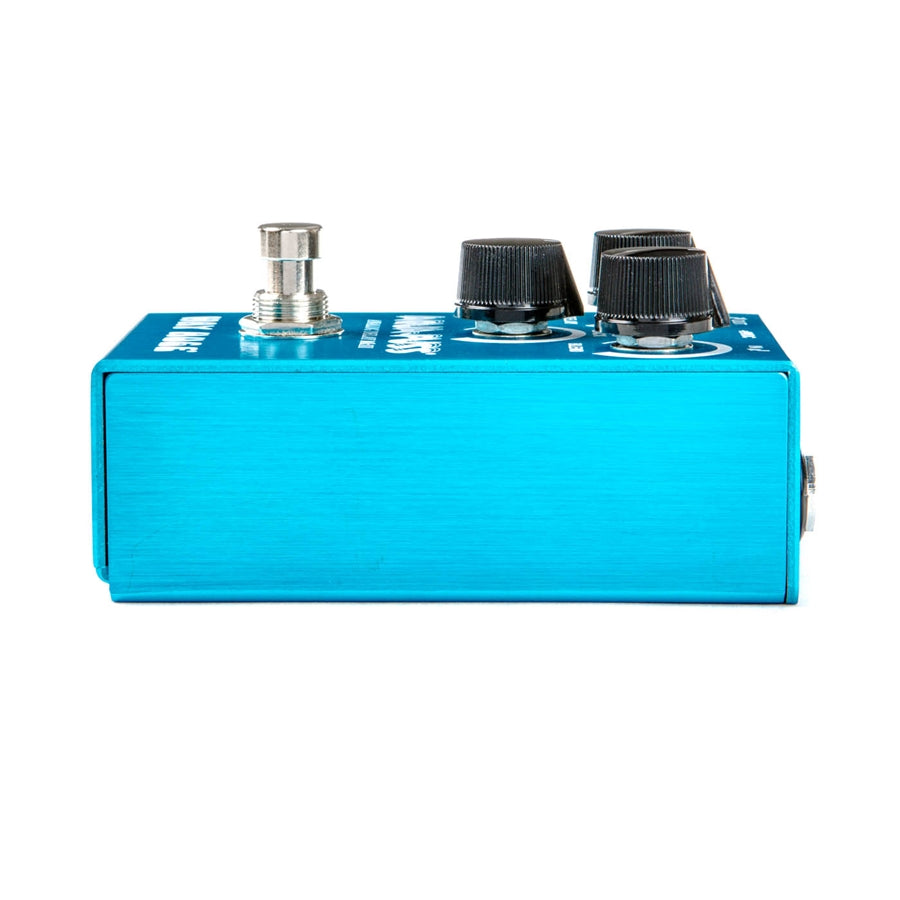

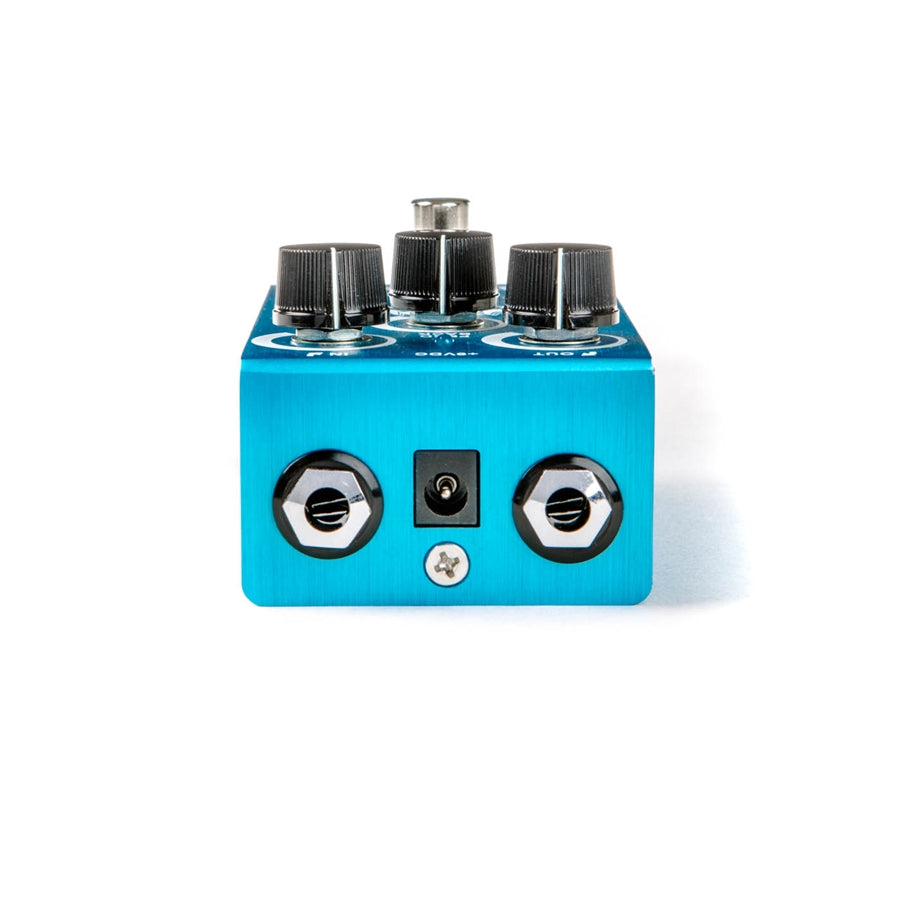

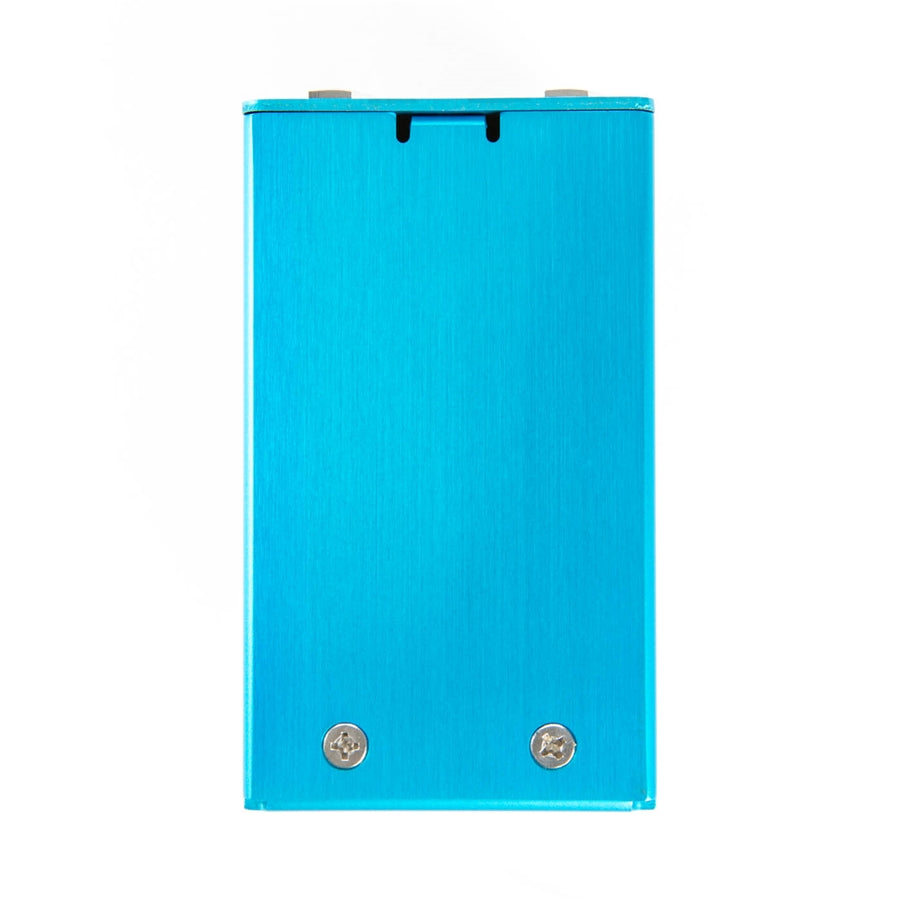

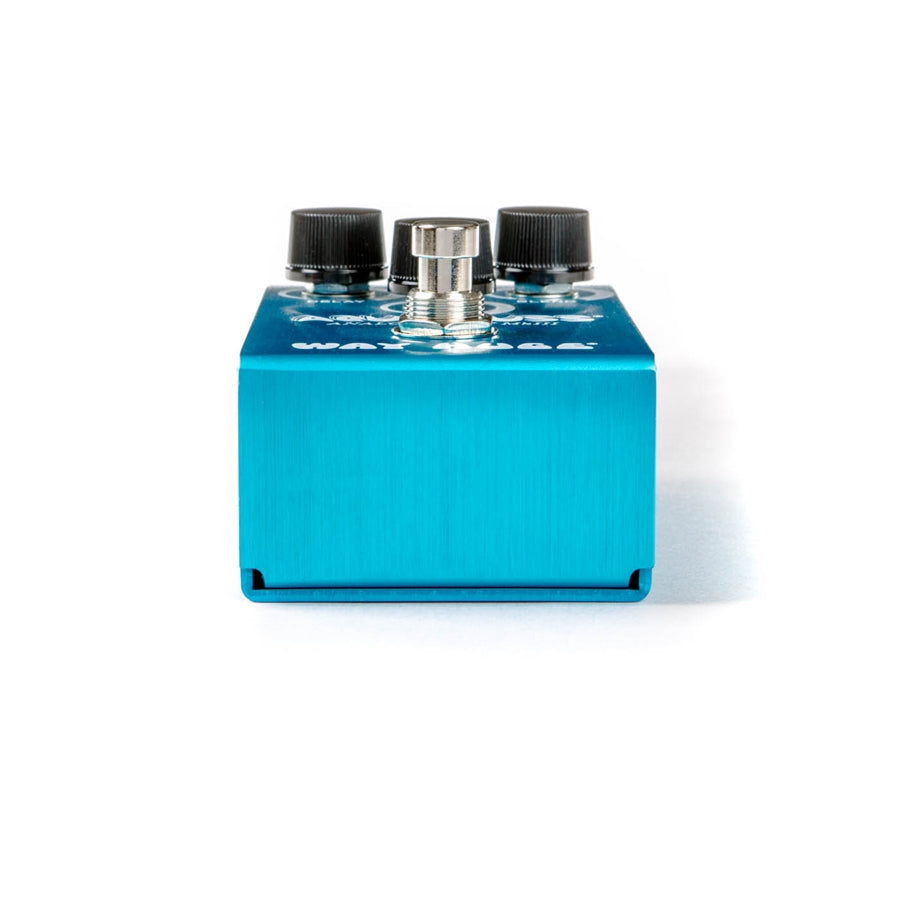

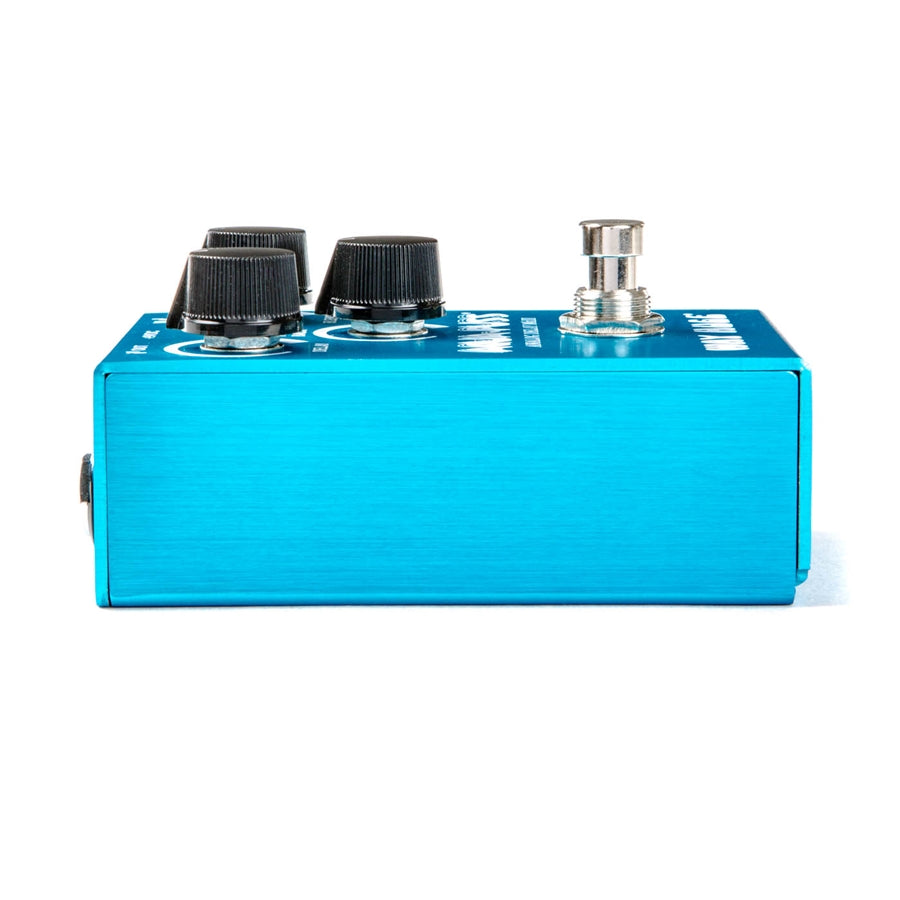

WM71 Smalls Aqua-Puss Analog Delay is the analog delay from Way Huge from the Smalls series, capable of delivering smooth vintage delays and tape-style echo, with a delay time ranging from 20ms to 300ms.

OVERVIEW

The Aqua-Puss Analog Delay is famous for its bright, metallic repeats and its extraordinary simplicity. Now, all these incredible features have been packed into the Way Huge Smalls format that your pedalboard will appreciate. The Feedback control adjusts the duration and intensity of the delay, but beware: an extreme setting creates spacetime distortions! Use the Blend knob to balance the clean signal and the delay.

The Aqua-Puss is a must-have for musicians looking to add some depth to their tone or evoke a slap-back sweet enough to earn the envy of any Rockabilly musician or Country legend.

POWER SUPPLY

The WM71 Aqua-Puss Analog Delay can be powered by a 9V battery or, alternatively, by an AC adapter such as the Dunlop ECB003, DC Brick, or Iso-Brick.

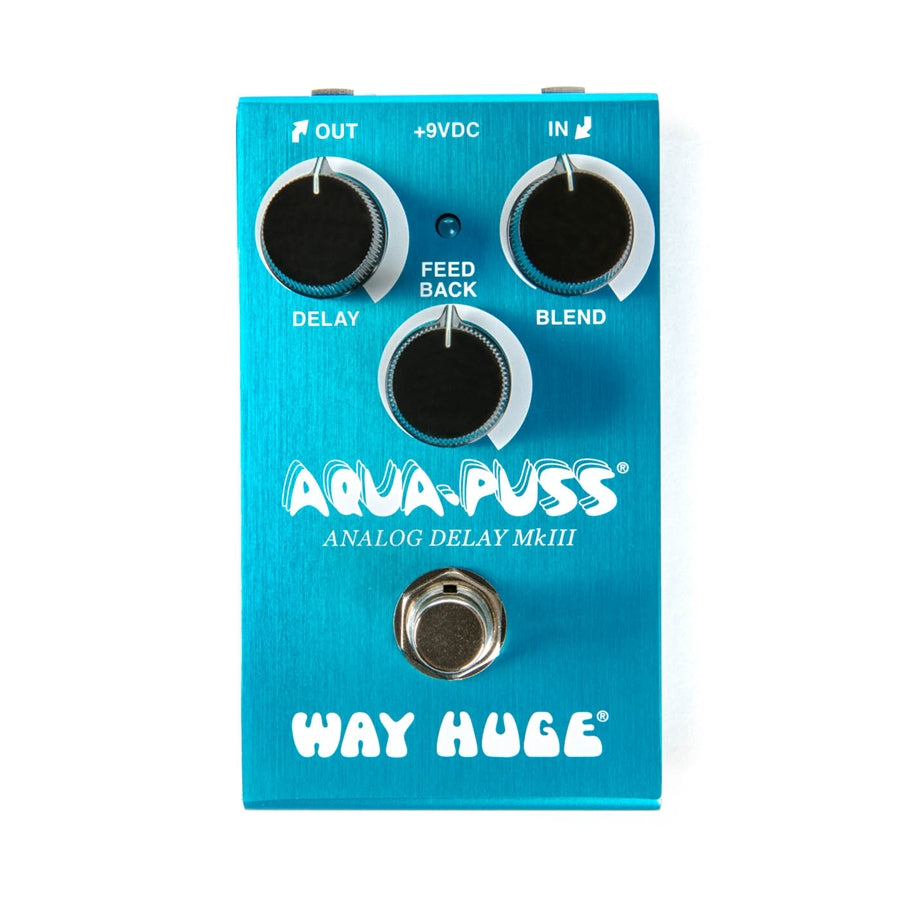

CONTROLS

Delay: adjusts the delay time from 20ms to 300ms;
Feedback: sets the number of repeats;
Blend: adjusts the mix between the clean signal and the effect.

STRENGTHS

• Simple controls;
• True Hardwire Relay;
• Small size.

WM71 SMALLS AQUA-PUSS ANALOG DELAY TECHNICAL SPECIFICATIONS

Input Impedance: >300 kOhm
Output Impedance: <1 kOhm
Nominal Output Level: -20 dBV
Signal to Noise Ratio: >96 dB
Bypass: True Hardwire Relay
Delay Distortion: <= 1%
Delay Range: 20 ms to 300 ms
Current Draw: 16 mA
Power Supply: 9V DC
