Description

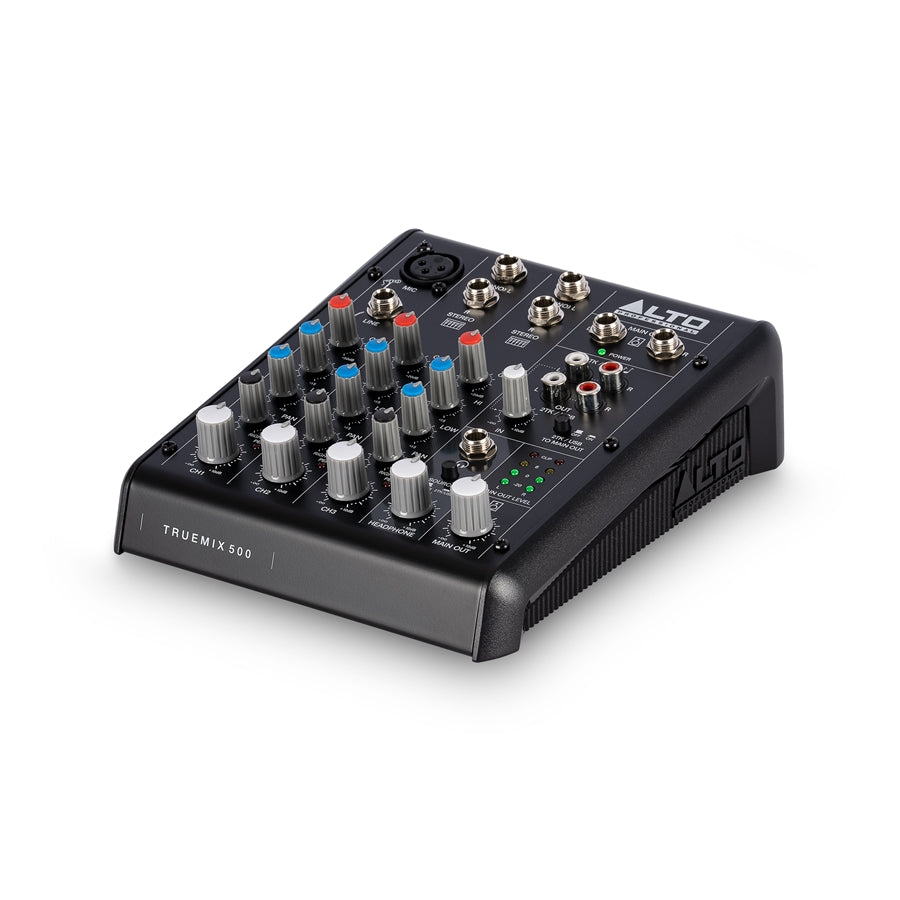

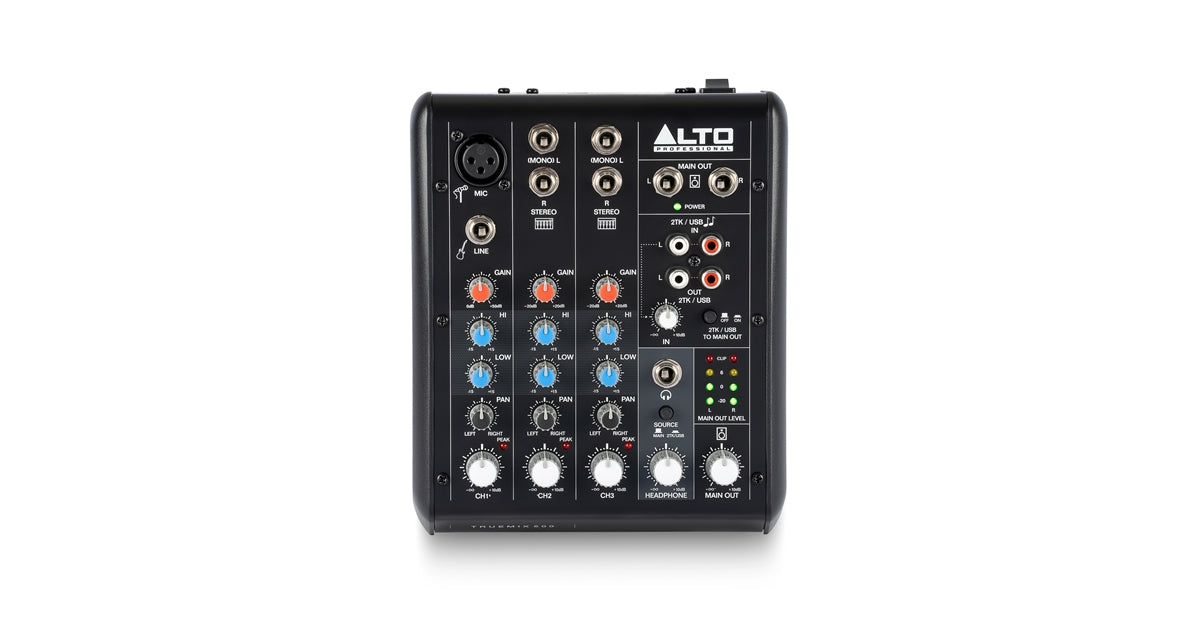

Alto Professional TrueMix 500 is a 3-channel analog mixer, 1 mono (Mic/Instrument) and 2 stereo (line) with a 2-band equalizer (bass and treble), pan, and gain on each channel. The class-compliant USB audio port adds a stereo input and output to your PC, Mac, smartphone, and tablet.

The TrueMix 500 from Alto Professional is a compact mixer, with a small footprint (159.5x193x66mm) and a weight of only 900 grams, designed to ensure maximum portability. Equipped with an integrated stereo USB audio interface, Alto TrueMix 500 offers all the essential features for home recording, live streaming on Youtube, Twitch, and Facebook, podcast creation, small live performances, and use with the most popular audio/video communication platforms: Teams, Zoom, Skype, etc...

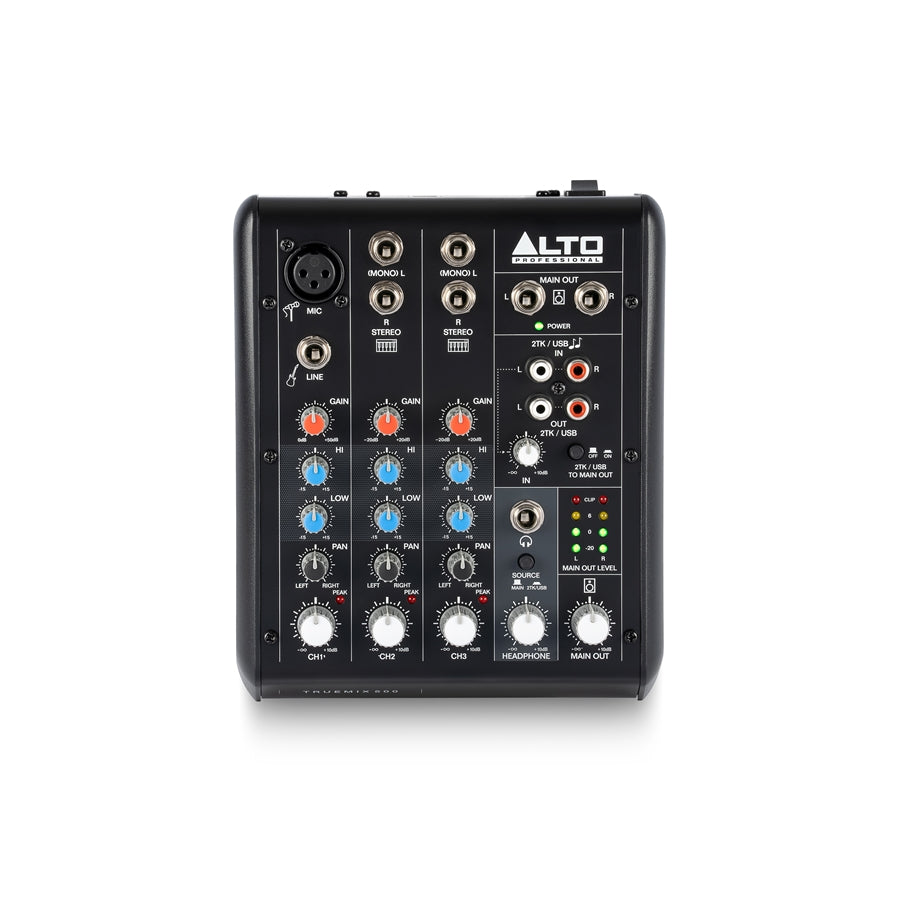

Circuits and components offer pleasant dynamics, as noise is minimized and signal clipping is easily managed thanks to the high headroom. Channel 1 offers an XLR input with microphone preamplification, which supports both dynamic and condenser microphones thanks to the presence of 48v phantom power. This mono channel alternatively offers a balanced line input on a ¼" TRS jack to which we can connect instruments such as electric guitars or basses, or other line-level signals: synths or other monaural sources. There are two stereo channels, each with a pair (L and R) of balanced ¼" TRS jack inputs. These inputs are perfect for your line-level audio sources. Gain, Pan, rotary volume control, peak indicator, and a two-band equalizer are available on all three channels: ±15dB @ 12kHz for highs, ±15dB for low frequencies preset at 80Hz.

Connecting the Alto TrueMix 500 to your computer, smartphone, or tablet is simple and immediate. As it is a class-compliant device, connectivity with Windows and macOS operating systems is truly plug and play and does not require drivers. The TrueMix 500 is your perfect companion for mixing, audio recording, and live streaming even when you're on the go.

Alto TrueMix 500 Features


• 3-channel mixer: 1 mono, 2 stereo

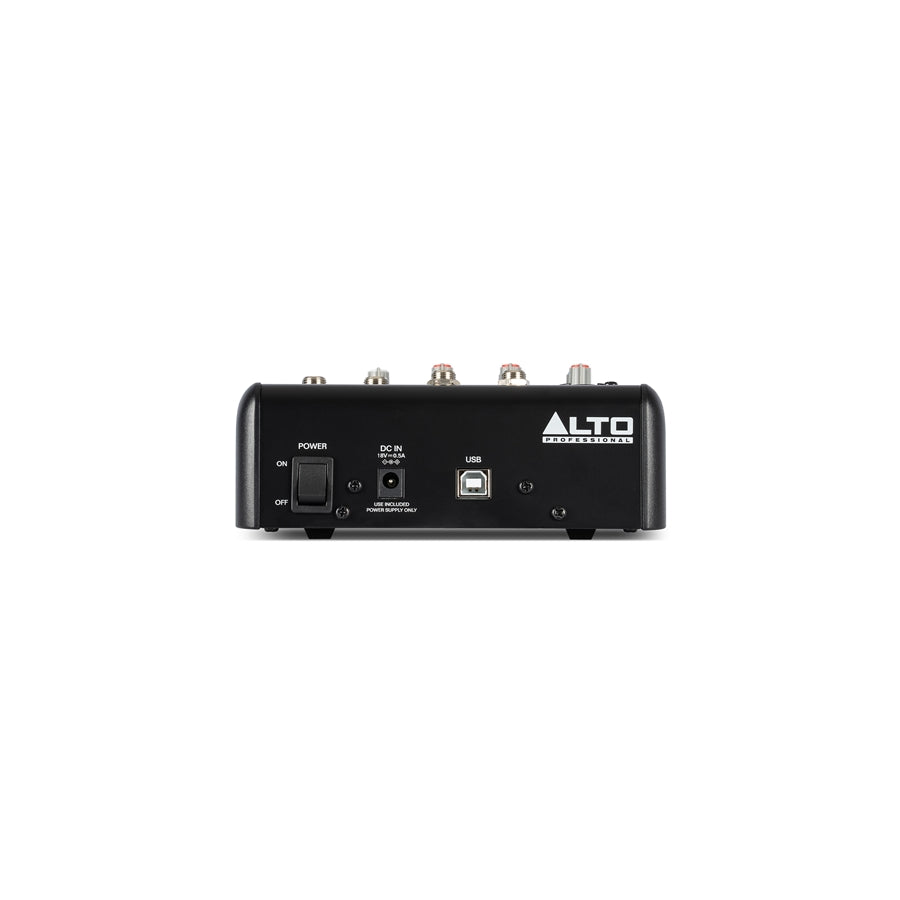

• USB type B port: Stereo In/Out for computers and devices

• Class-compliant USB audio connectivity (no drivers required)

• XLR input with phantom on CH1

• ¼” TRS Instrument/Line jack input on CH1

• Gain, Pan, and 2-band EQ on each channel

• Two stereo channels (2 and 3) with 1/4" TRS jacks

• 2 TRK input with assignable routing: Main Mix/Headphone Out

• Stereo Main output: 2 (L and R) 1/4” (6.35 mm) TRS jacks

• Main output specifications: +22dBu max out, 120Ω

• Headphone output: 1/4" (6.35 mm) stereo TRS jack, 160mW @32Ω

• 2 TRK output: RCA L and R; 0dBu max out, 1kΩ

• Dimensions and weight: 159.5x193x66mm; 0.9KG

• Power supply: DC, 18V, 500 mA

• Power consumption: 9 W

• LED indicators: 1 Power, 3 Peak LEDs, 2x4 Main Out meter

Alto Professional TrueMix 500 Technical Specifications


• Frequency response (±1 dB): 20Hz to 22kHz

• Signal-to-noise ratio: > 110dBu on all inputs

• Input impedance: Mic 3.9kΩ; other inputs > 10kΩ

• THD+N: all inputs: < 0.005% (@ 4dBu, 1 kHz)

• Gain Range:

  • CH 1: Mic 0/+44dB

  • Line 12/30dBu

  • Inputs 2 and 3: 0dBu



• Max voltage Gain:

  • 74dB (Mic In to Main Out and 2TK Output)

  • 80dB (Mic In to Phones Output)

  • 30dB (Line In to Main Out)



• Crosstalk Adjacent Input: < -80dB @1kHz
