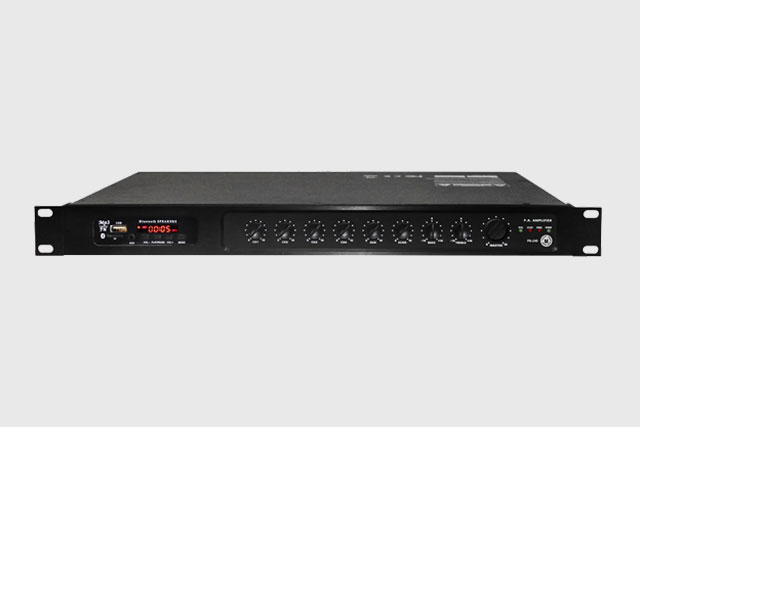

Topp Pro PAX-240 Power Amplifier

Description

Topp Pro PAX-240 Power Amplifier

Power output (1K / 70V / 100V)

240W

Frequency response

80Hz- 16KHz (±3dB)

Output

COM, 4 Ohms, 70V, 100V

Specifications

Power supply AC 100-240V 50/60HZ / DC24V / class D amplifier

Power output (1K / 70V / 100V) 240W (RMS)

Frequency response 80Hz- 16KHz (±3dB)

T.H.D. 1 1%

S/N Ratio Mic: 65dB / Phantom: 65dB / Line: 75dB / AUX: 75dB

Input / Sensitivity Mic: -52dBV balanced / Phantom: -52dBV / 18V balanced / Line: -1 0dBV balanced / AUX: -1 0dBV balanced / Test/alarm: -10dBV balanced

Equalizer Controls BASS: ±10dB (at 100Hz), TREBLE: ±10dB (at 10KHz)

lndicators Power: Green led / Signal: Green led / Pro: Red led / Clip: Red led

Output COM, 4 Ohms, 70V, 100V

Controls 4 input volume controls, 1 Aux volume control / 2 Treble / Bass controls, 1 Master volume control / 4 Mic / Phantom / Line selector switch / 1 Mic / Priority controls / MP3 player with SD/USB interface / ECHO function

Dimensions (HxWxD) 483 x 281 x 44mm

Net Weight 5.6Kg
