Description

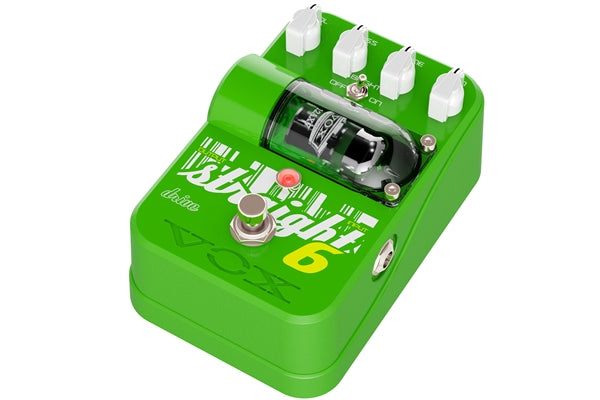

The Straight 6 is Vox's overdrive pedal, designed for guitarists who appreciate the classic British VOX sound. Equipped with a 12AX7 preamp tube, it features Gain, Bass, Tone, and Volume controls plus a Bright on/off switch. This overdrive ranges from a light saturation to crunch sounds, with a very warm yet edgy tonal character, in true British style.

OVERVIEW

Thanks to the various controls on the pedal and the crucial action of the preamp tube, the VOX Straight 6 Overdrive provides guitarists with a very wide and varied saturation and frequency response, ranging from a lightly saturated, bass-rich bluesy sound to an almost distorted and very edgy sound, ideal for hard rock.

SPECIFICATIONS

Input impedance: 1M ohm
Output impedance: 2.2 k ohm
Vacuum tube: ECC83 / 12AX7
Connections: INPUT jack (guitar input), OUTPUT jack (line output)
Power supply: AA battery x 6
AC adapter: DC 9V (optional)
Tube operating voltage: 200 V
Current consumption: 240 mA
Battery life: approximately 7 hours
Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch
Weight: 420 g / 14.81 oz (excluding battery)
Accessories: AA alkaline battery x 6 (for operation check)
Options: AC Adapter
