Soundsation Pocket Mix

Description

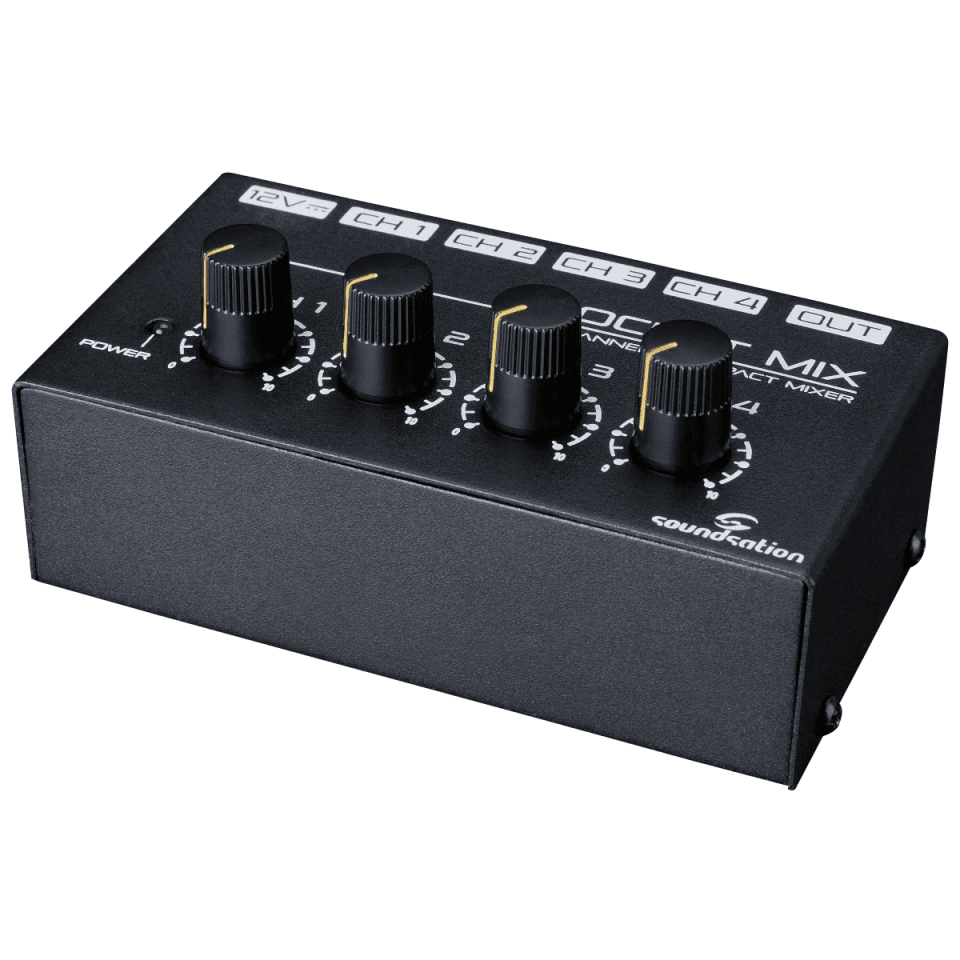

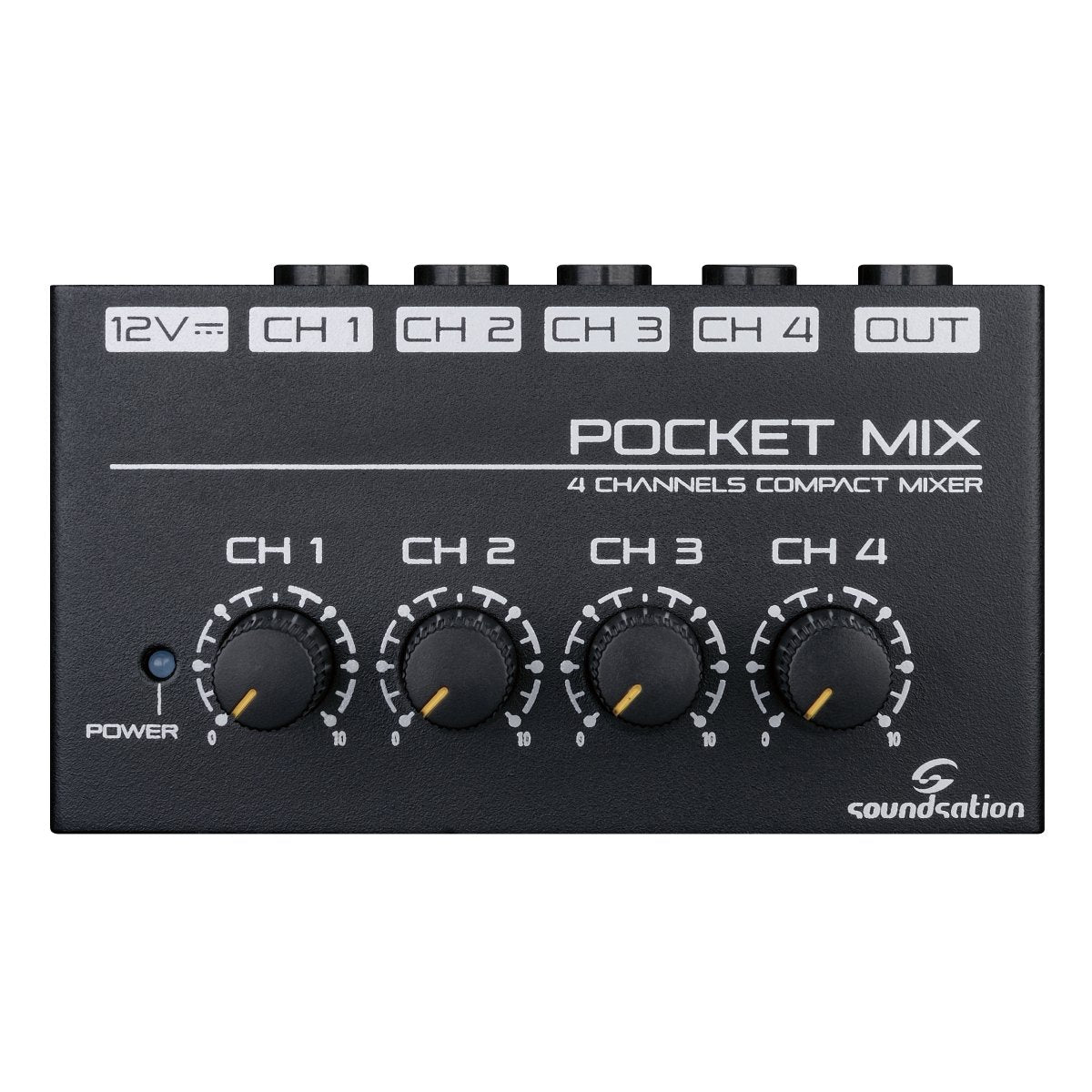

Soundsation Pocket Mix

The Pocket series was created to meet the needs of musicians and audiophiles. You can never have enough mixer channels. Or you need to connect several instruments to a single output. With a simple and ultra-compact design, the Pocket Mix is the Swiss Army knife of your setup.

Specifications

4-channel mini mixer with noiseless preamp

Ultra-compact size 110 x 57x 31 mm

Can be used with both line and microphone signals

4 mono 6.3 mm TRS inputs

Mono 6.3 mm TRS output

12V DC power supply included

Fewer Main Features

Specifications

Input Connectors

6.3mm TS Jack

Input Impedance

4.7 kΩ

Max. Input Level

+16 dBu

Output Connector

6.3mm TS Jack

Output Impedance

80 Ω

Max. Output Level

+16 dBu

Power Supply

DC 12V - 150mA
