Soundsation Adx800 Active 2-Channel DI Box

Description

Soundsation Adx800 Active 2-Channel DI Box

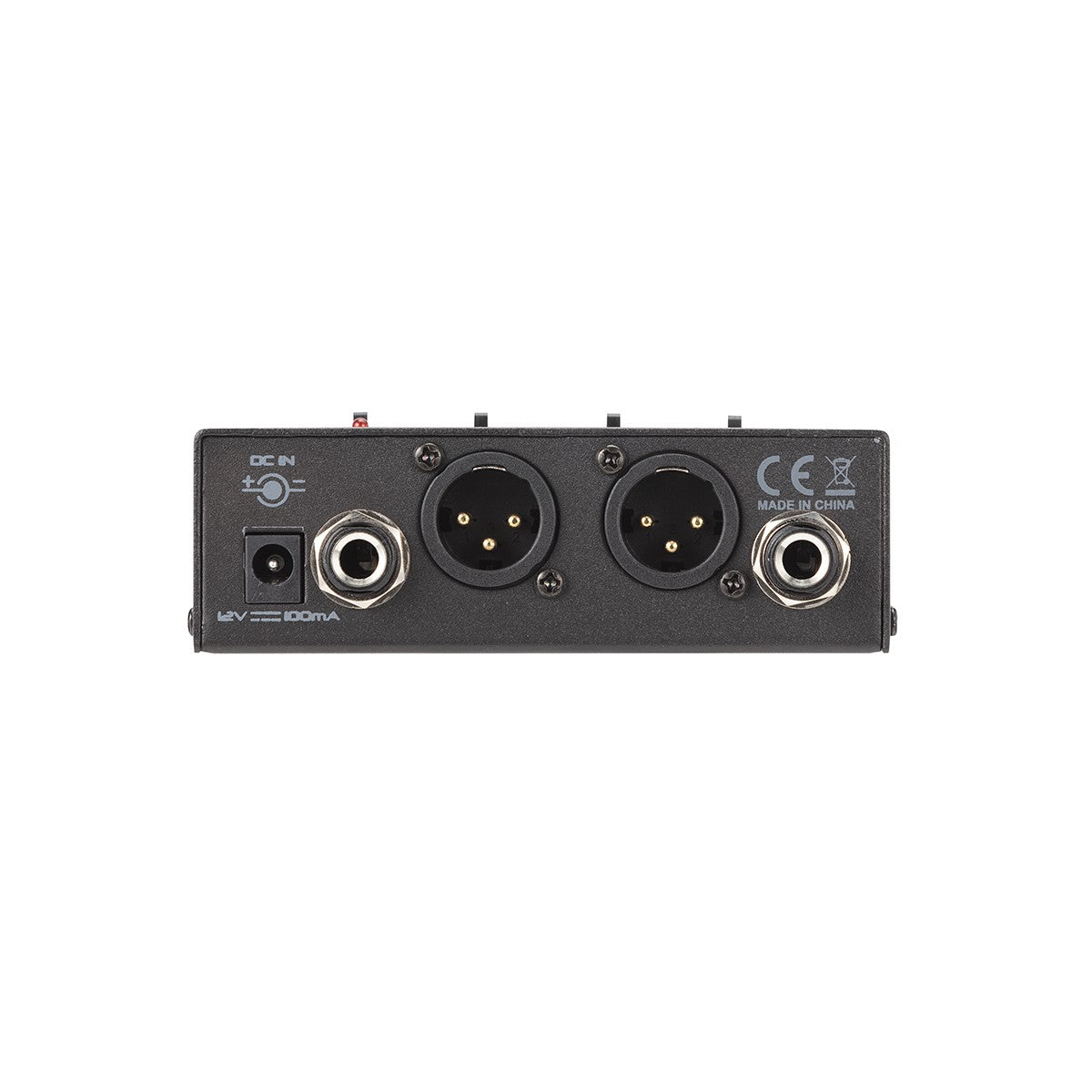

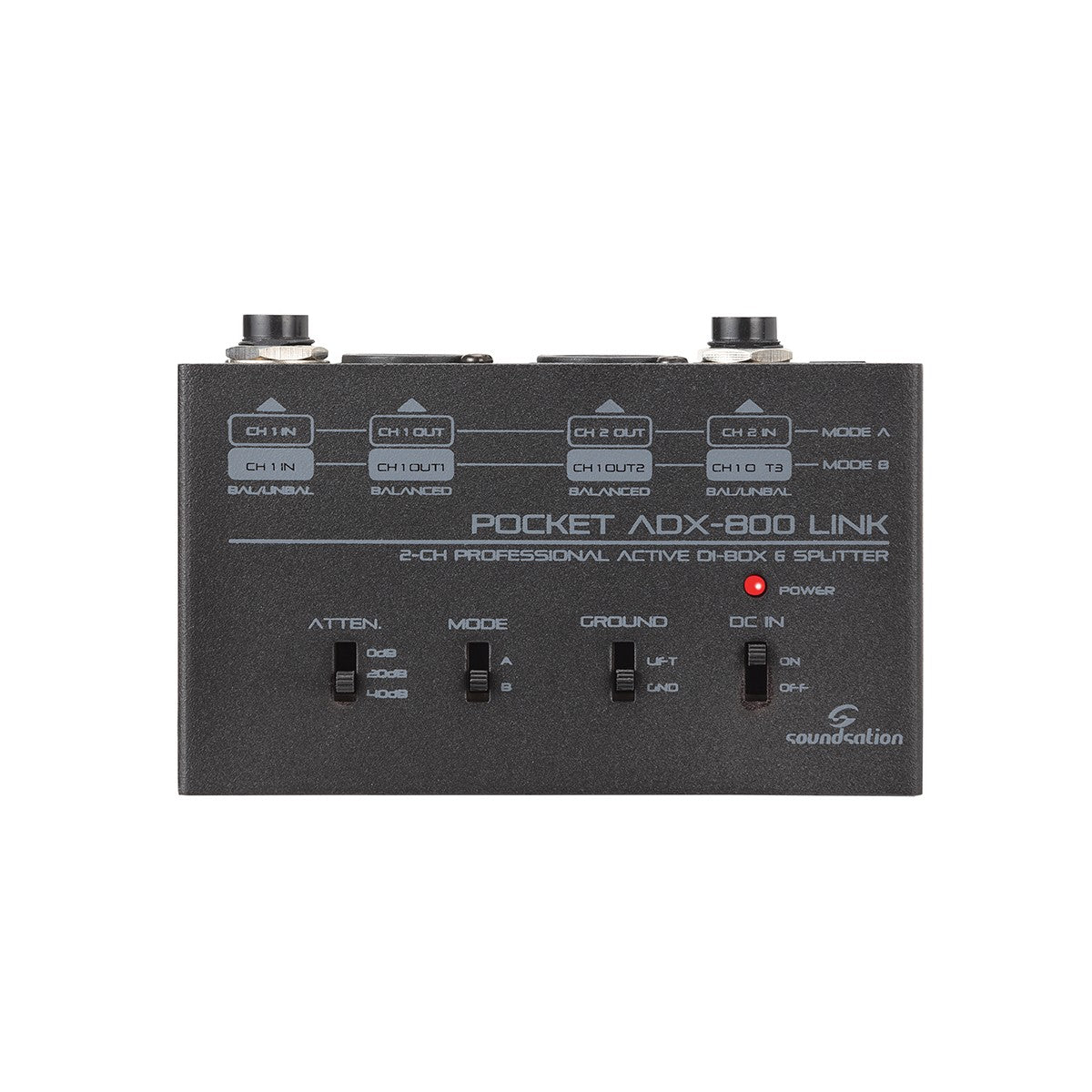

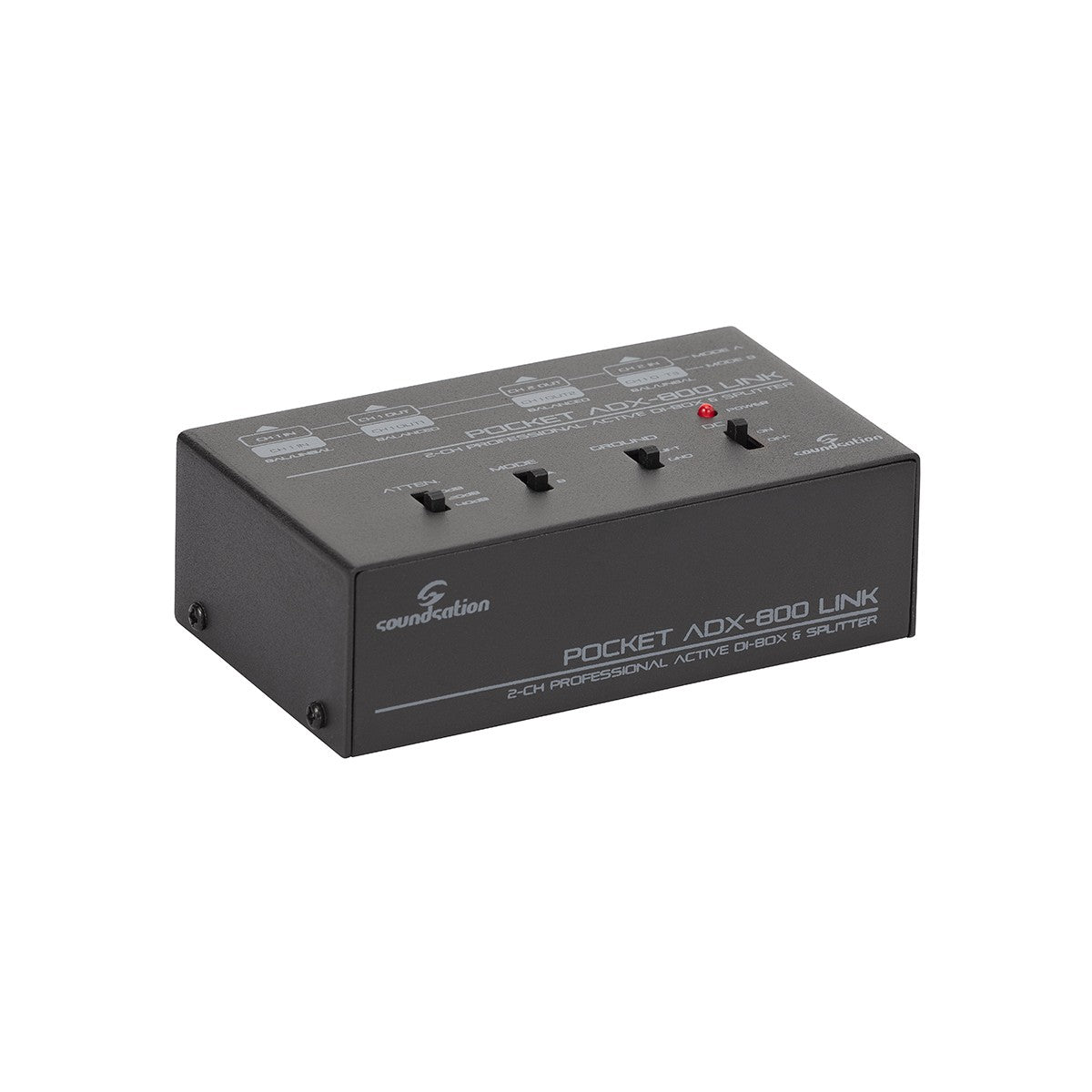

The ADX-800 LINK is a DI-Box (Direct Injection Box) that converts up to two unbalanced audio signals (e.g., electric and/or acoustic guitars and basses, line signals such as keyboards, guitar preamps, multi-effects, computers, etc.) into balanced signals with XLR connections.

This not only attenuates the interference that unbalanced cables typically pick up over medium to long distances, but also acts as a splitter with a maximum of 3 outputs on input 1 (2 XLR outputs + 1 balanced ¼” TRS Jack).

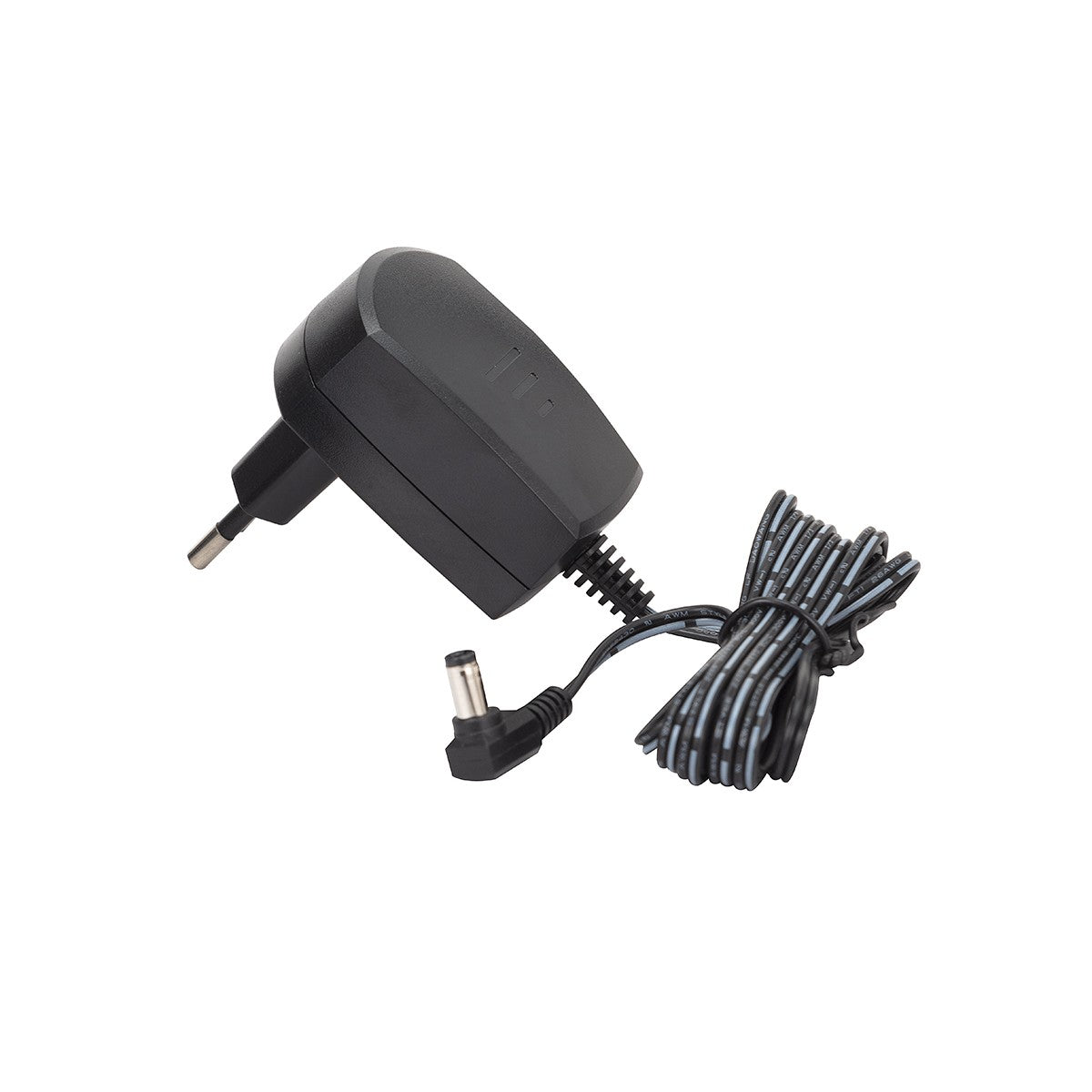

It can be powered either by the included AC adapter or through the +48V Phantom power from the mixer.

It features a 3-position input attenuator (0dB, 20dB, 40dB) – to adapt the preamplification stage to all types of signals – and a ground lift, very useful in case of ground loops that can generate hum.

The ADX-800 LINK is essentially an indispensable tool on stage, in the rehearsal room, and in the recording studio for musicians, DJs, and sound engineers alike.

Specifications

2-channel DI-Box

- 1-channel splitter on max. 3 outputs

- 1/4" TRS jack outputs

- Balanced XLR outputs

- Attenuation 0/20/40dB

- Power supply via external adapter (included) or external Phantom power

- Ground lift

- Frequency response 10Hz-30KHz ± 1dB

- Maximum input level 15 dBU ± 1dB

- Noise level -65dBU

- Attenuation pad 0dB/-20dB/-40dB

- 2 channels/Link mode

- Phantom Power (In case of power from balanced XLR) + 48Vdc

- Power adapter (included) 12Vdc / 100mA min.

- Consumption 2.3 mA

- Unit dimensions 112x65x36 mm

- Unit weight 260g

- Box dimensions 130x150x40 mm
