Shure Ulxd4 Digital Receiver

Description

Shure Ulxd4 Digital Receiver

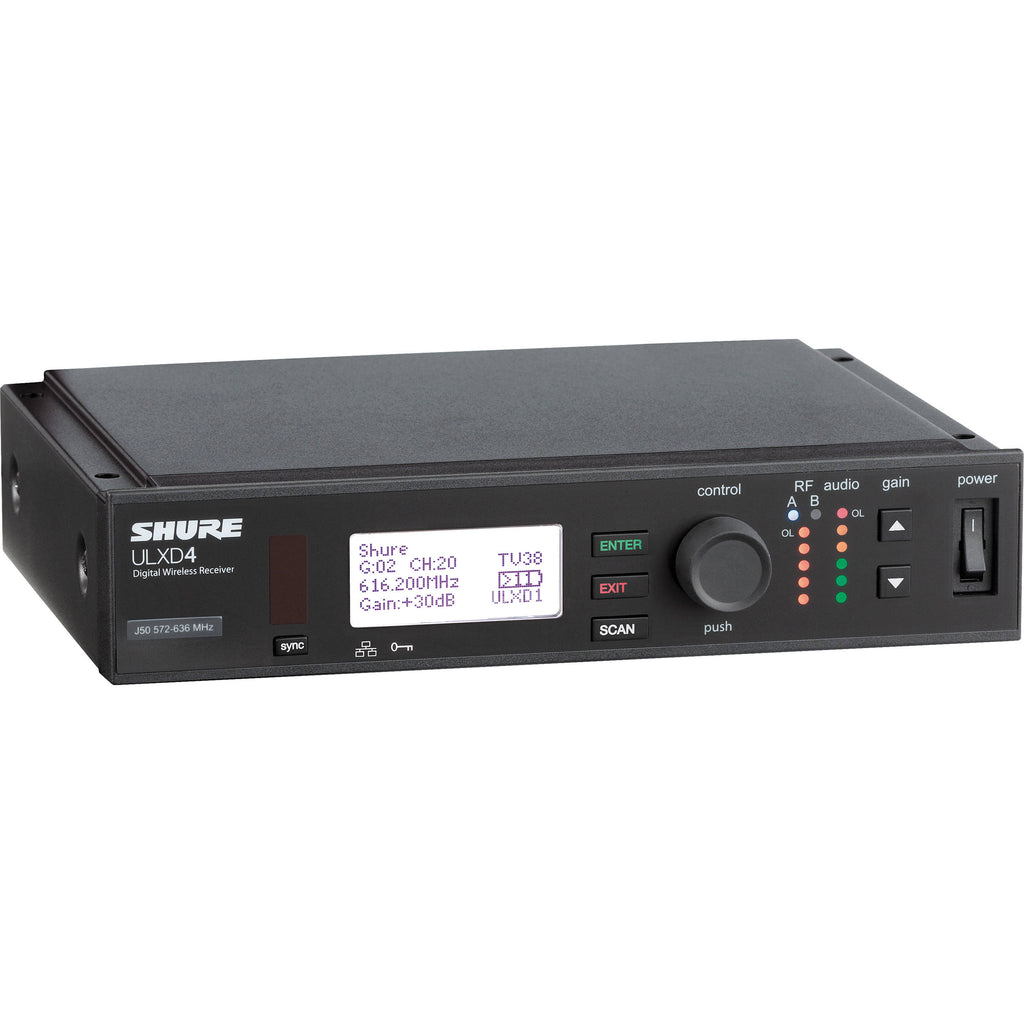

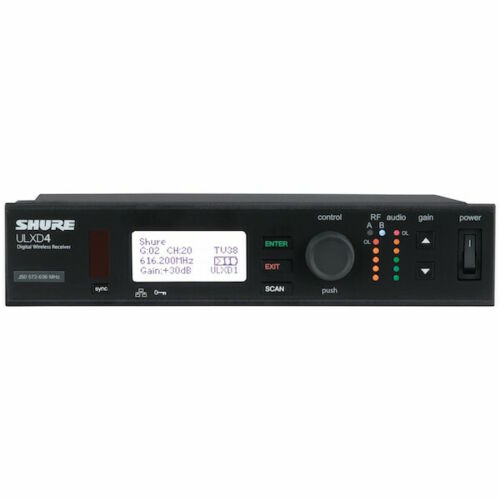

The ULXD4 Shure is a 1/2 rack unit receiver with network connectivity for use with ULX-D digital wireless systems.

With a comprehensive set of professional features, including 24-bit 48 kHz digital audio quality, efficient and intelligent RF performance, and 256-bit AES encryption, ULX is a wireless microphone system suitable for professional sound reinforcement applications.

Predictive Diversity

Intelligent scanning finds and selects the cleanest available frequencies and automatically tunes transmitters via infrared

Provides interference detection and reporting functions both locally on the receiver and via Wireless Workbench 6 software

Front panel gain control knobs allow up to 60 dB of gain to be added

Incorporates 256-bit AES encryption for applications requiring secure transmission

Ethernet network connectivity for easy setup of multiple receivers, integration into Wireless Workbench 6 software, and control via AMX and Crestron systems

Supports frequency coordination via the Axient Spectrum Manager

Robust metal construction

A front panel LCD display features intuitive control menus and incorporates an access lockout function

Improved LCD display with adjustable brightness and contrast

LED bar indicators with peak signaling provide audio and RF level monitoring

Detachable ½-wave antennas

Rackmount accessories included

Front panel antenna mounting kit included

Specifications

 Digital Wireless Receiver

Digital Predictive Switching Diversity

Up to 72 MHz tuning range (region dependent)

Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync

Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications

Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel

Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control

Compatible with AMX and Crestron control systems

Interference detection and alerts

Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator

Removable half wave antennas

24 bit / 48 kHz digital audio

20 Hz – 20 kHz frequency range with flat response

Greater than 120 dB dynamic range

Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
