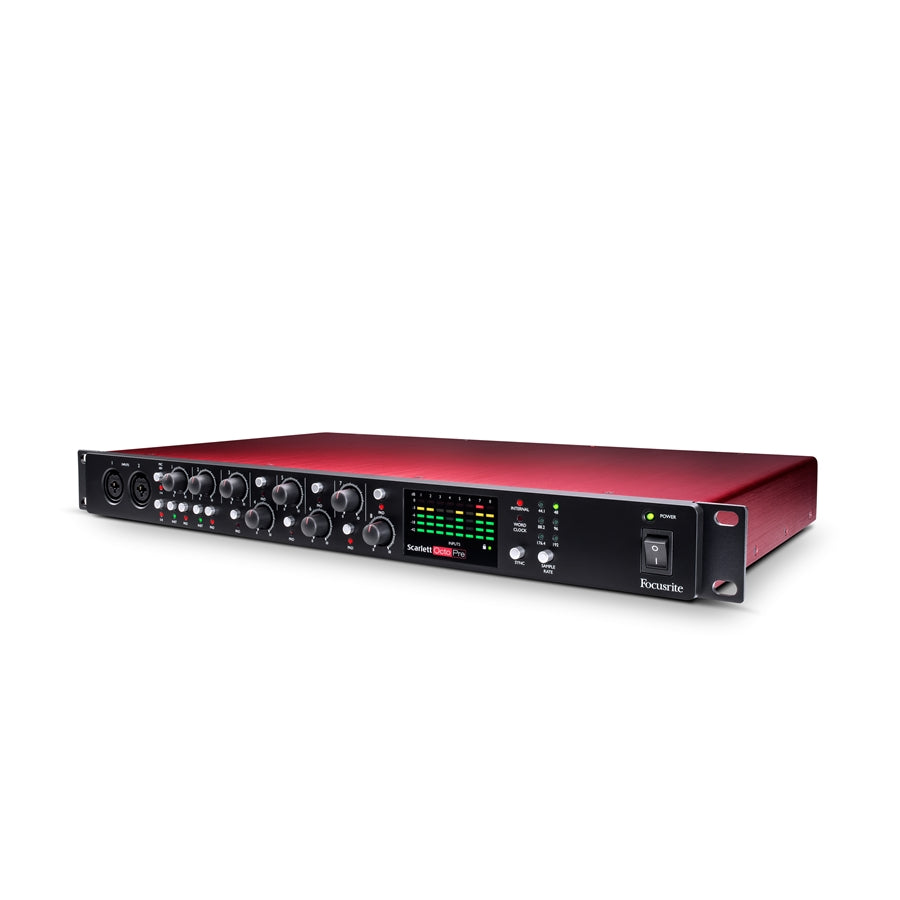

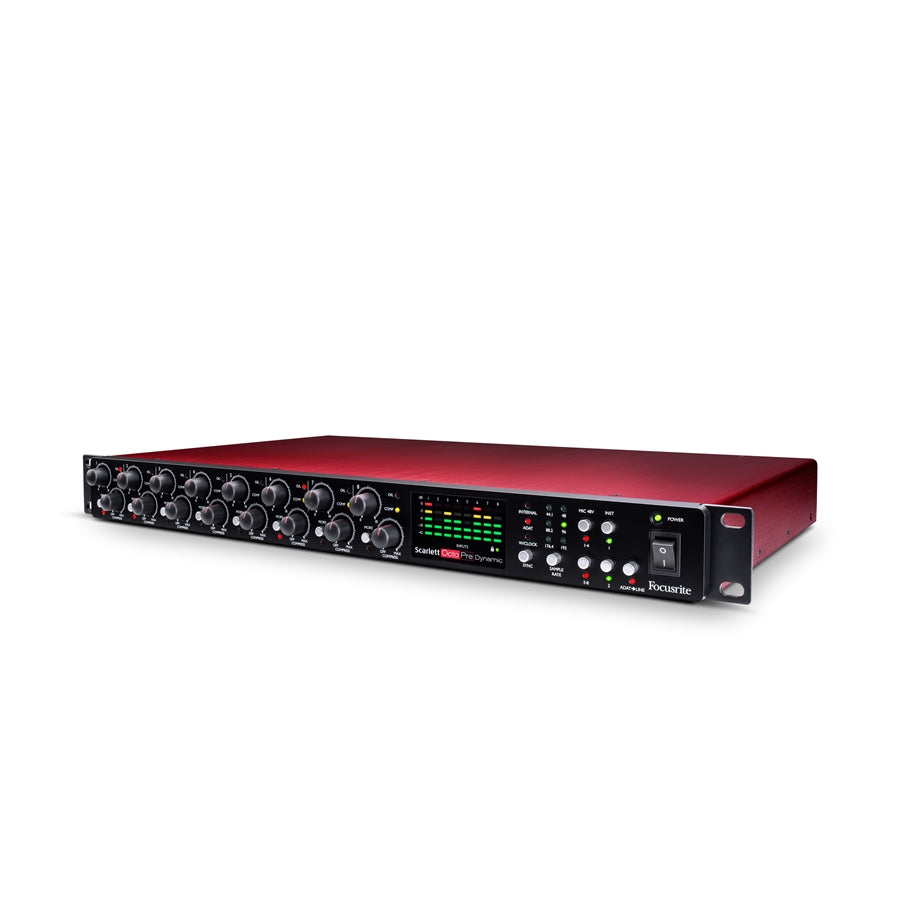

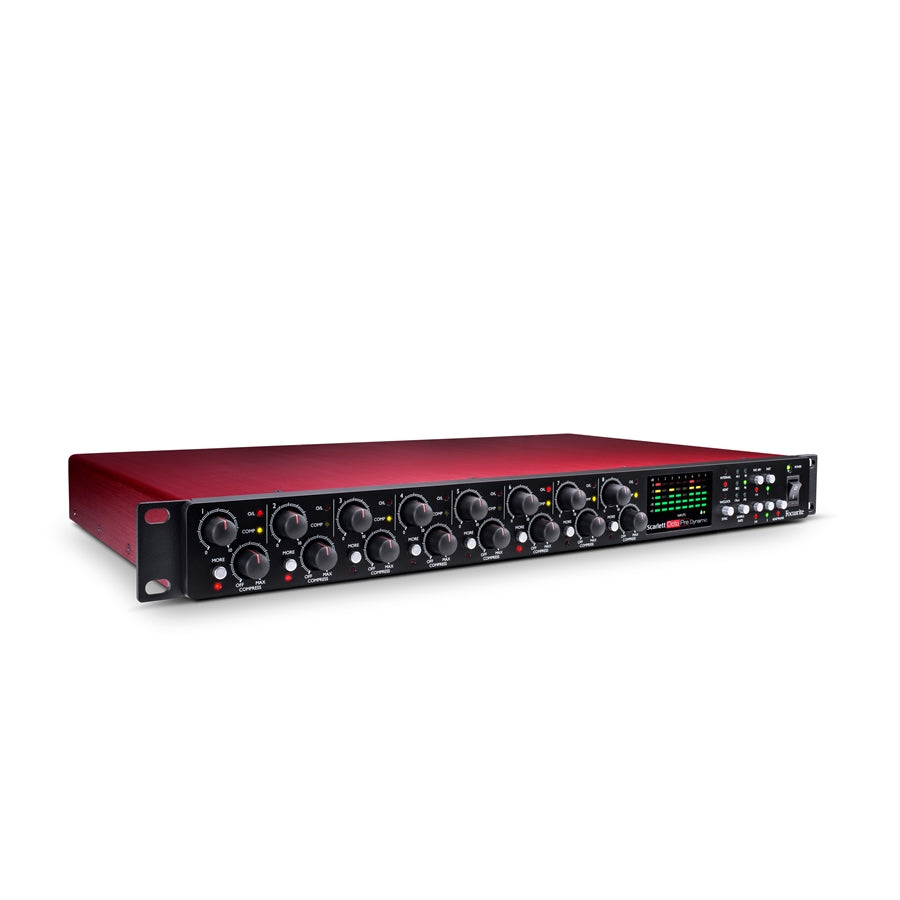

Focusrite Scarlett OctoPre Dynamic

Description

Scarlett OctoPre Dynamic is an 8-channel analog-to-digital and digital-to-analog ADAT preamplifier and converter, featuring 2nd generation Focusrite Scarlett preamplifiers and a soft-knee VCA analog compressor with a configurable 2:1 or 4:1 ratio (More button) on each input channel. The compressor can be individually managed on each channel with a dedicated potentiometer that, when turned to the right, gradually lowers the threshold while increasing post-compression gain. The attack time is fixed at 1.2 ms, while the release time is 28 ms. In addition to the 8 input channels, the Scarlett OctoPre Dynamic includes 8 direct line outputs that can be used, for example, for direct connection to a stage mixer for live or rehearsal use, or as a standalone analog microphone preamplifier. Furthermore, these outputs can be used for converting the digital signal coming from the ADAT inputs on the rear panel.

The Focusrite Scarlett OctoPre Dynamic is ideal for expanding any quality multichannel recording system, adding 8 inputs with dedicated preamps and analog compressors to your sound card, mixer, or audio interface equipped with an ADAT input. With its high-headroom microphone, line, and instrument inputs and 8 integrated compressors (one per channel), it is perfect for professionally recording drums, guitars, keyboards, vintage analog synths, vocals, and much more.

3-year warranty on all new Focusrite products purchased from January 1, 2018 onwards. The Focusrite Warranty provides peace of mind for the user, represents a professional service that minimizes waiting times in the event of a manufacturing defect, and confirms that the English company's products are built to high quality standards.

The Scarlett family's microphone preamplifier ensures natural sound and ample gain, allowing for precise level setting and uncompromising vocal recording. The newly designed Instrument (HiZ) inputs allow for problem-free and extremely faithful recording of all types of guitars, even those with very powerful pickups. Redesigned for competitive sensitivity, it enhances every type of electric guitar or bass and faithfully reproduces its dynamics and frequency content. The latest generation A/D and D/A converters integrated into the Scarlett OctoPre Dynamic allow recording and playback with sample rates up to 192kHz and a bit rate of 24bit.

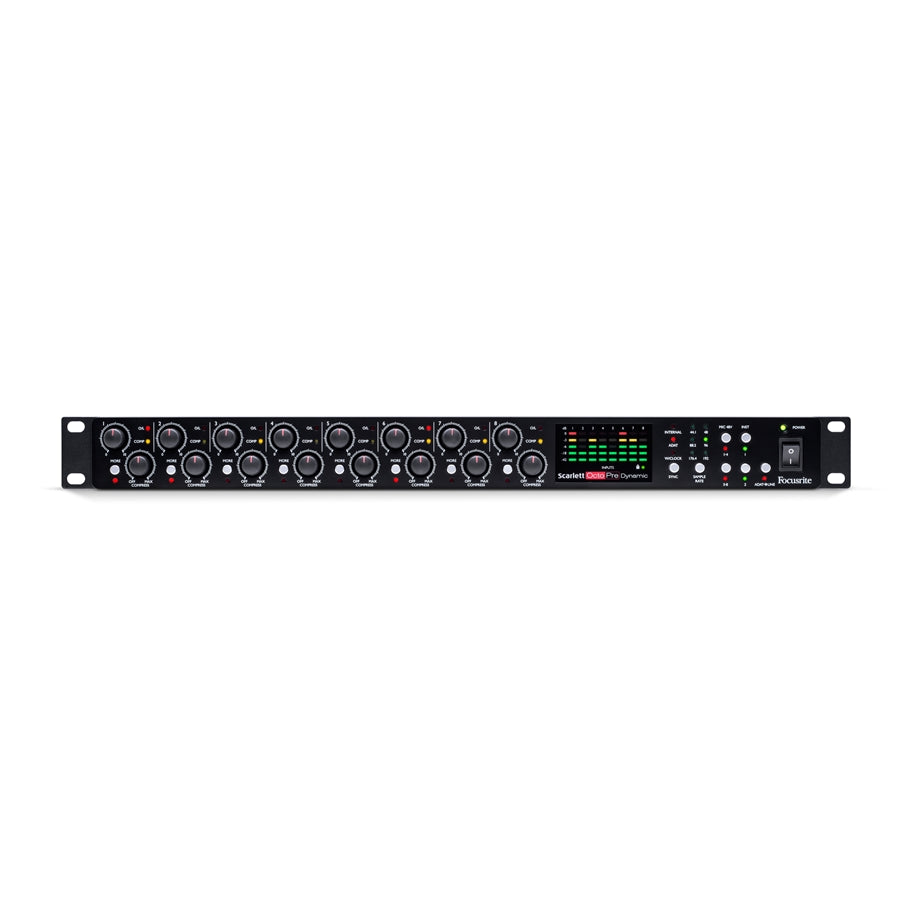

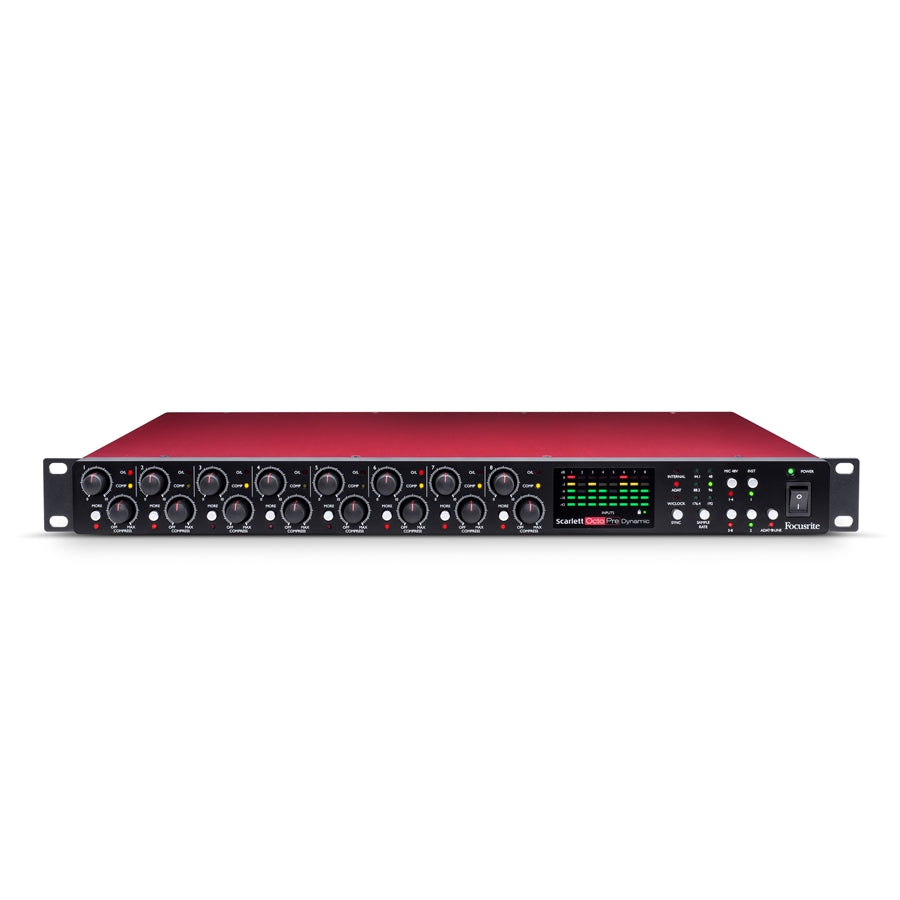

Scarlett OctoPre Dynamic Front Panel:


• 48V switch for inputs 1 to 4 and 5 to 8

• Overload LED

• Gain potentiometer on each input

• Compression potentiometer on each input

• Compressor activation LED on each input

• More button for 4:1 Ratio setting

• INST selectors for inputs 1 and 2

• Pad button on each input

• Monitor LEDs for input metering

• Internal clock, word clock or ADAT selector

• Sample rate selector

• ADAT In to analog conversion activation button

• Instrument (HiZ) mode activation buttons on the first two inputs

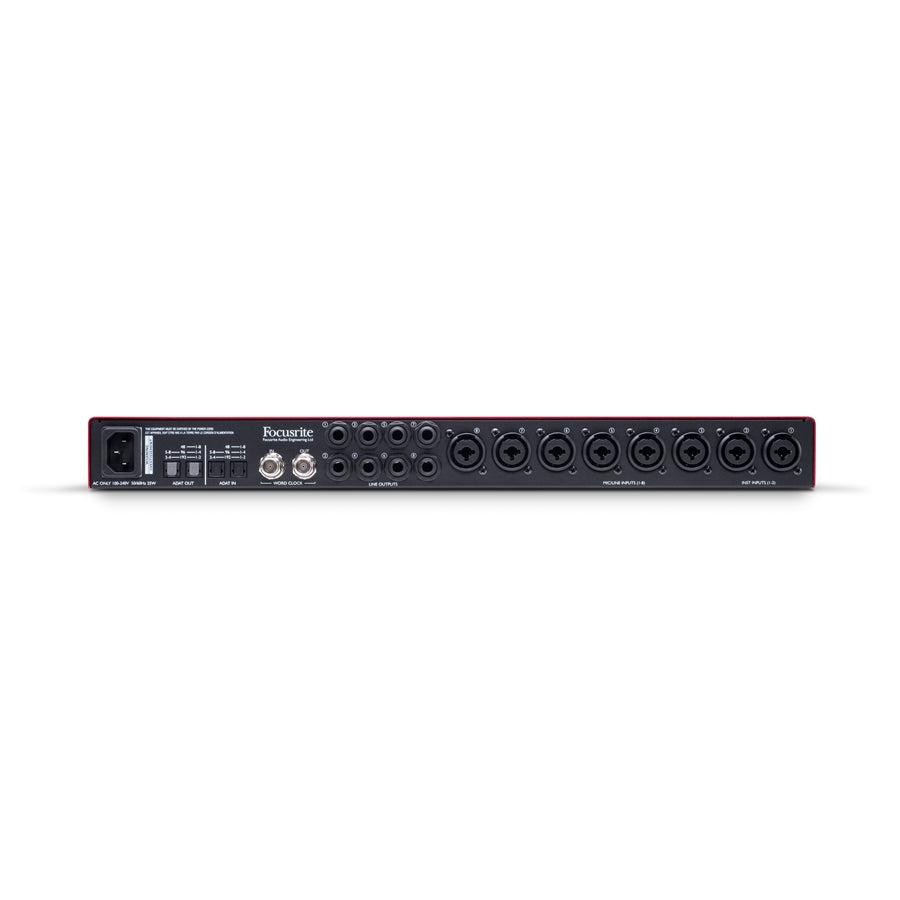

Scarlett OctoPre Dynamic Rear Panel:


• 8 Combo inputs (XLR Mic; Jack Line)

• 8 TRS Jack outputs for analog direct out or D/A conversion from ADAT IN

• 2 ADAT TOSLINK Optical Inputs (8 channels at 96 kHz, 4 channels at 192 kHz)

• 2 ADAT TOSLINK Optical Outputs (8 channels at 96 kHz, 4 channels at 192 kHz)

• BNC connectors for WORD CLOCK IN and OUT

Scarlett OctoPre Dynamic Features:


• 8 Focusrite 2^nd generation Scarlett microphone preamplifiers

• 8 balanced line inputs

• First two inputs configurable as Hi-Z (Instrument)

• 8 VCA soft-knee analog compressors

• Ratio adjustable to 2:1 or 4:1 (More mode)

• Attack 2 ms and release 28 ms

• COMPRESS potentiometer for threshold and post-comp gain control

• Focusrite A/D and D/A conversion accuracy

• Supported Sample Rates: 1, 48, 88.2, 96, 176.4, 192 kHz

• 3-year manufacturer's warranty

• Optimized headroom ideal for high-volume sources, such as drums

• 8 balanced line outputs: analog direct out or from ADAT IN

• 5-segment LED meter on each channel

• Simple ADAT connectivity via optical cables with TOSLINK connectors

• 48V Phantom power on each channel for condenser microphones

• Word Clock I/O for synchronization with external devices

• Dimensions and weight: 1U rack, 482 x 445 x 286 mm; 3.37 kg

Scarlett OctoPre Dynamic Microphone Input Specifications:


• Frequency Response: 20 Hz - 20 kHz +0.5/-1.5 dB

• Dynamic Range: 109 dB (A-Weighted)

• THD+N: <0.001%

• Noise EIN: -127 dBu

• Maximum input level (without pad): +8 dBu

• Maximum input level (with pad): +16 dBu

• Gain Range: 50 dB

• Input Impedance: 3 kΩ

Scarlett OctoPre Dynamic Line Input Specifications:


• Frequency Response: 20 Hz - 20 kHz +0.5/-1.5 dB

• Dynamic Range: 109 dB (A-Weighted)

• THD+N: <0.002%

• Maximum input level: +22 dBu

• Gain Range: 50 dB

• Input Impedance: 49 kΩ

Scarlett OctoPre Dynamic Instrument Input Specifications:


• Frequency Response: 20 Hz - 20 kHz +0.5/-1.5 dB

• Dynamic Range: 108 dB (A-Weighted)

• THD+N: <0.01%

• Maximum input level: +13 dBu

• Gain Range: 50 dB

• Input Impedance: 1 MΩ

Scarlett OctoPre Dynamic Line Output Specifications:


• Maximum Output Level (0 dBFS): +16dBu @ 0dBFS; >21 dBu when not using ADAT

• THD+N: <0.001%

• Output Impedance: 136 Ω (balanced) for units with serial numbers from W960065003383 onwards.

• 576 Ω (balanced) for units with serial numbers prior to W960065003383.

Scarlett OctoPre Dynamic Features:


• 8 Focusrite 2^nd generation Scarlett microphone preamplifiers

• 8 balanced line inputs

• First two inputs configurable as Hi-Z (Instrument)

• 8 VCA soft-knee analog compressors

• Ratio adjustable to 2:1 or 4:1 (More mode)

• Attack 2 ms and release 28 ms

• COMPRESS potentiometer for threshold and post-comp gain control

• Focusrite A/D and D/A conversion accuracy

• Supported Sample Rates: 1, 48, 88.2, 96, 176.4, 192 kHz

• 3-year manufacturer's warranty

• Optimized headroom ideal for high-volume sources, such as drums

• 8 balanced line outputs: analog direct out or from ADAT IN

• 5-segment LED meter on each channel

• Simple ADAT connectivity via optical cables with TOSLINK connectors

• 48V Phantom power on each channel for condenser microphones

• Word Clock I/O for synchronization with external devices

• Dimensions and weight: 1U rack, 482 x 445 x 286 mm; 3.37 kg
