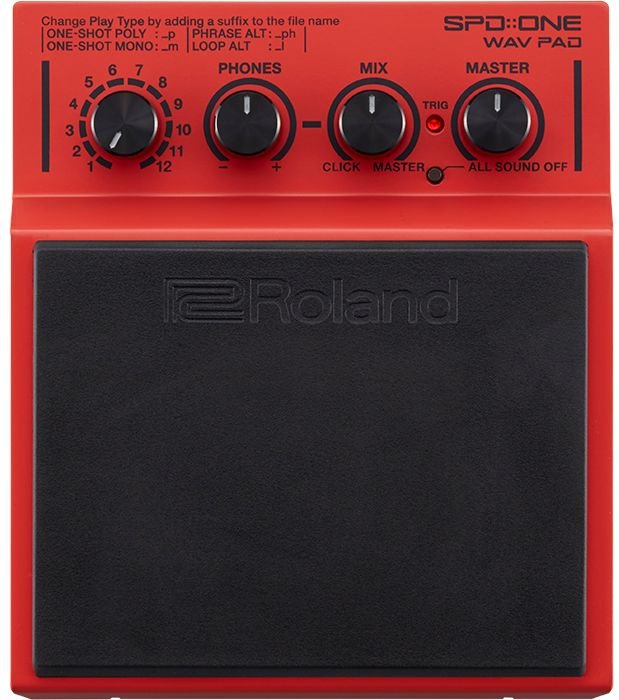

Roland SPD-1W One-WAV Pad

Description

ROLAND SPD1W ONE WAV PAD

The Roland SPD::ONE WAV PAD is a new type of digital percussion pad, allowing any musician to play with their own sounds and samples. Importing audio files is very simple: just connect the SPD::ONE WAV PAD to a PC or Mac, and copy your WAV files to the drive that appears. Whether it's entire backing tracks or simple one-shot samples, your sounds can be loaded and ready to use in seconds. The SPD::ONE WAV PAD's robust and sensitive pads can be played with drumsticks, hands, or feet, and the trigger threshold settings can be easily adjusted using intuitive controls.

Powered by batteries or AC, the SPD::ONE WAV PAD is portable, and can be used on the floor or on a tabletop, or mounted with any equipment or drum kit thanks to the included adapter. Operation is simple, even for less technical musicians: using the four knobs on the control panel, you can change the sound, volume, balance, and more. Whether you're a drummer, percussionist, guitarist, DJ, or singer, the SPD::ONE WAV PAD is a simple and flexible way to expand your sound palette and reinvigorate your performance.

Specifications

Number of Recordable Wave Data12

*Layer and Click waves data are excludedMemory4 GB (approx. 360 min. in stereo)Data FormatWAV (44.1 kHz, 16 bits, Stereo/Mono)ControlsWAVE knob

[PHONES] knob

[MIX] knob

[MASTER] knob

[ALL SOUND OFF] button

[THRES] knob

[SENS] knob

[POWER] switchIndicatorTRIG IndicatorConnectorsMASTER OUT (STEREO) jack: Stereo 1/4-inch phone type

PHONES jack: Stereo 1/4-inch phone type

USB port: Micro-B type

DC IN jackUSBMass Storage Class

MIDIPower SupplyRechargeable Ni-MH battery (AA, HR6) x 4

Alkaline battery (AA, LR6) x 4

AC adaptor (DC9V)Current Draw300 mA (DC IN)

*Expected battery life under continuous use

Rechargeable Ni-MH battery (AA, HR6):

Normal use: Approx. 7hours

Maximum load use: Approx. 4hours

Alkaline battery (AA, LR6):

Normal use: Approx. 6hours

Maximum load use: Approx. 3hours

*These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's manual

Leaflet "USING THE UNIT SAFELY"

Attachment

Attachment screws x 2

Holder mounting screws (bolt x 1, nut x 1, washers x 2)*

*Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inch)

Alkaline batteries (AA, LR6) x 4Options (sold separately)AC adaptor: PSA-S series

Stereo Split Cable: PCS-31L

Personal drum monitor: PM-10

Headphones: RH-300VSIZE AND WEIGHT

Width 140 mm

Depth 160 mm

Height 56 mm

Weight 900 g
