USED ROCKBOARD POWER PIT

Description

USED ROCKBOARD POWER PIT

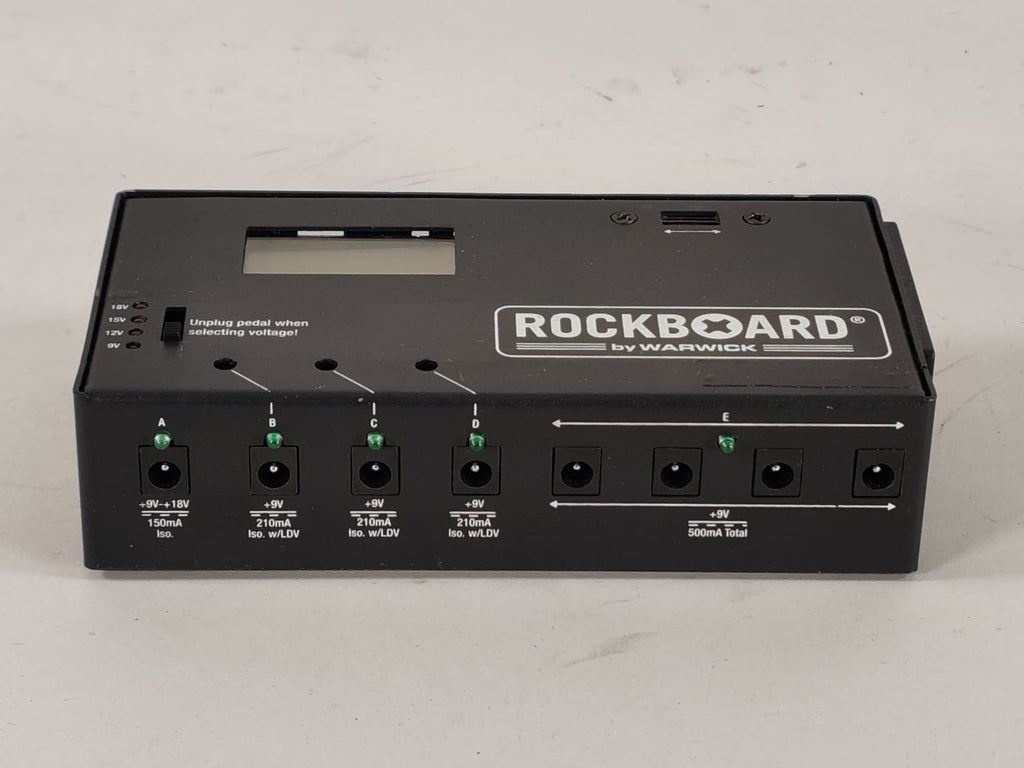

The Power Pit is undoubtedly a top-class power supply, capable of powering eight different pedals and equipped with a bright display that will give you all the information regarding the output voltages. First of all, you will find three isolated 9 V outputs with variable voltage (7.9 - 9.4 V), which perfectly imitate the behavior of a battery; each output has a maximum intensity of 210 mA. There is also an isolated output for which you can choose between 9, 12, 15 or 18 V, with a maximum intensity of 150 mA. The picture is completed by four normal 9 V outputs with a total maximum intensity of 500 mA.
A complete set!

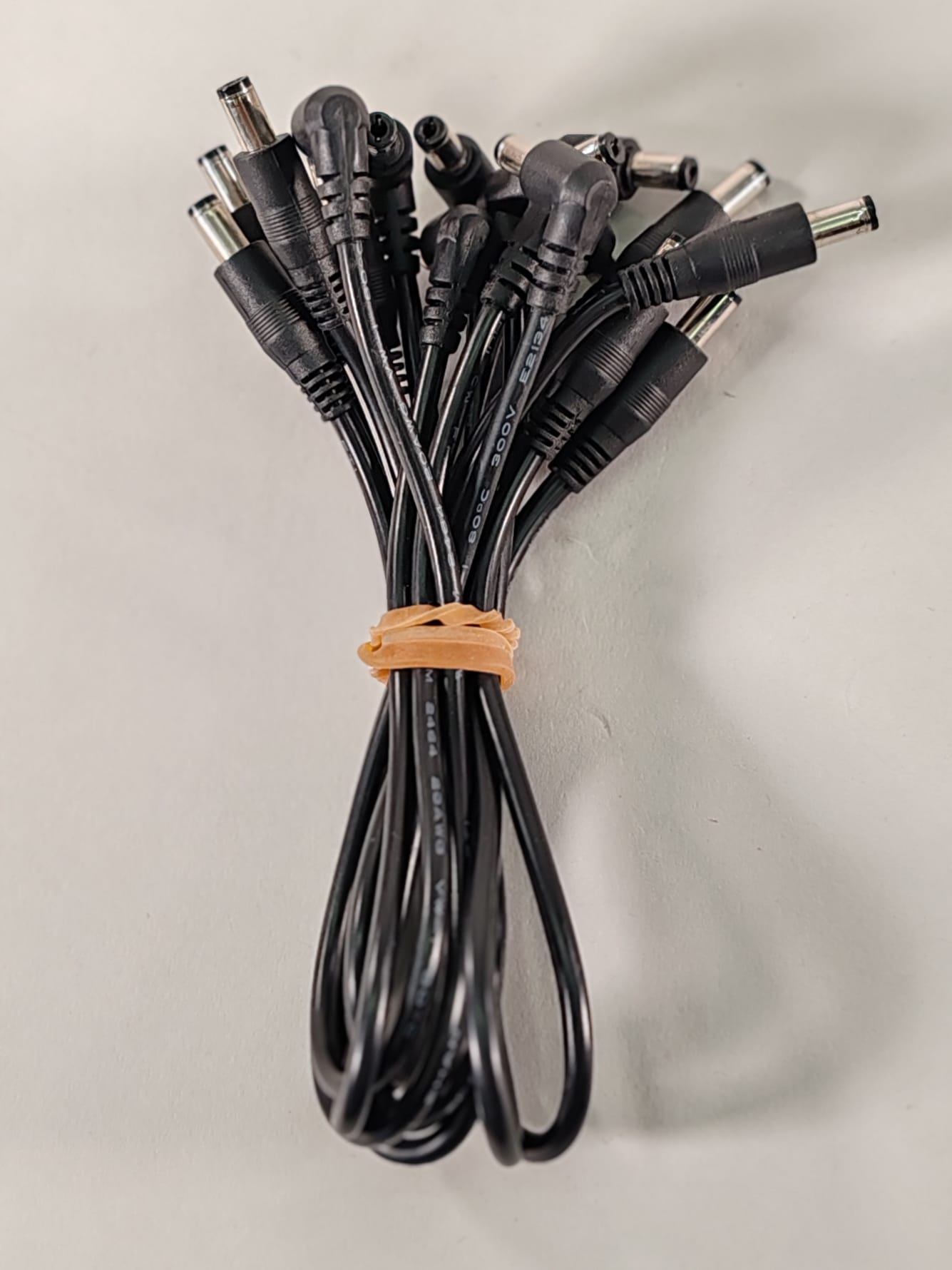

Of course, this set cannot miss all the cables to connect your pedals to the Power Pit; they are all equipped with a straight and an L-shaped connector and are 50 cm long.

Specifications

multiple power supply for effect pedals

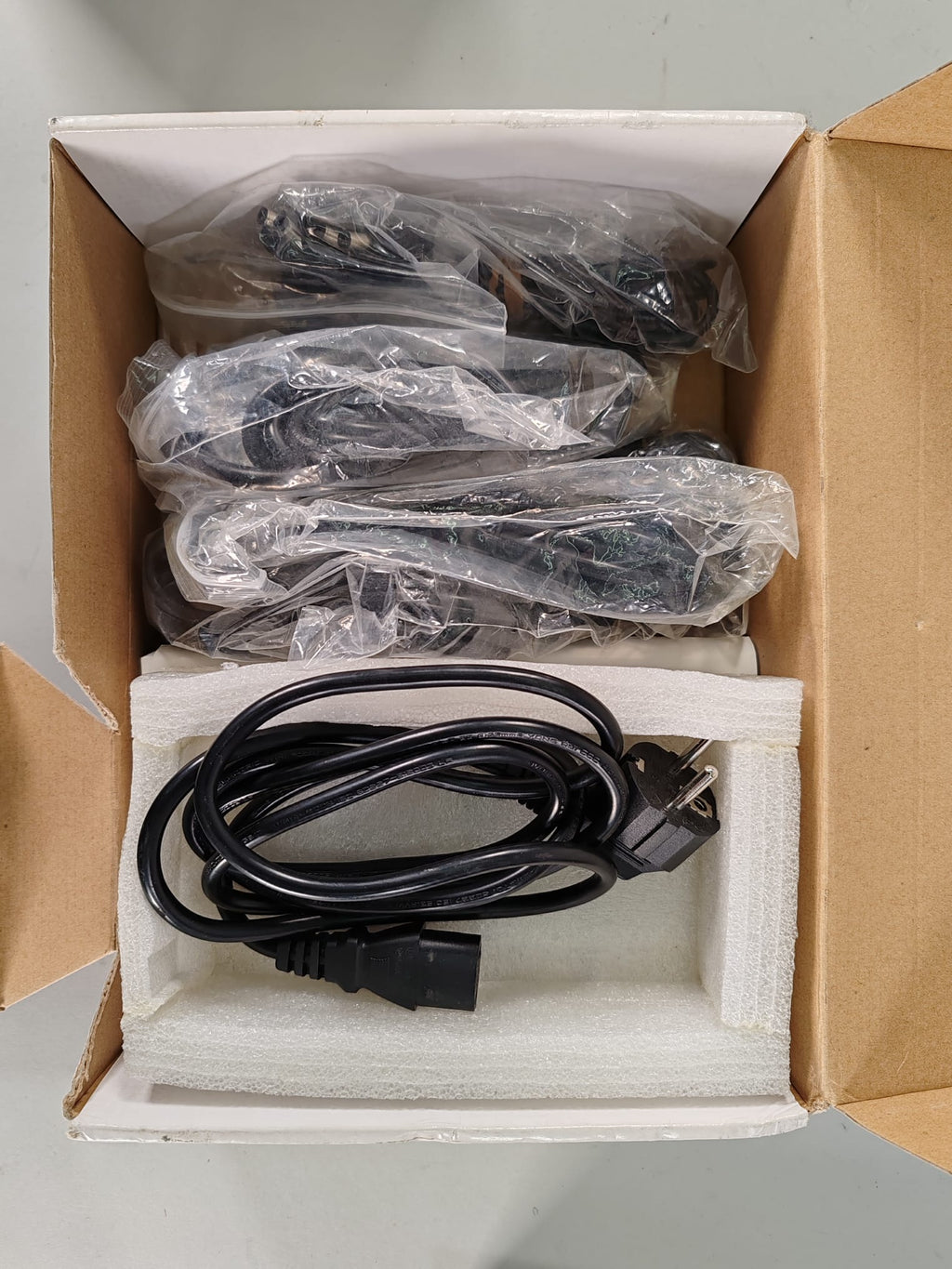

set consisting of:

    RockBoard Power Pit power supply
    8 power cables (2.1 mm, 50 cm)
    4 IEC cables (EU, UK, US, AUS)
    1 hex key for LDV (2 mm)
    4 spare fuses (500 mA, 250 V)

works worldwide
maximum 1.280 mA

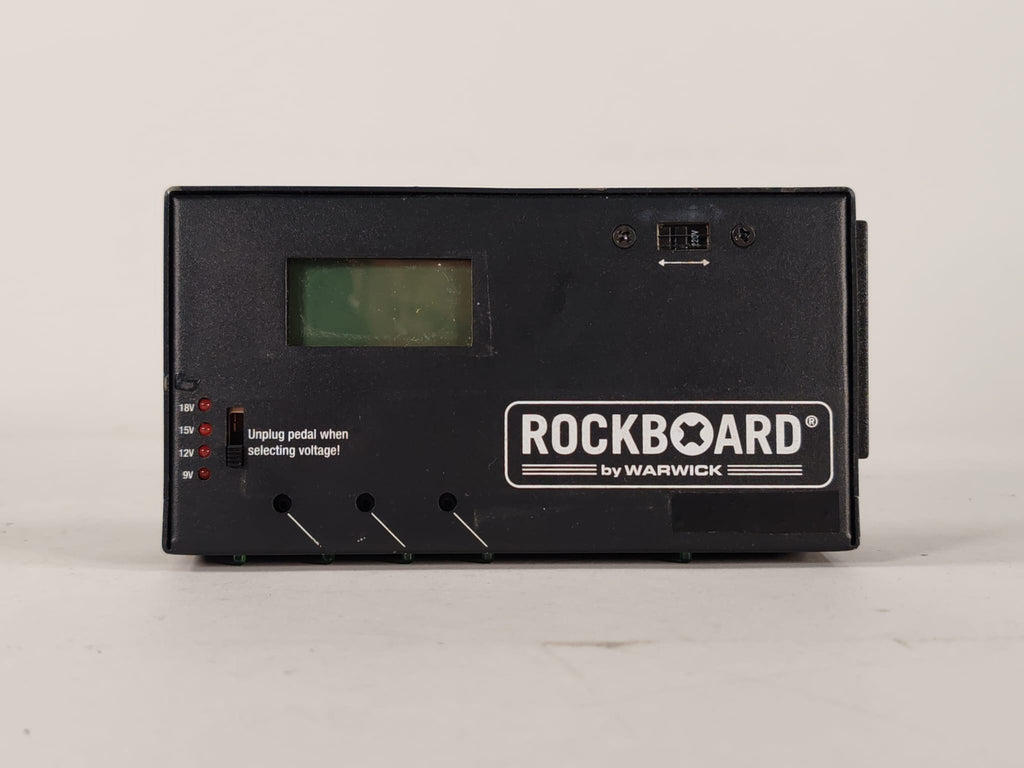

display with output voltage information
variable voltage (LDV) to simulate battery behavior
input voltage: 110 - 240 V

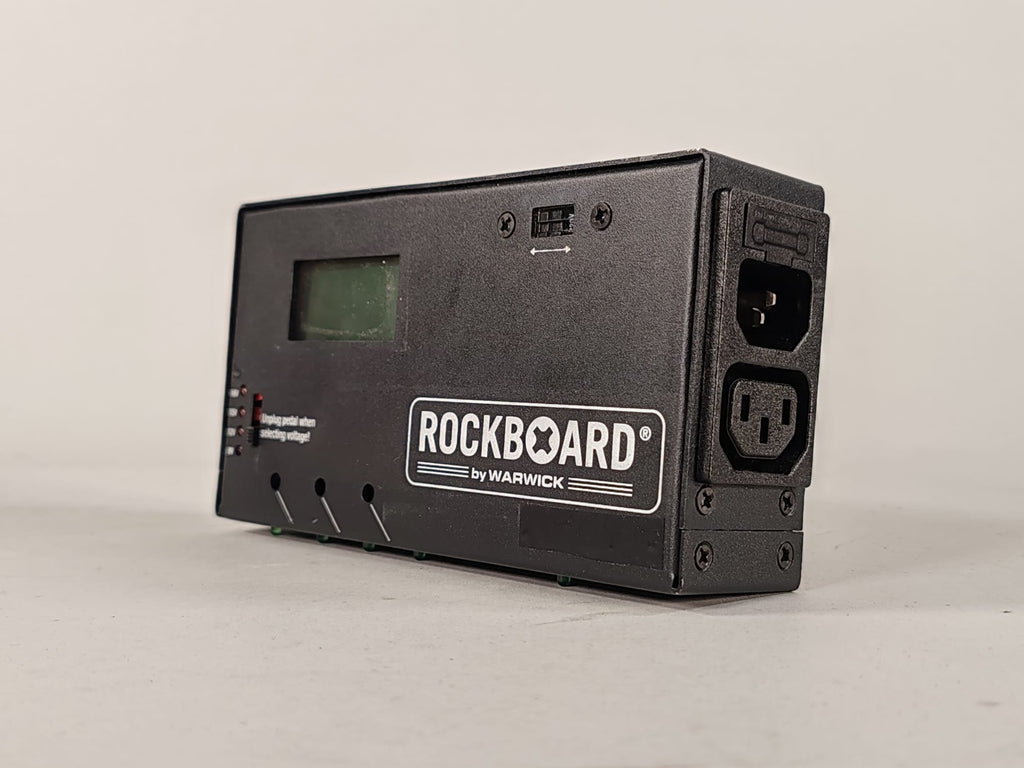

input: 110/220 V AC IEC (male)
outputs:

    2x 110/220 V AC IEC (female)
    1x isolated output with selectable voltage (9 V/12 V/15 V/18 V), maximum 150 mA
    3 isolated 0 V outputs with adjustable output voltage (7.9 - 9.4 V) via LDV control, maximum 210 mA each
    4 9 V outputs, maximum 500 mA total

dimensions (LxWxH): 170 x 90 x 50 mm (including feet)
weight: 910 g
