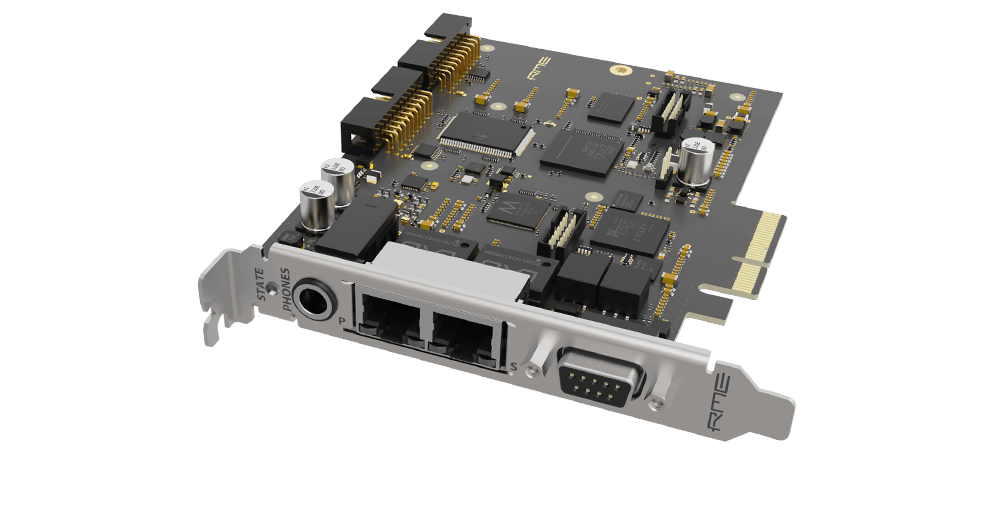

RME PREMIUM LINE HDSPe AoX-M

Description

HDPSe AoXPCI Express audio interface with 512 channels, 4x MADI, Dante or AVB-Milan compatible. The HDSPe AoX (AVB) and HDSPe AoX-D (Dante) audio interfaces are RME's 2 new solutions for audio over IP in PCIe x4 format, equipped with 2 network ports, a headphone output, and AES3 and MIDI ports, in addition to SteadyClock™ technology for all digital inputs and the possibility of being expanded with up to four optional MADI ports.Whether used in a Thunderbolt expansion chassis or installed in a workstation or within dedicated audio processors, these cards send and receive up to 512 audio channels and offer extensive mixing and routing capabilities via TotalMix.ConnectionsPCIe I/O: 512/256/128 channels with 48/96/192 kHz sample rates1x stereo headphone output, 1⁄4“ TRS4 x MADI I/O (coaxial BNC included and optional SFP optical modules)AES3 I/O on DB9-XLR breakout cable2 x RJ45 1 GigEWord Clock I/O (BNC)MIDI I/O on DB9 - 2x DIN breakout cable
