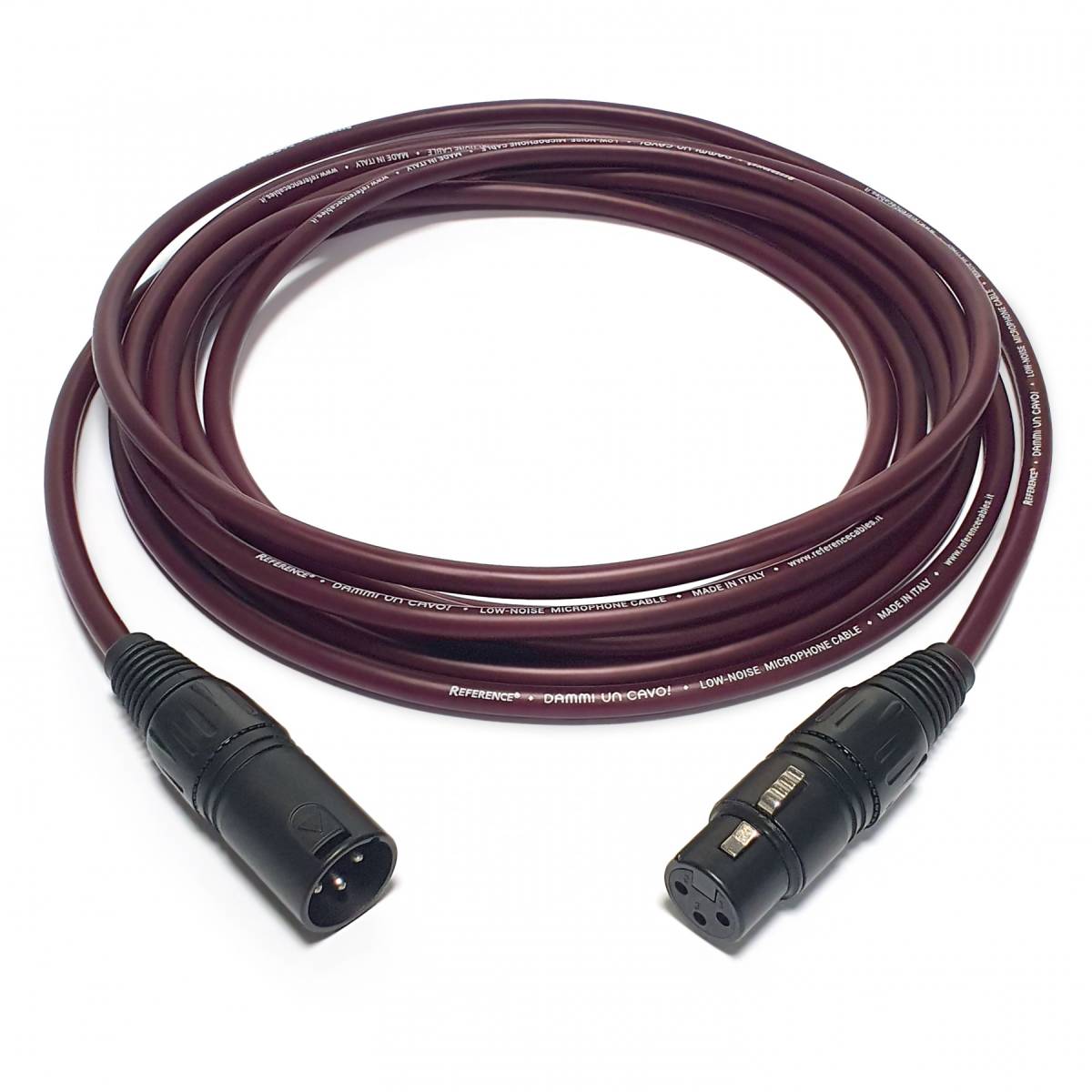

Reference Give Me an XLR M to XLR F Microphone Cable 9.25 Mt. Burgundy

Description

Reference "Dammi Un Cavo" XLR M XLR F Microphone Cable 9.25 Mt. Burgundy

The "Dammi Un Cavo!" series microphone cable is the most economical Reference solution for efficient and reliable balanced audio wiring in both amateur and professional settings.

An "entry-level" cable that nonetheless maintains many of the very high quality standards that characterize Reference Cables' 100% made in Italy production, in the quality of the materials used, in the design, in the construction expertise, in the quality of the soldering (strictly handmade and with great skill) and in the use of robust and high-performing connectors.

With "Dammi Un Cavo!", Reference Cables primarily targets non-professional users (singers, musicians, DJs) who own low-cost equipment (and therefore do not need high-end cabling but are looking for an inexpensive cable), offering them a "professional-level" product, capable of guaranteeing reliability in audio signal transmission and durability unthinkable for common microphone cables in the same price range.

The "Dammi Un Cavo!" line was indeed designed to raise the quality bar in the vast "low-cost" market, unfortunately dominated by "disposable" cables, and to meet the needs of those who want to spend the minimum necessary for an audio cable, but who rightly aspire to have a cable that always works properly and lasts over time.

In short, a "workhorse" cable, but extraordinarily well made. Like higher-end Reference cables, "Dammi Un Cavo" uses Oxygen Free pure copper conductors, for better signal transmission and an internal geometry (stranding) designed to maximize signal balancing efficiency.

The "Dammi Un Cavo!" microphone cable is assembled with robust Reference XLR (3-pin) connectors, made of die-cast zinc, with turned and silver-plated contacts, characterized by an elegant design and high mechanical efficiency. And since aesthetics also play a role, the "Dammi Un Cavo!" microphone cable is easily recognizable by its unusual and sophisticated color, available in "burgundy" for home-recording, and "anthracite gray" for live use.

Specifications

Inner conductor: Multi-stranded OFC red copper (class 6) AWG26

Insulation: Polyolefin (natural and red colors), diameter = 1.0mm

Stranding: conductors twisted in concentric layers with filler (optimal lay length) + non-woven fabric tape

Shield: Spiral red copper (100% coverage)

Outer sheath: Soft PVC compound, Diameter = 6.0 mm

Operating temperature: -20°C ÷ +80°C

Minimum bending radius: 15x diameter

Electrical Characteristics (at 20°C)

Conductor Resistance: <134 Ohm/Km

Insulation Resistance: >11 GOhm/Km

Capacitance: 73pF at 20°C

Rated voltage: 300V

Rated current: 2.0A

Color: Satin Lilac

Length: 9.25m
