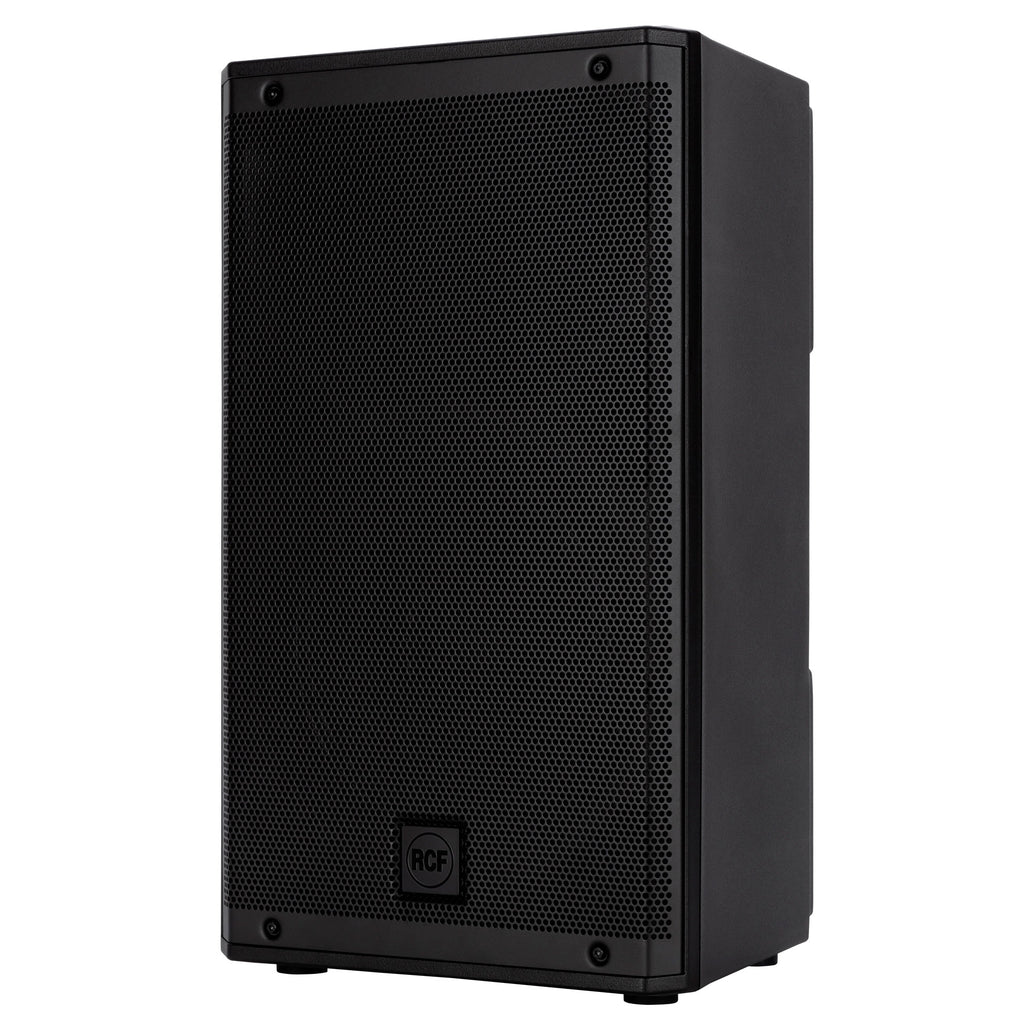

Rcf ART 910A Bi-amplified Loudspeaker 10 Inch 2100 Watt

Description

Rcf ART 910A 10-Inch 2100 Watt Bi-amplified Speaker

ART 910-A is a speaker designed for stellar sound performance and versatility in the most demanding audio applications.

The combination of a 1.75" compression driver, a 10" woofer, a 2100 W 2-channel amplifier, and a constant directivity True Resistive Waveguide produces 100° x 60° coverage consistent across the listening area and distortion-free sound at sound pressure levels up to 130 dB SPL.

The ART 910-A speaker can be used as a stand-alone unit in a FOH system, a satellite coupled with a subwoofer, a stage monitor, or a suspended unit – always delivering high performance and great reliability in a compact format.

Designed to be the most flexible speaker in its class, it also integrates multiple rigging points for fixed installation.

Thanks to RCF's proprietary FiRPHASE and Bass Motion Control algorithms, perfectly calibrated for each model, the audience will enjoy absolute clarity in vocal reproduction and a deep, powerful low-frequency response.

The elegant cabinet uses a special polypropylene composite material, internally reinforced by an M-brace structure, which makes it easy to transport and safe to mount on stands, walls, suspended, or attached to rigging structures using the multiple integrated rigging points.

Up to 130 dB SPL

2100W Class D Bi-amplification

Linear frequency response: 50 ÷ 20000 Hz

1.75" Compression Driver

10" Woofer

FiRPHASE technology for zero-degree phase

Bass Motion Control for woofer excursion management

Specifications

Acoustical specifications

FREQUENCY RESPONSE:

50 Hz ÷ 20000 Hz

MAX SPL @ 1M:

130 dB

HORIZONTAL COVERAGE ANGLE:

100°

VERTICAL COVERAGE ANGLE:

60°

Transducers

COMPRESSION DRIVER:

1 x 1.0'', 1.75'' v.c

WOOFER:

10'', 2.5'' v.c

Input/Output

INPUT SIGNAL:

bal/unbal

INPUT CONNECTORS:

XLR, Jack

OUTPUT CONNECTORS:

XLR

INPUT SENSITIVITY:

-2 dBu/+4 dBu

Processing

CROSSOVER FREQUENCY:

1800 Hz

PROTECTIONS:

Thermal, RMS

LIMITER:

Soft Limiter

CONTROLS:

Linear, Boost, Stage, Volume

Power Amplifier

TOTAL POWER:

2100 W Peak

HIGH FREQUENCIES:

700 W Peak

LOW FREQUENCIES:

1400 W Peak

COOLING:

Convection

CONNECTIONS:

VDE

Standard Compliance

CE MARKING:

Yes

Physical Specifications

CABINET/CASE MATERIAL:

PP Composite

HARDWARE:

1 x M10 Top and Bottom

HANDLES:

1 Top

POLE MOUNT/CAP:

Yes

GRILLE:

Steel

COLOR:

Black

Size

HEIGHT:

572 mm / 22.52 inches

WIDTH:

330 mm / 12.99 inches

DEPTH:

310 mm / 12.2 inches
