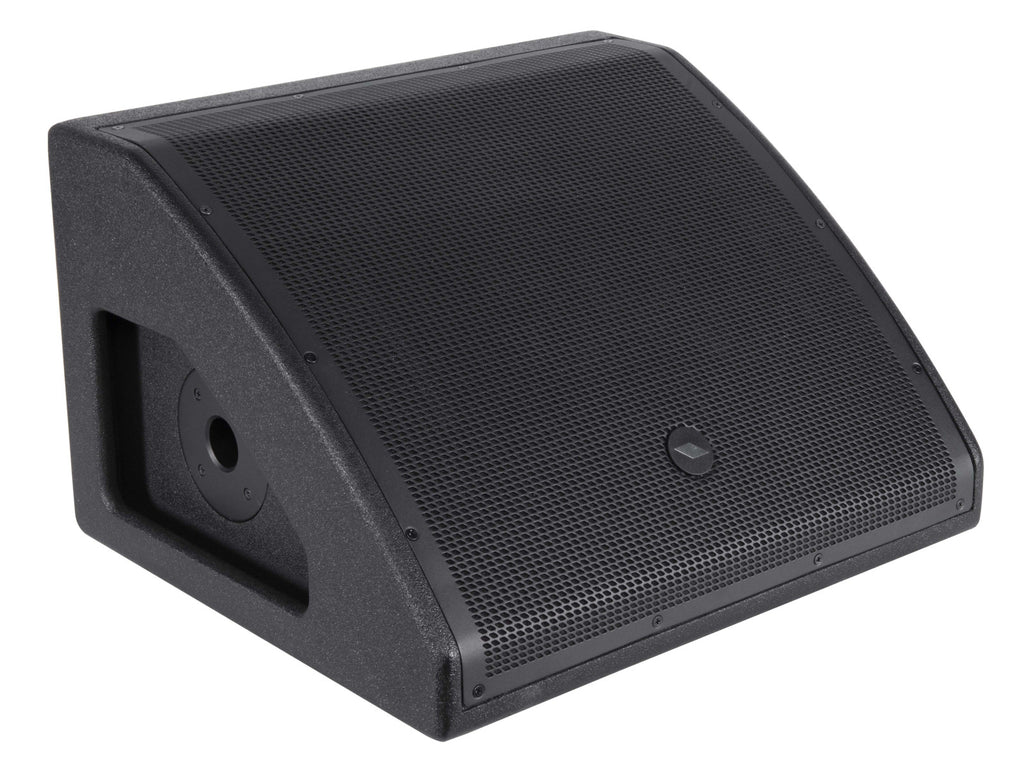

PROEL SOUND WD12AV2

Description

With the WEDGE series, PROEL has set a standard for affordable and road-proof stage monitors, offering a great value monitoring solution with perfect sound intelligibility and high SPL, and a low-profile, easily transportable cabinet. Version 2 of this highly successful series represents a significant step forward, with design refinements and functional improvements.

The lightweight Class D amplifier modules with SMPS have been completely redesigned to provide maximum reliability even when the system is pushed to high sound pressure levels. Combined with precise analog processing, they deliver an extremely detailed response, particularly in the vocal range, and remarkable feedback resistance. Two EQ presets are available for using the speaker not only as a stage monitor (MONITOR), but also as a main system (FOH).

The elegant design of the enclosures, with integrated handles and recessed connection panel and pole mount, has been optimized by further reducing the profile and, therefore, the visual impact. Knowing very well the abuse that stage monitors are subjected to, we have significantly improved the resistance of the cabinet's polyurethane finish, making them resistant to any excess.

The custom coaxial transducers, which provide perfect alignment between HF and LF and controlled directivity for perfect listening from any position, have also been improved, particularly the 10", which now features a more efficient compression driver.

WEDGE V2 monitors are available in three models, offering the ideal solution for every monitoring situation. The ultra-compact WD10AV2 is capable of providing a high-performance monitoring system even on small stages and is the ideal solution for vocals and keyboards. WD12AV2, with its high SPL and full-range response, is the preferred choice for vocals, guitar, wind instruments, and electronic instruments, or as a high-power monitor for DJs. WD15AV2, with its full extension and powerful, deep low-frequency response, is the ideal monitor for bassists and drummers. The horn-loaded HF section and powerful amplifier make it the ideal solution for monitoring even on large stages.

• Coaxial two-way active stage monitor
• 1.35” voice coil compression driver
• 12” woofer with 2.5” voice coil
• 350 W total power (700 W peak)
• 300 W Class D + 50 W Class AB amplifier with SMPS
• Separate LIMITER circuit for the two ways
• 2 EQ presets for Monitor or Front-Of-House (FOH) use
• Maximum SPL 124 dB
• Frequency response 50 Hz - 20 KHz
• Low-profile lightweight plywood cabinet with ultra-durable polyurethane finish
• Reinforced metal grille with anti-dust protection
• Recessed panel for connector protection
• 2 recessed handles for easy transport
• Pole mount adapter
