PROEL SOUND SESSION4

Description

SESSION4 is a compact portable system in an active 2.1 configuration, including two tops and one subwoofer. Designed for solo musicians, small live groups, mobile DJ systems, or for playing music and speech in corporate and even home applications, SESSION4 combines flexibility, portability, and performance with a professional design and a robust multi-ply wood structure.

Each top includes four 2.75" neodymium speakers in a vertical array configuration, characterized by a logarithmic arrangement and a progressive downward tilt for improved vertical coverage and to provide accurate sound anywhere in the listening area. The sub features two 6.5" woofers in a band-pass configuration, capable of delivering very fast and dynamic bass, along with an extended low-frequency response.

The system is powered by a 1200W Class D 3-channel amplifier and is controlled by the powerful PROEL CORE LT DSP, capable of providing extraordinary audio definition. Signal processing includes a sophisticated dynamic EQ and 4 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH) to adapt the speakers to any type of application. The intuitive control interface features a single knob and a large LCD display to control not only the DSP parameters, but also the two selectable MIC/LINE inputs, system configuration, and the built-in BLUETOOTH audio interface.

Key features of SESSION4 are extreme flexibility and portability, making it one of the most advanced portable column systems. Thanks to a fast connection system with integrated connectors, the two tops can be combined together, forming a single 8-speaker column, thus allowing the system to be used not only in STEREO mode, but also in DUAL, MONO, or DOUBLE mode. Two dedicated compartments in the subwoofer cabinet allow the two tops to be stored and transported, thus reducing the space needed for better mobility in line with the needs of today's musicians.

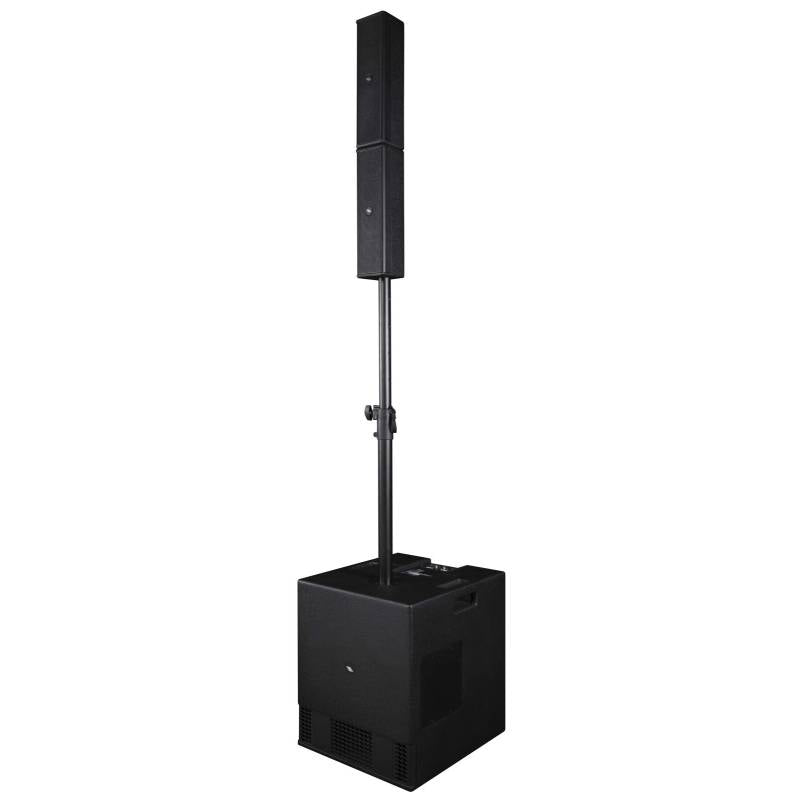

Active 2.1 portable sound system with two TOPS and one SUBWOOFER

TOP

• 4 x 2.75” full-range neodymium loudspeakers in Vertical Array configuration
• Logarithmic loudspeaker arrangement with progressive tilt for optimal vertical coverage
• Quick coupling system for the two tops with integrated connections
• SPEAKON connector
• Standard 35mm pole mount adapter
• Multi-ply wood cabinet with ultra-durable polyurethane finish
• Reinforced metal grille with dust protection

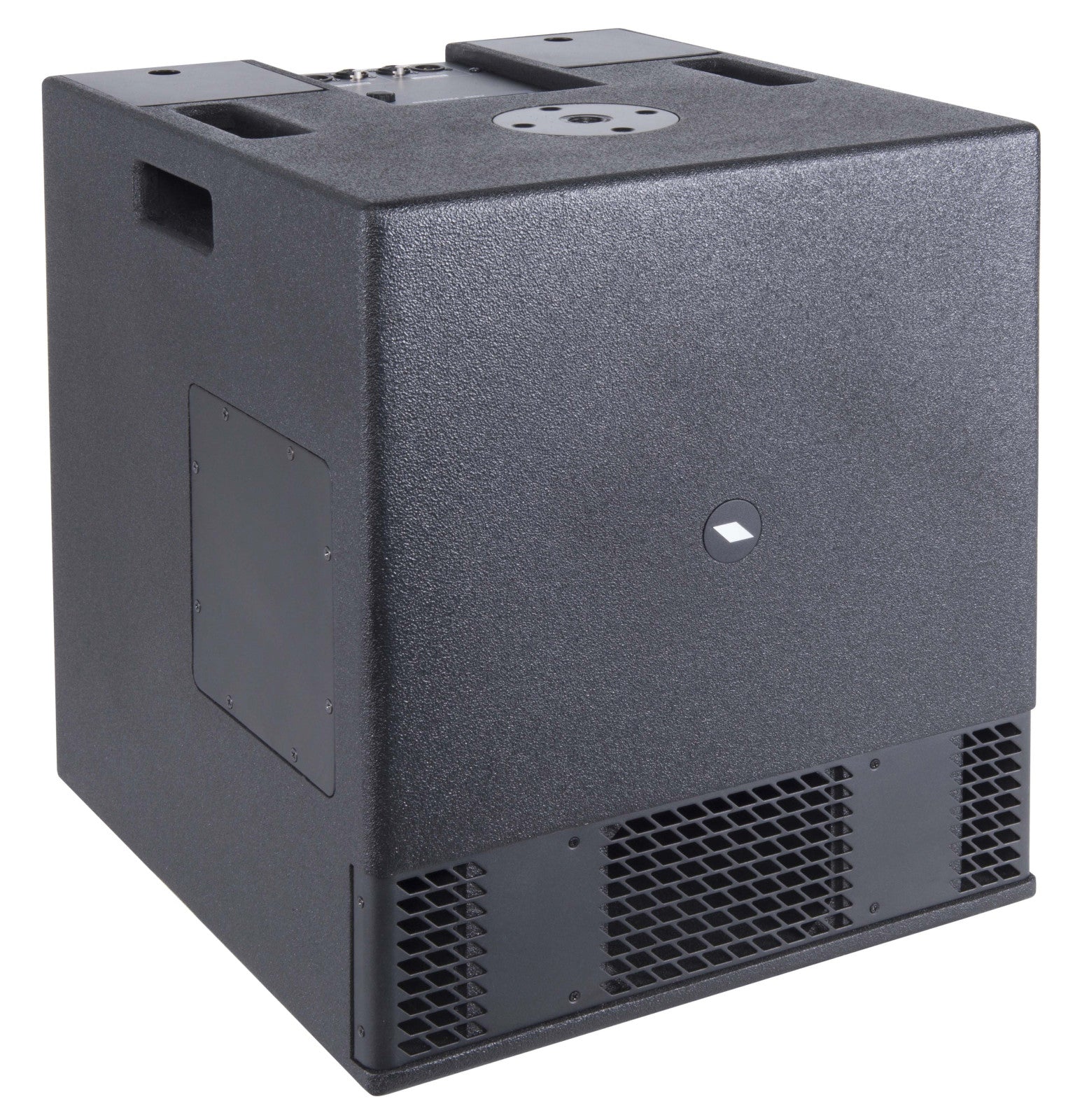

SUB

• Two 6.5” high-excursion loudspeakers in BAND PASS configuration
• Multi-ply wood cabinet with ultra-durable polyurethane finish
• Compartments for the two TOPS inside the cabinet for easy transport
• Two ergonomic handles
• Speaker pole adapter with M20 insert

SYSTEM

• 3-channel Class D amplifier with SMPS
• Total peak power 1200W
• Two MIC/LINE inputs (XLR-F) + two LINK (XLR-M)

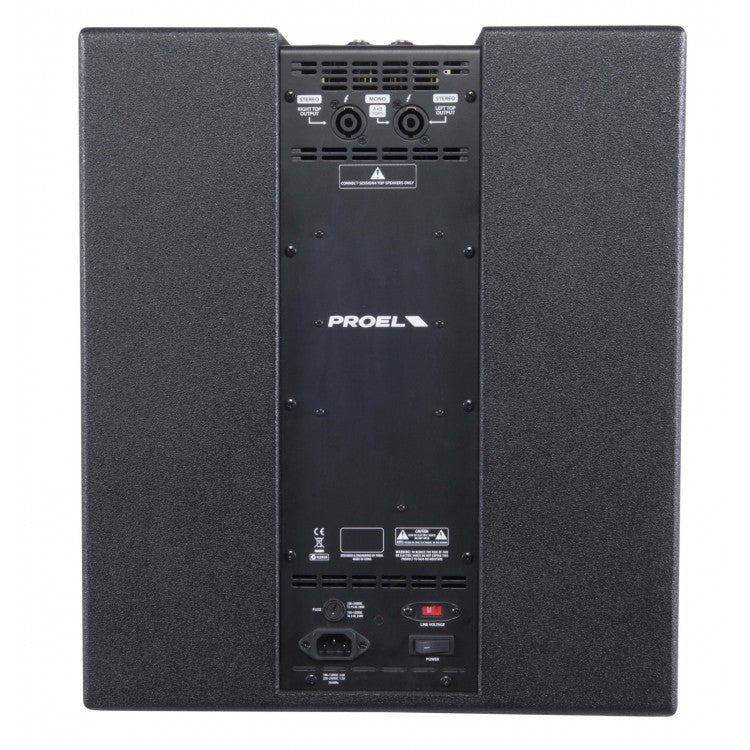

• Two SPEAKON output connectors for the TOPS
• Control panel and connections on the top for easy access
• High-definition CORE LT DSP with 24-bit A/D and D/A converters and Dynamic EQ

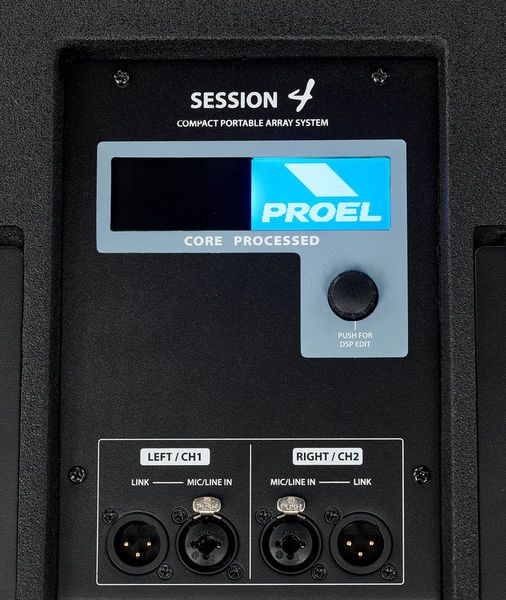

• User-friendly control interface with single selector and LCD display
• 4 DSP presets (MUSIC, LIVE, DJ, SPEECH)
• Stereo Bluetooth interface
• MAX SPL (system): 122 dB peak
• Frequency response: 45 Hz - 18 kHz
• Included accessories: detachable pole for top with M20 attachment, 4-wire SPEAKON power cable (2mt.), carrying bags for the tops
