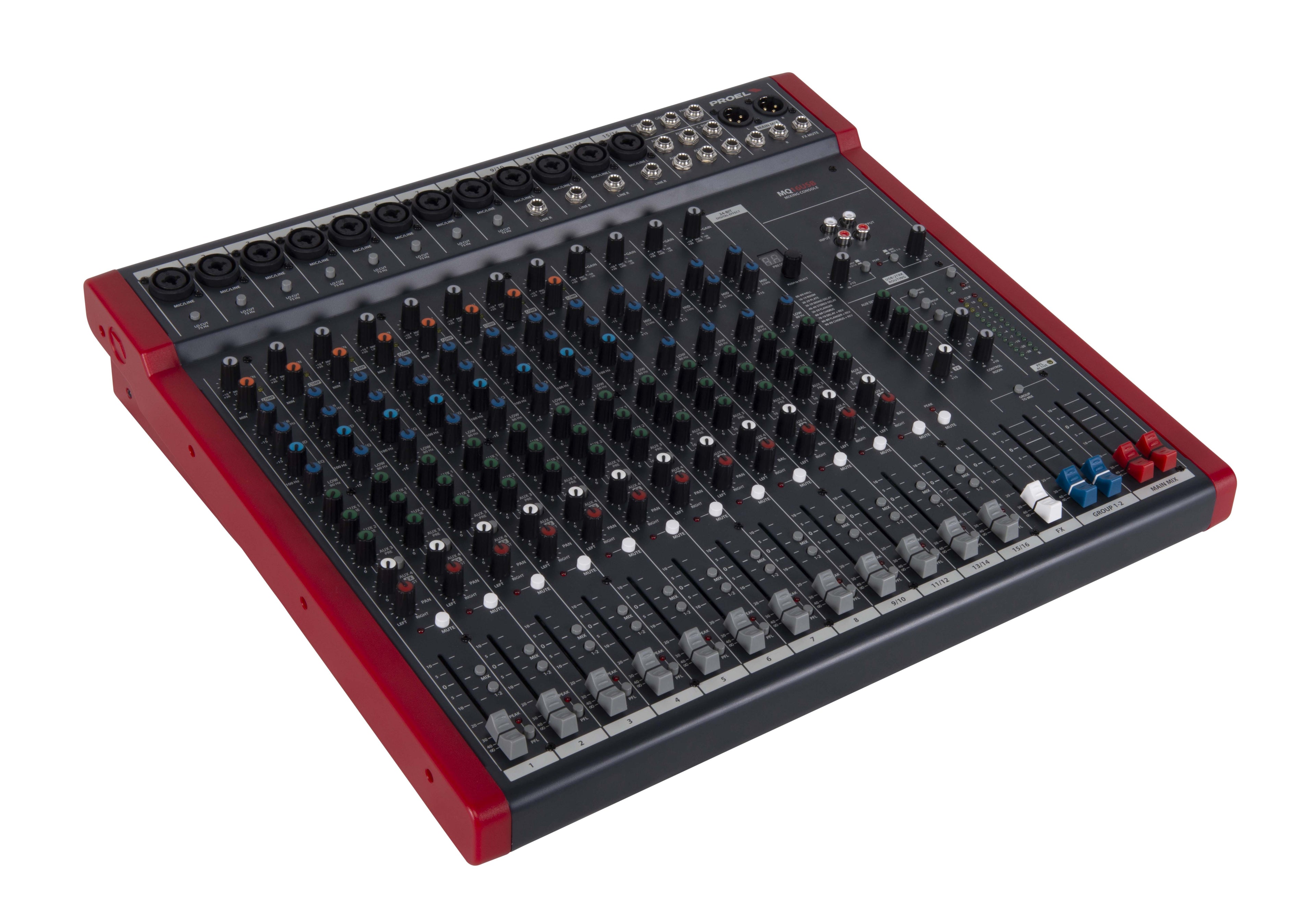

PROEL SOUND MQ16USB

Description

MQ is a series of mixers created by PROEL to offer a high input density, a complete set of features and superior audio quality in a very compact and attractive format, at a very affordable price point. The MQ series includes 5 models with 6, 10, 12 and 16 channels, capable of satisfying the most varied sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are housed in ultra-rugged chassis, guaranteeing extended durability and intensive use on every type of stage.

The smallest models in the series, MQ6 and MQ6FX, offer the performance of professional consoles in ultra-compact formats, with a clean and accurate sound. MQ6FX, despite its reduced dimensions, includes a high-definition DSP, capable of providing musicians and performers with recording-quality effects.

MQ10FX, along with the 3-band EQ and intelligent single-control COMPRESSORS, features 100 DSP presets selectable via a convenient LED.

MQ12USB's additional features include a USB I/O audio interface and increased mixing capabilities with MONITOR send, STEREO GROUP, and 45mm fader controls.

The top-of-the-range MQ16USB offers 16 inputs and 12 microphone channels, along with semi-parametric mids, intelligent single-control COMPRESSORS, 4 AUX sends, STEREO GROUP, and 60mm fader controls.

Optional padded carrying bags and metal adapters for 19” rack mounting are available for selected models.

• Compact 16-input, 4-output bus mixer with effects and USB I/F
• 8 MONO MIC/LINE inputs and 4 STEREO MIC/LINE inputs
• 12 low-noise, high-dynamic microphone preamplifiers
• PHANTOM power
• Single-control COMPRESSOR with signal LED on MONO channels
• 3-band EQ with semi-parametric mids and LO-CUT filter
• 3 pre-fader AUX sends and 1 post-fader AUX send
• Studio-grade 24-bit digital effects with 100 presets, 2-digit display and footswitch MUTE
• USB interface with assignment options for recording and playback from PC
• GROUP 1&2 with MIX assignment and output
• 2-TRACK, HEADPHONES and CONTROL ROOM outputs
• Electronically balanced MAIN MIX outputs with XLR-M and JACK connectors
• Two 12-LED VU-METERS
• Universal 100-250V switching power supply
• Careful construction and ultra-rugged chassis
• Designed and engineered in Italy by PROEL
