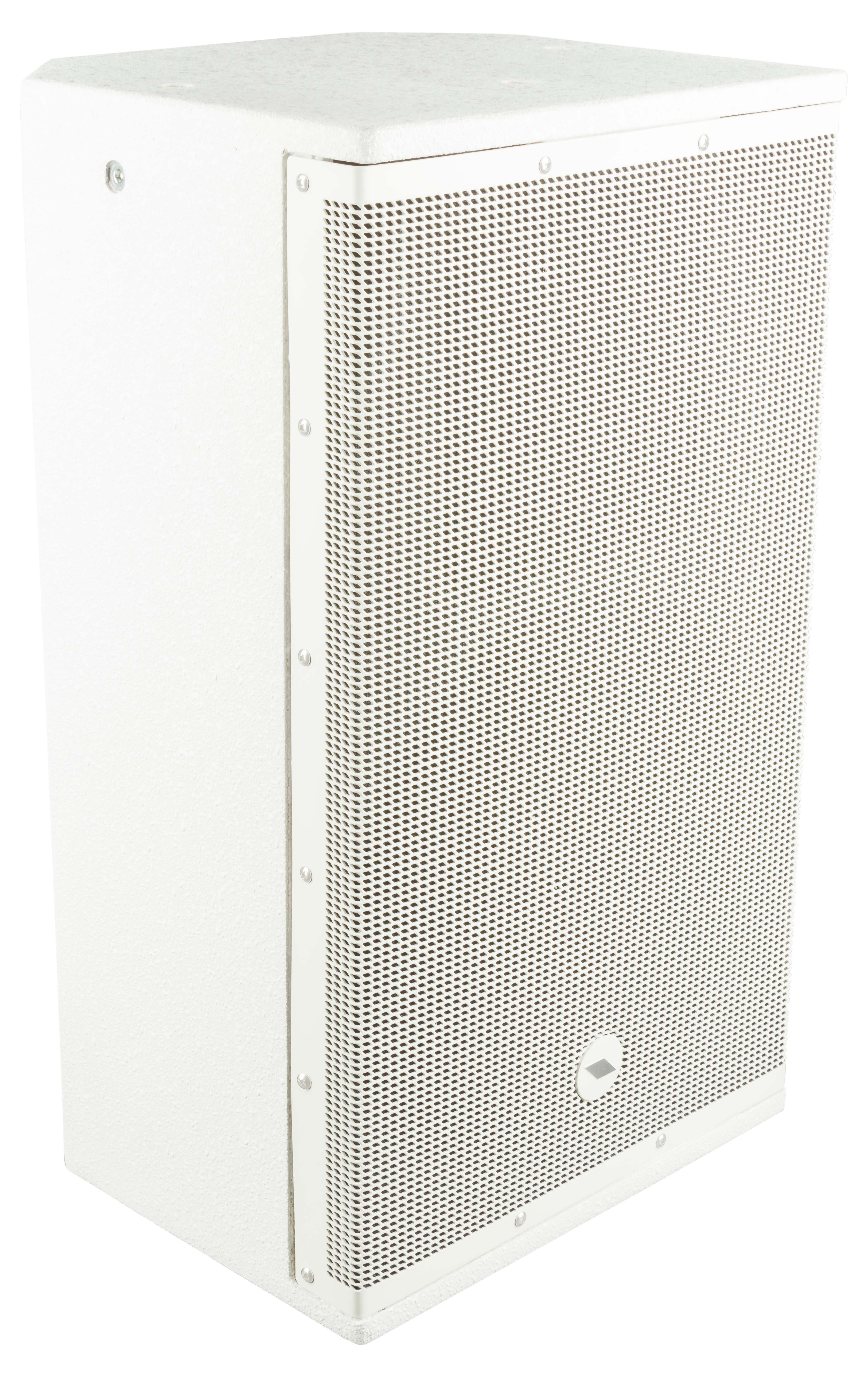

PROEL SOUND LTX12AW

Description

LTX is a complete series of active and passive speakers specifically designed for a wide range of commercial and residential installations. The speaker systems are housed in sturdy multilayer wooden cabinets available in black or white and offer a refined and discreet aesthetic, able to adapt to any environment.

All cabinets feature multiple suspension points and dedicated accessories for a wide choice of mounting options. The KPTLTP bracket (included with LTX6 and LTX8) allows the speakers to be installed on walls and ceilings with variable tilt and orientation, offering the possibility of achieving more uniform coverage. C-brackets (for LTX10 and LTX12 models) allow the speaker to be installed on walls, ceilings, and stage structures for discreet installation. LTX8, LTX10, and LTX12 are equipped with a standard pole adapter, allowing the speaker to also be used as a portable sound system with a standard floor speaker stand.

For high-frequency reproduction, we have designed symmetrical horns with 90x90° dispersion, capable of providing constant coverage for a large audience in both vertical and horizontal installations, and a detailed response with low distortion. The high-excursion woofers, together with carefully tuned reflex cabinets, offer an extended response with deep and fast bass.

The active versions are powered by amplifiers equipped with the latest amplification technologies, such as Switch Mode power supply and CLASS D power stage, and provide a large amount of power with reduced size and weight. They include a sophisticated preamplification section with crossover filters up to 24 dB/oct. phase-aligned and active EQ filters for system tuning, along with POWERCON network connectors. Independent HF and LF LIMITER circuits ensure undistorted sound even at the highest level and total speaker protection.

The passive versions feature carefully designed linear-phase crossover filters, HF protection circuits, and SPEAKON connectors.

LTX12AW

• 1” compression driver
• 12” woofer
• 90° H x 90° V coverage
• Amplifier with 600 W peak power
• Frequency response 50 Hz - 20 kHz

• 124dB maximum peak SPL
