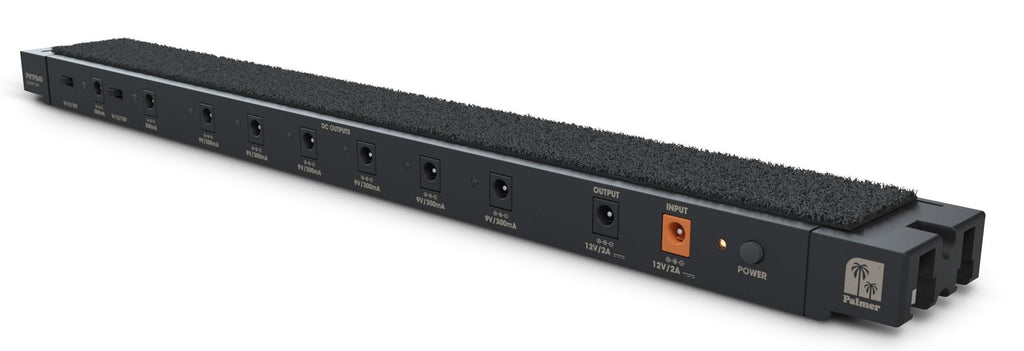

Palmer Wt Pb 40 Powerbar 8 Outputs For Pedalbay 40

Description

PALMER WT PB 40 POWERBAR 8 OUTPUTS FOR PEDALBAY 40

Space-saving universal power supply thanks to patented integration into the pedalboard

Eight outputs with negative center pin

Two outputs switchable to 9, 12 or 18 V

Total current 2,000 mA

Safe use thanks to short-circuit and overload protection for each output

Integrated LED mains and operation indicators

Specifications

Product type Power Supplies

Mains connection Power adapter

Input voltage 100 - 250 V

Number of outputs 8

Output connections 2.1 x 5.5 mm

Material Aluminum

Surface Anodised, Black powder-coated

Output voltage 12 V, 18 V, 9 V

Output current max. 2 A

Isolated outputs Yes

Polarity Negative pole in the center

Power cable length 150 + 150 cm

Indicators Fault, Power

Controls Output voltage selector

Width 450 mm

Depth 50 mm

Height 24 mm

Weight 0.65 kg

Accessories (included) 5x straight to angled DC cable 16cm long, 9x straight to angled DC cable 60 cm long, Power supply, M6 nuts, M8 nuts, Adhesive velcro
