Palmer Mi Pdi06 L16 Attenuator 16Ohm

Description

PALMER MI PDI06 L16 ATTENUATOR 16OHM

Palmer Power Attenuator, for controlling guitar amplifier volume

The PDI06 is a power attenuator for live use. It is connected between the amplifier output and the loudspeaker cabinet. This allows you to achieve the desired tube power amp distortion while reducing the associated high volume. To meet the demands of stages and rehearsal rooms, the volume can be reduced from 100% to 18% in six different steps. At the next level, the PDI06 functions as a LOAD BOX and absorbs all speaker power, making it silent.

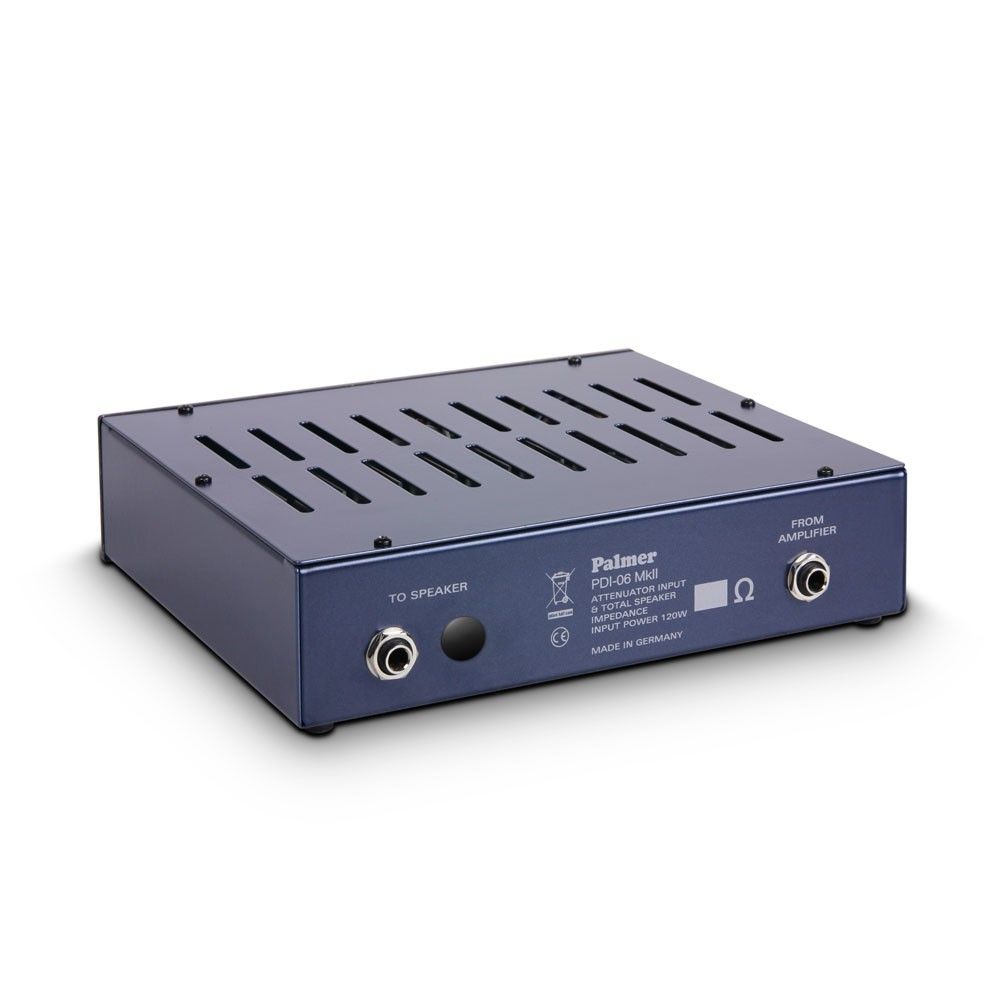

This operating mode is useful if, for example, you want to connect an amplifier with speaker emulation directly to a mixer via an existing line output, without generating noise in the recording room. The unit has an input for the speaker signal from the amplifier and an output for connecting a speaker cabinet.

The total impedance of the speakers must match the value indicated on the PDI06. Example: an 8 Ohm cabinet or two 16 Ohm cabinets can be connected to the outputs of an 8 Ohm PDI06 (the 16 Ohm version only has one output). The tube amplifier output is also set to 8 Ohms.

Specifications

Product type Speaker simulator

Channels 1

Input type unbalanced

Inputs 1

Input connectors 6.3 mm Jack

Output type unbalanced

Outputs 2

Output connectors 6.3 mm Jack

Output impedance 16 Ohm

Controls Bypass , Attenuation selector

Loadbox Yes

Loadbox impedance 16 Ohm

Max. load 120 W

Voicing Filter No

Power Attenuator Yes

Transformer-balanced outputs No

Cabinet material Steel sheet/aluminium

Cabinet surface powder-coated/anodized

Width 220 mm

Depth 220 mm

Height 50 mm

Weight 2.4 kg
