Origin Effects Cali76 Stacked Edition Compressor

Description

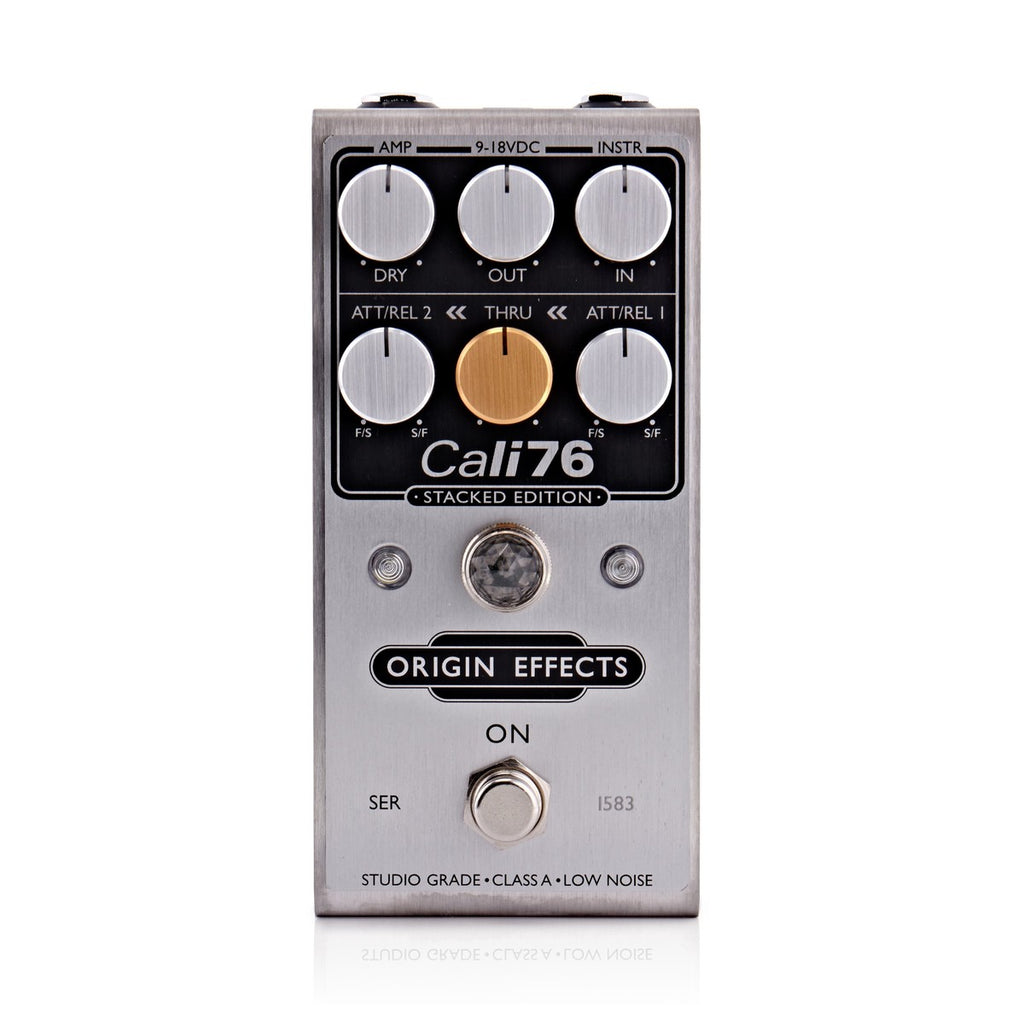

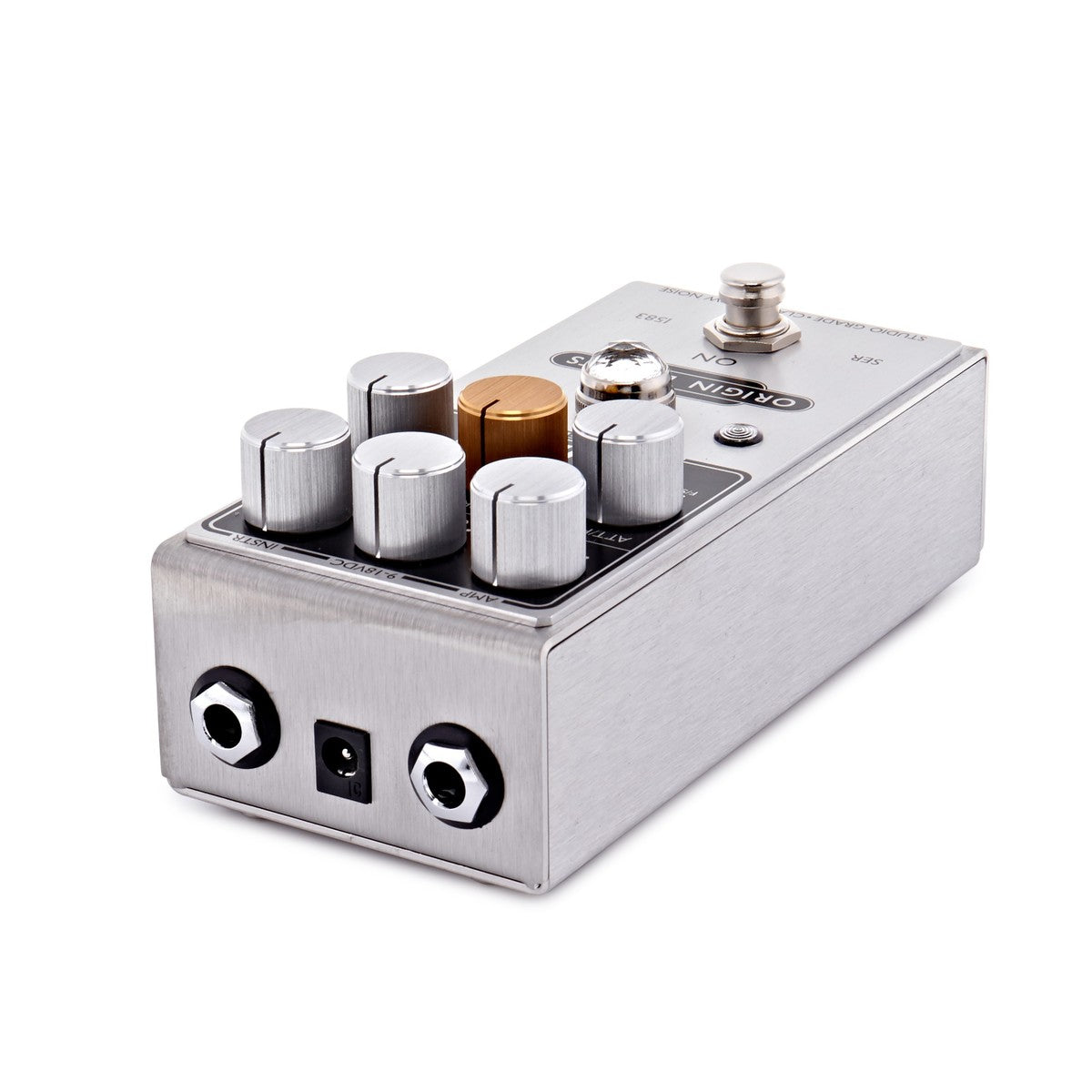

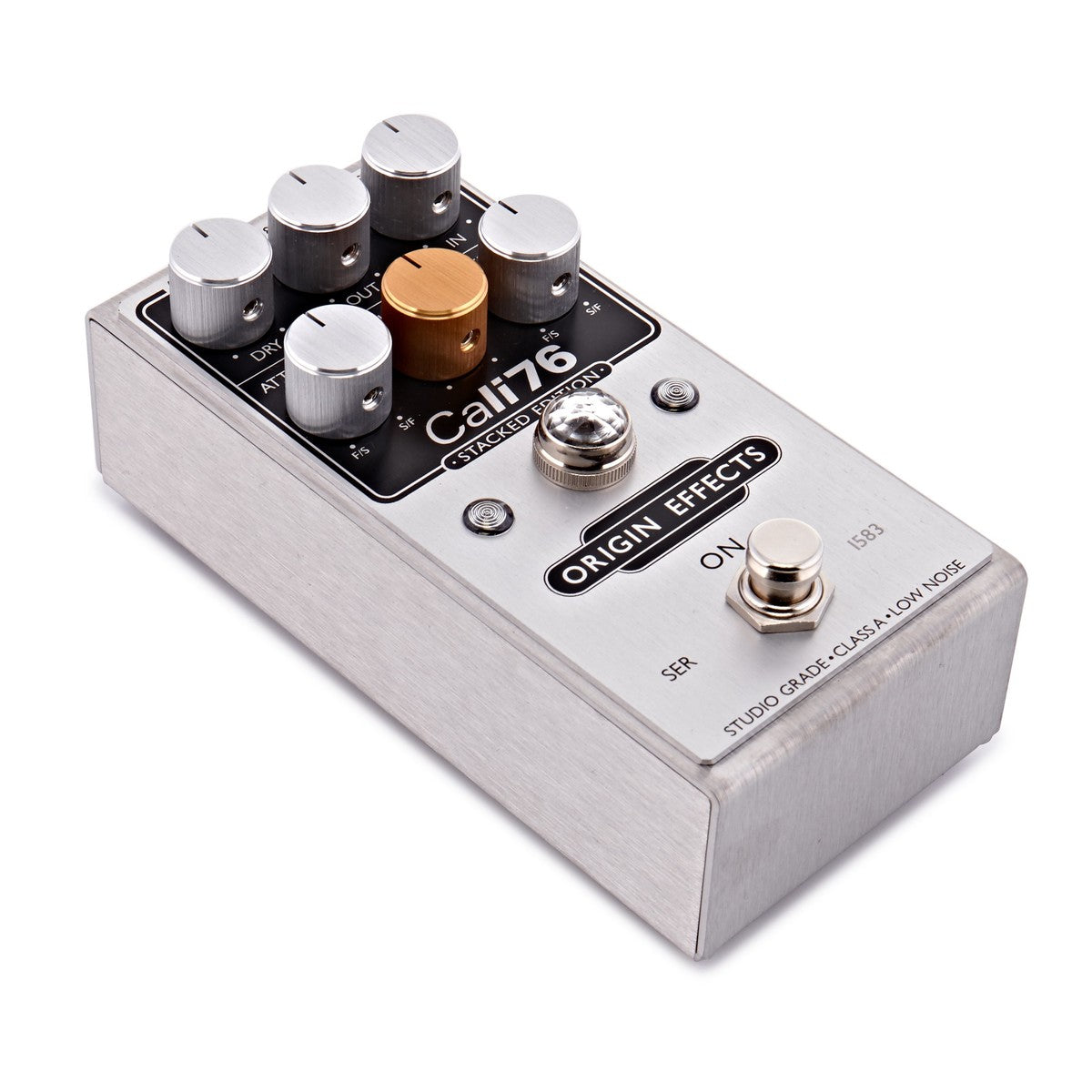

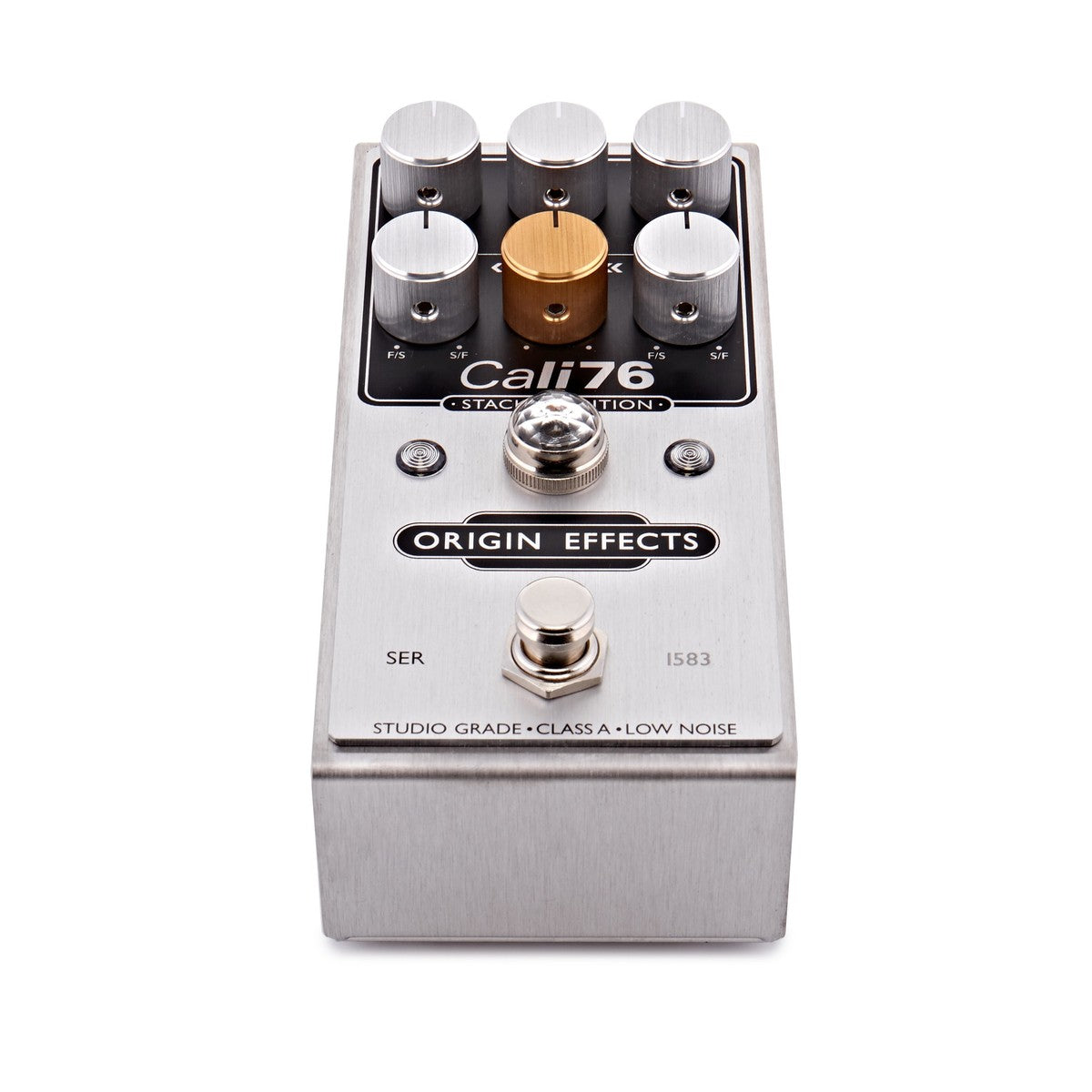

ORIGIN EFFECTS CALI76 STACKED EDITION COMPRESSOR

What's better than one Cali76 compressor? Two Cali76 compressors.

This Stacked Edition is a classic Mosfet-style pedal with two compressors in series, one after the other, for a total of millimeter-measured, full, warm, and perfectly guitar-centered compression.

Try it in our store in Rome or buy it online at Your Music Online at the best price.

Specifications

PHYSICAL

Weight

620 g (1.37 lb)

Dimensions

143 x 66 x 65 mm (5.62 x 2.6 x 2.56 in.)

L x W x H - Includes knobs and switches

ELECTRICAL

Input Impedance

1 MΩ

Output Impedance

1 kΩ

Current Draw

100 mA

POWER

Power Supply

9-18V DC 2.1 mm centre-negative

Please note: the Cali76 Stacked Edition is powered by a mains adaptor only (not included). We’ve dispensed with the usual 9V battery option, both to save space and to allow us to adopt a high-current approach, yielding lower noise levels and superior tone.

Origin Effects pedals are designed to deliver impeccable performance using a range of power supplies. We recommend you only use a regulated power supply specifically designed for guitar pedal applications as power supplies which do not have sufficient internal filtering can result in unwanted noise.

We recommend the following power supplies for use with our pedals:

Voodoo Labs Pedal Power series

Cioks supplies

Truetone 1 Spot Pro series

Strymon Zuma

Dunlop ECB-004

Operating this pedal with an 18V power supply will give the most headroom, allowing for higher levels of compression before clipping occurs.
