Nux B8 Pedalboard Wireless

Description

Nux B8 Pedalboard Wireless

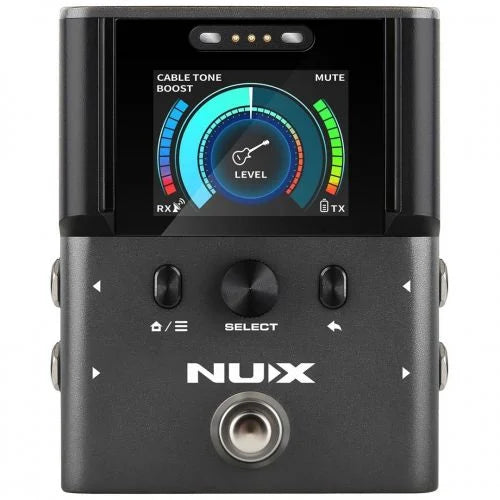

The NUX B-8 Wireless System is a guitar and bass wireless system that offers interference-free 2.4 GHz transmission frequency and high-quality 24-bit/48 kHz audio transmission. This system is perfectly suited for all types of electric guitars, electro-acoustic guitars, basses, and various instruments with electronic pickups, providing a stable and interference-free signal over a distance of up to 50m.

The NUX B8 features numerous advanced functions such as send/return and an integrated tuner, making it a powerful and flexible professional system for managing digital wireless transmission. Thanks to its 24-bit/48 kHz audio quality, there will never be any unwanted sound degradation, ensuring an optimal listening experience.

With its automatic setup and easy frequency pairing, it is user-friendly and can be used anywhere without signal interruptions thanks to its global interference-free 2.4 GHz transmission frequency. Add the NUX B-8 to your musical equipment for professional and high-quality wireless transmission.

Suitable for guitar, bass, and various instruments

Automatic setup and easy frequency pairing

High-quality 2.4 GHz transmission

Long range and low latency

Stable mode for interference elimination

Integrated booster and tuner

Long-lasting battery

Cable function for a warmer and more natural tone

Send/return to manage your effects routing

Direct output to mixer

SPECIFICATIONS

Audio quality: 24bit/48kHz

Frequency response: 20Hz-20kHz

Latency: 2.5ms (best performance setting) - 8.7ms (safety mode)

Input impedance: 1 MO

Maximum input level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)

THD+N: 0.01% 1kHz, typical

Dynamic range: 122 dB, A-weighted (OUTPUT/SEND)

Output level adjustment range: mute -64dB~0dB

Built-in battery capacity: Rechargeable 3.7 V/500 mAh Li-polymer (transmitter)

TX battery life: up to 6.5 hours

Power requirements: 7V to 12V DC, 500mA min, negative tip power supplies (receiver)

Operating range: Up to 50 m

TX dimensions: 72.5 mm*49.3 mm*23 mm (L*W*H)

TX weight: 63 g

RX dimensions: 122*95*60mm (L*W*H)

RX weight: 500 g

Specifications

Suitable for guitar, bass, and various instruments

Automatic setup and easy frequency pairing

High-quality 2.4 GHz transmission

Long range and low latency

Stable mode for interference elimination

Integrated booster and tuner

Long-lasting battery

Cable function for a warmer and more natural tone

Send/return to manage your effects routing

Direct output to mixer

SPECIFICATIONS

Audio quality: 24bit/48kHz

Frequency response: 20Hz-20kHz

Latency: 2.5ms (best performance setting) - 8.7ms (safety mode)

Input impedance: 1 MO

Maximum input level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)

THD+N: 0.01% 1kHz, typical

Dynamic range: 122 dB, A-weighted (OUTPUT/SEND)

Output level adjustment range: mute -64dB~0dB

Built-in battery capacity: Rechargeable 3.7 V/500 mAh Li-polymer (transmitter)

TX battery life: up to 6.5 hours

Power requirements: 7V to 12V DC, 500mA min, negative tip power supplies (receiver)

Operating range: Up to 50 m

TX dimensions: 72.5 mm*49.3 mm*23 mm (L*W*H)

TX weight: 63 g

RX dimensions: 122*95*60mm (L*W*H)

RX weight: 500 g
