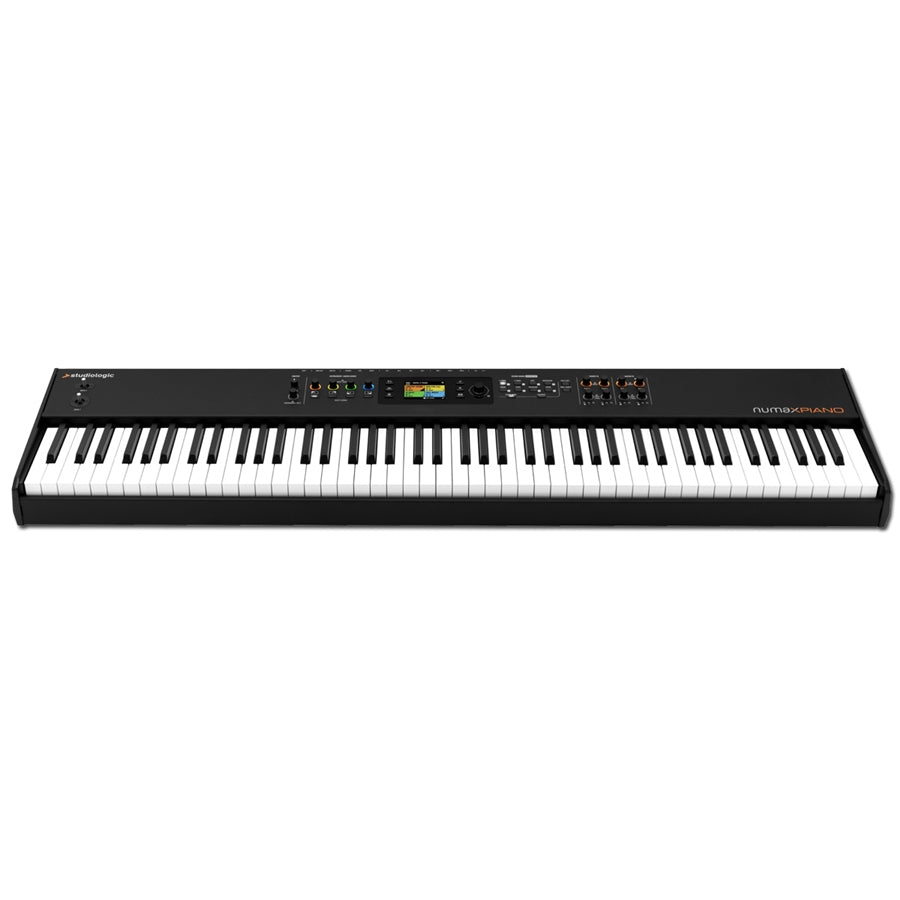

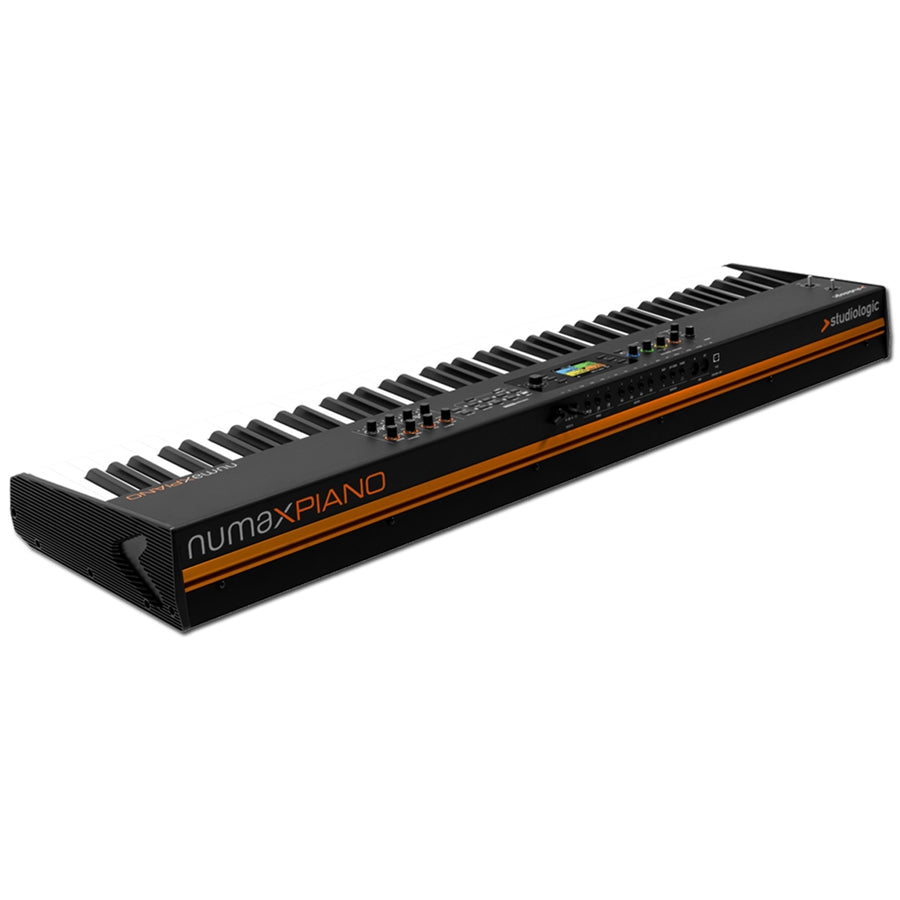

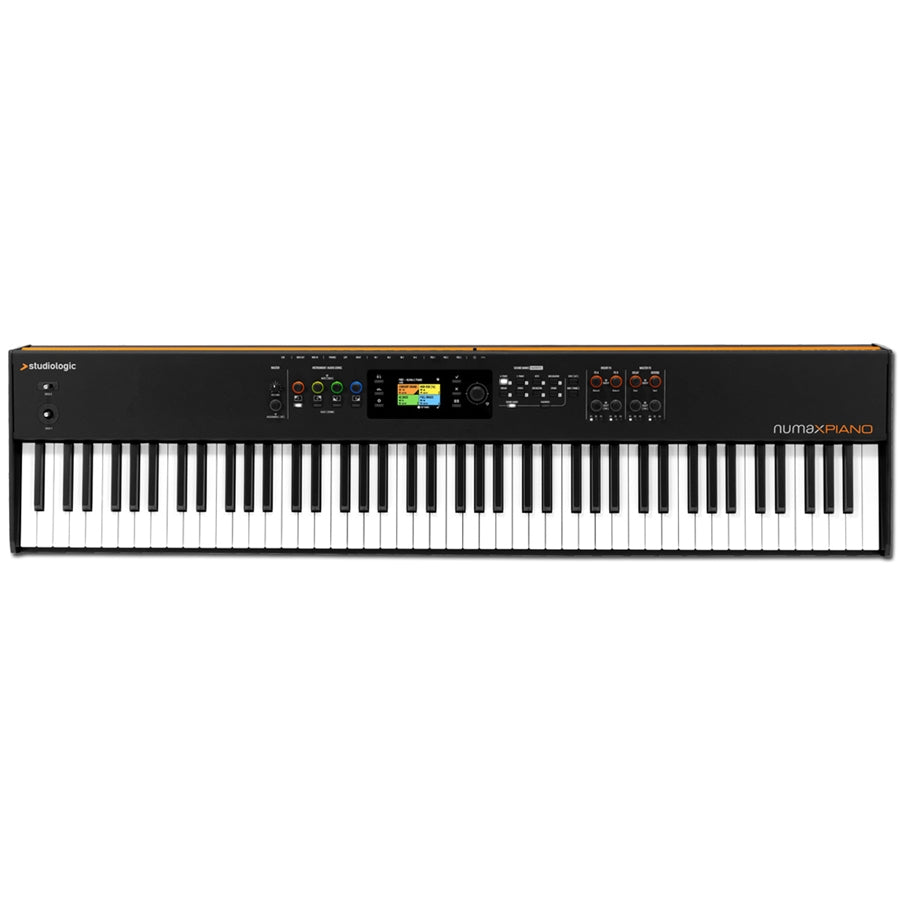

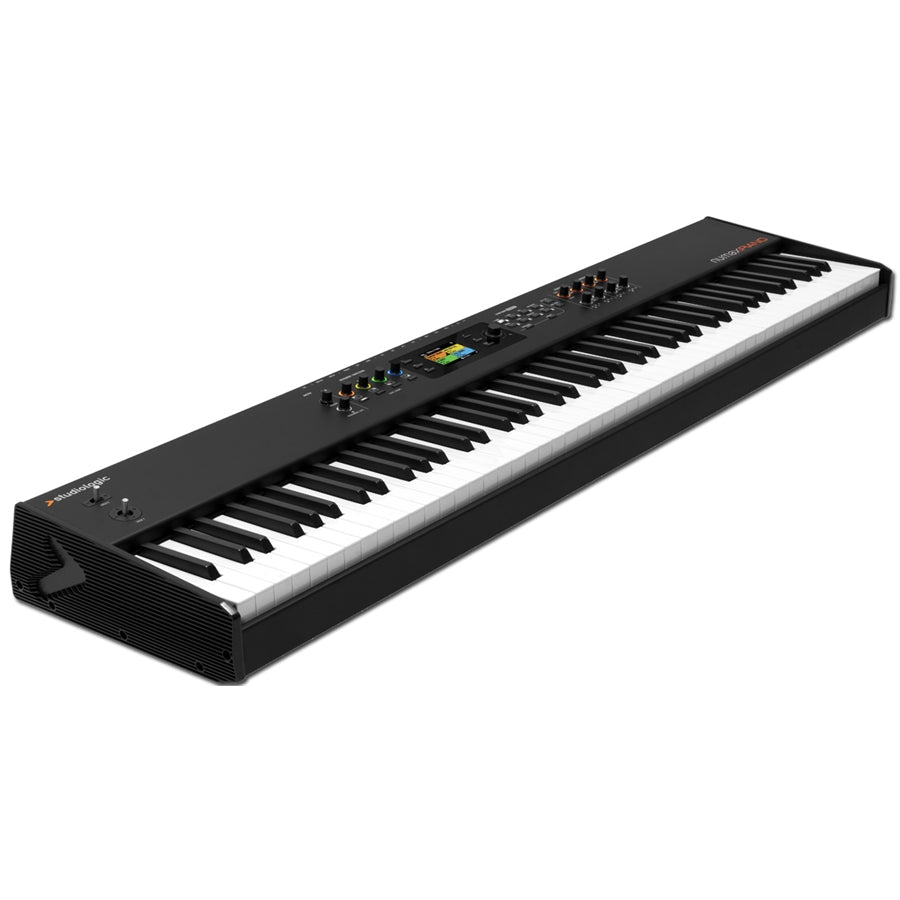

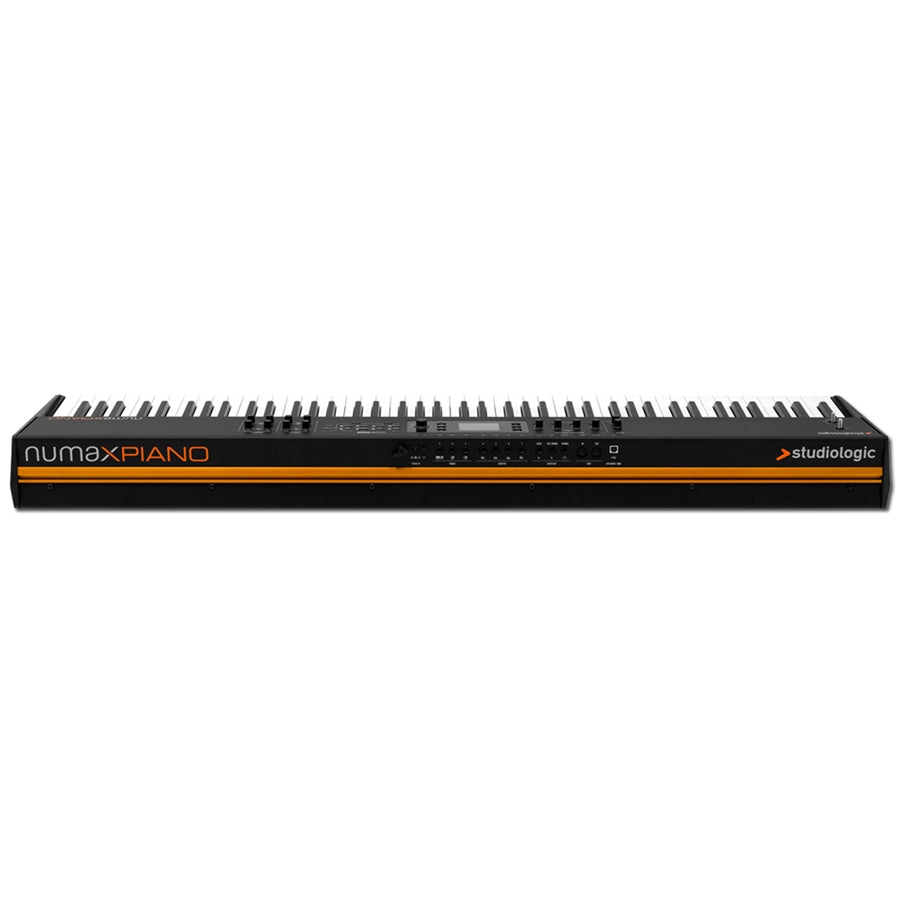

StudioLogic NUMA X PIANO 88

Description

<h1 style="text-align: justify;"><strong>STUDIOLOGIC Numa X Piano 88</strong> is a <strong>Digital Stage Piano</strong> based on an advanced multi-synthesis sound engine, integrated with a <strong>4-Zone MIDI Controller</strong>, <strong>4-channel Digital Mixer</strong>, and <strong>Audio/USB</strong> interface. It features a new <strong>weighted 88-key keyboard</strong>, equipped with <strong>3 contacts</strong> for high-resolution velocity detection, with <strong>escapement</strong> and <strong>Aftertouch</strong>. <strong>Numa X Piano 88</strong> is managed by <strong>UXLogic</strong>, an innovative, fast, and intuitive user interface.</h1><h2><strong>Italian video presentation of Numa X Piano 88</strong></h2><p><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="315" src="https://www.youtube.com/embed/U_Xk2CHe3RE" title="YouTube video player" width="560"></iframe></p><hr /><h2><strong>STUDIOLOGIC Numa X Piano</strong>&nbsp;<strong>88 Key Features</strong></h2><ul>    <li>Acoustic pianos created with advanced <strong>TRS</strong> technology and high-resolution spectral interpolation</li>    <li>Physical modeling electric pianos: vintage, electric, and hybrid sounds</li>    <li>High-end Fatar Hammer Action keyboards: <strong>FATAR Hammer Action Fatar TP/110 with 3 contacts and Aftertouch</strong></li>    <li><strong>UX Logic</strong> user interface with adaptive color controls</li>    <li>4 zones assignable to internal sounds or external MIDI</li>    <li><strong>MIXER</strong> with 4 Mic/line audio inputs with dedicated EQ and effects</li>    <li><strong>ZOOM</strong> function to quickly edit zone parameters</li>    <li>Memory for favorite sounds</li>    <li>Global EQ: bass, mid, treble</li>    <li>Over 200 factory sounds across 8 banks</li>    <li>Specific controls for each sound activatable with the ZOOM function</li>    <li>Effects: Insert FX1, Insert FX2, Master Delay, Master Reverb</li>    <li>Audio transmission via USB</li>    <li>2 programmable Pitch/Modulation Sticks</li></ul><p><img alt="Un dettaglio dell'ampio pannello comandi con l'interfaccia utente X-Logic che combina un codice a colore con i controlli fisici" src="https://www.algameko.com/images/uploads/NumaXGrT_Layout_Slant_04.jpg" title="Un dettaglio dell'ampio pannello comandi con l'interfaccia utente X-Logic che combina un codice a colore con i controlli fisici" /></p><h2><strong>The Sound Generation of Numa X Piano</strong>&nbsp;<strong>88</strong></h2><p style="text-align: justify;">The sound generation system of <strong>Numa X Piano</strong>&nbsp;<strong>88</strong> is based on advanced techniques of: <strong>Sampling</strong>, <strong>Wave Shaping</strong>, and genuine <strong>physical modeling</strong>. Acoustic Piano sounds are processed by dedicated <strong>DSPs</strong> that reproduce <strong>sympathetic string resonance (<em>Duplex Resonance</em>)</strong>, key-off noise (<strong>Key Off</strong>), and damper pedal noise (<strong>Damper</strong>); additionally, there are <strong>8 Insert FX</strong>, 2 per Zone, and <strong>Master Delay and Reverb</strong> (with FDN technology). Specific <strong>Zoom</strong> settings are also available, allowing for a wide variety of tones by simply modifying the most significant editing parameters, with the ability to store them in <strong>PROGRAM</strong> locations.</p><h2><strong>Numa X Piano</strong>&nbsp;<strong>88 and MIDI Master control functions</strong></h2><p style="text-align: justify;"><strong>Numa X Piano 88</strong> features the advanced control functions of STUDIOLOGIC's SL series with <strong>4 zones manageable in Split or Layer</strong>, a complete set of programmable MIDI parameters for each zone, and physical controls such as 2 Pitch/Modulation Sticks and Aftertouch, which significantly increase the versatility and thus the application possibilities of the instrument.</p><h2 style="text-align: justify;"><strong>Expandability of Numa X Piano 88: the Numa Manager</strong></h2><p>A large section of the <strong>Numa X</strong> Piano's memory has been left free for loading additional sound libraries, which will be published on the Studiologic website; all FACTORY and USER sounds can be moved as desired, thanks to the free <strong>Numa MANAGER</strong> software which also allows for firmware updates and personal organization of Programs.</p><h2><strong>The user interface of Numa X Piano 88</strong></h2><p>All functions and parameters of <strong>Numa X Piano 88</strong> are controlled by an innovative adaptive color user interface called <strong>UXLogic.&nbsp;</strong>This is based on a large backlit display and rotary <strong>Encoders</strong>, all color-coded and always synchronized with the selected operating zone. This system always allows clear and direct access to all functions, with fluid navigation between parameters.</p>Such a rational interface has allowed for a panel with an essential layout, few controls, and great ease of use of the instrument.

Numa X Piano 88 and the refined FATAR touch

Numa X Piano 88 adopts a new FATAR Hammer Action TP/110 keyboard with 3 contacts and Aftertouch. Additionally, 4 Velocity Curves are available, along with control over sensitivity and white/black key balance. These unique functions are available directly on board without external control software, allowing the instrument to adapt to personal playing needs, even the most refined. Numa X Piano 88 features a refined modern design highlighted by a distinctive profile, enclosed in a solid, robust, tour-proof metal cabinet, equipped with an innovative magnetic rail system for attaching various accessories to be presented soon.

Integrated Digital Mixer in Numa X Piano 88

Numa X Piano 88 also includes a Digital Mixer with 4 audio inputs (Mic/Line) and typical controls: Gain, Bass, Mid, and Treble, for connecting and processing external sources like microphones, basses, guitars, or other keyboards with effects. A device perfectly integrated with the other functions of Numa X Piano 88, allowing the musician to reduce the number of devices in their setup, gaining practicality and quality.

Audio via USB

The USB port of Numa X Piano 88 transmits not only MIDI data but also audio in digital format to devices like computers or tablets, making it possible to use the Piano as an Audio Interface with direct level control.

---

TECHNICAL SPECIFICATIONS Numa X Piano 88

Keyboard


• 88 Keys, TP/110 Premium Hammer Action

• Velocity detection with 3 contacts

• Aftertouch

Dynamic Control


• Curves: Soft, Medium, Hard, Fixed (programmable)

• Keyboard sensitivity control

• White/black key balance

General Features


• 250 User Programs

• Zoom function for quick editing of Zone parameters

• 4 Zones assignable to internal or external sounds via MIDI

• Split/Key Range for each Zone

• Dedicated Split button

Favorites


• 16 Favorite Groups with 24 Programs each

• Preview of Favorite content on the display

Global Equalizer

3 Bands: Bass, Mid, Treble; with mid-frequency selection

Sound Generation


• 8 Sound Banks with over 200 Factory sounds

• Polyphony 300 Max Voices.

• New sound libraries installable with Numa Manager Software

Acoustic Pianos


• Acoustic Modeling Technology

• Release samples, Damper and Key-off noises

Zoom Controls


• Tone, Strings Resonance, Duplex, Damper Noise

Electric Pianos


• Electric Modeling Technology: Physical Modeling for Vintage Electric Pianos and Hybrids

Zoom Controls


• Hammer, Offset, Tine, Damper Noise

Timbral Categories


• Keyboards, Bass & Guitars, Organs, Synthesizers, Orchestral, Other

Zoom Controls


• Filter Cutoff, Resonance, Attack, Release

Effects


• 8 Independent Insert Effects: 2 for each Zone

FX1


• Distortion, Overdrive, Auto Wah, Pedal Wah, Auto Pan, Tremolo, Vibrato, Equalizer, Compressor

FX2


• Chorus1, Chorus 2, Flanger 1, Flanger 2, Phaser100, Phaser90, Phaser HMX, Phaser Pad, Rotary, Auto Pan, Tremolo, Vibrato, Equalizer, Compressor

Master Delay


• Delay, Pan Delay

Master Reverb


• FDN (Feedback Delay Network) technology: Room 1, Room 2, Hall 1, Hall 2, Cath. 1, Cath. 2, Plate 1, Plate 2, Spring 1, Spring 2

Audio Inputs / Mixer


• 4 Audio Input Zones: Mic/Line

Configuration


• 4 Mono, 1 Stereo + 2 Mono, 2 Stereo

Zoom Controls


• Gain/Low/Mid/Hi for each Audio Zone

7 Delay FX presets


• Eko 1, Eko 2, Eko, 3, Eko 4, Paneko 5, Paneko 6, Paneko 7

7 Reverb FX presets


• Club, Lounge, Studio, Vocal, Stage, Bighall, Chorale

Controls/UI (user interface)


• 2.8" color display (320 x 240)

• Master Volume

• Navigation Encoder

• 13 Encoders with "push" function

• Encoders assignable to input volume (Audio / USB /Audio + USB)

• 22 Buttons

• 2 Programmable Sticks

• Bidirectional Stick 1 with return spring

• Directional Stick 2 without return spring

Connections


• Audio OUT: 2x 6.3 mm mono jack (L+R)

• Audio IN: 4 x mono jack 6.3 mm

• Headphones: 6.3 mm stereo jack

• Pedals: 2 auto switch/continuous, 1 universal

MIDI


• In/Out

USB


• Audio In/Out, MIDI In/Out, Manager App

Power Supply


• DC IN: 12V

Adapter


• Input: 100-240V / Output: 12V-2.5A

Dimensions


• Width: 126.5 cm / 49.8"

• Depth: 31 cm / 12.2"

• Height: 12.3 cm / 4.8"

Weight


• 14.0 Kg / 30.9 lbs

Package Contents


• Numa X Piano 88

• VFP1/10 sustain pedal

• Power adapter

Product specifications and appearance are subject to change.

variations without prior notice.</em></p>
