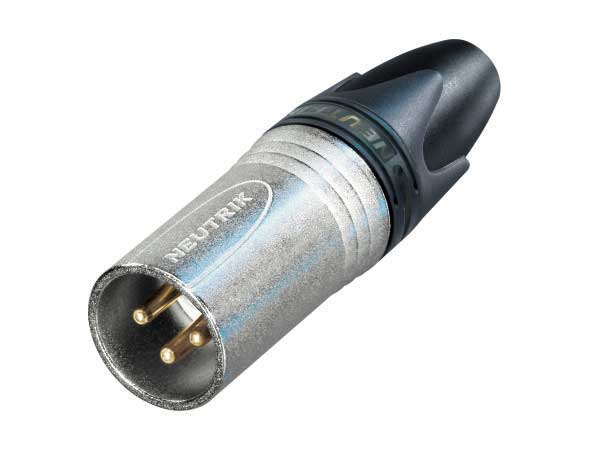

Neutrik Nc3mxx-emc

Description

3-pin XLR male antenna connector. XX series. Color: nickel, gold-plated contacts. Improved RF shielding for higher protection against RF interference. Continuous RF shield connection from cable to chassis housing via a circular capacitor around the cable shield. The circular capacitor acts as a high-pass filter (10 MHz). Improves contact integrity and cable strain relief. Mechanical specifications: cable outer diameter 3.5 - 8.0 mm, latch locking system. Materials: polyurethane boot, nickel-plated zinc housing. Environmental specifications: flammability UL 94 HB, standard IEC 61076-2-103, protection IP 40, temperature range -30 °C to +80 °C.
