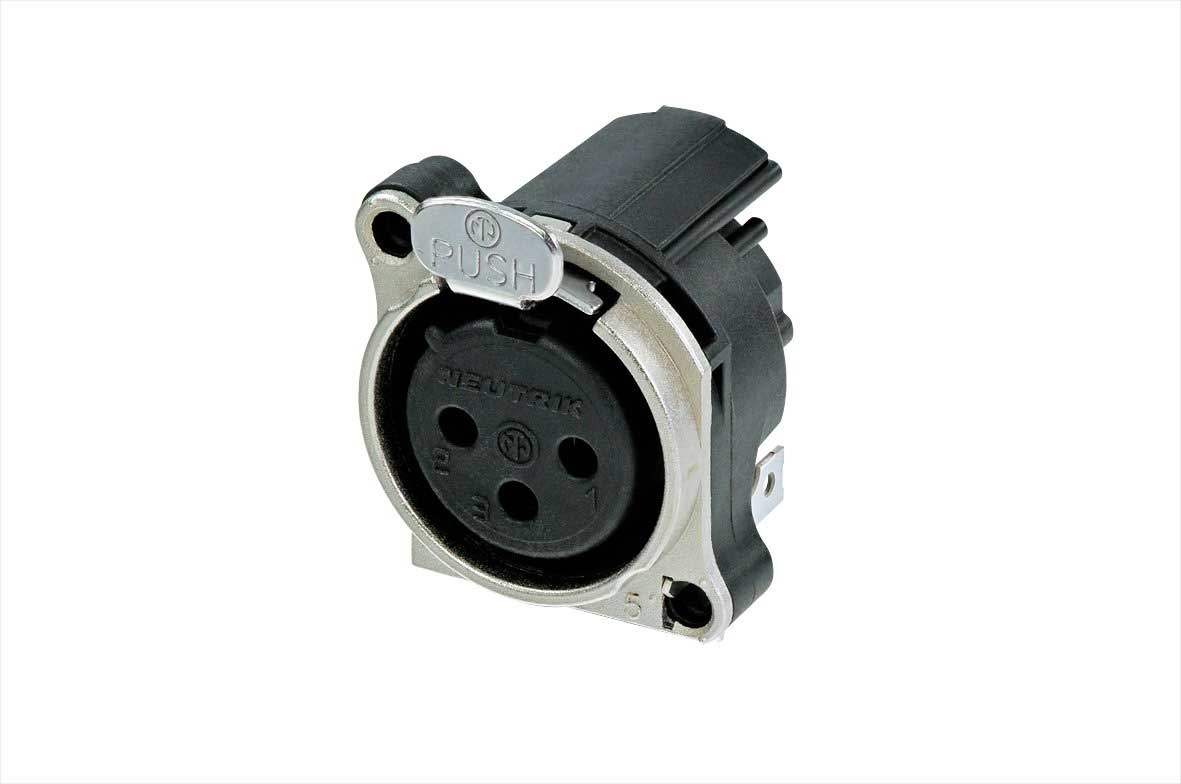

Neutrik Nc3fbh2

Description

3 pin female XLR connector. B series. Colour: nickel, gold plated contacts. Horizontal PCB mount. Grounding: separate ground contact connected to connector housing and front panel, no connection to pin 1. Smallest XLR receptacles, high packing density. Tulip contact design with high contact pressure for maximum durability. Metal mounting flange provides continuous circumferential chassis ground contact for improved EMC and RF protection. Secure locking with Ck67 steel. Materials: polyamide insert, zinc housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, IP 40 protection, temperature range -30°C to +80°C.
