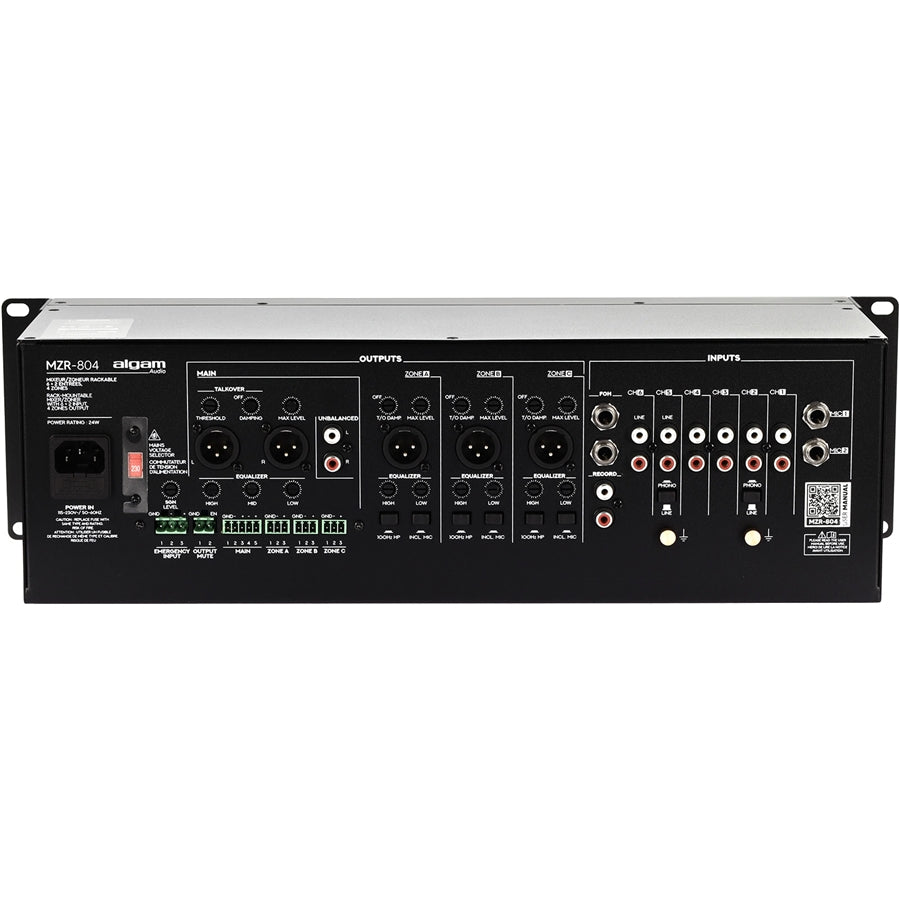

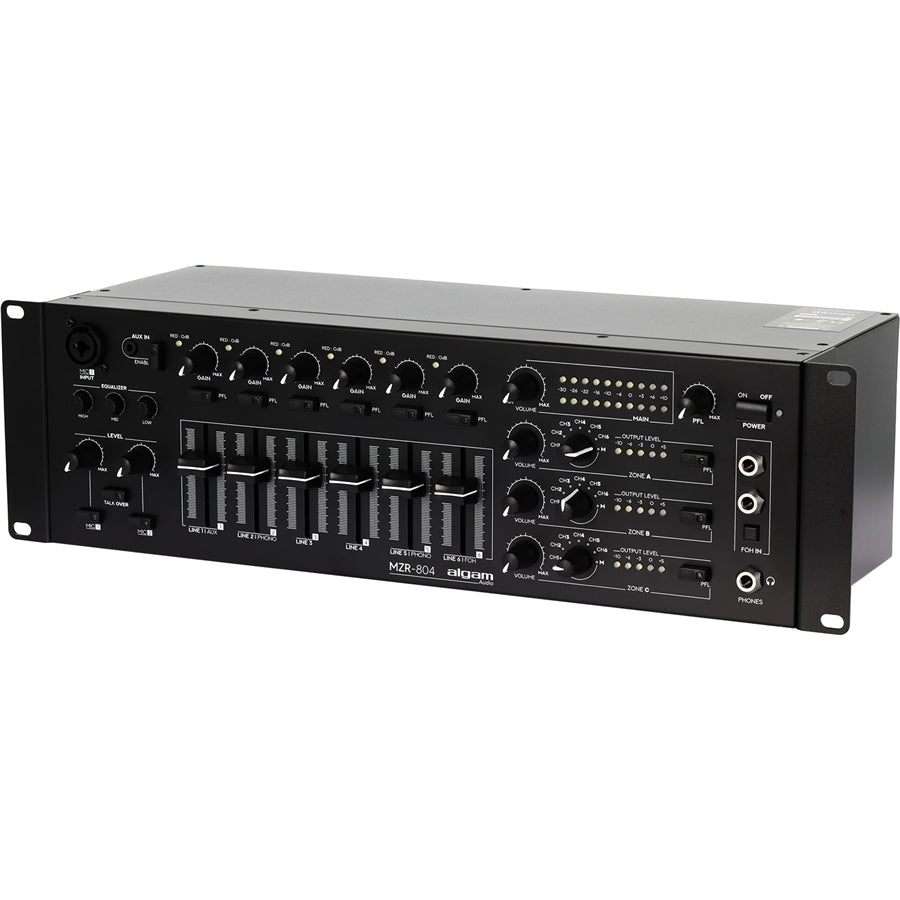

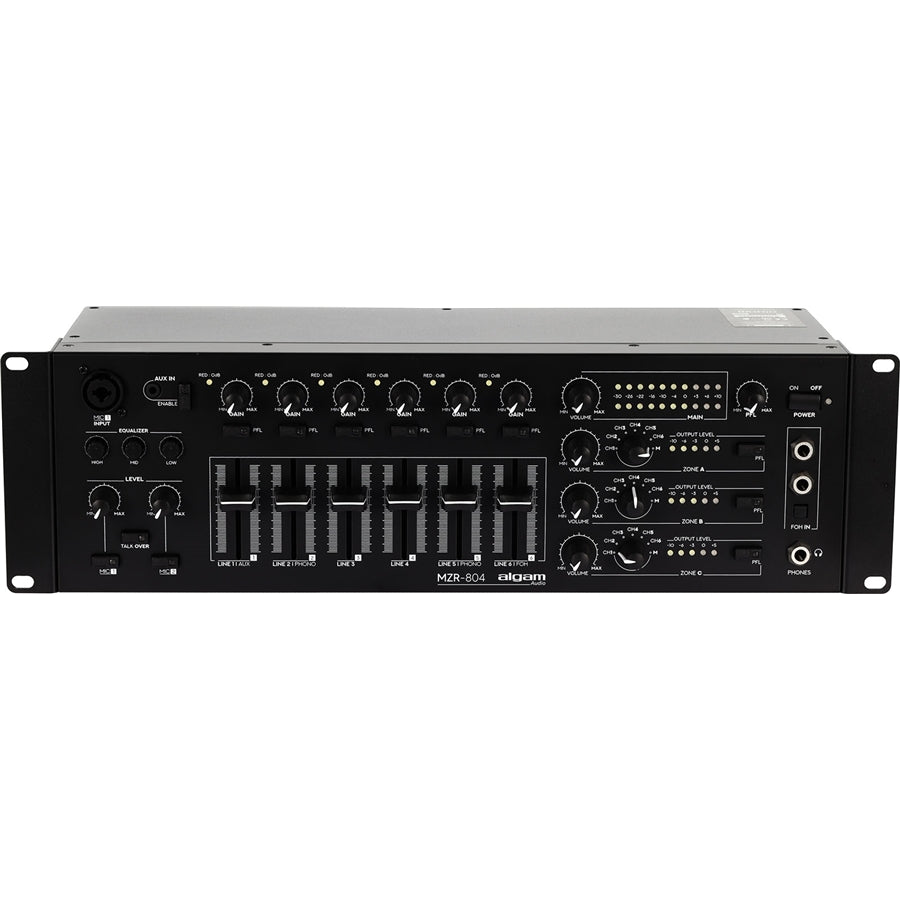

Algam Audio MZR-804 Zoner Mixer

Description

<h1 style="text-align: justify;">Algam Audio's MZR-804 is a <strong>rack-mounted zone mixer</strong> designed to provide flexible and precise sound management in multi-zone installations. With its <strong>6 line inputs, 2 of which are switchable to phono</strong>, its <strong>4 independent zones</strong>, its <strong>2 microphone channels with talkover</strong> and its <strong>emergency broadcasting system</strong>, it meets the needs of installations in public places, such as shopping centers, bars/restaurants.</h1><p style="text-align: justify;"><strong>Unrivaled versatility for all your audio sources.</strong><br>The MZR-804 is a true audio Swiss Army knife, capable of mixing and broadcasting a wide selection of audio sources to different points in a business, hotel, educational institution or place of worship. 6 line inputs, 2 of which are switchable phono, allow the connection of various audio sources, from CD players to vinyl turntables, including radio tuners or any other stereo source. Each channel has a dedicated gain potentiometer and a level fader to precisely adjust the level of each input. The 2 microphone channels, with their global 3-band equalization and dedicated level, are ideal for making announcements in general broadcasting, especially thanks to the presence of an individually adjustable talkover on the main output and on each of the zones to prioritize the voice. You can easily reduce the music level in the desired area to broadcast an important announcement. To easily stream music from a mixing console or smartphone, the MZR 804 has a FOH input in TRS Jack format and a 3.5mm AUX input on the front.</p><p style="text-align: justify;"><strong>4 independent zones, 4 soundscapes.</strong><br>Each zone output of the MZR-804 features a comprehensive control and signal routing interface, allowing you to create distinct soundscapes for each space. Each zone strip has an XLR and Euroblock output, a 2-band equalization, a 100 Hz high-pass filter, and a level limiter to precisely adjust the audio output for many types of environments. To precisely control microphone announcements in each zone, each output has a talkover attenuation setting and a microphone activation button. On the front, each zone has volume, source and headphone pre-listen controls. To add sound to a space with all mixed sources, the main output offers a pair of XLR jacks with unbalanced RCAs and Euroblocks, 3-band equalization, a limiter and a talkover attenuation setting.</p><p style="text-align: justify;"><strong>A system designed for spaces that welcome the public.</strong><br>The MZR-804 is equipped with a dedicated emergency input which, when it receives a signal, automatically mutes the current broadcast audio to prioritize a warning message in the broadcast system. In addition, the Talkover function of the microphones allows you to temporarily interrupt the music or ongoing announcements to prioritize a microphone announcement, for example for an urgent communication, or for a simple communication without having to intervene at the channel level.</p><p style="text-align: justify;"><strong>Robust design for professional use.</strong><br>Designed to withstand the rigors of intensive use, the MZR-804 is built with robust materials and benefits from careful finishing. Its chassis and reliable connectors guarantee exceptional longevity, even in the most demanding environments. The rack-mountable format allows easy integration into any audio equipment rack, facilitating its installation in cabinets or service enclosures.</p><p style="text-align: justify;"><strong>Technical Specifications of the Algam Audio MZR-804 Zone Mixer</strong></p><ul>    <li style="text-align: justify;">Category: mixer/zoner</li>    <li style="text-align: justify;">Color: black</li>    <li style="text-align: justify;">Dimensions (mm): 483 x 134 x 184</li>    <li style="text-align: justify;">Motorized faders: no</li>    <li style="text-align: justify;">Number of channels: 8</li>    <li style="text-align: justify;">Weight (kg): 4.20 kg</li>    <li style="text-align: justify;">Rackable: yes</li>    <li style="text-align: justify;">6 input channels: 4 RCA line level, 2 RCA phono/line</li>    <li style="text-align: justify;">Input channel settings: gain, PFL, level via fader, phono/line switching (channels 2 and 5)</li>    <li style="text-align: justify;">6-channel level faders on the front</li>    <li style="text-align: justify;">FOH TRS stereo Jack input: sends the signal to input 6 if the FOH button on the front is pressed</li>    <li style="text-align: justify;">Microphone inputs: 2 TRS Jacks (rear) and 1 XLR Combo Jack (front, replaces the Mic 1 TRS Jack input located on the rear)</li>    <li style="text-align: justify;">Microphone channel settings: microphone activation, level, 3-band equalization, talkover activation</li>    <li style="text-align: justify;">Main output: 2 XLR, unbalanced RCA, Euroblock</li>    <li style="text-align: justify;">Main output adjustment: 3-band equalization, talkover threshold and attenuation, output level limiter</li>    <li style="text-align: justify;">Main output controls: general volume (front)</li>    <li style="text-align: justify;">3 zone outputs: 1 XLR and 1 Euroblock</li>    <li style="text-align: justify;">Zone output adjustment: 2-band equalization, talkover threshold and attenuation, output level limiter, 100 Hz high-pass filter, microphone signal inclusion</li>    <li style="text-align: justify;">Zone output controls: volume, source selector, PFL (front)</li>    <li style="text-align: justify;">RCA recording output: identical to Main 1, without volume and equalization control</li>    <li style="text-align: justify;">6.35 mm Jack headphone output with PFL level control</li>    <li style="text-align: justify;">Emergency input in Euroblock format: disables transmission from all sources via the main output when a signal is detected on this input and transmits the emergency message.</li>    <li style="text-align: justify;">Output Mute: mutes the main output by shorting the contacts</li>    <li style="text-align: justify;">Advanced settings via jumpers on the board: muting of the microphones of the different zones in case of a signal on the Emergency input</li>    <li style="text-align: justify;">Output level indicator on each zone via 5 LED segments</li>    <li style="text-align: justify;">Main output level indicator via 2 10 LED segments</li></ul>
