Description

The MZR-1005 from Algam Audio is an audio mixer/zoner designed to mix and broadcast sound in public spaces, such as bars and restaurants with multiple rooms and atmospheres, or shops. With its 5 stereo inputs and 3 zones, this versatile mixer/zoner allows you to play the sound you want, where you want it.

A versatile tool for precise sound management.
The MZR-1005 is an audio mixer/zoner designed to provide flexible and efficient sound management in public spaces, such as bars, restaurants, or shopping centers. With its 4 stereo RCA inputs and two microphone inputs with 2-band equalization and configurable talkover, it allows you to connect and mix a multitude of audio sources, from CD players to mixing consoles or smartphones. The MZR-1005 also features a 3.5mm auxiliary input on the front panel, which routes the signal to channel 1 by pressing the AUX>IN1 button.

Three zones for targeted distribution.
The MZR-1005 offers great flexibility thanks to its three distinct zones, including 1 mono and 2 stereo. Each zone has a source selector, master level and microphone level adjustment, a switch to exclude the microphone signal from the zone, an adjustment for microphone talkover attenuation, and 2-band equalization. Zones A and B feature stereo TRS Jack outputs, ideal for streaming music or audio to amplifiers or speakers. Zone C features a mono TRS Jack output, more suitable for connecting a mono amplifier or a single speaker. This configuration allows you to customize the audio system in each space according to the desired atmosphere.

A mixer/zoner designed for public spaces.
The MZR-1005 is equipped with a dedicated emergency input which, when it receives a signal, automatically mutes the current broadcast to prioritize an alert message in the broadcast system. In addition, the microphones' Talkover function allows you to temporarily interrupt music or ongoing announcements to prioritize a microphone announcement, for example for urgent communication, or for simple communication without having to intervene at the channel level.

Robustness and reliability.
Designed for intensive use, the MZR-1005 features a robust structure that ensures exceptional longevity. Its 1U rack format facilitates its integration into any existing audio system, or into a technical cabinet or a 19" rack cabinet.

Technical Specifications of the Algam Audio MZR-1005 Zone Mixer


• Category: mixer/zoner

• Colour: black

• Dimensions (mm): 483 x 44.5 x 183.5

• Equalizer: 2 bands

• Number of channels: 7

• Number of microphone preamplifiers: 2

• Weight (kg): 2.76

• Rackable: yes

• Rack unit: 1

• 4 channels with line-level RCA inputs and gain control, routable to zone outputs

• 5th channel routable only to zone C, without gain control

• Stereo FOH input (rear) and auxiliary mini-jack (front) routable to all Zone outputs instead of channel 4's RCA input (for FOH) or channel 1 (for AUX)

• 2 microphone inputs in balanced 6.35 mm TRS Jack format

• Microphone input controls: gain and volume on each input, shared 2-band equalization, general talkover activation switch

• Emergency input in Euroblock format: disables transmission of all sources via the main output when a signal is detected on this input and broadcasts the emergency message.

• Output Mute: mutes the main output by short-circuiting the contacts

• Advanced settings via jumpers on the board: phantom power for microphones 1 and 2, high-pass filter for microphones 1 and 2, muting of microphones in different zones in case of a signal on the Emergency input

• Zones A and B: balanced stereo output in TRS Jack and Euroblock format

• Zone C: balanced mono output in TRS Jack and Euroblock format

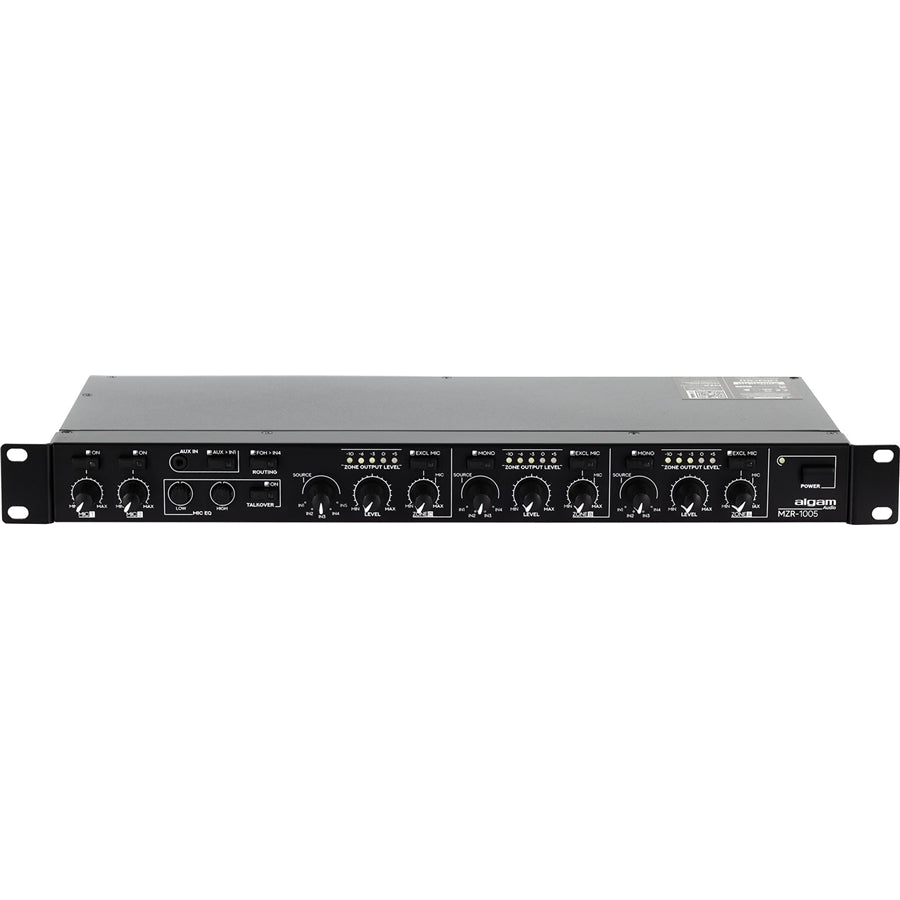

• Zone controls (front): source selector, overall zone level, zone microphone level, microphone signal exclusion, mono summing

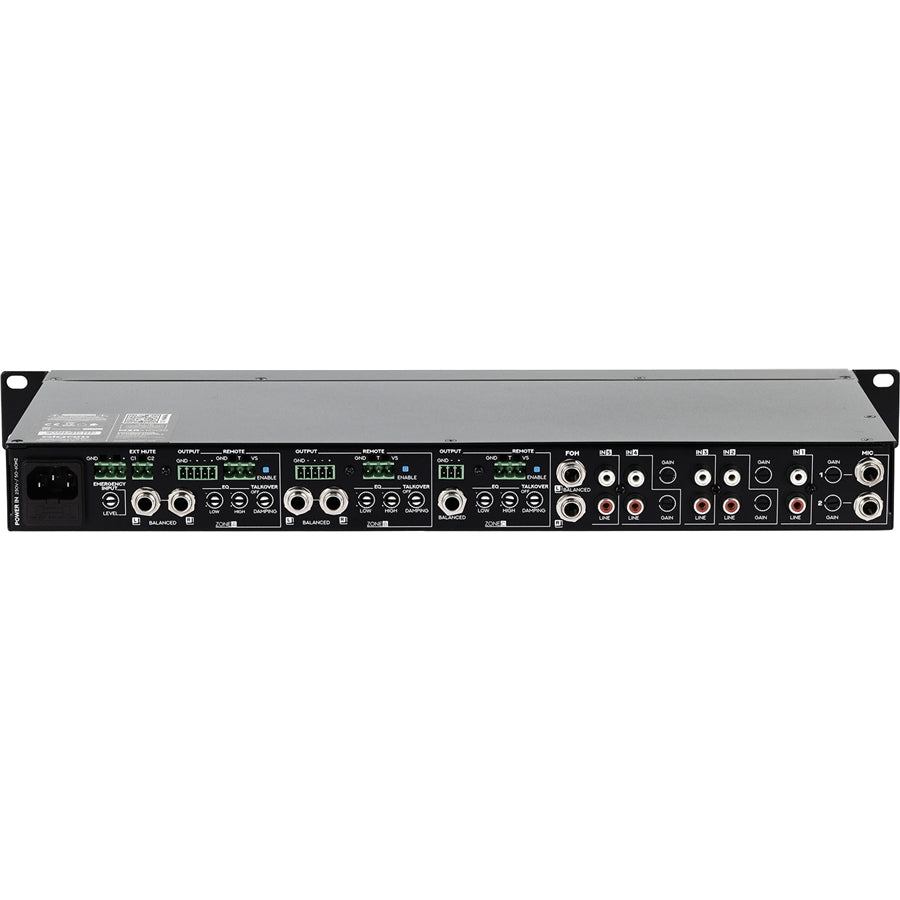

• Zone control (rear panel): 2-band equalization, talkover attenuation level adjustment, Euroblock input for remote volume control

• Main outputs: 2 balanced TRS Jacks and one Euroblock

• Output level indicator on each zone via 5 LED segments
