Description

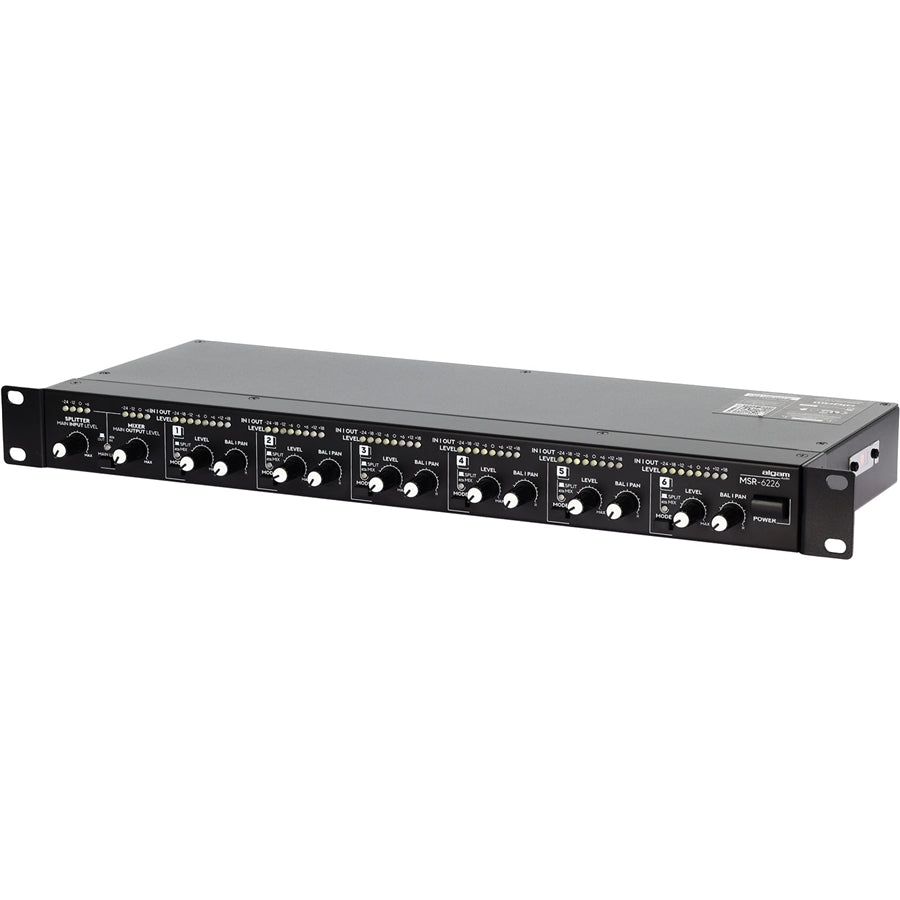

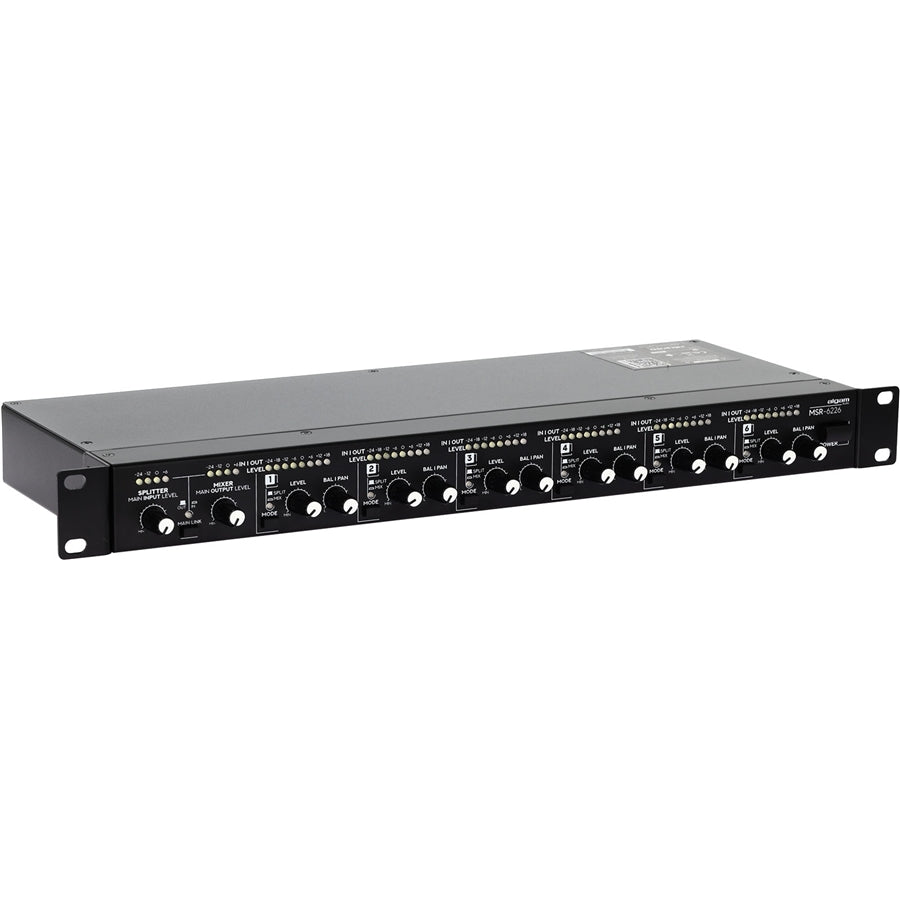

Algam Audio's MSR 6226 is a versatile audio mixer/splitter designed for installation applications. It combines mixer and splitter functions in a single compact device, offering a wide selection of inputs and outputs, as well as flexible audio signal routing capabilities. A truly ideal solution for a variety of audio scenarios, from live sound reinforcement to public address systems.

Mix up to 6 sources with the 6-in-2 mixer mode.

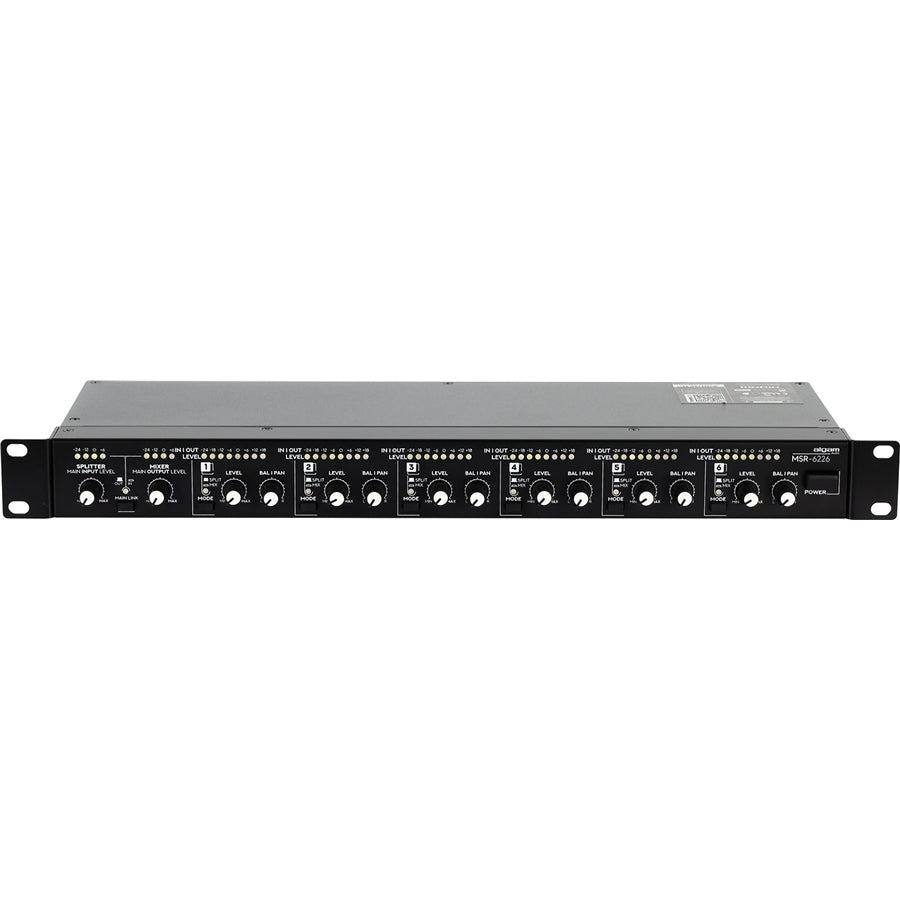

The MSR 6226 features six independent input channels, each with a level control, pan/balance adjustment, and an 8-LED level meter. These channels can be independently configured as inputs for mixing or as outputs for splitting via a MODE switch on the front panel, offering maximum flexibility in signal routing. The rear panel of the MSR 6226 offers comprehensive connectivity, consisting of an XLR input and output on channels 1 to 4, and a balanced jack input and output on channels 5 and 6. Channel I/O is supplemented by a Main LR input for splitter applications, allowing a signal to be sent to a single unique destination.

A 2-input/6-output splitter for distributing audio signals.
In addition to its mixing capabilities, the MSR6226 excels as an audio signal splitter. Each of the six input/output channels can be independently switched between mixer mode and splitter mode, allowing a single signal to be distributed to multiple destinations via the XLR outputs of each channel. This makes the MSR 6226 perfect for applications such as zone distribution in audio systems in commercial facilities, such as large stores, or submixing in live audio setups.

A compact and robust chassis for simple installations.
The MSR 6226 is a compact 19" rack-mount audio mixer/splitter, designed to meet the needs of audio professionals and installers. Its small dimensions of 483 x 44.5 x 183.5 mm and its light weight of 2.2 kg make it an ideal tool for fixed installations in limited environments such as shopping centers, bars or restaurants. Integrated into a standard rack, the MSR 6226 optimizes space while offering infallible robustness. Its compact format greatly facilitates installation in technical cabinets, while ensuring appreciable discretion in blind environments.

Technical Specifications of the MSR-6226 Mixer/Splitter from Algam Audio


• Category: mixer/splitter

• Color: black

• Dimensions (mm): 483 x 44.5 x 183.5

• Number of channels: 6

• Weight (kg): 2.20 kg

• Rackable: yes

• Rack unit: 1

• 6 independent mono channels with level control, pan/balance, 8-segment LED level indicator and mix/split function

• Independent adjustment of each channel in mix or split mode

• Inputs/outputs for channels 1 to 4: XLR connectors

• Inputs/outputs for channels 5 and 6: balanced TRS Jack connectors

• 1 XLR stereo input and 1 output with level control and 4-segment LED level indicator

• LED indicating the selected mode on each channel

• Signal-to-noise ratio: > 92dB (Line)

• Crosstalk attenuation: > 65 dB (Line)

• THD (total harmonic distortion): < 0.005% (Line)

• Metal chassis

• Power consumption: 18 W

• Power supply: 220-250V~50Hz
