Description

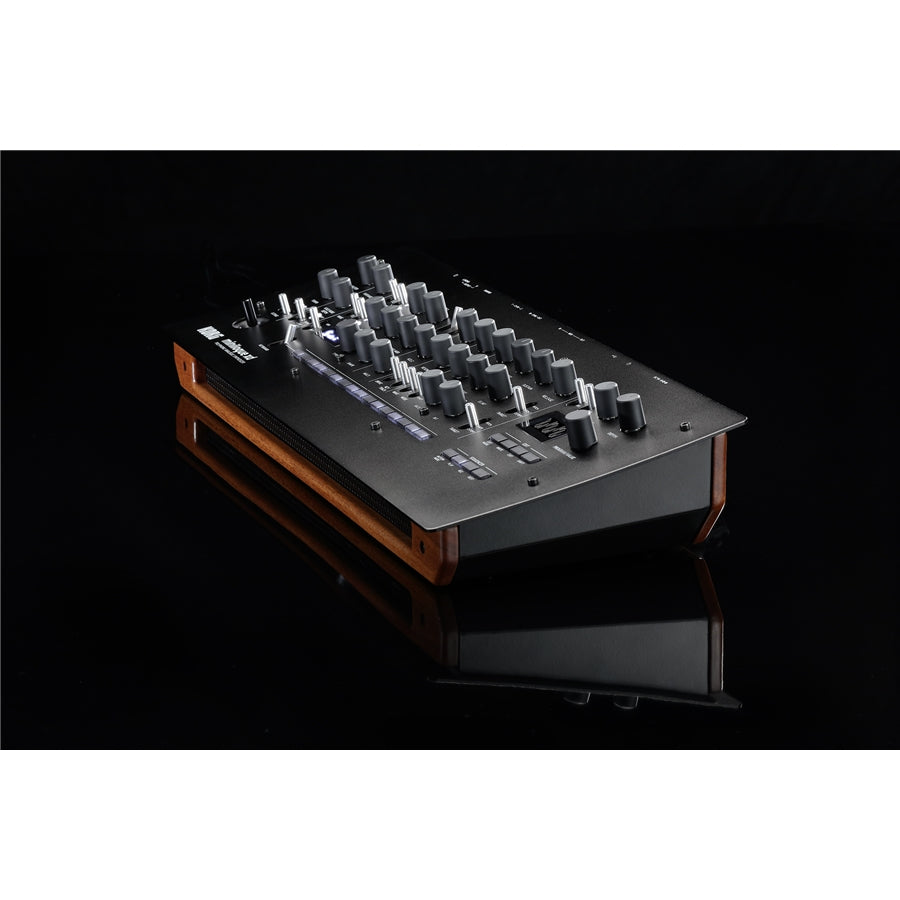

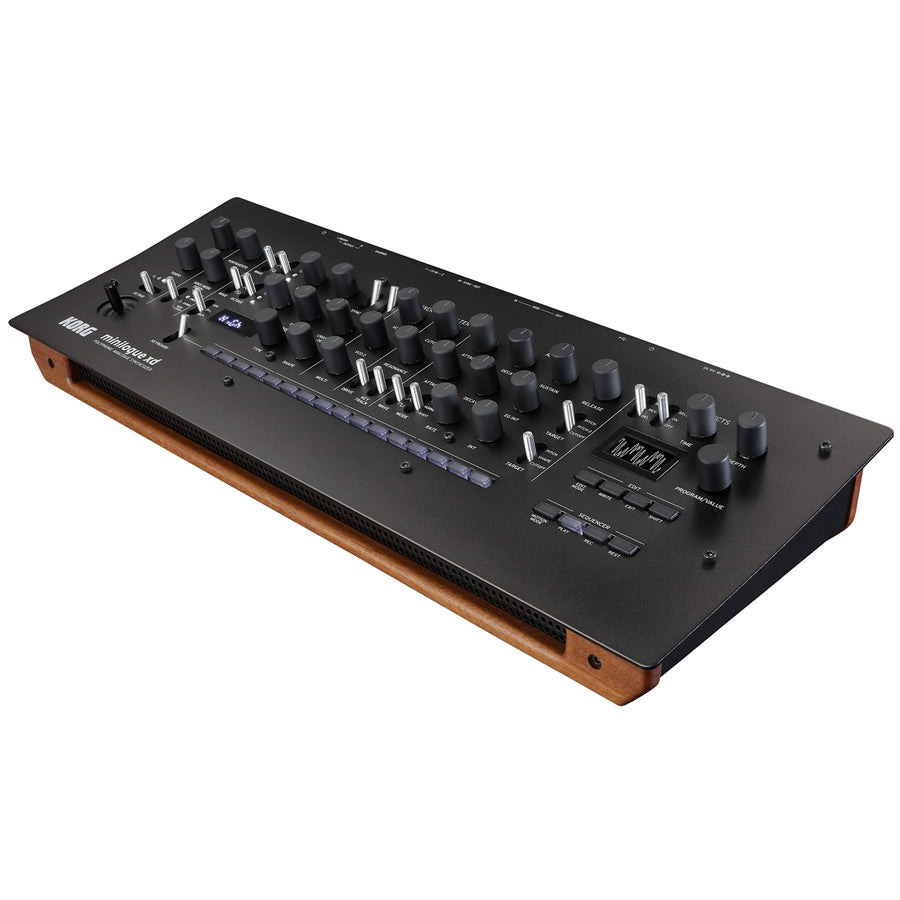

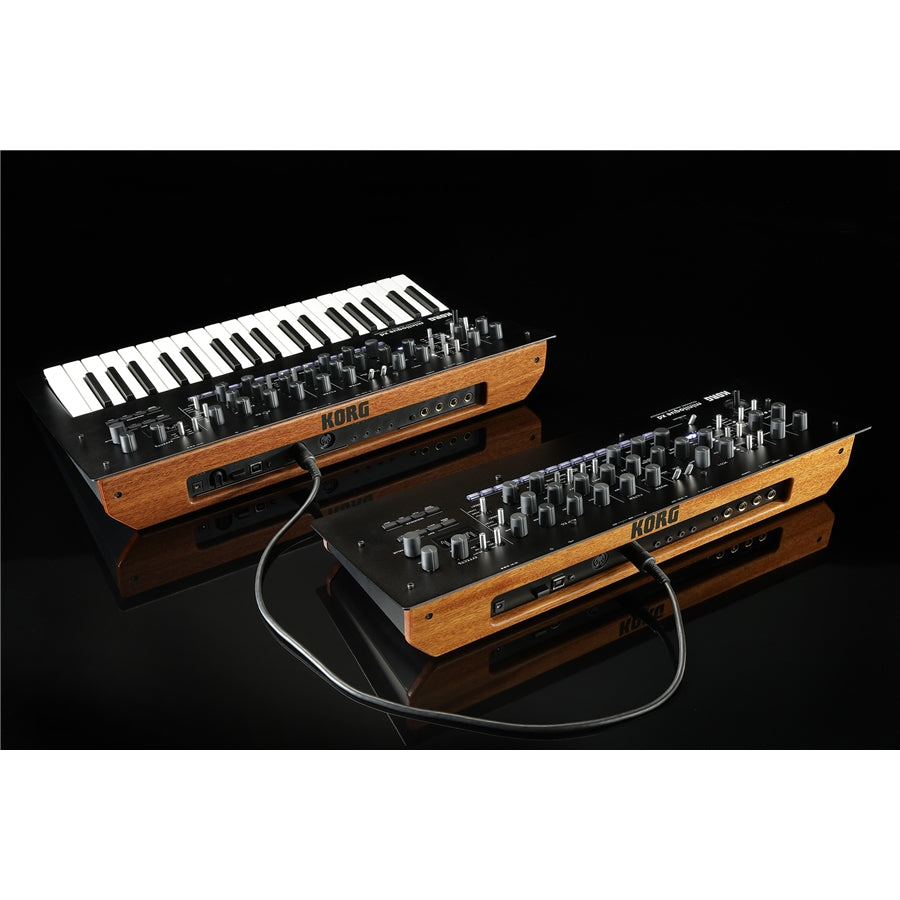

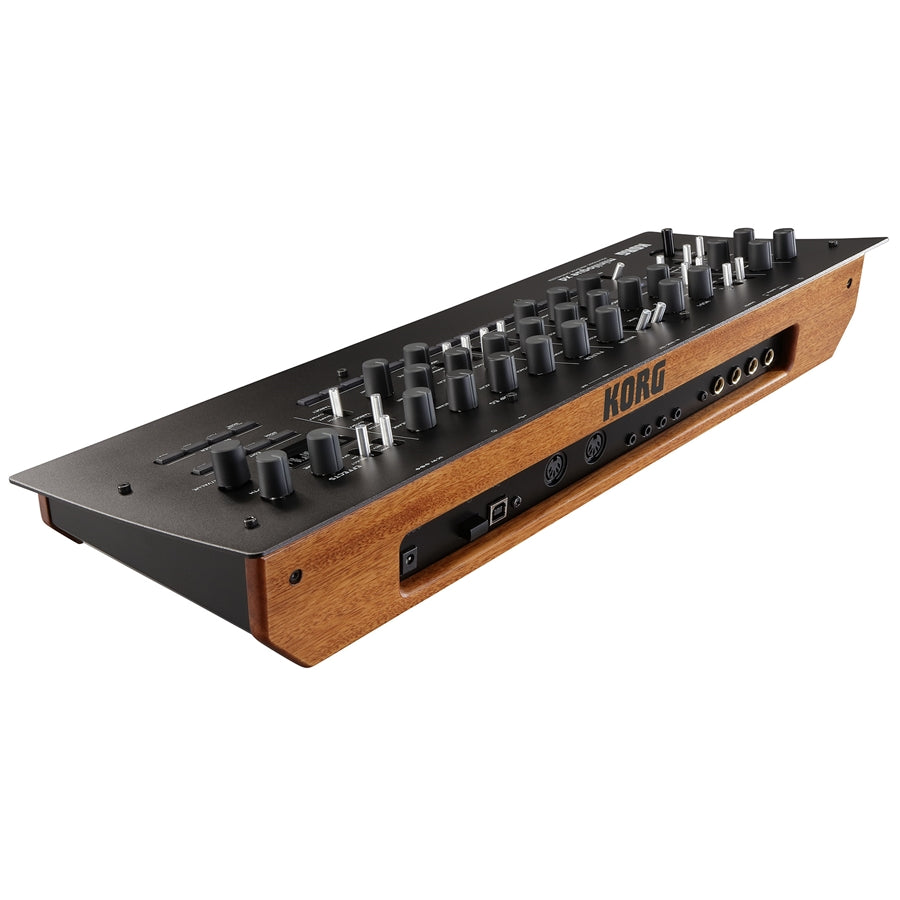

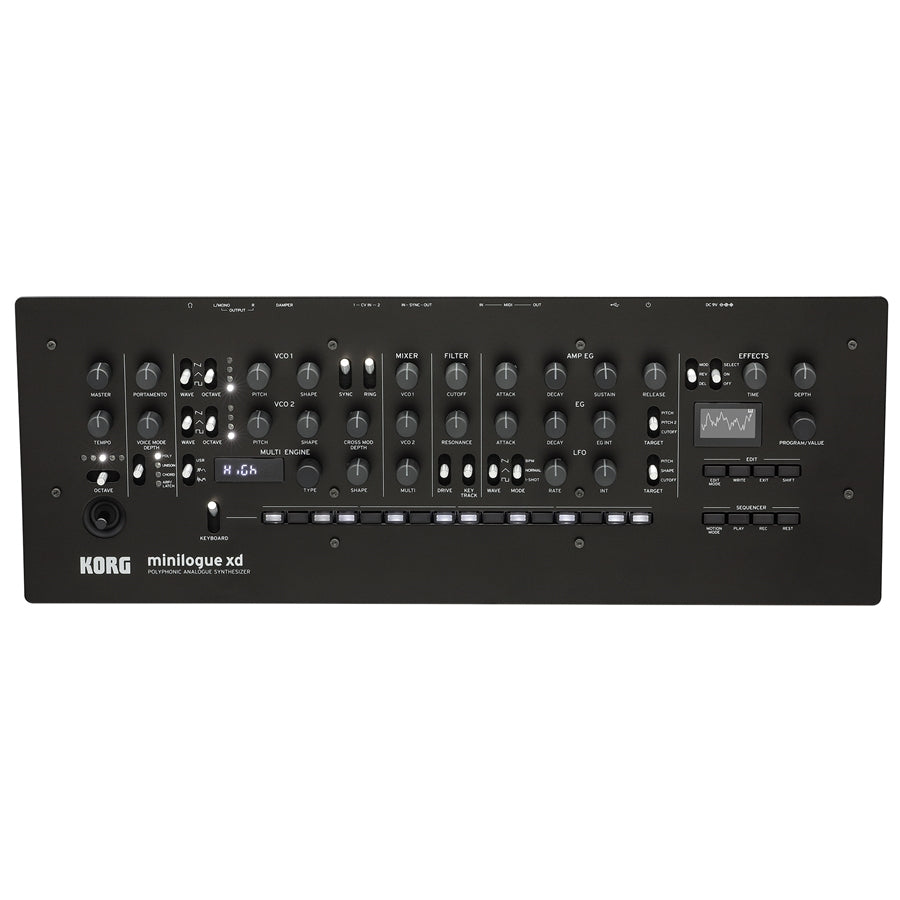

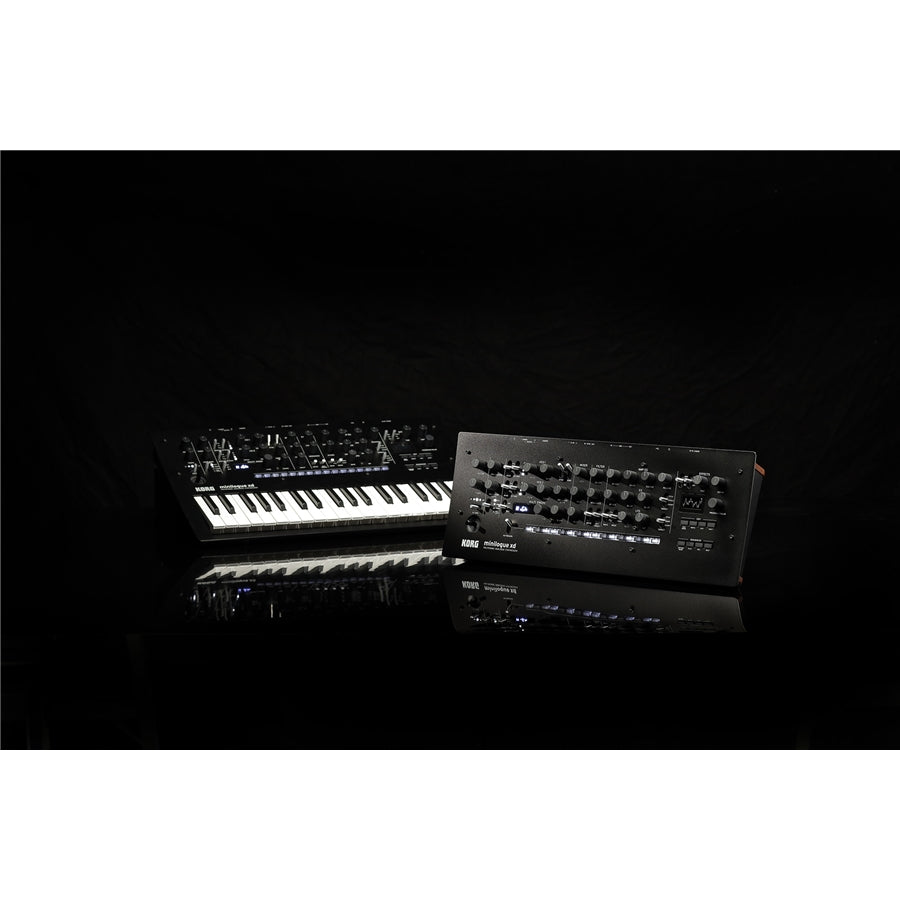

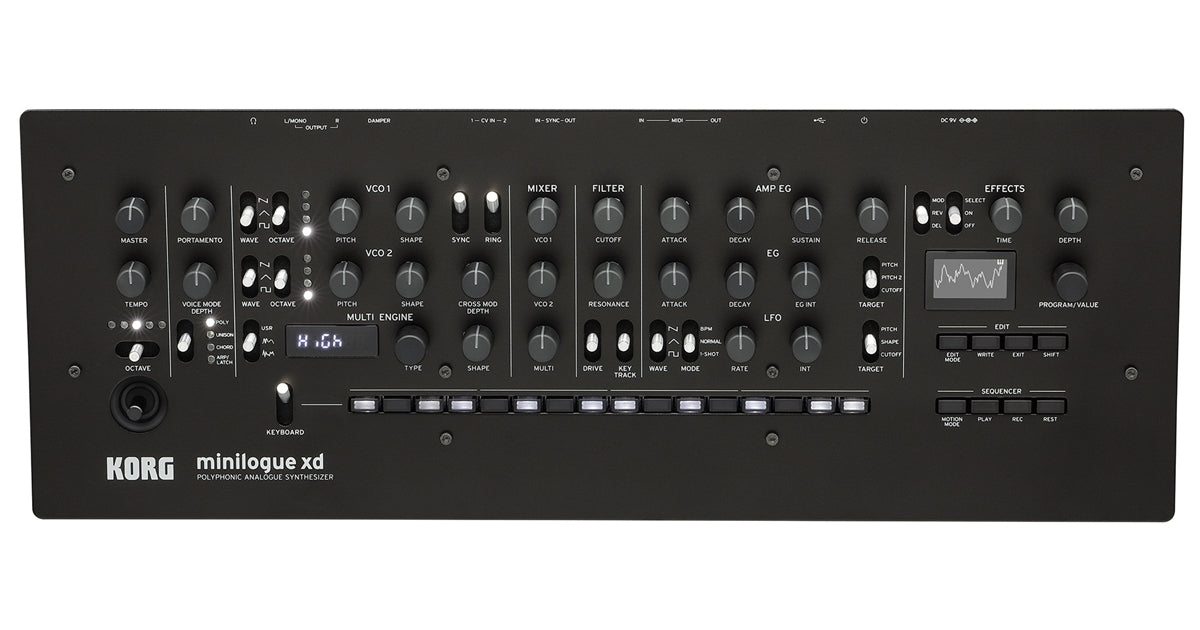

<h1 style="text-align: justify;"><strong>KORG minilogue xd module</strong> is the <em>Desktop</em> module version of <strong>minilogue xd</strong>, the four-voice polyphonic analog synthesizer with a customizable digital <strong>multi-engine</strong>, sequencer, and built-in stereo digital effects. The module has the same specifications as the keyboard version, making it the optimal choice for keyboard setups or studios with limited space. It features the exclusive <strong>Poly Chain</strong> function, which, when connected to a <strong>minilogue xd</strong> or another <strong>minilogue xd module</strong>, allows them to operate as a single <strong>eight-voice Synth</strong>.</h1><h2 style="text-align: justify;"><strong>The secrets of KORG minilogue xd explained by Leonardo Gabrielli</strong></h2><p><!-- P--><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="315" src="https://www.youtube.com/embed/qPA07B6Xvz0" title="YouTube video player" width="560"></iframe></p><p><strong>minilogue xd module</strong> lives up to all expectations for warm and enveloping analog sound, from the extensive control possibilities offered by the control panel, complemented by a digital <em><strong>Multi-Engine</strong></em>, studio-quality effects section, a powerful Sequencer, and microtonal functions, which expand the creative possibilities of every musician.</p><h2><strong>The analog circuitry of KORG minilogue xd module</strong></h2><p style="text-align: justify;"><strong>minilogue xd module</strong> is based on the development of technology originally used in the <strong>minilogue</strong>, whose analog sound had a significant impact on the current analog synthesizer landscape. <strong>minilogue xd module</strong> is a programmable polyphonic analog synthesizer with <strong>4 voices of polyphony</strong> and a synthesis structure consisting of: <strong>2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and an LFO</strong>; to which are added the characteristic circuits of this instrument such as <strong>Wave Shaping</strong> for harmonic modeling, <strong>Ring & Cross Modulation</strong>, <strong>Sync</strong> between oscillators, a two-pole filter, and <strong>Drive</strong> which adds greater body to the signal sent to the filters. Every parameter has been carefully tuned based on the requests of established musicians. The timbres obtainable from this instrument range from warm Pad sounds, to typical "fat" and present analog bass timbres, to always dynamic and penetrating "Lead" solo sounds, thus covering virtually every genre and repertoire need. There are 500 Program locations, 200 of which are already pre-set, where you can save your own sounds.</p><p style="text-align: justify;"><img alt="The Analog Style panel of KORG minilogue xd module allows direct intervention on all main sound parameters" src="https://www.algameko.com/images/uploads/minilogueXD_M_1200x630_01.jpg" title="The Analog Style panel of KORG minilogue xd module allows direct intervention on all main sound parameters" /></p><h2><strong>The Digital Multi-Engine of minilogue xd module</strong></h2><p style="text-align: justify;">In the synthesis structure, a digital "<strong>Multi-Engine</strong>" oscillator is added to the two <strong>traditional analog VCOs</strong>, significantly increasing the timbral versatility of <strong>minilogue xd module</strong>. The <strong>Multi Engine</strong> is originally provided with 3 types of sound generators: <strong>Noise, VPM</strong>, and a <strong>User Slot</strong>, capable of generating sounds different from those of analog oscillators. The three sources can, however, be used simultaneously, thus obtaining hybrid timbres with yet to be explored potential.</p><ul> <li style="text-align: justify;"><strong>Noise Generator: </strong>provides 4 types of noise essential for percussive sounds or effects. The digital filter can be used to change the color of the noise itself.</li> <li><strong>VPM oscillator: </strong>This internal Multi-Engine oscillator generates sounds using <strong>VPM (Variable Phase Modulation)/FM</strong> synthesis, with a two-operator structure, 16 types of oscillators directly controllable via the <strong>SHAPE</strong> knob. It can produce incisive and metallic sounds with a complex harmonic spectrum, well beyond the possibilities of pure analog subtractive synthesis, yet with very intuitive programming.</li> <li><strong>User Oscillators: </strong>allows loading other types of Custom oscillators, downloadable from the internet. <strong>16 Slots</strong> are available for their placement, while a <strong>Morphing Wavetable</strong> oscillator is already provided as a Preset.</li> <li><strong>High-quality digital effects: </strong>The high-quality effects of <strong>minilogue xd module</strong> are achieved by a powerful <strong>32-bit floating point dedicated DSP</strong>, which generates 3 different types of effects: <strong>modulation, reverb, and delay</strong>, which can also be used simultaneously. You can choose from a wide range of Chorus, Ensemble, Delay, and Reverbs, which add the final touch to every timbre; this section also has Slots for loading Custom effects.</li></ul><h2><strong>The structure of minilogue XD m and listening to the Factory Presets</strong></h2><p><!-- P--><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="315" src="https://www.youtube.com/embed/fSmhtKAFtFU" title="YouTube video player" width="560"></iframe></p><h2><strong>The User Custom resources of minilogue xd module</strong></h2><p style="text-align: justify;"><strong>minilogue xd module</strong> has a customizable development environment; the unit is equipped with <strong>16 Slots for User Oscillators</strong>, and <strong>16 for User Effects</strong>. <em>Custom</em> resources created with the <strong>SDK</strong> (<em>Software Development Kit</em>), as well as user-created sounds, can be loaded and managed using the dedicated <strong>Software Librarian</strong> made by KORG. What timbres can be created using the subtractive synthesis of traditional analog oscillators combined with digital ones? Each user can create their own original sounds and thus participate in the dedicated international community. It is possible to start with <em>Sample Code</em> made available by KORG.</p><h2 style="text-align: justify;"><strong>The polyphonic Step Sequencer of minilogue xd module</strong></h2><p style="text-align: justify;"><strong>minilogue xd module</strong> has a <strong>polyphonic Step Sequencer</strong> with <strong>16 dedicated control keys</strong>, supports <strong>Real Time and Step recording</strong>; the 16 control keys directly select a <em><strong>Step</strong></em>, quickly modify its pitch, its <em><strong>Mute</strong></em> status, or even improvise. <strong>Motion Sequence</strong> precisely records the movements of 4 knobs, allowing the creation of sounds that evolve over time; on each Step, it is possible to record both uniform and very sudden variations. This function can be used to create sounds with a distinctly different timbre for each Step, starting from a single Program, such as Percussive Patterns or various sound effects. Motion Sequence is a source of much inspiration in the field of Sound Design.</p><h2><strong>The User Interface</strong></h2><h2><strong>Joystick</strong></h2><p>Controls Pitch Bend and Modulation, etc. It can also be assigned to control a selectable parameter on the Y-axis.</p><h2><strong>Voice mode</strong></h2><p><strong>On minilogue xd module</strong>, 4 different Voice Modes can be selected:</p><ul style="margin-left: 17px;"> <li>POLY: minilogue xd module operates as a 4-voice polyphonic synthesizer.</li> <li>UNISON: operates as a synthesizer, with all 4 voices in unison.</li> <li>CHORD: chords of up to 4 voices can be played.</li> <li>ARP / LATCH: (ARP) Activates the arpeggiator, which can also be used when the Sequencer is running/(LATCH) activates or deactivates the LATCH function.</li></ul><p><img alt="minilogue xd module features the useful oscilloscope function that displays the resulting waveform of the programmed sound on the OLED display" src="https://www.algameko.com/images/uploads/minilogueXD_M_1200x630_04.jpg" title="minilogue xd module features the useful oscilloscope function that displays the resulting waveform of the programmed sound on the OLED display" /></p><p>There is also a knob that adjusts the Voice Mode depth, applying a different effect for each selected Voice Mode.</p><ul style="margin-left: 17px;"> <li>POLY: turning the knob to the right switches to DUO mode and accentuates the Detune.</li> <li>UNISON: turning the knob to the right accentuates the Detune.</li> <li>CHORD: Selects Mono or Chord Type.</li> <li>ARP / LATCH: (ARP) Selects the arpeggiator type.</li></ul><h2><strong>Micro Tuning</strong></h2><p style="text-align: justify;"><strong>minilogue xd module</strong> can use microtonal temperaments with pitch adjustment for each key. The instrument already has 23 types of pre-set tunings, including some created by <em>Aphex Twin</em> and <em>Dorian Concept</em>. In addition, each user can create and store 6 User Scales and 6 User Octaves. It is therefore possible to start by experimenting with the microtonal tunings of famous musicians, and then proceed with creating your own.</p><h2 style="text-align: justify;"><strong>Oscilloscope </strong></h2><p style="text-align: justify;">The <strong>OLED</strong> display is now larger and can visualize sound as a waveform thanks to the <strong>Oscilloscope</strong> function. This allows real-time visualization of parameter changes, with considerable visual <em>feedback</em> for programming and understanding various functions. Finally, the Display can also operate in "<em>Slow Motion</em>" to visualize the phases of a Motion Sequence.</p><p style="text-align: center;"><img alt="A detail of the rear panel of minilogue xd module made of real wood" src="/images/uploads//minilogueXD_M_1200x630_06_Rear.jpg" title="A detail of the rear panel of minilogue xd module made of real wood" /></p><h2><strong>The connectivity of minilogue xd module</strong></h2><ul> <li><strong>Stereo Audio Outputs: </strong>The instrument's output is stereo, including effects, which adds greater spatiality, depth, and a more realistic placement in the environment to all synth sounds.</li> <li><strong>Damper pedal: </strong>At the request of many artists and users, the ability to connect a Damper pedal has been added.</li> <li><strong>2 CV IN inputs: </strong>There are two CV IN jacks, with voltage levels of -5V to +5V. In addition to CV/Gate, these can also receive modulation signals (as happens, for example, by moving the joystick up or down), allowing parameter control via external devices.</li></ul><hr /><p><img alt="minilogue xd module integrates the possibilities of analog subtractive synthesis with those of the programmable Digital Multi Engine." src="https://www.algameko.com/images/uploads/minilogueXD_M_1200x630_03.jpg" title="minilogue xd module integrates the possibilities of analog subtractive synthesis with those of the programmable Digital Multi Engine." /></p><h2><img alt="" src="https://www.ekomusicgroup.com/images/uploads/Snap_01_1200x630.jpg" /><strong>logue SDK Custom Content - Sound Librarian - Sound Packs</strong></h2><p>minilogue xd can load new sound libraries and a wide variety of <strong>Custom Contents</strong>. Its powerful <strong>MULTI-ENGINE</strong> can load new Custom Oscillators & FX to take personal creativity to the next level!</p><h2><strong>minilogue xd m Sound Librarian</strong></h2><p>The Sound Librarian for minilogue xd is an extremely user-friendly software that allows easy management of: Programs, Custom Oscillators, and FX via a simple USB/MIDI connection.<img alt="" src="https://wwww.ekomusicgroup.com/images/uploads/Librarian.png" /></p><p><strong><a href="https://www.korg.com/us/support/download/software/0/811/4222/" target="_blank">Download the Librarian for Windows here</a></strong><br /><a href="https://www.korg.com/us/support/download/software/0/811/4223/" target="_blank"><strong>Download the Librarian for Mac here</strong></a></p><h3><strong>* <em>How to import Sound Packs, Custom Oscillators & Effects</em></strong></h3><p style="text-align: justify;">Sound Packs are distributed as "Preset" files, ending with the .prlgpreset extension. To import a Sound Pack, launch minilogue xd Sound Librarian and drag the Preset file onto it. Custom Oscillators & Effects are distributed as "User Unit" files, ending with the .prlgunit extension. To add an oscillator or effect, drag and drop the User Unit file into the corresponding list in minilogue xd's Sound Librarian, then press the SEND ALL button to upload it to your instrument. For more details, refer to the Operating Manual included with the Sound Librarian.<img alt="" src="https://wwww.ekomusicgroup.com/images/uploads/Importare Sound Pack e Custom.png" /></p><h2 style="text-align: justify;"><strong>Factory Default User Oscillator: Waves</strong></h2><p style="text-align: justify;">A USER oscillator, "WAVES", is already preloaded on minilogue xd. WAVES consists of two main WAVETABLE oscillators and an additional SUB-WAVE that can be used as a source for RING MODULATION. From this oscillator, "LO-FI" timbres can also be obtained by appropriately reducing its "Bit Depth". The source code for WAVES will be available as a template to start creating CUSTOM oscillators. The source code for "WAVES" will be available along with the SDK on: GitHub, so new and original oscillators can be created.</p><h2 style="text-align: justify;"><strong>logue SDK</strong></h2><p style="text-align: justify;">minilogue xd & prologue share an Open Development API (Application Programming Interface), which allows users with programming experience to extend the operational possibilities of the hardware, through a dedicated SDK (Software Development Kit). Through the SDK, new types of oscillators for the MULTI ENGINE can be created, or Custom modulation effects, which can be added to those already on board the instrument. Users can load these new resources using prologue Librarian, a software application developed specifically. (Mac & Win).</p><p style="text-align: justify;"><strong>Important:</strong> * SDK code, Tools and documentation are now available on GitHub<br /><strong><a href="https://www.korg.com/it/products/synthesizers/minilogue_xd/sdk.php#download1" target="_blank">Click here to download logue SDK</a></strong></p><h2><strong>User Oscillators</strong></h2><p style="text-align: justify;">The <strong>MULTI ENGINE</strong> section of minilogue xd has 16 Slots where new types of oscillators can be loaded via the Software Librarian. Once on board, these CUSTOM oscillators coexist with the VCOs of each voice, playing with the same polyphony and multi-timbral articulation, and are processed by the same signal path.<img alt="" src="https://wwww.ekomusicgroup.com/images/uploads/Shape.jpg" /></p><h3 style="text-align: justify;"><strong>User Effects</strong></h3><p style="text-align: justify;">The effects section of minilogue xd also has: 16 Slots to host new modulation effects, 8 user slots for Reverbs and 8 slots for Delay effects.</p>Once loaded onto the instrument, these will appear alongside the existing effects. The SPEED and DEPTH knobs can be used to control the parameters of the CUSTOM modulation effects.</p><h2 style="text-align: justify;"><strong>KORG minilogue XD M TECHNICAL SPECIFICATIONS</strong></h2><ul> <li><strong>Keyboard (minilogue xd) - </strong>37-key <em>Slim </em>Velocity-sensitive</li> <li><strong>Sound Generation - </strong>Analog + Multi Digital (Noise, VPM, User)</li> <li><strong>Maximum Polyphony - </strong>4 Voices</li> <li><strong>Program - </strong>500 Locations (more than 200 Presets, 300 User). - "Sort" function for immediate reorganization of the sound database. - Favorite function.</li> <li><strong>Voice mode - </strong>4 (POLY, UNISON, CHORD, ARP / LATCH). - VOICE MODE DEPTH - Allows varying different parameters for each mode.</li> <li><strong>Sequencer - </strong>16-Step Polyphonic Sequencer - Motion Sequence up to 4 parameters</li> <li><strong>Main Synthesis Parameters </strong></li> <li><strong>VCO1 - </strong>WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE</li> <li><strong>VCO2 - </strong>WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE</li> <li><strong>MODULATION - </strong>SYNC, RING, CROSS MOD DEPTH</li> <li><strong>MULTI ENGINE - </strong>NOISE/VPM/USER, TYPE, SHAPE</li> <li><strong>MIXER - </strong>VCO1, VCO2, MULTI</li> <li><strong>VCF - </strong>CUTOFF, RESONANCE, DRIVE, KEYTRACK</li> <li><strong>AMP EG - </strong>ATTACK, DECAY, SUSTAIN, RELEASE</li> <li><strong>EG - </strong>ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)</li> <li><strong>LFO - </strong>WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)</li> <li><strong>Main Effect Parameters - </strong></li> <li><strong>EFFECT - </strong>TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH</li> <li><strong>MULTI ENGINE</strong></li> <li><strong>Noise Generator - </strong>4 types</li> <li><strong>VPM oscillator - </strong>16 types</li> <li><strong>User oscillator - </strong>16 slots</li> <li><strong>MOD EFFECTS</strong></li> <li><strong>CHORUS - </strong>8 types</li> <li><strong>ENSEMBLE - </strong>3 types</li> <li><strong>PHASER - </strong>8 types</li> <li><strong>FLANGER - </strong>8 types</li> <li><strong>USER - </strong>16 slots</li> <li><strong>DELAY</strong></li> <li><strong>DELAY - </strong>12 types</li> <li><strong>USER - </strong>8 slots</li> <li><strong>REVERB </strong></li> <li><strong>REVERB - </strong>10 types</li> <li><strong>USER - </strong>8 slots</li> <li><strong>Controls - </strong>Joystick – for modifying various parameters for each Program - PORTAMENTO knob - KEYBOARD buttons - Poly Chain function: allows connecting 2 minilogue xd units to operate as a single 8-voice polyphonic synth.</li> <li><strong>Display - Main - </strong>Real-time OLED Oscilloscope, provides visual feedback on parameter changes</li> <li><strong>MULTI ENGINE section - </strong>7-segment LED Display x 6 Digits</li> <li><strong>Input/Output Connections</strong></li> <li>Headphones (Stereo Phone Jack)</li> <li>OUTPUT L/MONO, R (Unbalanced Mono Jacks)</li> <li>CV IN 1, CV IN 2 (3.5 mm [1/8"] mono Mini Jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)</li> <li>SYNC IN (3.5 mm [1/8"] mini jack, maximum input level 20 V)</li> <li>SYNC OUT (3.5 mm [1/8"] mini jack, output level 5 V)</li> <li>MIDI IN - OUT (DIN) </li> <li>USB B</li> <li>DAMPER (Half Damper not supported)</li> <li><strong>Power Supply - </strong>AC Adapter (DC9 V)</li> <li><strong>Power Consumption - </strong>8 W</li> <li><strong>Dimensions (W x D x H) - </strong>500 x 179 x 85 mm / 19.69" x 7.05" x 3.35"</li> <li><strong>Weight - </strong>2.6 kg / 5.73 lbs.</li> <li><strong>Included Accessories - </strong>AC Adapter</li> <li><strong>Optional Accessories (sold separately)</strong></li> <li><strong><a href="https://www.ekomusicgroup.com/it/borse-custodie-trasporto/korg/borsa-morbida-per-minilogue" target="_blank">SC-MINILOGUE Soft shell case</a></strong></li> <li><strong><a href="https://www.ekomusicgroup.com/it/productsFT.php?str=SEQUENZ%20MP-TB1" target="_blank">SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK</a></strong></li> <li><strong>SQ-CABLE-6 Sync cable</strong></li> <li><a href="https://www.ekomusicgroup.com/it/tastiere-pianoforti/korg/ds1h" target="_blank"><strong>DS-1H Damper pedal</strong></a></li> <li><strong>PS-1 Pedal switch</strong></li> <li><strong><a href="https://www.ekomusicgroup.com/it/tastiere-pianoforti/korg/ps3" target="_blank">PS-3 Pedal switch</a></strong></li></ul><p><em>* All product names and specifications are trademarks or registered trademarks of their respective owners.<br />* Product appearance and specifications are subject to change without notice.</em></p>
