Description

The MC404 CAE Dual Inductor Wah is the wah pedal from Jim Dunlop made in collaboration with Custom Audio Electronics that allows you to choose between two Fasel® inductors, with an integrated Boost/Line Driver circuit, internal Q and Gain controls, and a bright status LED.

OVERVIEW

The MC404 CAE was developed by Bob Bradshaw of Custom Audio Electronics and the Cry Baby design team, with the goal of creating a versatile wah with top-tier components. It features two Fasel inductors with two distinct voicings, one brighter and one darker, and an integrated MXR MC401 Boost/Line Driver that increases its flexibility. The MC404 features a True Hardwire Bypass system, a durable CTS potentiometer, and internal potentiometers to adjust the "Q" and Gain.

POWER

This pedal can be powered by a 9-volt battery or an AC adapter, such as the Dunlop ECB003, Iso-Brick, or Mini Iso-Brick (not included).

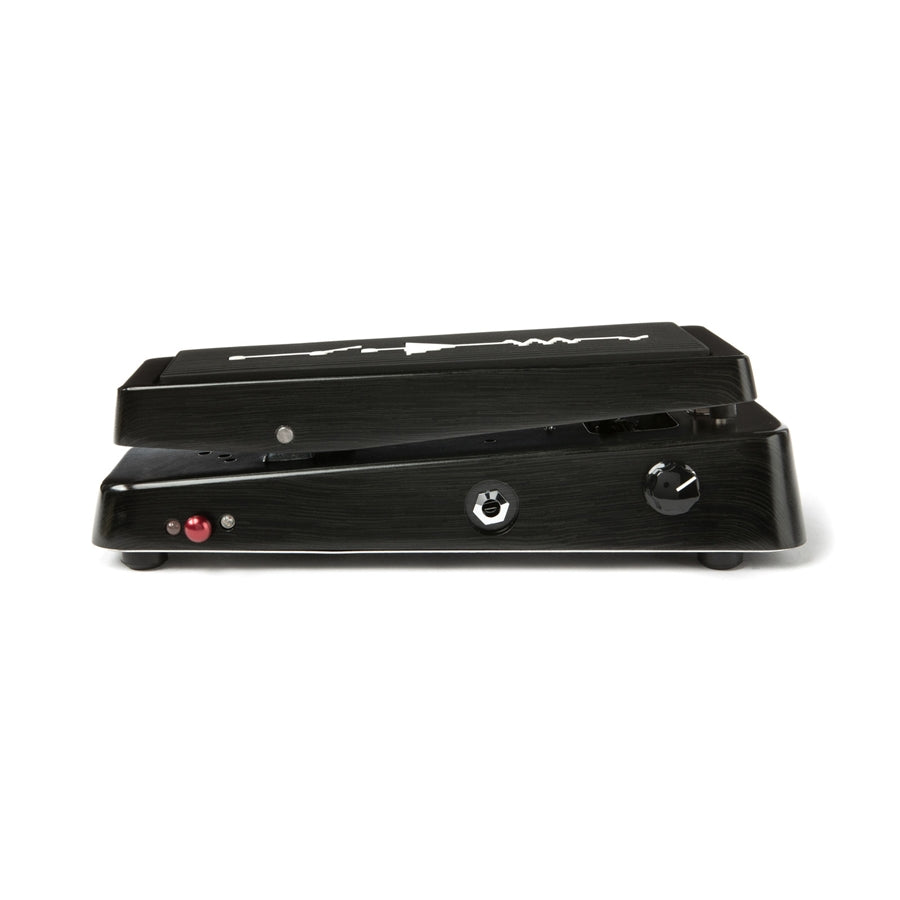

EXTERNAL CONTROLS

Boost Volume: adjusts the amount of gain added when Boost is activated;
Inductor switch: selects the red or yellow inductor;
Boost switch: adds an amount of gain set with the Boost Volume control.

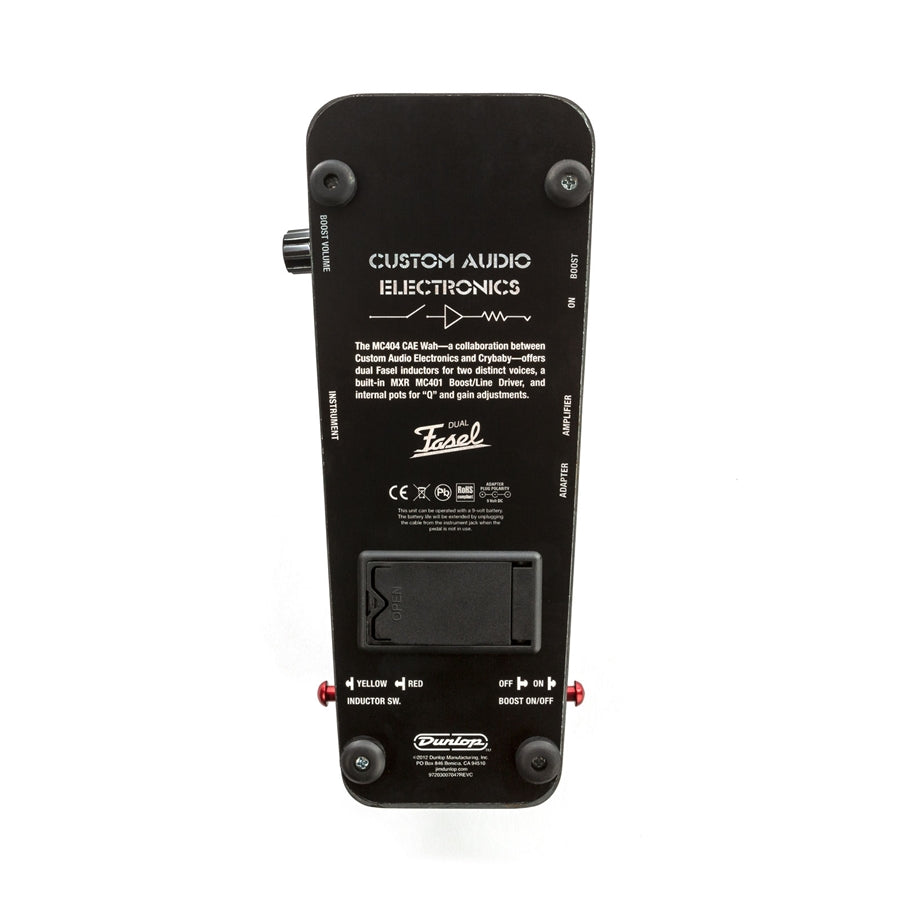

INTERNAL CONTROLS

Top trimpot: controls the Q of the yellow inductor;
Bottom trimpot: controls the Q of the red inductor.

STRENGTHS

• Component quality;
• Two inductors with adjustable Q;
• Boost and Volume controls to increase gain.

TECHNICAL SPECIFICATIONS OF THE MC404 CAE DUAL INDUCTOR WAH

Input impedance: 1 MOhm
Output impedance: <10 kOhm
Yellow inductor frequency range: 400 Hz - 2200 Hz
Red inductor frequency range: 255 Hz - 1500 Hz
Maximum input level: -6dBV
Maximum output level: +8 dBV
Maximum gain heel down: +16 dB
Maximum gain toe down: +16 dB
Bypass: True Bypass
Current draw: <6.3 mA
