Description

The M288 Bass Octave Deluxe is the bass octaver from MXR that offers two independent low octave voices with a Dry control and a Mid+ switch to optimize the sound of the parallel clean signal.

OVERVIEW OF THE MXR M288 BASS OCTAVE DELUXE

The MXR M288 Bass Octave Deluxe is a two-voice octaver pedal that offers analog sound, a True Bypass switching system, and a variety of options for shaping the sound. MXR's 18V Constant Headroom Technology™ provides high headroom and quality tracking. The Dry knob allows you to blend the direct signal, while the Mid+ switch adds up to +14 dB of internally adjustable mid frequencies (400 Hz or 850 Hz). Finally, you can mix the two octaves, which have separate controls: Growl for guttural sounds and Girth for deeper sounds.

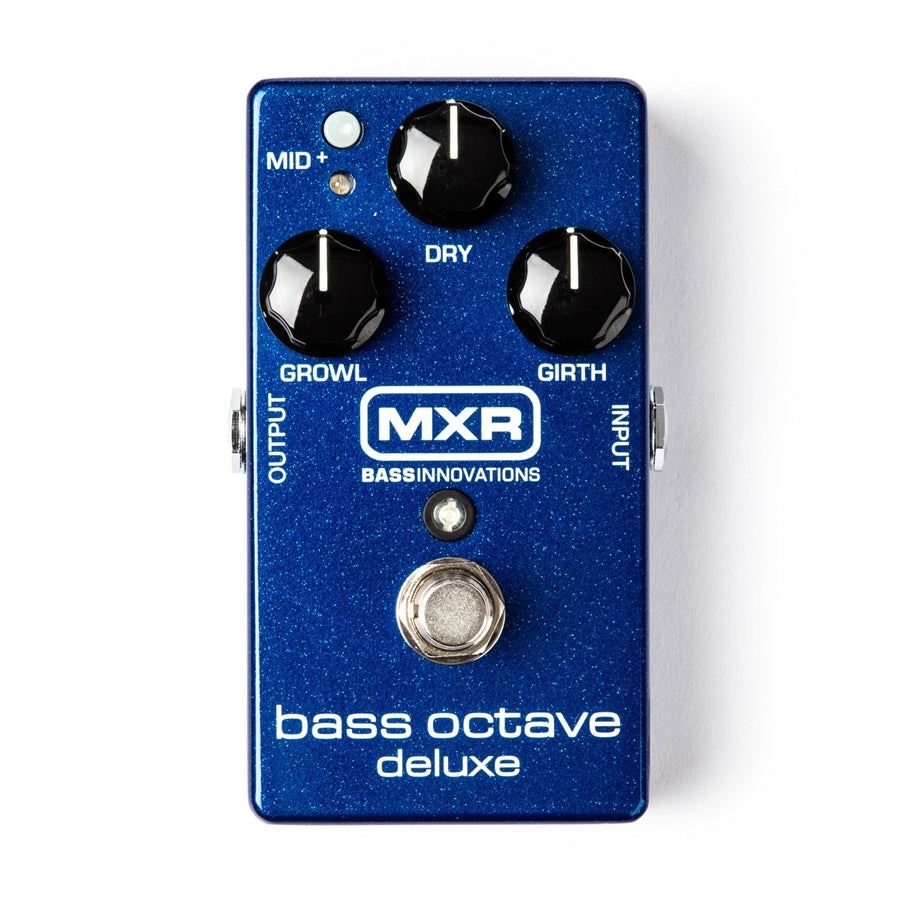

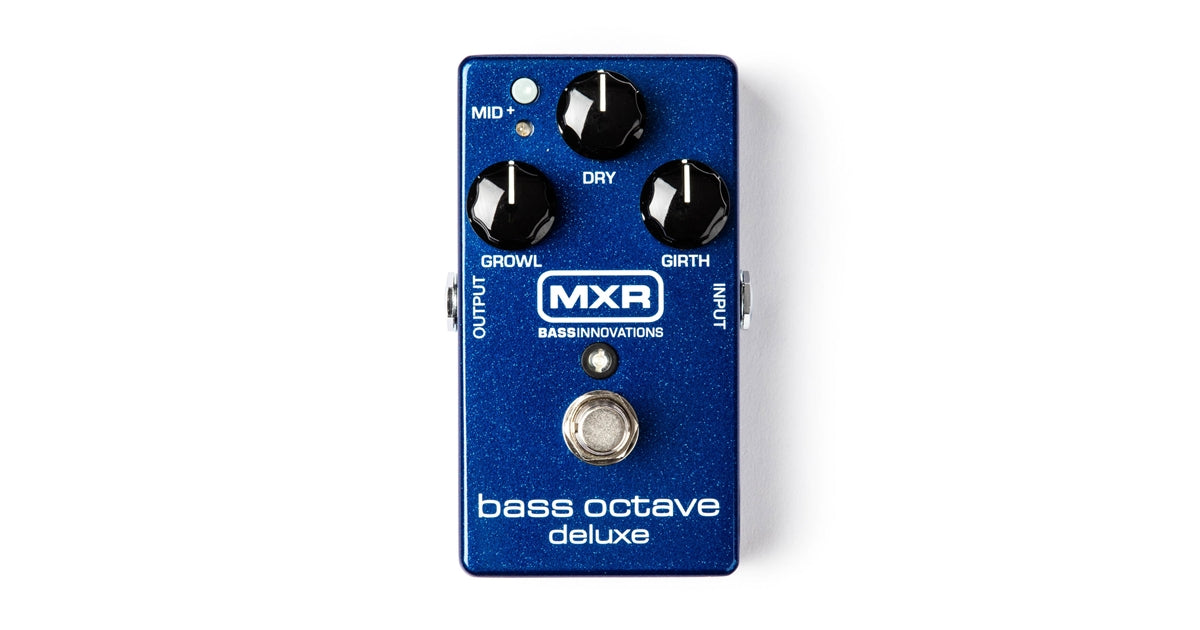

CONTROLS OF THE MXR M288 BASS OCTAVE DELUXE

Mid+: adds up to +14 dB of internally controllable mids (the blue LED indicates that the boost is active)
Dry: controls the volume of the clean bass signal
Growl: controls the volume of the more guttural, midrange-sounding octave
Girth: controls the volume of the deeper, softer-sounding octave

TECHNICAL SPECIFICATIONS OF THE MXR M288 BASS OCTAVE DELUXE

Input Impedance: 1 MΩ
Output Impedance: <600 Ω
Noise Floor: 85 dB
Octave Passband: -3 dB, 8 Hz to 46 Hz
Dry Control Range: -∞ to +2.5 dB
Girth Control Range: -∞ to +1 dB
Growl Control Range: -∞ to +6 dB
MID+ Switch Gain: +4 dB to +14 dB
MID+ Switch Frequency: 400 Hz or 850 Hz
Bypass: True Hardwire
Current Draw: 14 mA
Power Supply: 9 volt DC
