Mxr M242 Iso-Brick Pro

Description

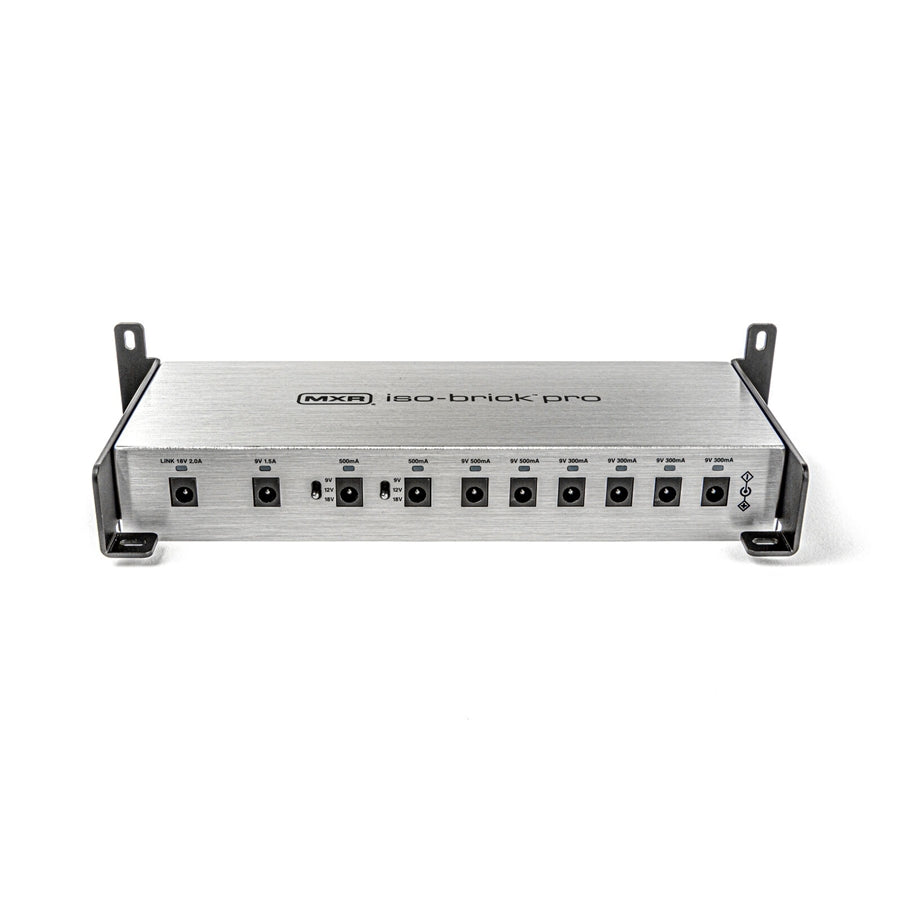

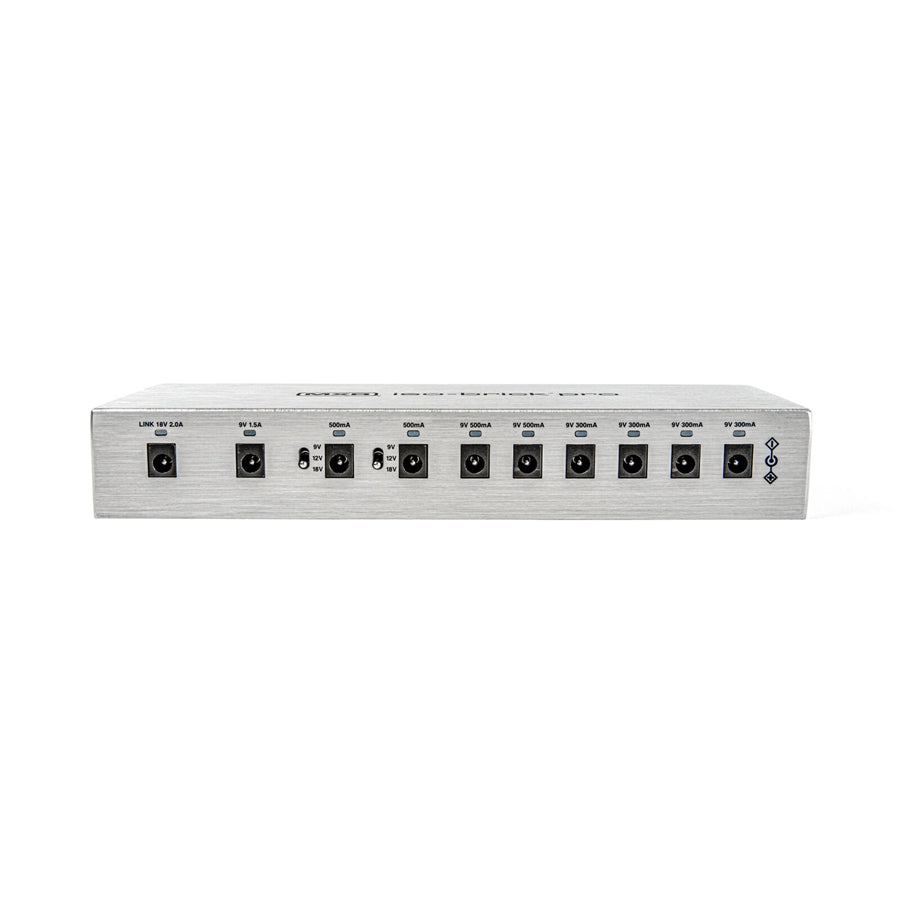

<h1 style="text-align: justify;">The <strong>M242 Iso-Brick Pro</strong> is <strong>MXR</strong>'s pedal power supply that provides clean, consistent power to a wide range of pedal types, all in a sleek, rugged, and compact case.</h1><h2>OVERVIEW OF THE MXR M242 ISO-BRICK PRO POWER SUPPLY</h2><p style="text-align: justify;">The <strong>MXR Iso-Brick Pro</strong> power supply features <strong>10 fully isolated outputs</strong> to preserve signal quality and eliminate ambient noise. To meet a wide range of requirements, this power supply offers six fixed outputs—two 9V DC at 500 mA and four 9V DC at 300 mA—and two outputs with selectable voltage between 9/12/18V DC at 500 mA. Even high-current multi-effects are covered with a dedicated 9V DC at 1.5 A output. The MXR Iso-Brick Pro also features a dedicated 18V DC at 2.0 A output that allows connection to a secondary power source, such as an MXR Iso-Brick or Iso-Brick Mini power supply, increasing the number of pedals powered. With its compact and lightweight design, this power supply is perfect for placement under most commercial pedalboards, and it comes with all the necessary mounting brackets and screws for installation.</p><h2>TECHNICAL SPECIFICATIONS OF THE M242 ISO-BRICK PRO POWER SUPPLY</h2><p><strong>Input:</strong> 100-240V - 50/60 Hz 1.5 A<br /><strong>Output:</strong> 42W MAX; 4x 9V at 300 mA, 2x 9V at 500 mA, 2x 9/12/18V at 500 mA, 1x 9V 1.5 A, 1x 18V 2 A<br /><strong>Dimensions:</strong> 235x88x37 mm (thickness x depth x height)<br /><strong>Weight:</strong> 0.84 Kg</p>
