Description

The M239 Mini Iso-Brick is the compact power supply from MXR by Dunlop, capable of powering up to five pedals and saving pedalboard space.

OVERVIEW OF THE MXR M239 MINI ISO-BRICK

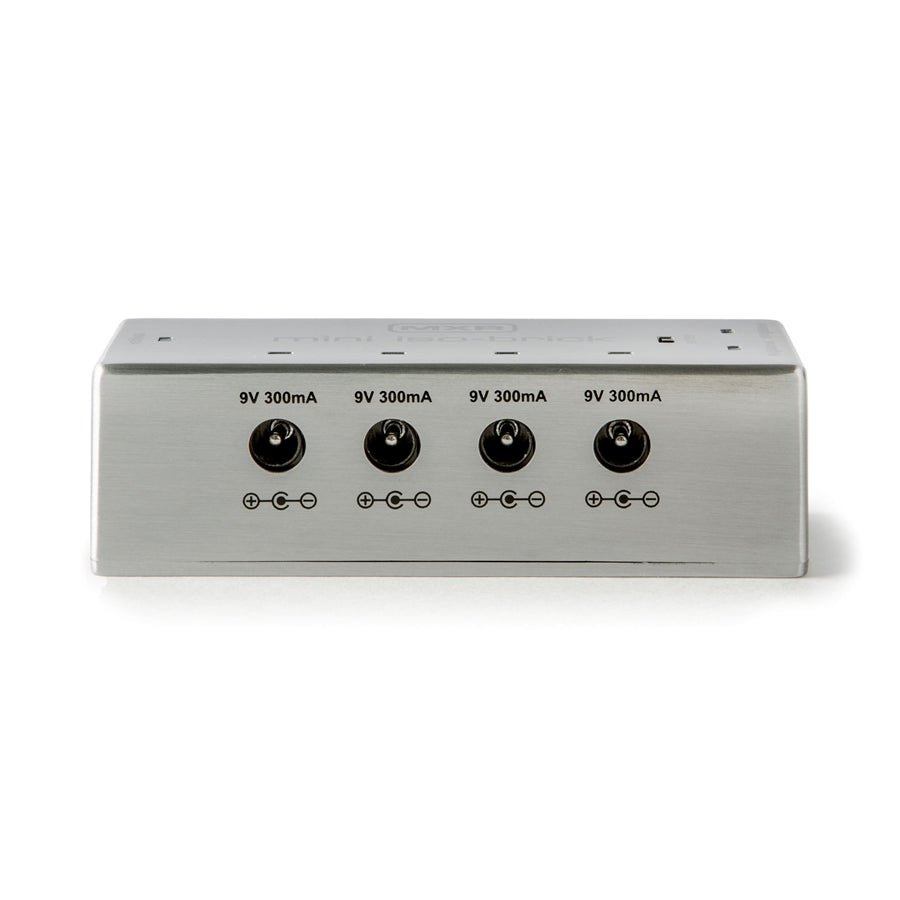

The MXR M239 Iso-Brick is a perfect power supply for powering a small selection of pedals on a compact pedalboard. Thanks to its small footprint, it is convenient to keep on a pedalboard and is capable of powering up to 5 pedals. Each of the five outputs is fully isolated to eliminate any ground loops. Four outputs provide 9 volts of power at 300 mA, while the fifth can be set to provide 9 or 18 volts at 800 mA. Thanks to the generous amount of current available and the ability to handle both negative and positive grounds, these outputs are suitable for almost any pedal, analog or digital. If five outputs are not enough, the Iso-Brick Mini comes with a splitter cable that can be used to connect two pedals to a single output, provided they require the same voltage and the output's current rating is not exceeded. Finally, this power supply features status LEDs for each output.

 TECHNICAL SPECIFICATIONS OF THE MXR M239 MINI ISO-BRICK

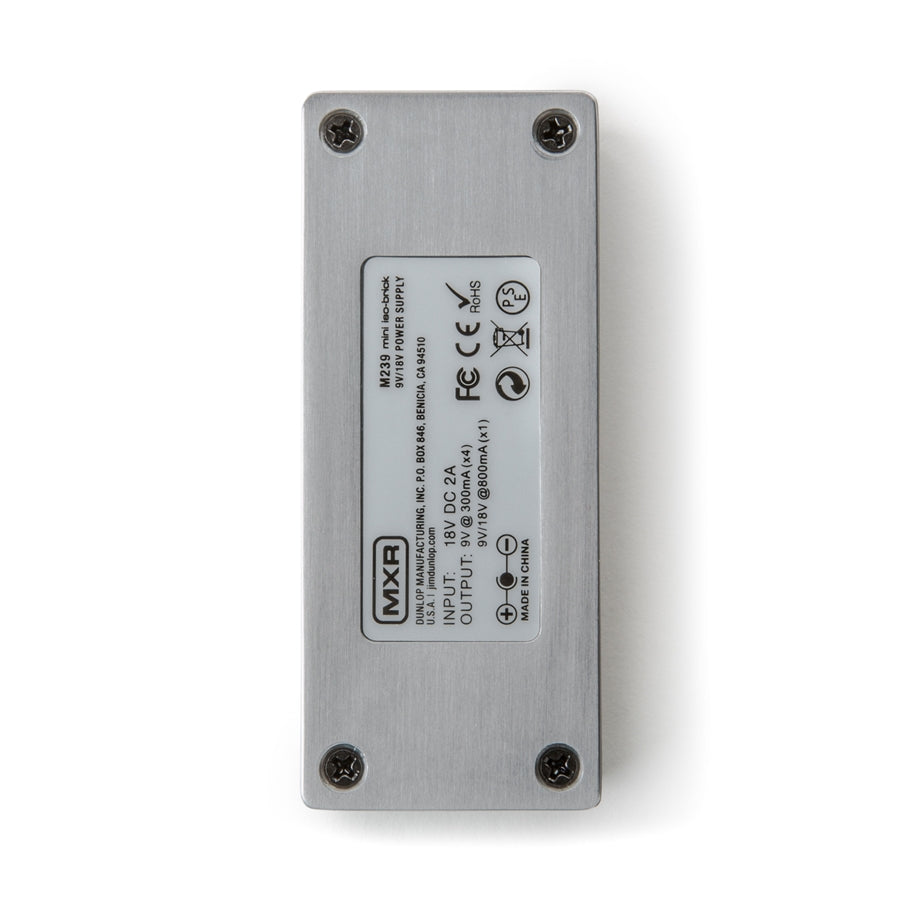

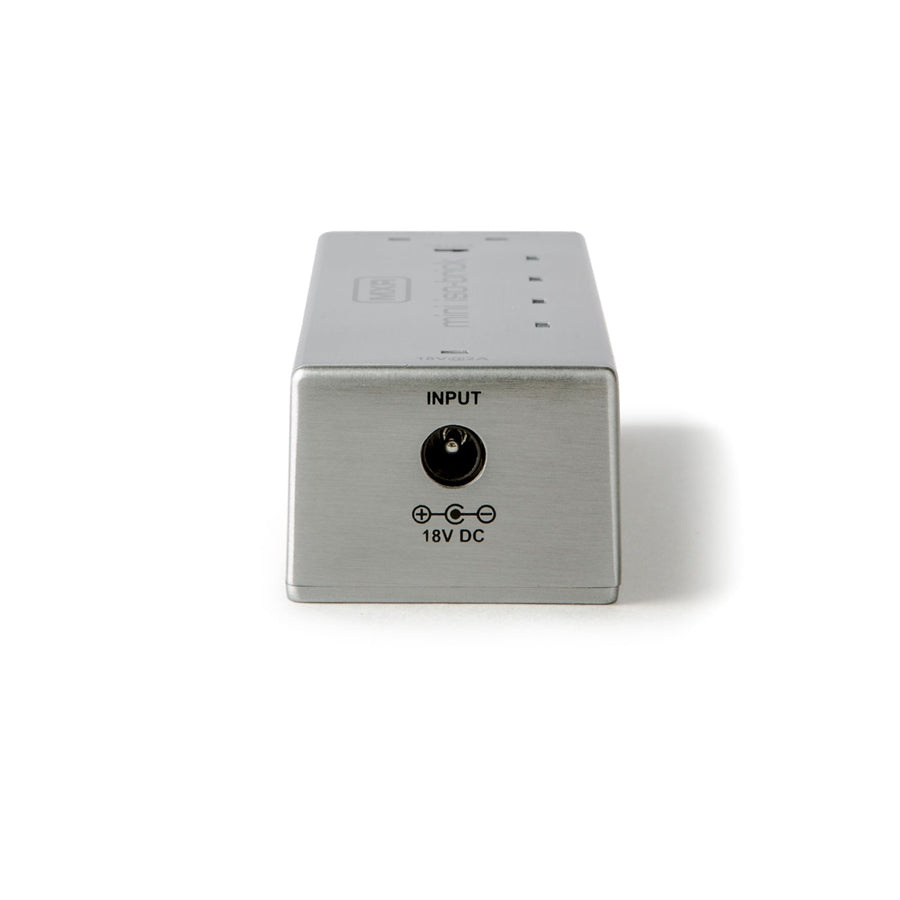

Input: 18V
Output: 1x 9/18V max 800 mA (selectable), 4x 9V max 300 mA each
