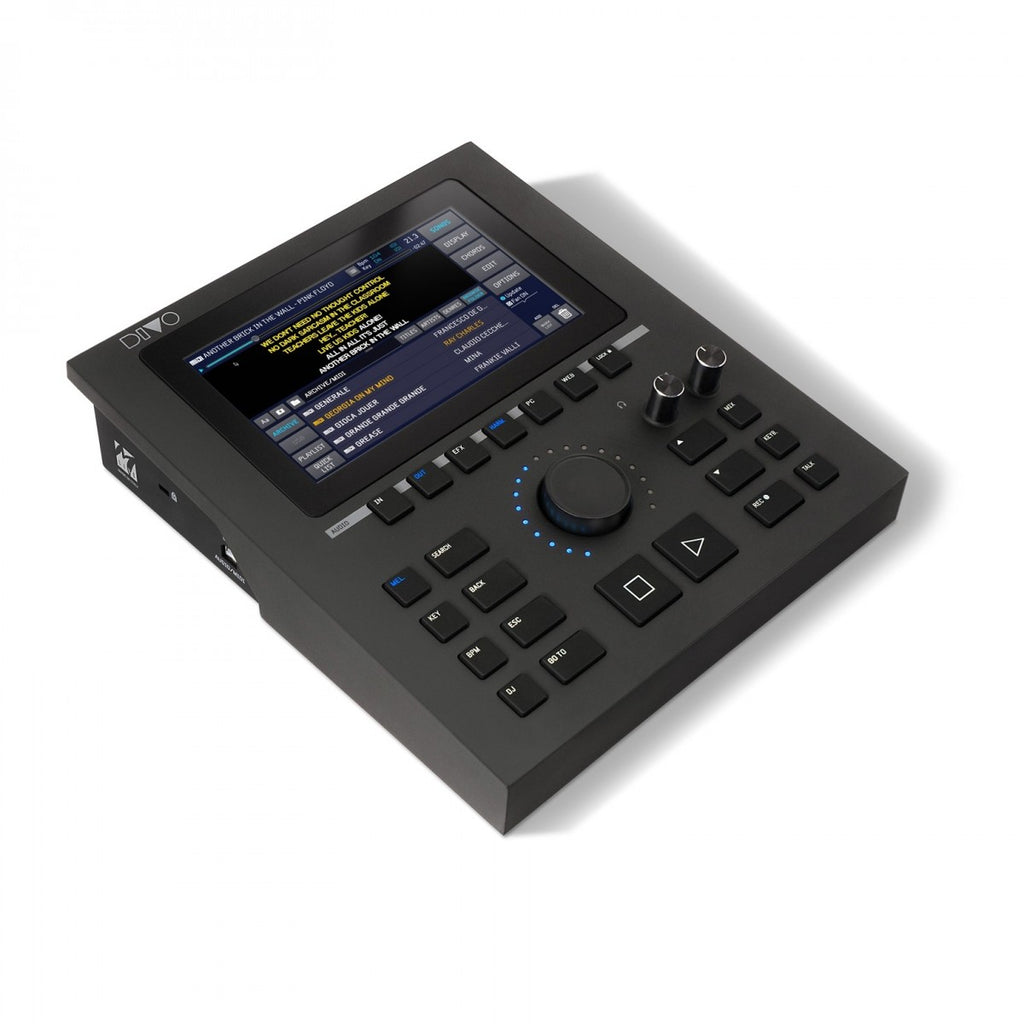

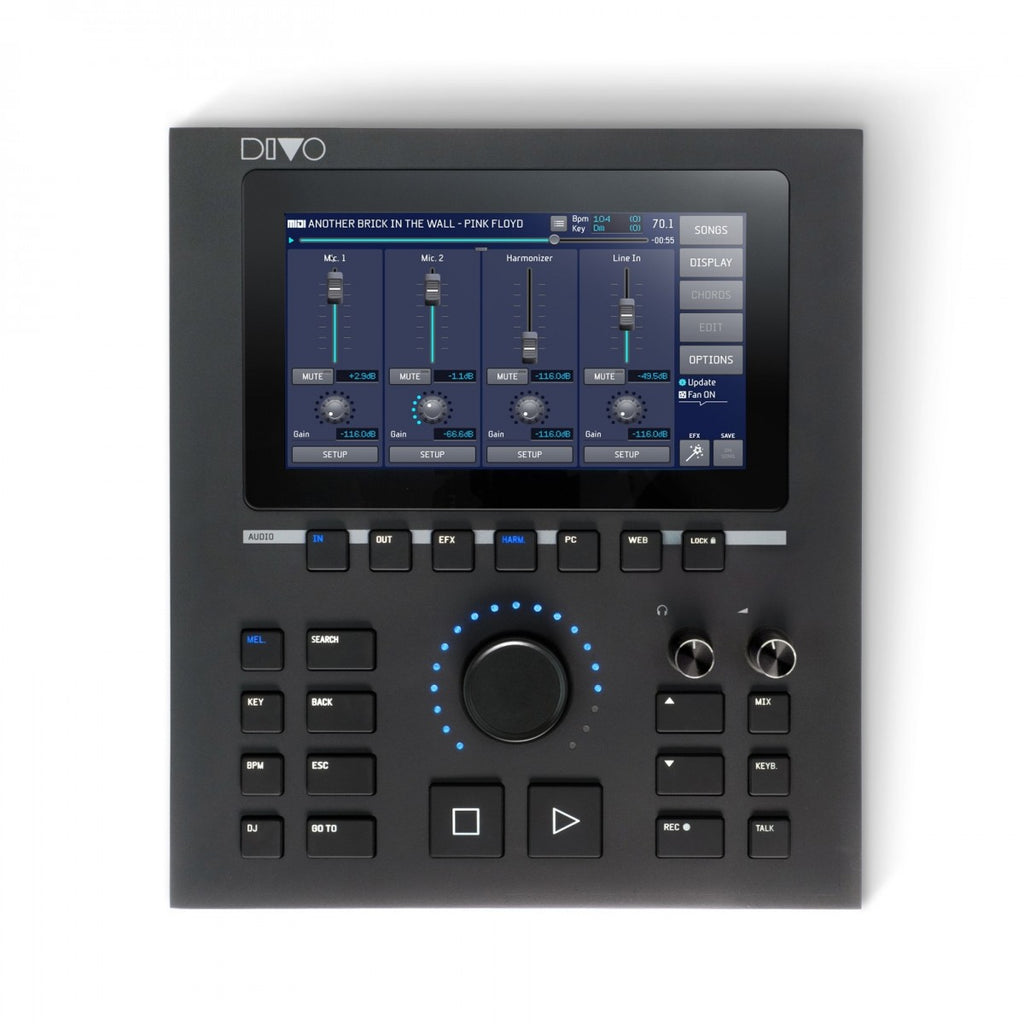

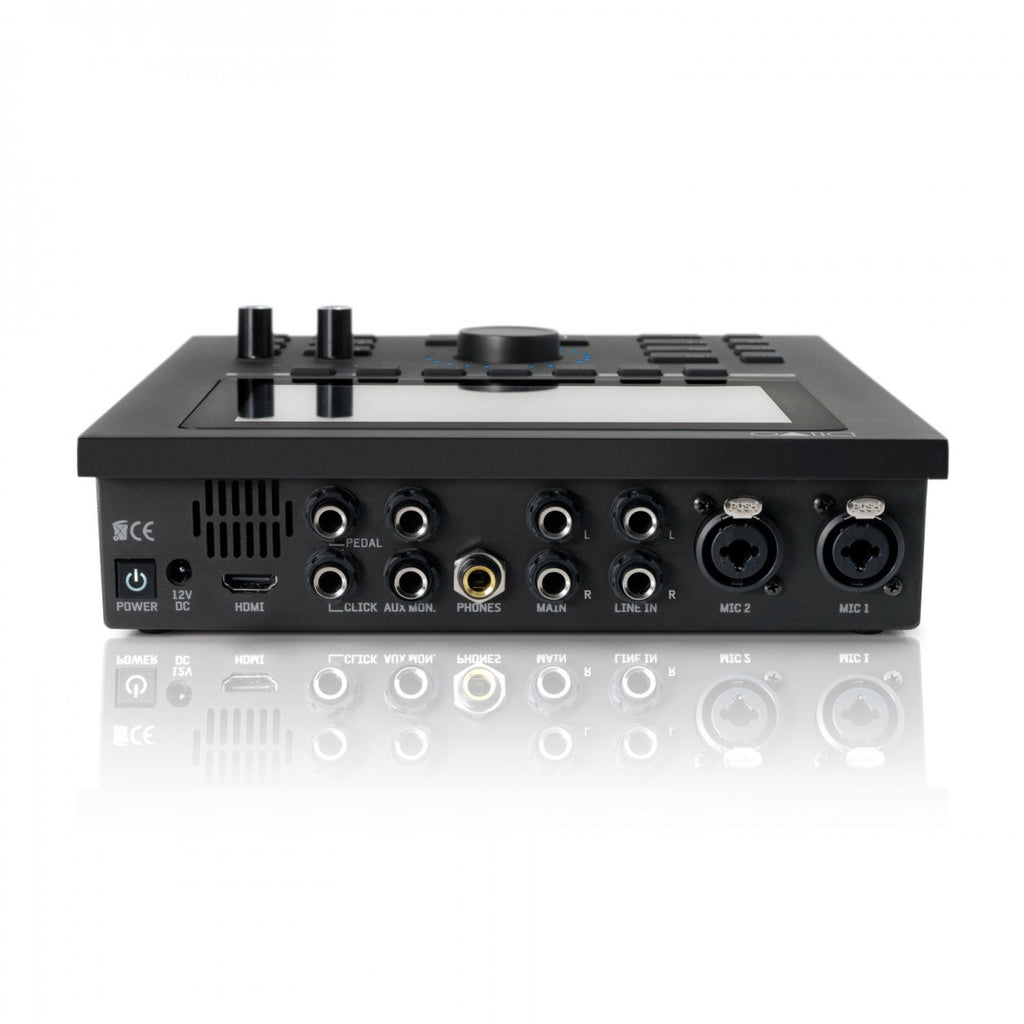

M-Live Divo Pro 512 GB WIFI

Description

M-Live Divo Pro 512 GB WIFI

DIVO is a powerful workstation dedicated to solo performers or small groups.

It is a compact machine that includes all the necessary functions for a live performance with the aid of backing tracks, both MIDI and audio.

With DIVO, there's no need for a mixer, no need for effects, and most importantly, you can do without a computer because it can play any musical backing track. It also has a powerful expander for playing with a master keyboard.

DIVO Tutorial – WEB KEY

Internal memory from 64 GB to 512 GB

Stores over 100,000 files

Digital Mixer 2 mic in – 1 Audio in – Aux Out

Audio Interface 2 out – 2 in

MTA 8-track compatible (in Divo PLUS and PRO versions)

The New DIVO Sound

DIVO contains a brand new database of MIDI sounds, specially designed for live performances using Backing Tracks. In addition to playing MIDI files beautifully, it can be used as an Expander by connecting a USB Master Keyboard.

DIVO offers uncompromising performance in terms of control and management of large music archives.

XYNTHIA2 for maximum performance

Divo is powered by the Xynthia2 operating system, developed by M-Live to achieve maximum performance in terms of archive navigation, WEB connections, function integration and versatility. For a musician, Xynthia2 is ideal and represents the state of the art in terms of quality, ergonomics and reliability.

Xynthia2 is the operating system that allows you to have a powerful player, mixer with effects, MIDI generator, WEB connection and much more in a single machine.

*MTA8 multi-track files are compatible with DIVO Pro and DIVO Plus versions, also available on the M-Live marketplace www.songservice.it.

Audio Interface 2 out – 2 in

Divo includes a powerful Audio interface to connect to your PC and record your performances by applying vocal effects and thus eliminating latency.

With Divo, you can connect two microphones or line instruments and send the audio stream to the PC, receiving an audio stream from the PC on the same communication channel. This allows for a Loop Back function, optimal for the most modern uses.

Specifications

Operating System XYNTHIA2 – by M-Live

Total Polyphony 240

Sounds and Tones 310

Drum Kits 24

Percussion 250

Managed FILES ● MIDI FILE 0-1, KAR, Mf3, Mf4, Mf5 – MP3 –CDG

● MTA 8 tracks (Divo Plus and Divo Pro)

● WAV (Only with AudioPro PlugIn included in Divo PRO)

● Video MP4, MOV in H-264 format

● Video MP4, AVI and MOV (Only with AudioPro PlugIn included in Divo PRO)

Internal Mass Storage ● 64 Gbyte Divo

● 128 Gbyte Divo Plus

● 512 Gbyte Divo Pro

LCD Display 1024 x 600 – 24-bit color, capacitive touch screen with gestures

Network Interface ● RJ45 Ethernet Port - 10/100/1000 Mbps

● WiFi connection via dedicated M-Live USB dongle

● Internet connection via network

Number of Manageable Files Over 120,000 on 128GB internal

File Transfer Wi Fi or Network via LIVE Manager PC/MAC

USB Interface 4 HighSpeed USB 2.0 Ports 480MBps

USB Device Reading USB Drives, External Hard Drives

USB Audio Interface 2 ch out / 2 ch In with Loopback at 48KHz – 24 bit, Type B connector.

Video OUT Connection HDMI output HD/Full HD format (1280 x 720 / 1920 x 1080)

Microphone Inputs ● 2 COMBO Inputs (6.5mm Jack/XLR balanced).

● Phantom power for condenser microphones activated by software

Line Inputs 1 stereo 6.5mm unbalanced jack input

Outputs ● Main stereo 6.5mm balanced jack output

● Aux stereo 6.5mm balanced jack output

● Headphone stereo 6.5mm jack output

● Click mono 6.5mm jack output

Click Management Separate line from audio.

Configurable sound type via software for MIDI files

Mixer Digital 7 digital channels, Internal sampling frequency 48KHz at 24 bit.

Typical S/N ratio 112 dB

Equalizer on Inputs 4-Band Parametric for each channel

Equalizer on Main Output Separate 10-band

Effects Reverb and Delay 2 on independent Microphones

Harmonizer 4 Voices controllable by Midi File or keyboard

Other effects on microphone inputs Compressor – Noise Gate

MIDI Expander Connection with Master Keyboard USB or Accordion via USB HOST. Connection as expander for PC via USB device port (Type B)

Ped. (Pedal) N/O and N/C Switch Pedal

Power Supply AC/DC Adapter mod. 13/90288 INPUT 120/240VAC Freq 50/60Hz Output 12VDC – 2A (+) center

Wi Fi ● DIVO: with optional M-Pen

● DIVO Plus: included

● DIVO Pro: included
